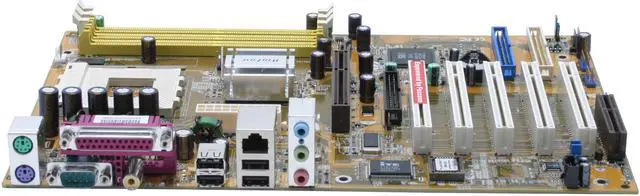

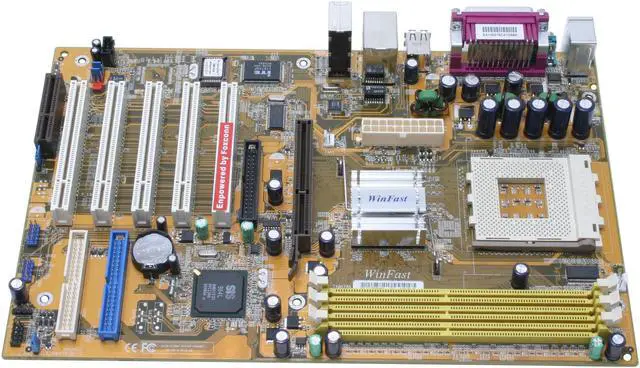

Foxconn 748K7AA 462(A) SiS 748 ATX AMD Motherboard
- SiS 748
- Athlon XP/Sempron
- DDR 400
Specs
Reviews (181)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the Foxconn 748K7AA
| Brand | Foxconn |
|---|---|
| Model | 748K7AA |
| CPU Socket Type | 462(A) |
|---|---|
| CPU Type | Athlon XP/Sempron |
| FSB | 400/333 MHz |
| Chipset | SiS 748 |
|---|---|
| South Bridge | SiS 964L |
| Number of Memory Slots | 3x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 3GB |
| AGP Slots | 1x AGP 8X (1.5v only) |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 5 x PCI Slots |
| Other Slots | 1 x CNR |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | IC Plus IP101 |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 headers support 4 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 11.6" x 8.0" |
| Power Pin | 20 Pin |
| Features | Support SuperBoot, SuperBIOS-Protect, support SuperLogo, SuperUpdate, SuperStep, overclocking |
|---|

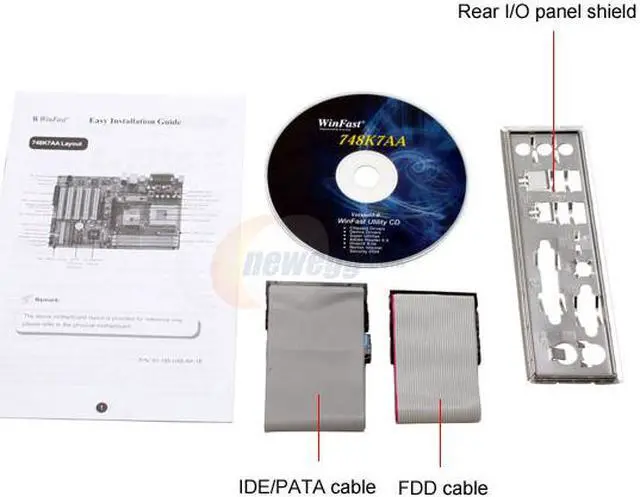

| Package Contents | 748K7AA Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable |
|---|
| First Listed on Newegg | July 05, 2005 |
|---|
