Foxconn 945G7MA-8KS2 LGA 775 Intel 945G Micro ATX Intel Motherboard
- Intel 945G
- Pentium D / Pentium 4 HT / Celeron D
- DDR2 667
Specs
Reviews (20)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn 945G7MA-8KS2
| Brand | Foxconn |
|---|---|
| Model | 945G7MA-8KS2 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium D / Pentium 4 HT / Celeron D |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 945G |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | Intel GMA 950 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 667 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Audio Chipset | Realtek |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |

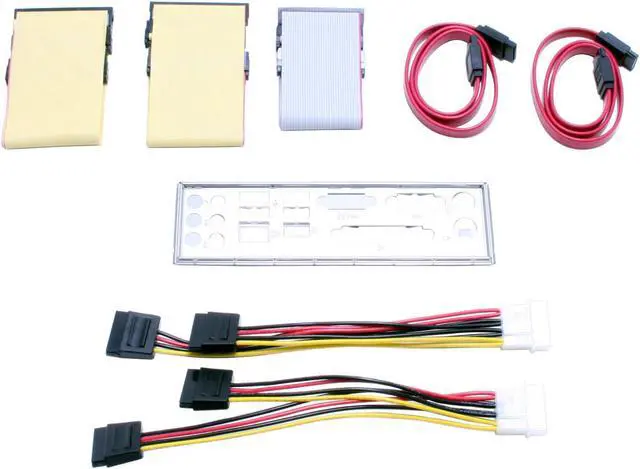

| Package Contents | 945G7MA-8KS2 Driver Disk User Manual Rear I/O Panel Shield 2 x IDE/PATA Cable FDD Cable 2 x SATA Cable 2 x 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | September 08, 2005 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 714-988-9386
- Support Website
- View other products from Foxconn
