Foxconn P4M9007MB-8RS2H LGA 775 VIA P4M900 Micro ATX Intel Motherboard
- VIA P4M900
- Core 2 Extreme / Core 2 Duo / Pentium EE / Pentium
- DDR2 667
Specs
Reviews (8)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn P4M9007MB-8RS2H
| Brand | Foxconn |
|---|---|
| Model | P4M9007MB-8RS2H |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Extreme / Core 2 Duo / Pentium EE / Pentium |
| FSB | 1066/800 MHz |
| Chipset | VIA P4M900 |
|---|---|
| South Bridge | VIA VT8237A |
| Onboard Video Chipset | S3 Chrome9 IGP |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 667 |
| Maximum Memory Supported | 4GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1 |
| Audio Chipset | Realtek ALC883 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8100C |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.0" |
| Power Pin | 24 Pin |

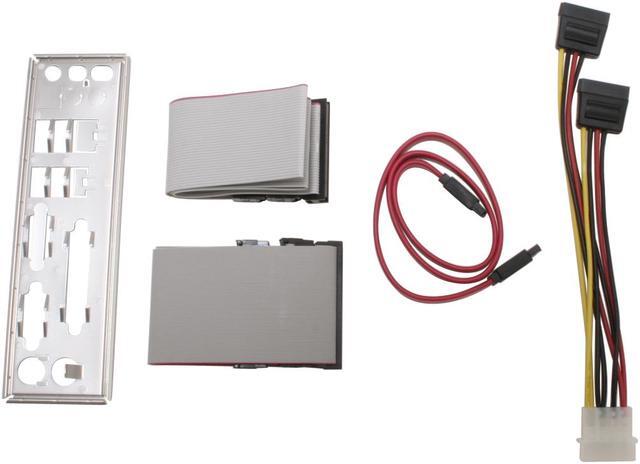

| Package Contents | P4M9007MB-8RS2H Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Date First Available | February 13, 2007 |
|---|
