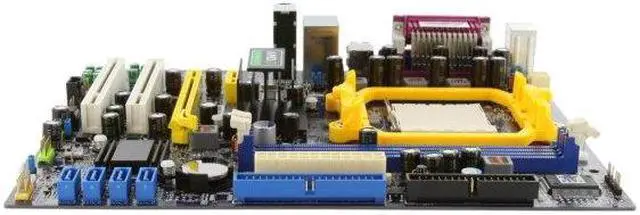

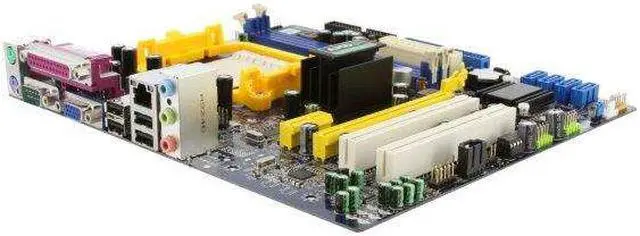

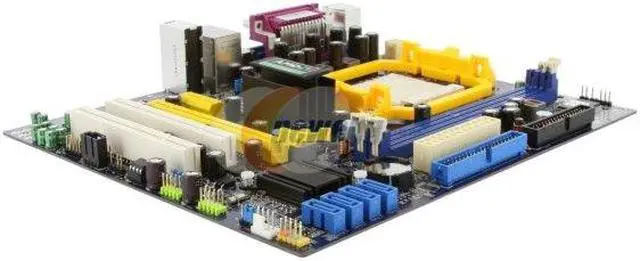

Foxconn A6VMX2-K AM2+/AM2 AMD 690V Micro ATX AMD Motherboard
- AMD 690V
- Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
- DDR2 800/667/533
Specs
Reviews (21)
Learn more about the Foxconn A6VMX2-K
| Brand | Foxconn |
|---|---|
| Model | A6VMX2-K |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron |
| FSB | 1000 MHz |
| Chipset | AMD 690V |
|---|---|
| South Bridge | ATI SB600 |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800/667/533 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | ATI Radeon Xpress 1200 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support additional 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.2" |
| Power Pin | 24 Pin |
| Date First Available | September 04, 2009 |
|---|
