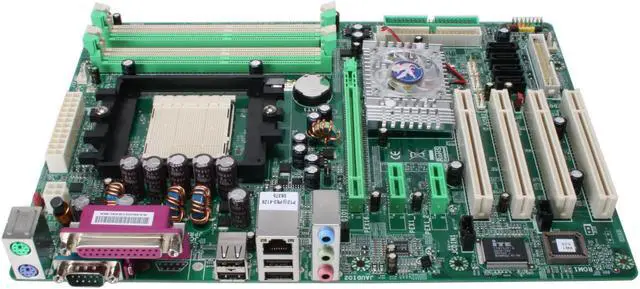

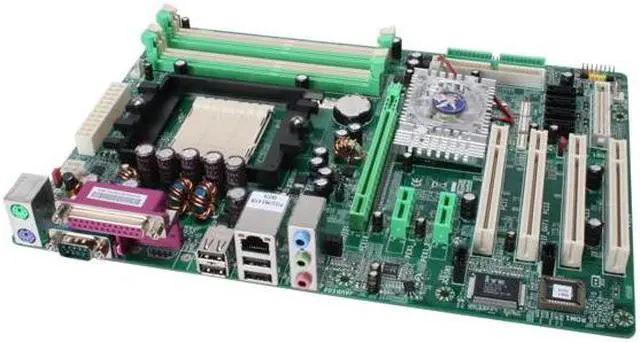

MACH SPEED MSNV-939 939 NVIDIA nForce4 ATX AMD Motherboard
- NVIDIA nForce4
- Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
- DDR 400
Specs
Reviews (10)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MACH SPEED MSNV-939

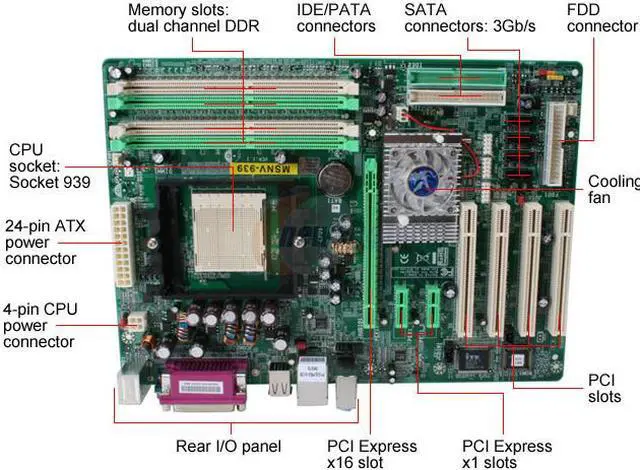

| Brand | MACH SPEED |
|---|---|
| Model | MSNV-939 |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron |
| FSB | 1000 MHz |
| Chipset | NVIDIA nForce4 |
|---|
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 4 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201CL |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 11.6" x 8.2" |
| Power Pin | 24 Pin |

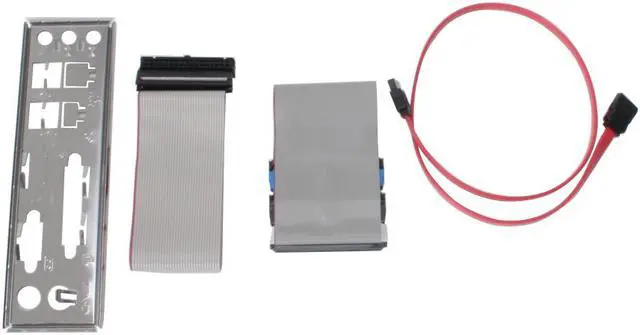

| Package Contents | MSNV-939 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable |
|---|
| First Listed on Newegg | July 24, 2007 |
|---|
