EVGA 122-CK-NF68-A1 LGA 775 NVIDIA nForce 680i SLI ATX Intel Motherboard

(699) Write a Review
  • NVIDIA nForce 680i SLI
  • Core 2 Duo / Core 2 Extreme / Core 2 Quad
  • DDR2 800 / 1200(OC)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (699)

Learn more about the EVGA 122-CK-NF68-A1

Model
Brand EVGA
Model 122-CK-NF68-A1
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Core 2 Extreme / Core 2 Quad
FSB 1333/1066 MHz
Chipsets
Chipset NVIDIA nForce 680i SLI
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800 / 1200(OC)
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCIE x16
1 x PCIE Graphics expansion slot
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/0+1
Onboard Audio
Audio Chipset Azalia (HDA)
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin

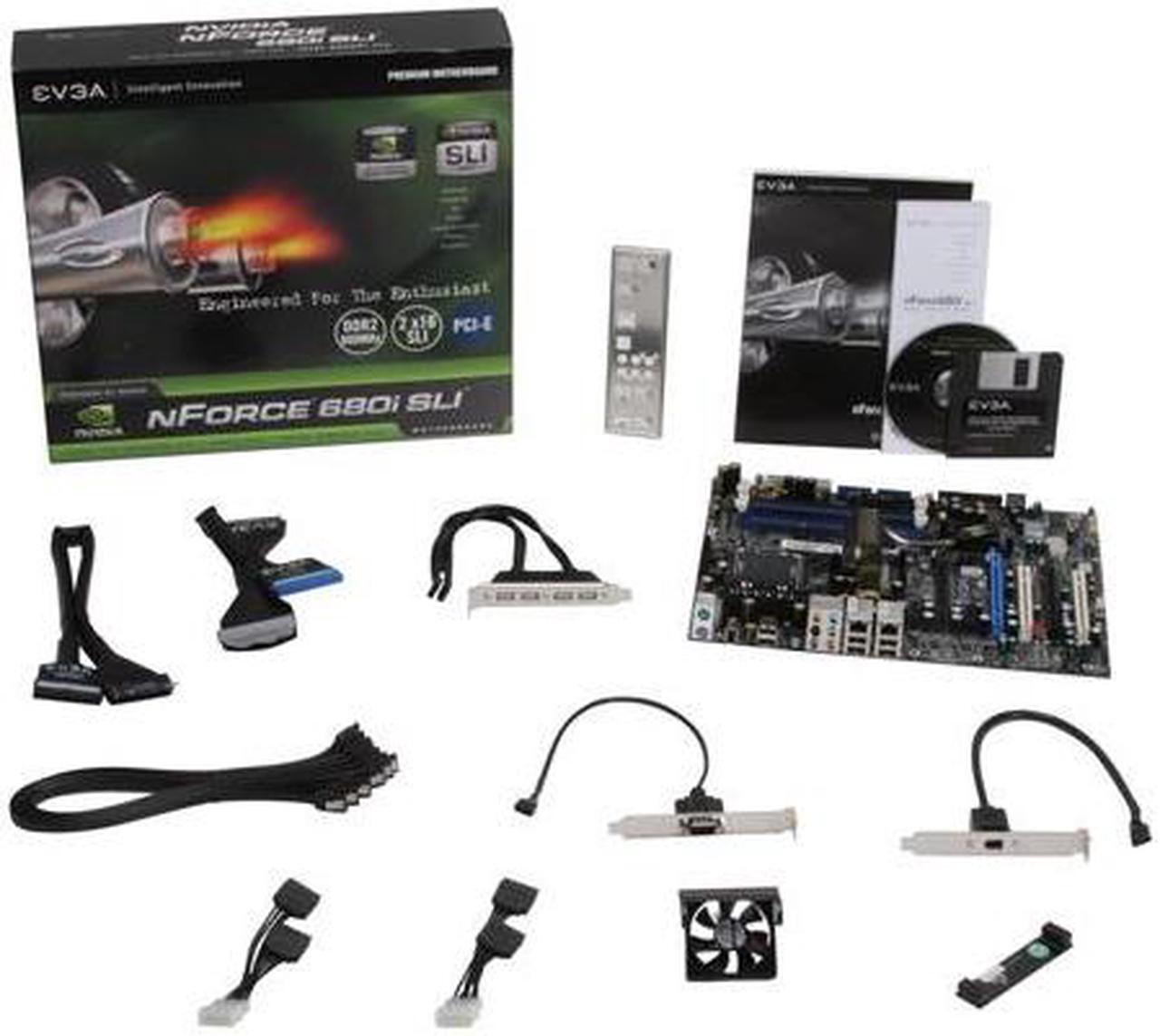

Packaging
Package Contents 122-CK-NF68-A1
Driver Disk
User Manual
Floppy Drive Diskette
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
6 x SATA Cable
3 x 4-pin to SATA Power Cable
SLI Bridge
USB Bracket
Com Bracket & IEEE 1394 Brachet
Fan
Additional Information
Date First Available March 05, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
