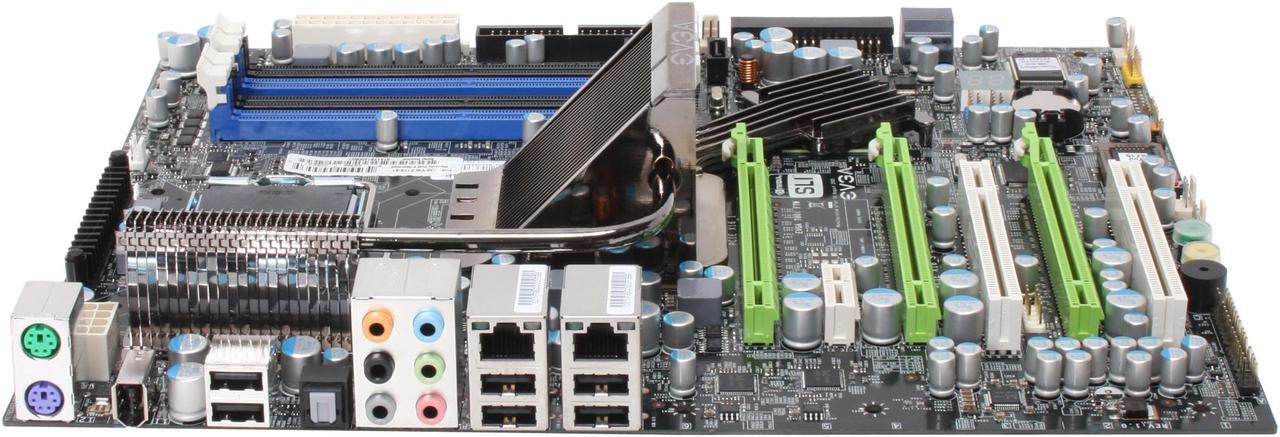

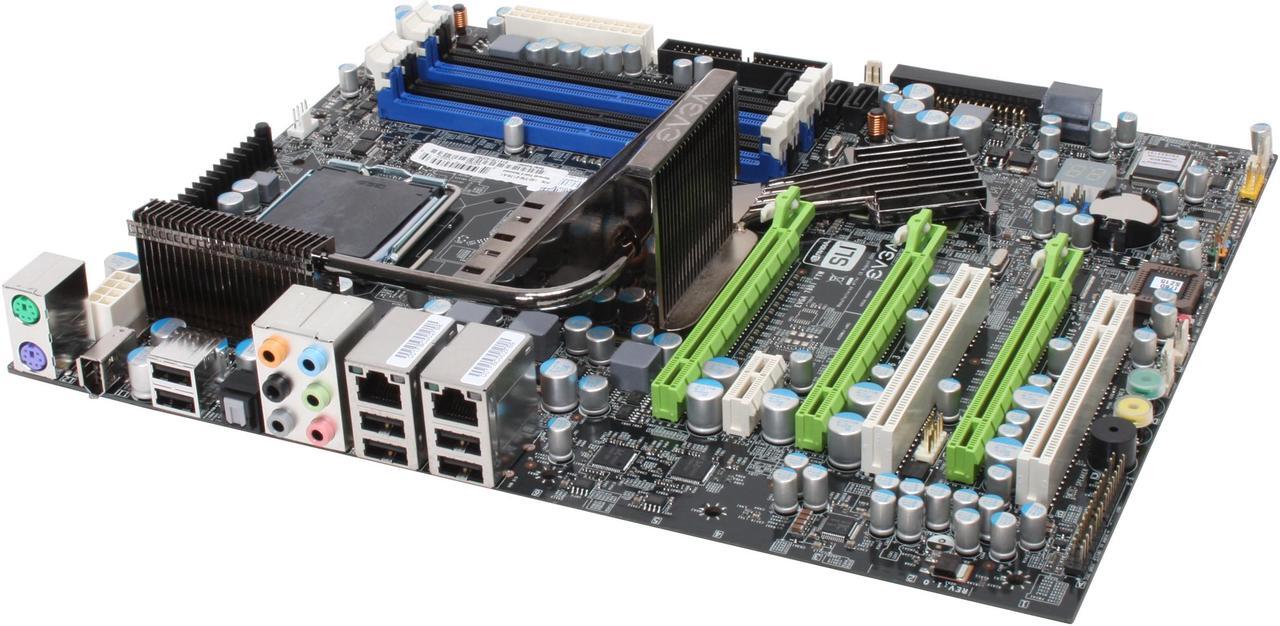

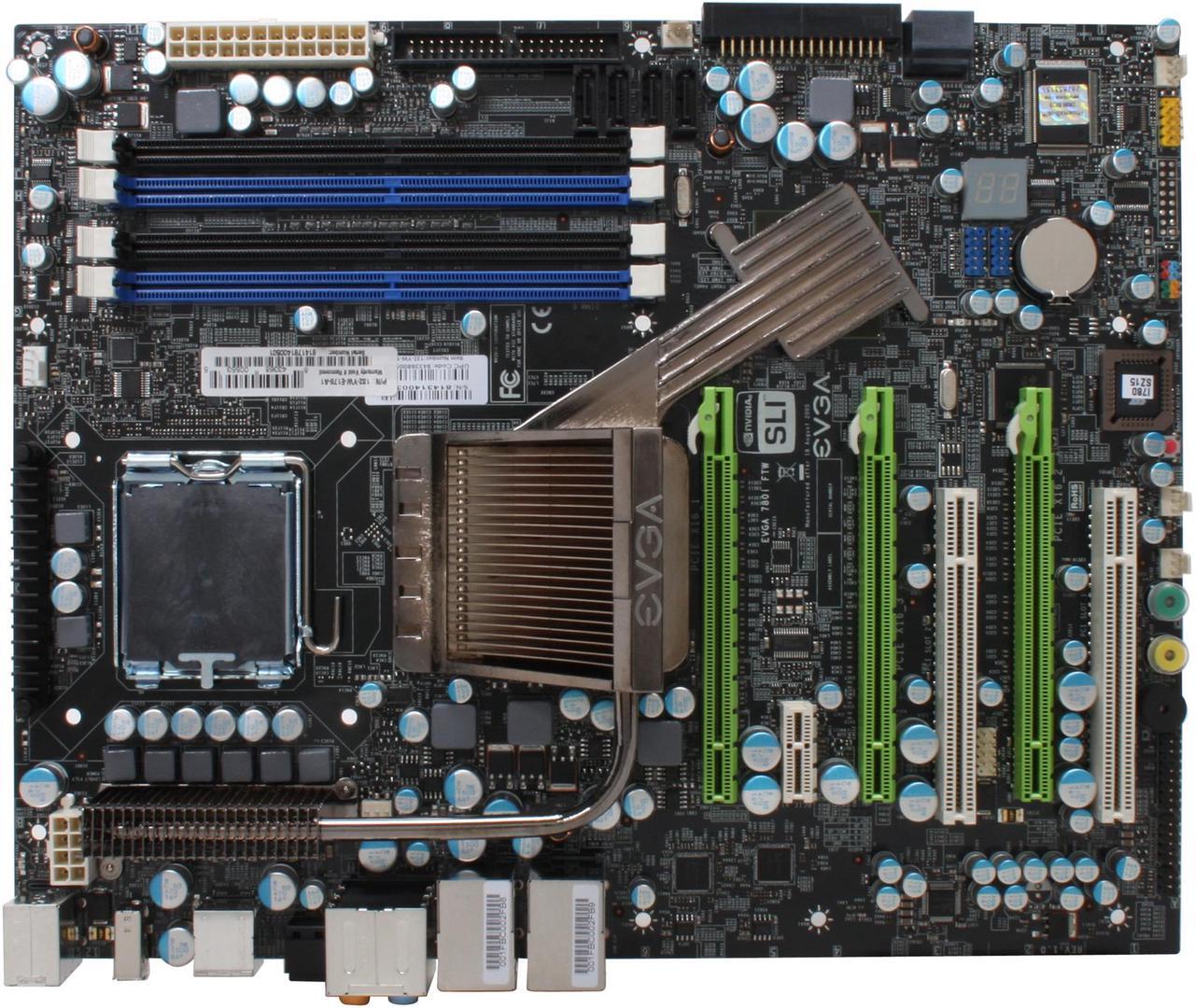

EVGA 132-YW-E178-A1 LGA 775 NVIDIA nForce 780i SLI FTW ATX Intel Motherboard

(192) Write a Review
  • LGA 775
  • NVIDIA nForce 780i SLI
  • 4×240pin DDR2 1066
  • Up to 1200MHz SLI-Ready Memory with EPP
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Overview
Specs
Reviews (192)
From one of the premiere nVIDIA card manufacturers comes a motherboard based on nVIDIA technology. The board is based on the nForce 780i SLI MCP and supports Intel processors up to the Core 2 Quad and Core 2 Extreme at FSB speeds up to 1333MHz. You can install up to 8GB of DDR2 1066 memory.
There are 3 PCIe x16 slots supporting 3-way SLI video. There is no downgrade of slot speed with this board, the 780i supports full x16 bandwidth across all three slots to take full advantage of your video cards.
Included in the 780i MCP is native support for Gigabit Ethernet and RAID. Having these technologies native increases throughput by eliminating any bottlenecks on the motherboard. The Dual Gigabit ports support DualNet technology for a fast 2GB network connection. RAID levels 0, 1, 0+1, and 5 are supported and can be changed on the fly with MediaShield.
  • neweggNVIDIA nForce 780i SLI MCP for Intel ProcessorsBased on the NVIDIA nForce 780i SLI chipset, the EVGA 132-YW-E178-A1 supports Intel LGA 775 (Socket T) processors including the Core 2 Extreme, Core 2 Quad, Core 2 Duo and Pentium D series as well as the next generation Intel 45nm processors.
  • neweggNVIDIA 3-way SLI TechnologyNVIDIA 3-way SLI (Scalable Link Interface) Technology allows up to three graphics cards to run in parallel for as much as 2.8X the performance of a single card configuration, taking your gaming experience to the next level with mind-blowing frame rates and resolutions.
  • neweggNVIDIA MediaShield TechnologyThe MediaShield Storage supports both SATA and RAID. The revolutionary Serial ATA interface provides scalable performance for storage devices. SATA technology enables easy-to-install, high-performance and low-power hard drives. Six 3Gb/s SATA ports support RAID 0, 1, 0+1, 5 and JBOD for better performance and data security.
  • neweggDual Gigabit LANThe integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. Dual Gigabit LAN means rapid data transfers from WAN to LAN without any added arbitration or latency.
  • neweggIEEE 1394a SupportIEEE 1394 is a widely used standard of interface between personal computers and digital AV equipment. With IEEE 1394a you can easily connect digital devices such as a digital camcorder to the IEEE 1394a port provided on this motherboard for up to 400Mbps data transfer speeds.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
