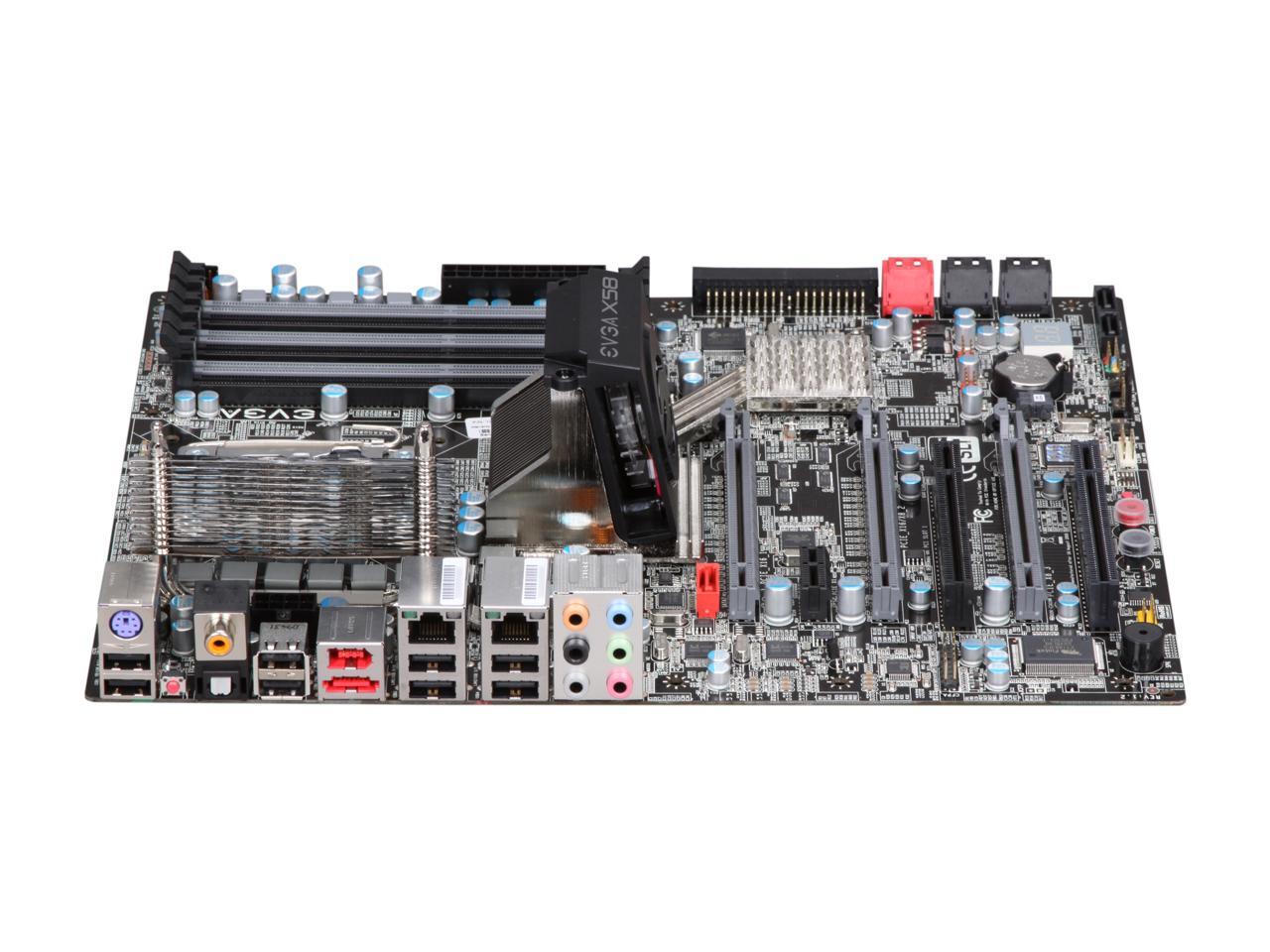

You've used EVGA's video cards for running down your in-game enemies; now add their motherboard to your arsenal. The board is based on the Intel X58 platform and supports the Intel Core i7 processor. You can install up to 24GB of triple channel DDR3 1600+ memory to run the front side bus at full speed.
The EVGA X58 SLI Motherboard features an incredible amount of ways to expand your continually growing system. With up to a possible total of 12 USB 2.0 ports available, you can easily add just about any USB device you like. The EVGA X58 SLI features a total of 10 SATA II ports including one conveniently placed e-SATA port that will go perfect with your external hard drive.
The EVGA Enthusiast board layout makes sure 2-Way and 3-Way SLI are compatible with all chassis. With all these features and much more, it's no wonder why EVGA products are for those who demand no less that the ultimate in performance!
You've used EVGA's video cards for running down your in-game enemies; now add their motherboard to your arsenal. The board is based on the Intel X58 platform and supports the Intel Core i7 processor. You can install up to 24GB of triple channel DDR3 1600+ memory to run the front side bus at full speed.
The EVGA X58 SLI Motherboard features an incredible amount of ways to expand your continually growing system. With up to a possible total of 12 USB 2.0 ports available, you can easily add just about any USB device you like. The EVGA X58 SLI features a total of 10 SATA II ports including one conveniently placed e-SATA port that will go perfect with your external hard drive.
The EVGA Enthusiast board layout makes sure 2-Way and 3-Way SLI are compatible with all chassis. With all these features and much more, it's no wonder why EVGA products are for those who demand no less that the ultimate in performance!
Intel Core i7 SupportBased on the X58 chipset, the EVGA E758-A1 supports Intel’s latest generation Core i7 processors in LGA 1366 package, providing unprecedented computing power to match the performance levels you are looking for.
Scalable DDR3 MemorySix 240-pin DIMM sockets support up to 24GB of DDR3 memory at speeds of up to 1600MHz, ensuring ample capacity for any application.
SLI and CrossFireX SupportThe EVGA E758-A1 provides leading-edge graphics performance and flexibility with support for NVIDIA 2-way/3-way SLI and ATI CrossFireX Multi-GPU Technology.
Learn more about the EVGA 132-BL-E758-A1
Model
Brand
EVGA
Model
132-BL-E758-A1
Supported CPU
CPU Socket Type
LGA 1366
CPU Type
Core i7 (LGA1366)
FSB
QPI 6.4GT/S
Chipsets
Chipset
Intel X58
South Bridge
Intel ICH10R
Onboard Video
Onboard Video Chipset
None
Memory
Number of Memory Slots
6x240pin
Memory Standard
DDR3 1600/1333
Maximum Memory Supported
24GB
Channel Supported
Triple Channel
Expansion Slots
PCI Express 2.0 x16
1 x PCIe x16, 1 x PCIe x8/x16, 1 x PCIe x8
PCI Express x1
1 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
PATA
1 x ATA133 2 Dev. Max
SATA RAID
0/1/0+1/5/JBOD
Onboard Audio
Audio Channels
8 Channels
Onboard LAN
Max LAN Speed
2 x 1Gbps
Rear Panel Ports
Back I/O Ports
1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 8 x USB 2.0/1.1
PS/2
1
USB 1.1/2.0
8 x USB 2.0
IEEE 1394
1 x IEEE 1394a
eSATA
1 x eSATA 3Gb/s
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
4 x USB 2.0
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
Enthusiast Layout supporting 2-Way, 3-Way SLI and CrossfireX
EVGA Vdroop control: Stabilizes voltage and ensures the maximum stability when overclocking.
Onboard Clear CMOS, Power and reset buttons with reset buton showing HDD activity
EVGA E-LEET Tuning Utility gives you quick access to overclocking controls without going into Bios.
Onboard Debug LED shows CPU temperature.
Packaging

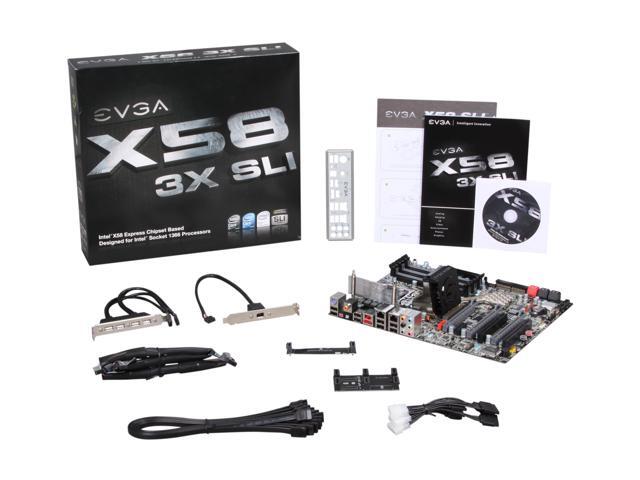

Package Contents
132-BL-E758-A1 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable 3-way & 2-way SLI Bridge USB Bracket IEEE 1394 Bracket COM Bracket
