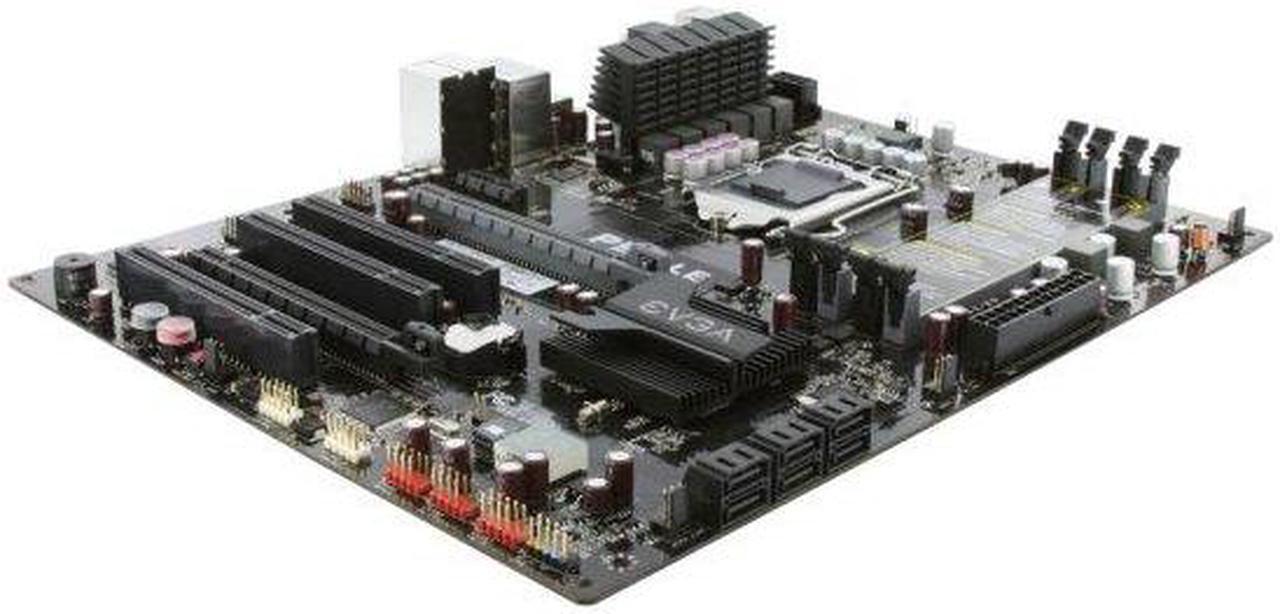

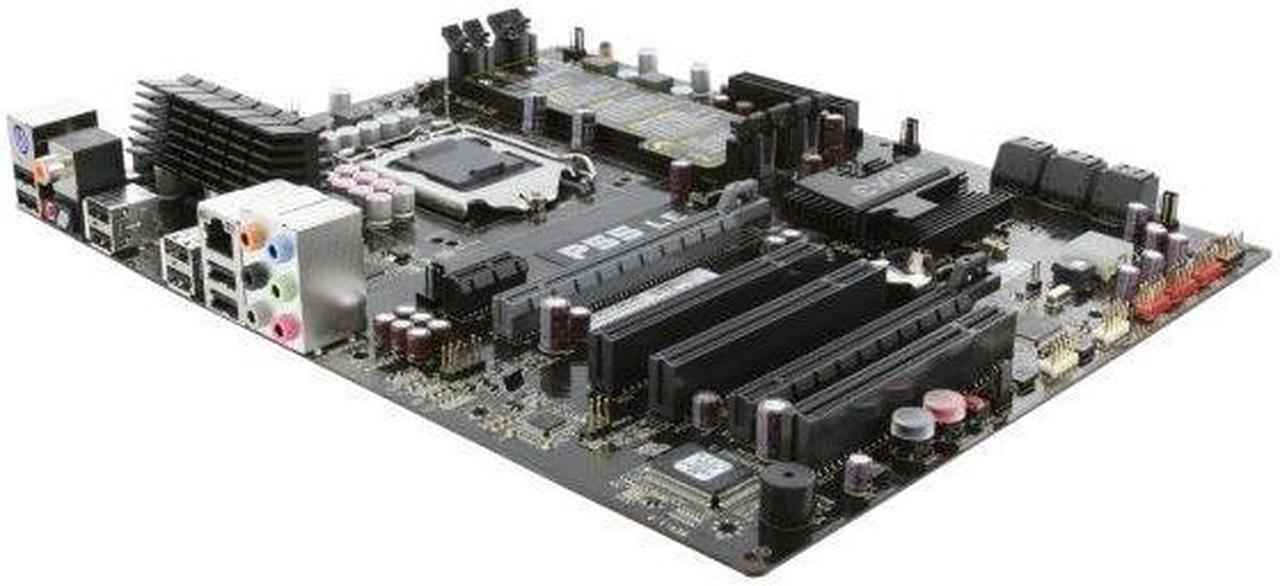

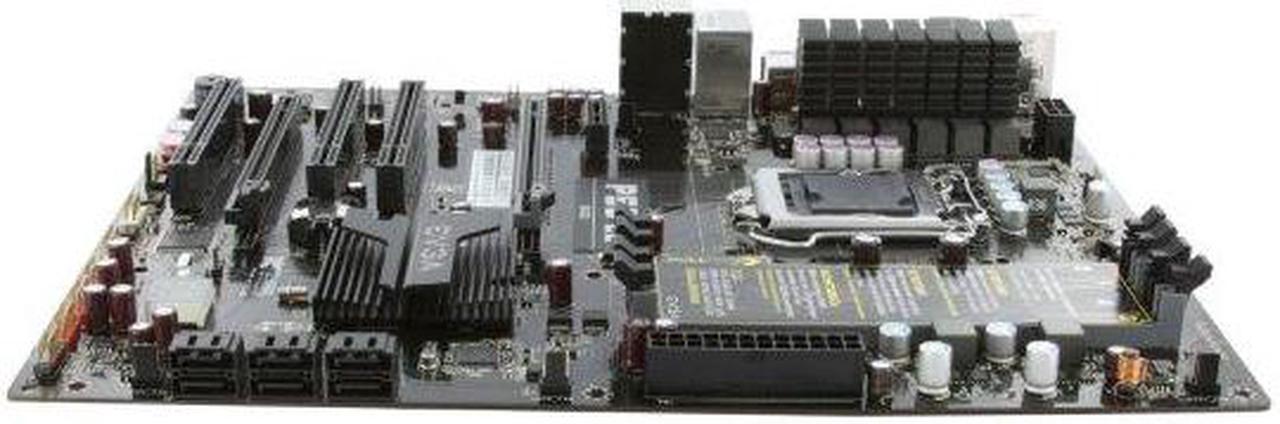

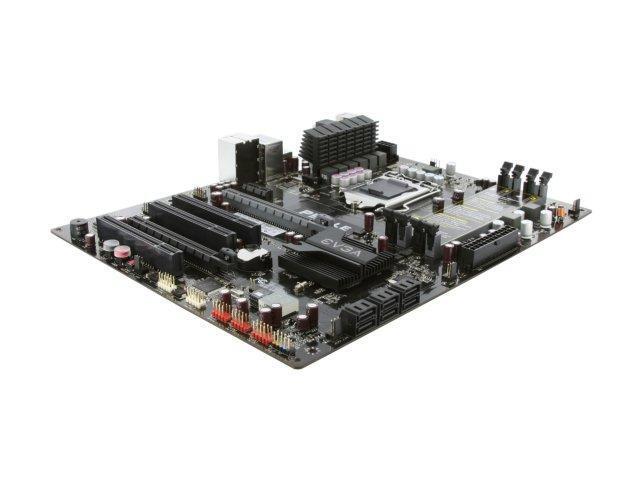

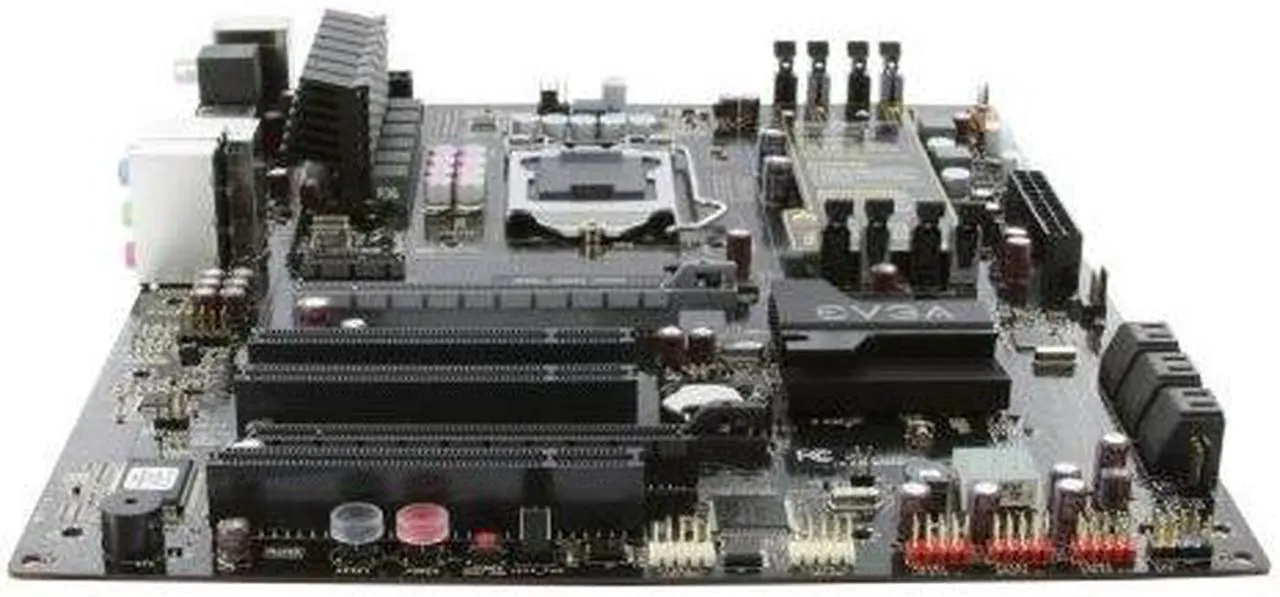

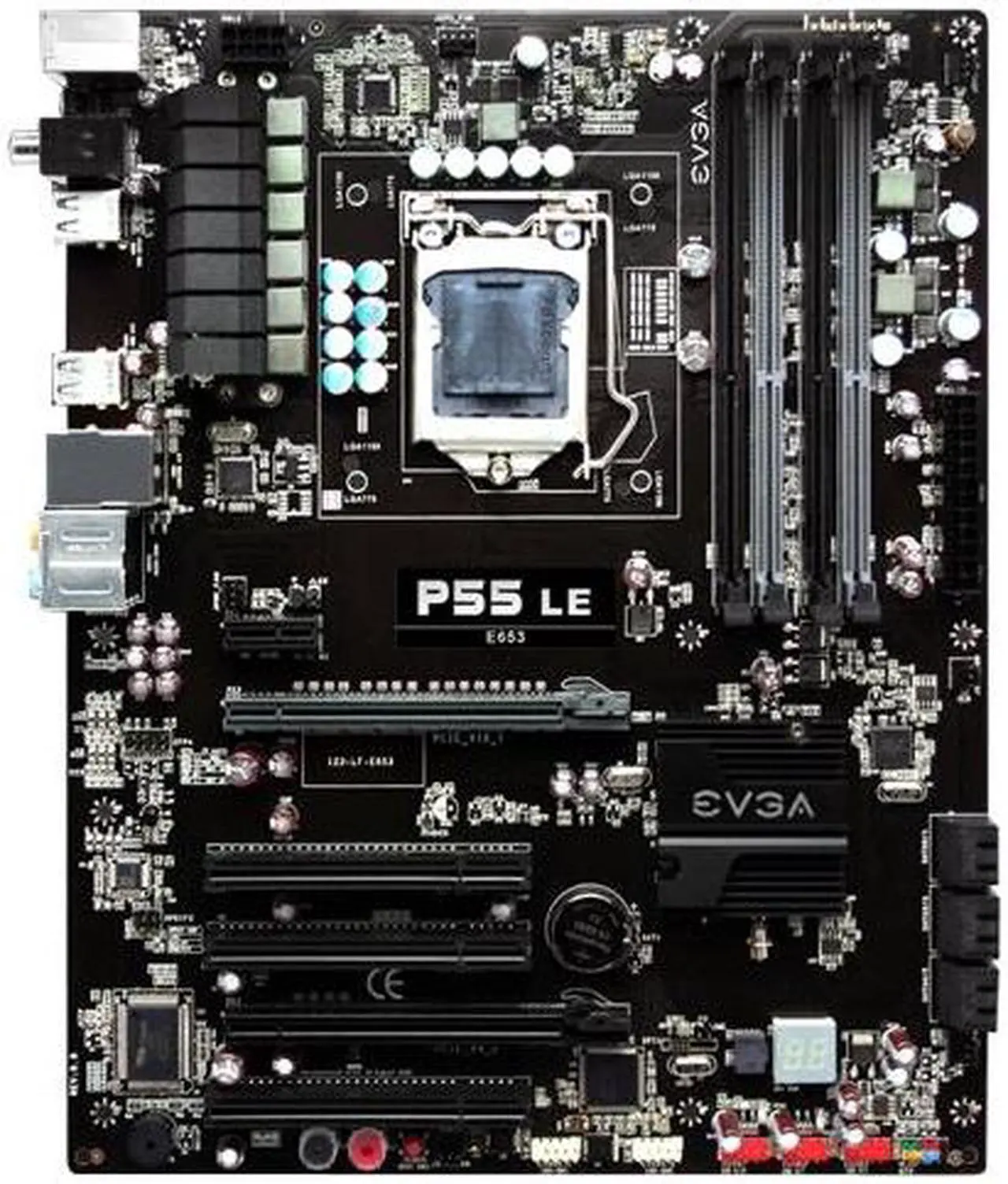

EVGA P55 LE 123-LF-E653-KR LGA1156 Intel P55 ATX Intel Motherboard

OUT OF STOCK.
  • LGA 1156
  • Intel P55
  • 4×240pin DDR3 2000MHz+
Specs
Reviews

Learn more about the EVGA 123-LF-E653-KR

Model
Brand EVGA
Model 123-LF-E653-KR
Supported CPU
CPU Socket Type LGA 1156
CPU Type Core i7 / i5 / i3 / Pentium (LGA1156)
Chipsets
Chipset Intel P55
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR3 2000MHz+
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 (x16, x4)
PCI Express x1 1 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/0+1/5/JBOD
Onboard Audio
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1
USB 1.1/2.0 8 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 2 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Additional Information
Date First Available September 04, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
