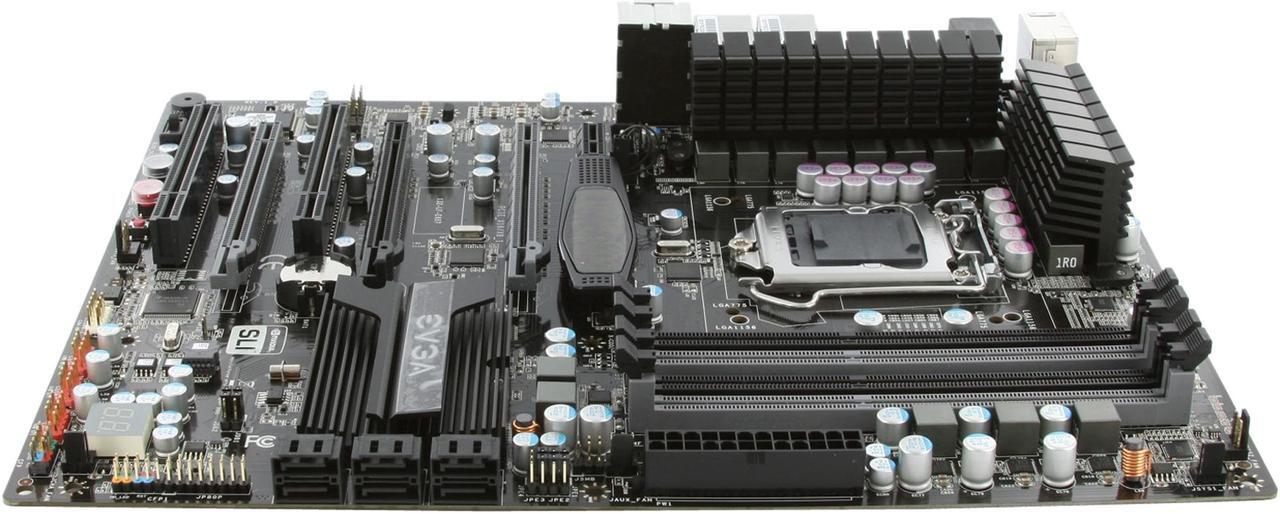

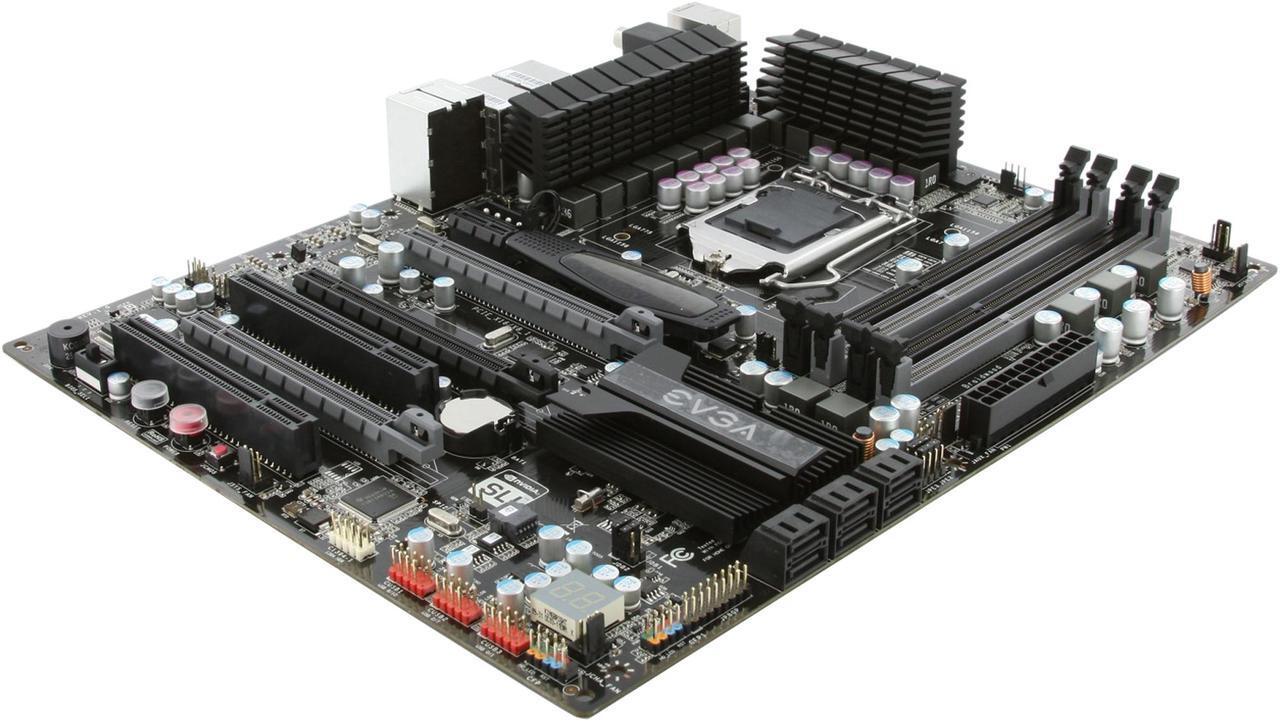

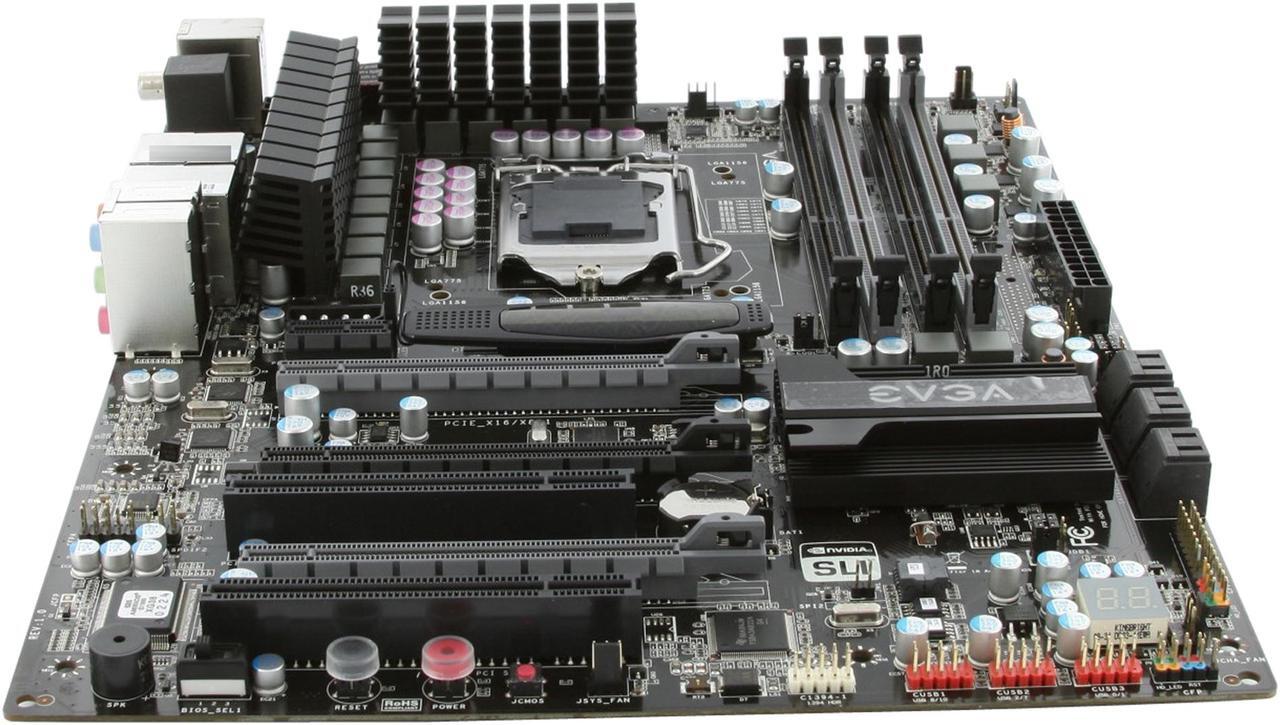

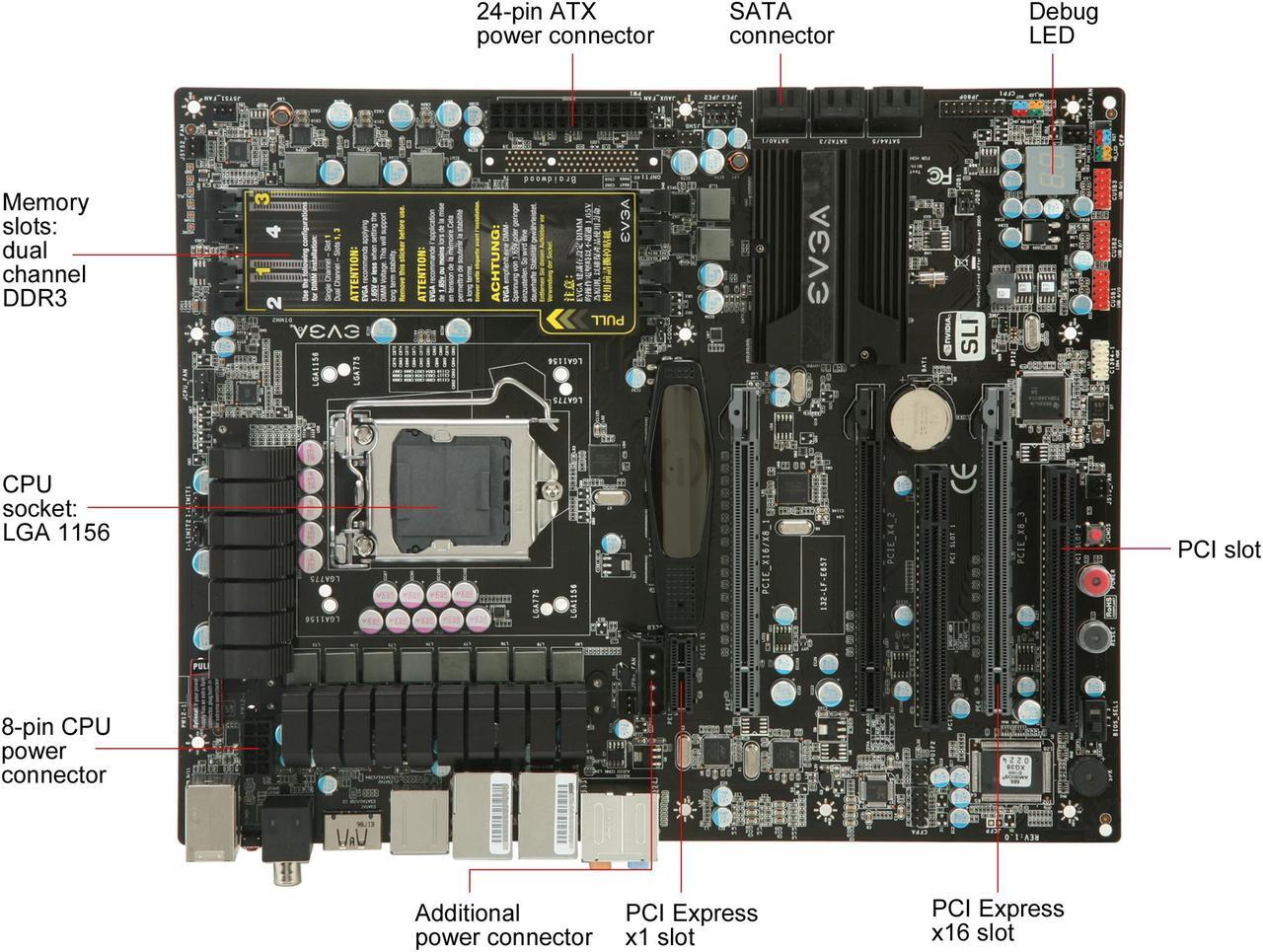

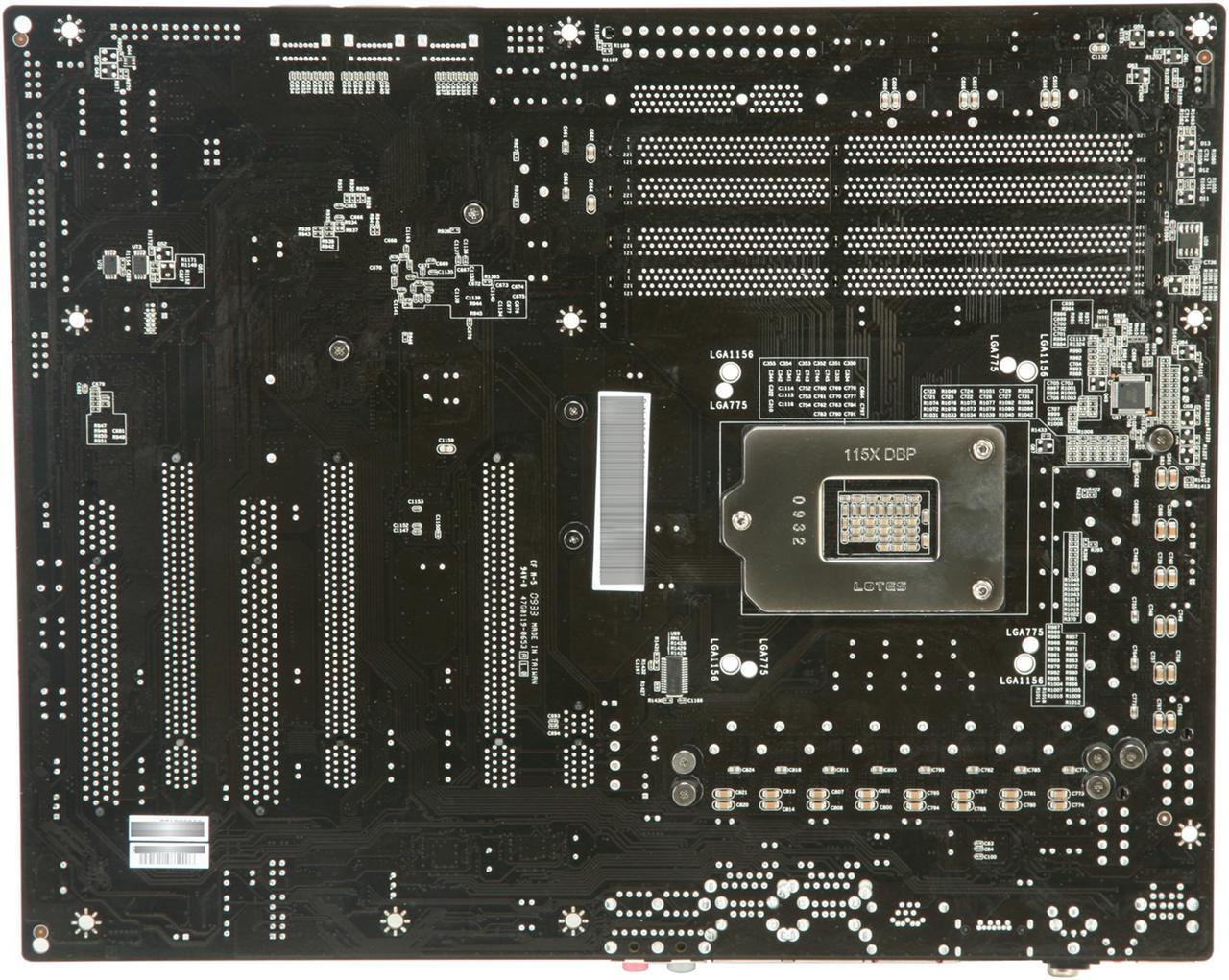

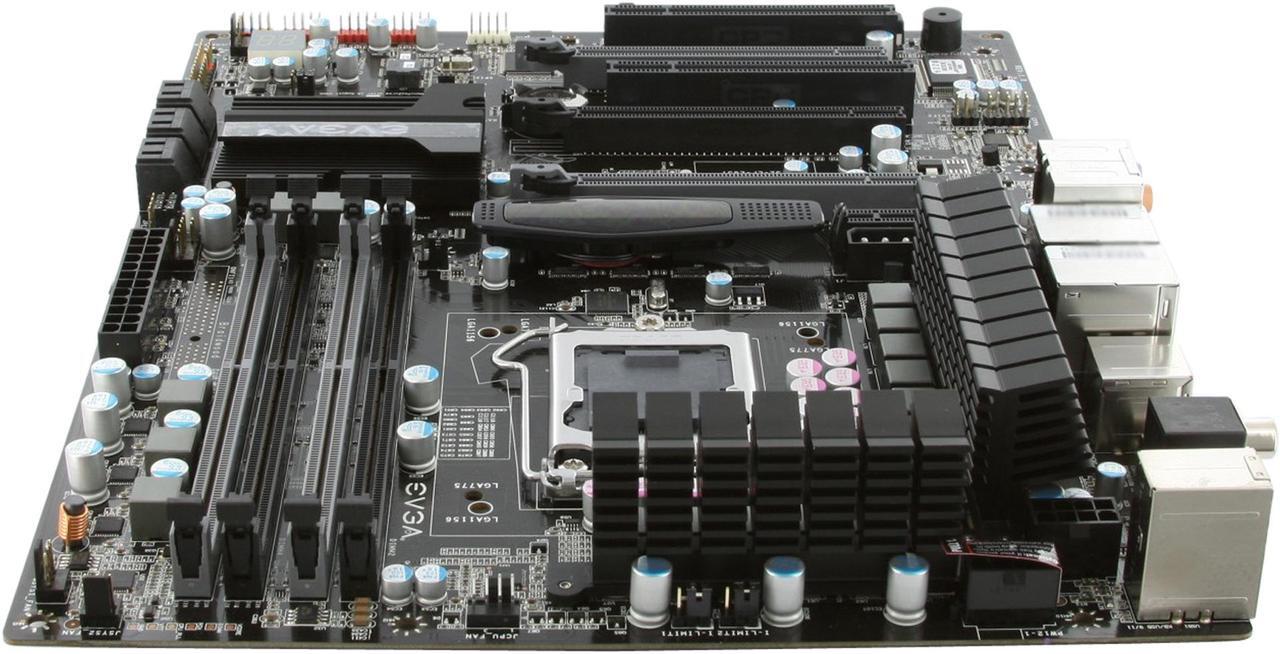

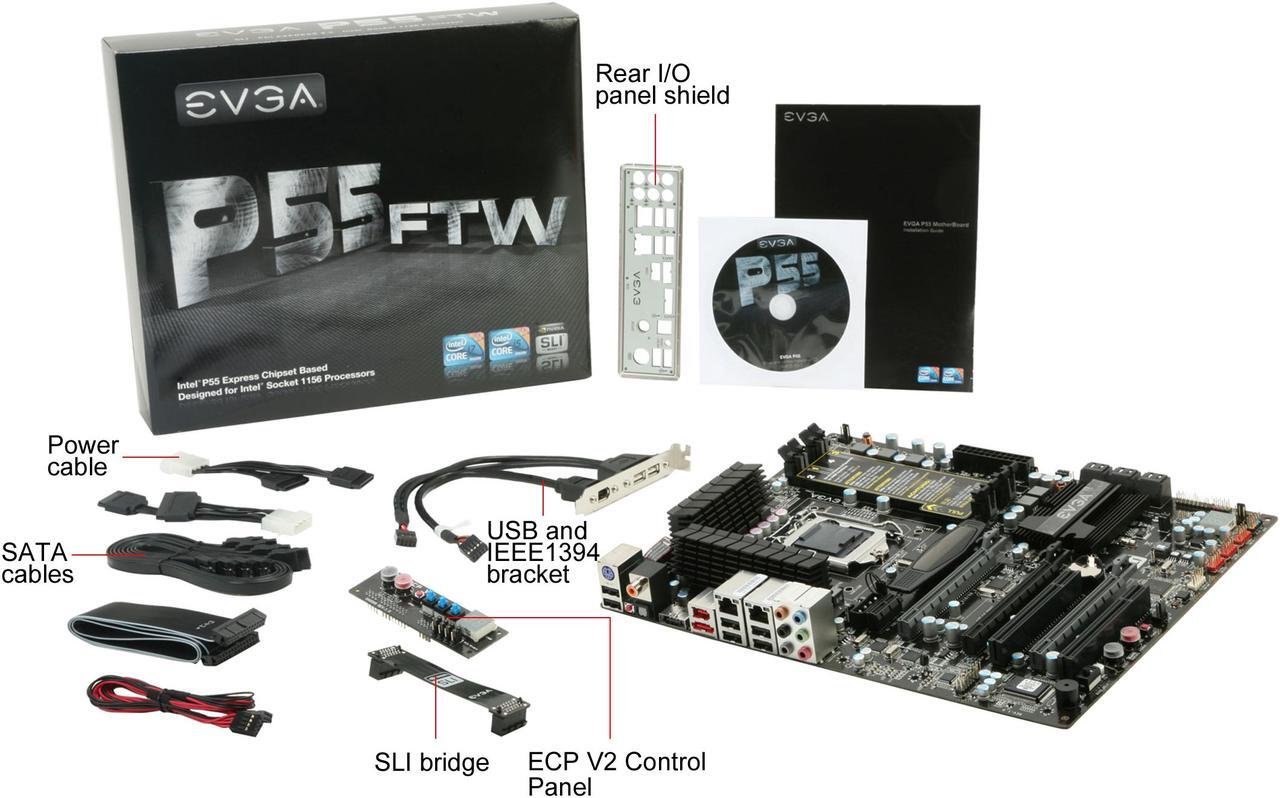

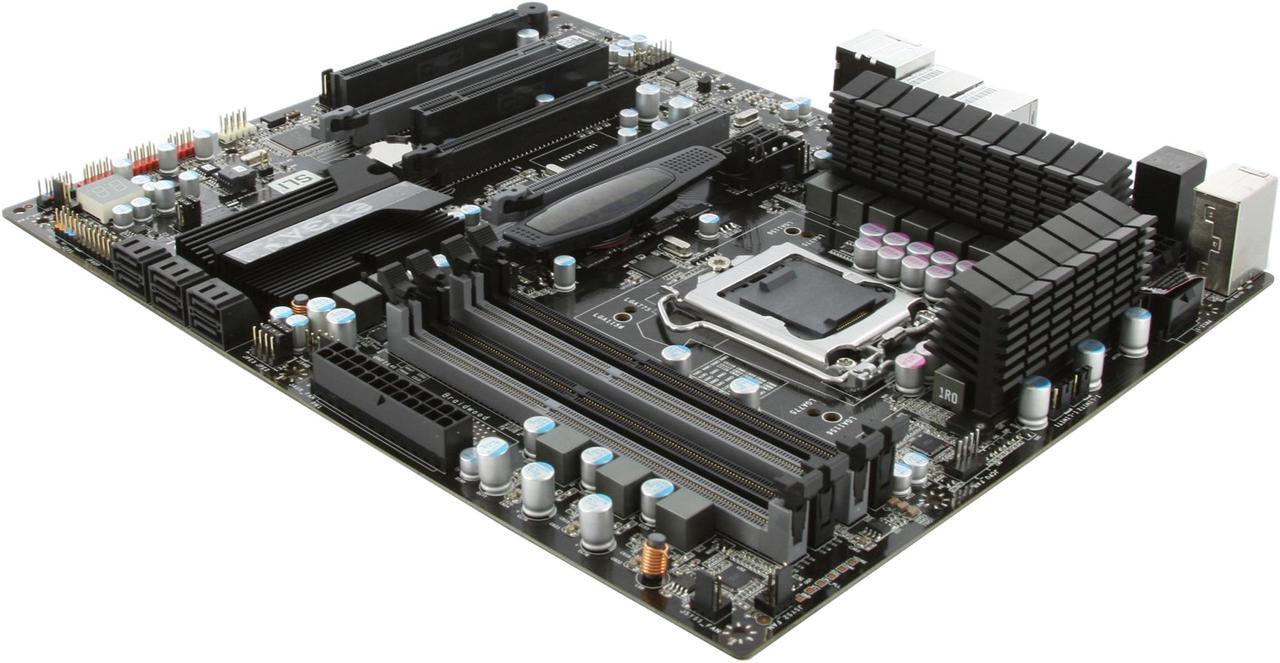

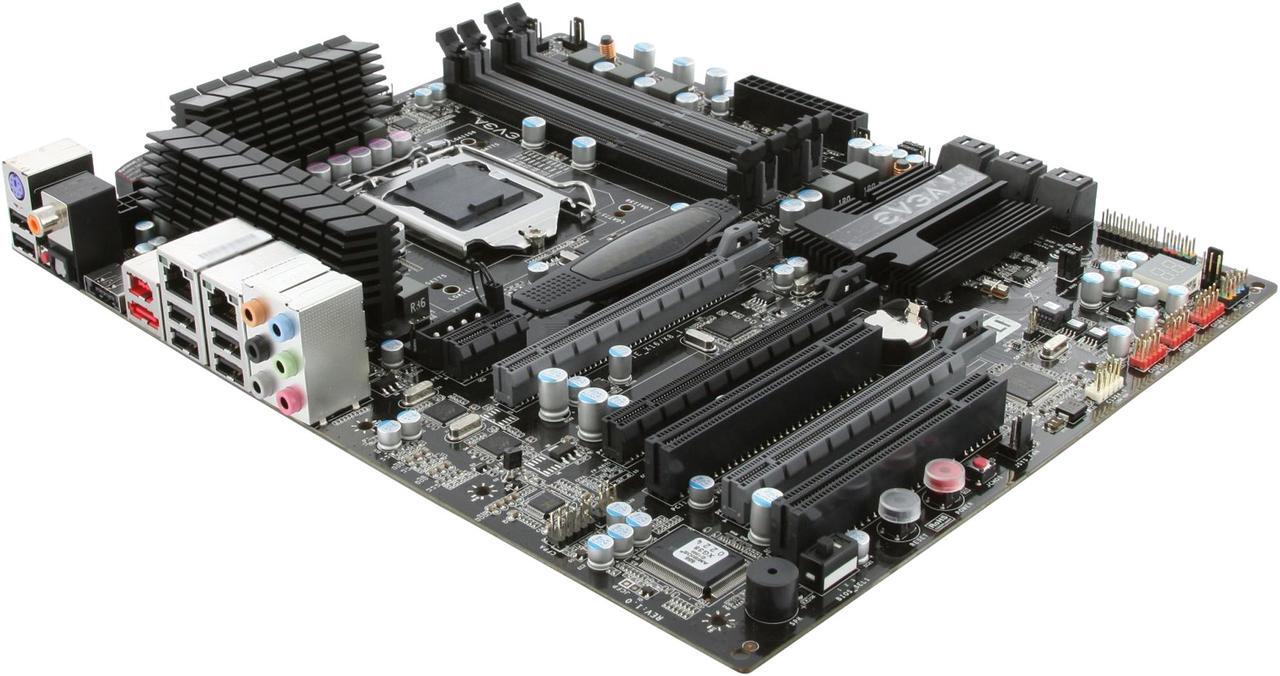

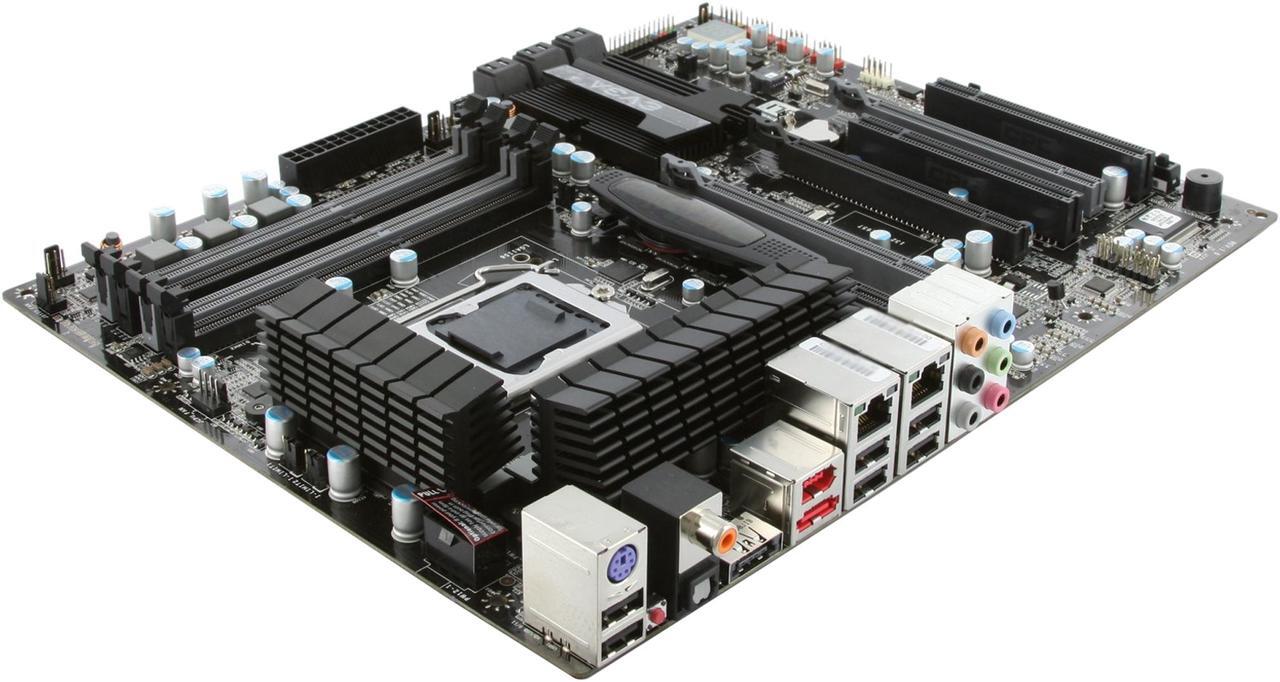

EVGA P55 FTW SLI 132-LF-E657-KR LGA1156 Intel P55 ATX Intel Motherboard
- LGA 1156
- Intel P55
- 4×240pin DDR3 2600MHz+
Specs
Reviews (64)
Learn more about the EVGA 132-LF-E657-KR
| Brand | EVGA |
|---|---|
| Model | 132-LF-E657-KR |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Core i3 / Core i5 / Core i7 / Intel Core 1st Gen (LGA 1156) / Pentium |
| Chipset | Intel P55 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2600MHz+ |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | (1@ x16 or 2@ x8) + 1@ x4 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA 3Gb/s | 6 x SATA 3Gb/s |
|---|---|
| SATA RAID | 0/1/0+1/5/JBOD |
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 2 x 1Gbps |
|---|

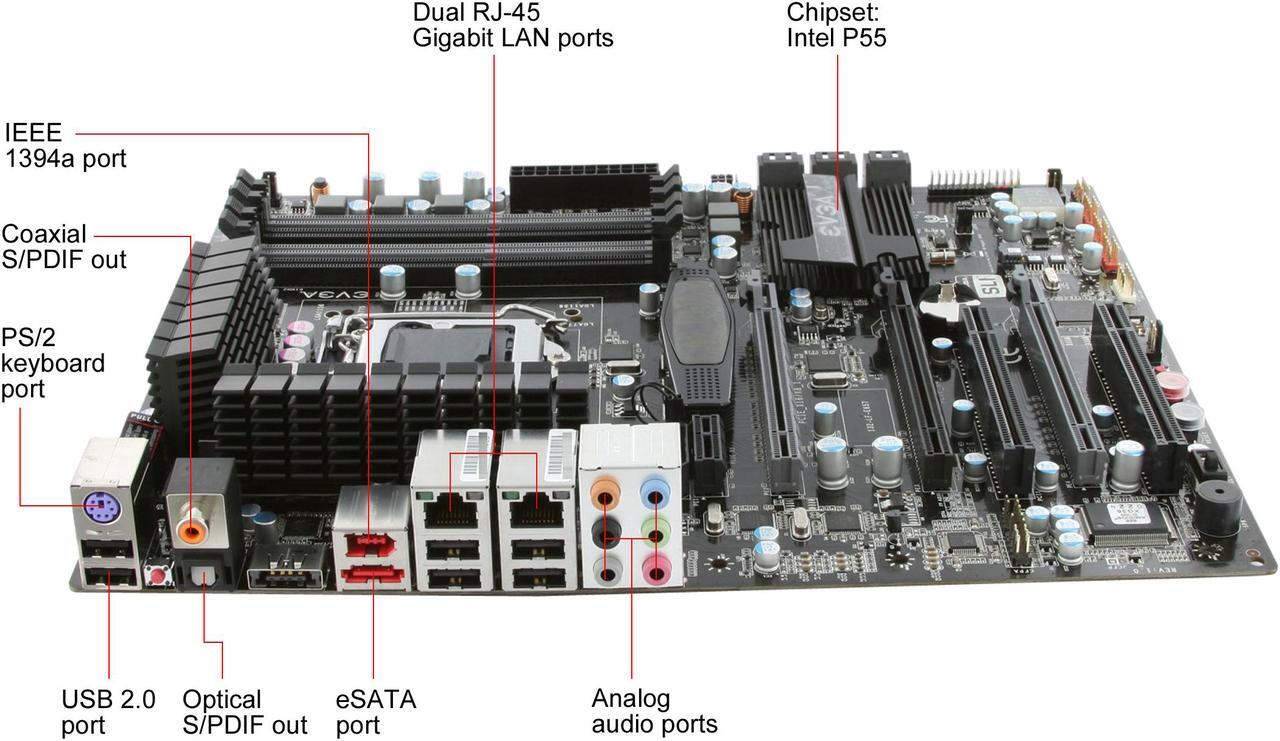

| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 2 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | 2-Way SLI Support |
|---|
| Date First Available | September 04, 2009 |
|---|
