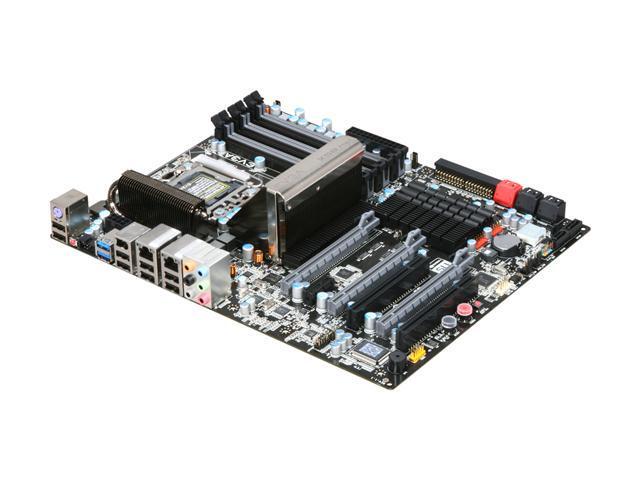

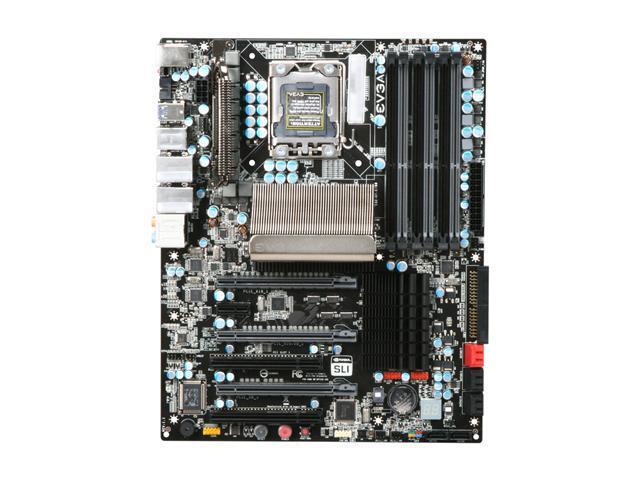

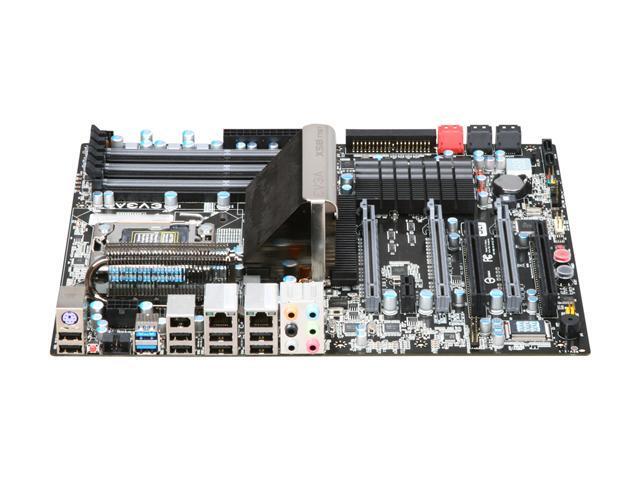

EVGA X58 FTW3 132-GT-E768-TR LGA 1366 Intel X58 SATA 6Gb/s USB 3.0 ATX Intel Motherboard

OUT OF STOCK.
  • LGA 1366
  • Intel X58
  • 6×240pin DDR3 1600MHz+
Specs
Reviews

Learn more about the EVGA 132-GT-E768-TR

Model
Brand EVGA
Model 132-GT-E768-TR
Supported CPU
CPU Socket Type LGA 1366
CPU Type Core i7 (LGA1366)
Chipsets
Chipset Intel X58
South Bridge Intel ICH10R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 6×240pin
Memory Standard DDR3 1600MHz+
Maximum Memory Supported 24GB
Channel Supported Triple Channel
Expansion Slots
PCI Express 2.0 x16 3 (x16, x16/x8, x8)
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA 6Gb/s
SATA RAID Serial ATA 300MB/sec support RAID 0, RAID1, RAID 0+1, RAID5 and JBOD
Serial ATA 600MB/sec support RAID 0 and RAID1
Onboard Audio
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 1
USB 3.0 2 x USB 3.0
USB 1.1/2.0 8 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features 8+2 Phase PWM w/ Switching Frequency up to 1333KHz
100% Solid State Capacitors
Supports 2-way SLI and 3-way SLI or CrossFireX
EVGA E-LEFT Tuning Utility
EVGA EZ Voltage Read Points
EVGA EVBot Support
Onboard Clear CMOS, Power and Rest Buttons
EVGA Vdroop Control
Packaging

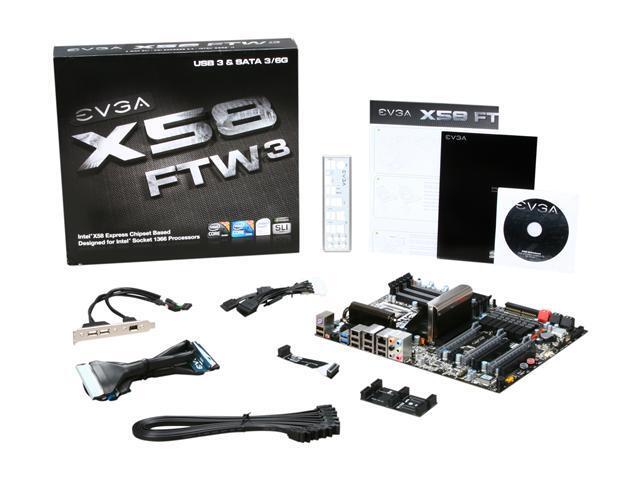

Package Contents 132-GT-E758-TR
EVGA Driver Installation CD with EVGA E-LEET
Rear Case I/O Panel
6 SATA Data Cables
3 SATA Power Cables
2-way and 3-way SLI Bridge
4 Port USB Bracket
1 1394a Firewire Bracket
Visual Installation Guide
Manual
Additional Information
Date First Available December 20, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
