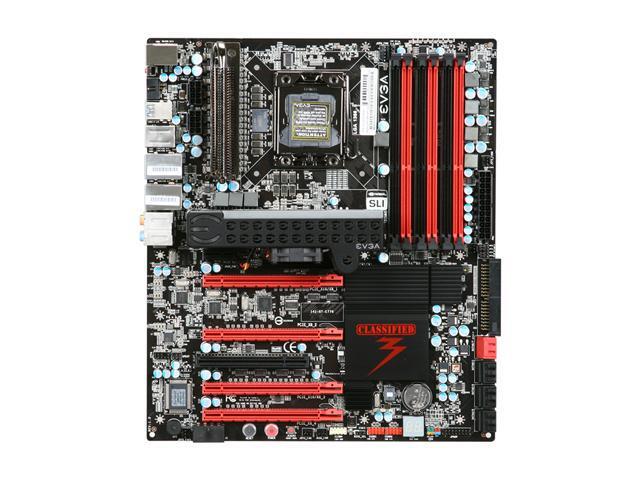

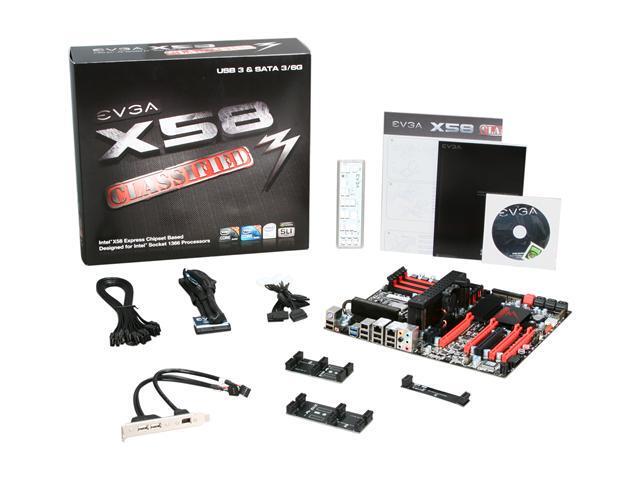

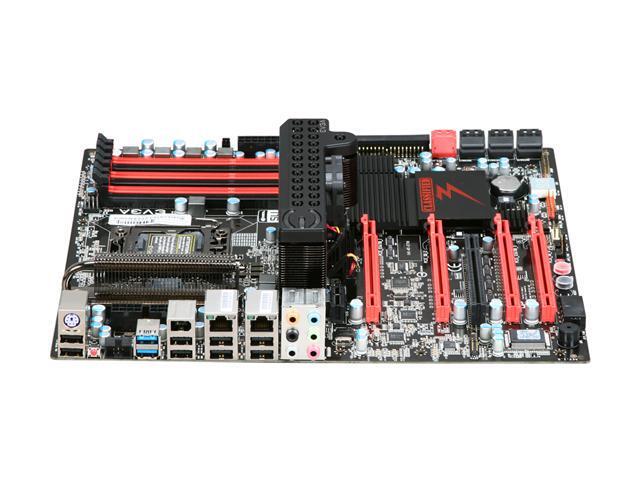

EVGA 141-GT-E770-A1 LGA 1366 Intel X58 SATA 6Gb/s USB 3.0 Extended ATX Intel Motherboard

OUT OF STOCK.
  • Intel X58
  • Core i7 (LGA1366)
  • DDR3 1600
Specs
Reviews

Learn more about the EVGA 141-GT-E770-A1

Model
Brand EVGA
Model 141-GT-E770-A1
Supported CPU
CPU Socket Type LGA 1366
CPU Type Core i7 (LGA1366)
Chipsets
Chipset Intel X58
South Bridge Intel ICH10R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 6x240pin
Memory Standard DDR3 1600
Maximum Memory Supported 24GB
Channel Supported Triple Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCIe x8/x16
2 x PCIe x8
PCI Express x1 1 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA 6Gb/s
SATA RAID 6 x Serial ATA 300MB/sec support RAID 0, RAID1, RAID 0+1, RAID5 and JBOD
2 x Serial ATA 600MB/sec support RAID 0 and RAID1
Onboard Audio
Audio Chipset Realtek ALC889
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111D
Second LAN Chipset Realtek 8111D
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 1
USB 3.0 2 x USB 3.0
USB 1.1/2.0 8 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor Extended ATX
Dimensions (W x L) 12" x 10.38"
Power Pin 24 Pin
Features
Features NVIDIA 2-Way and 3-Way SLI support.

ATI CrossFireX

10+3 Phase PWM w/ switching frequency up to 1333KHz

100% Solid State Capacitors

EVGA Vdroop Control

EVGA Dummy OC

EVGA E-LEET Tuning Utility

More Gold Content

EVGA EZ Voltage read points

Onboard Clear CMOS, Power, and Reset Buttons

PCI-E Disable Jumpers

EVGA EVbot Support

Onboard CPU Temperature Monitor
Additional Information
Date First Available October 04, 2010
