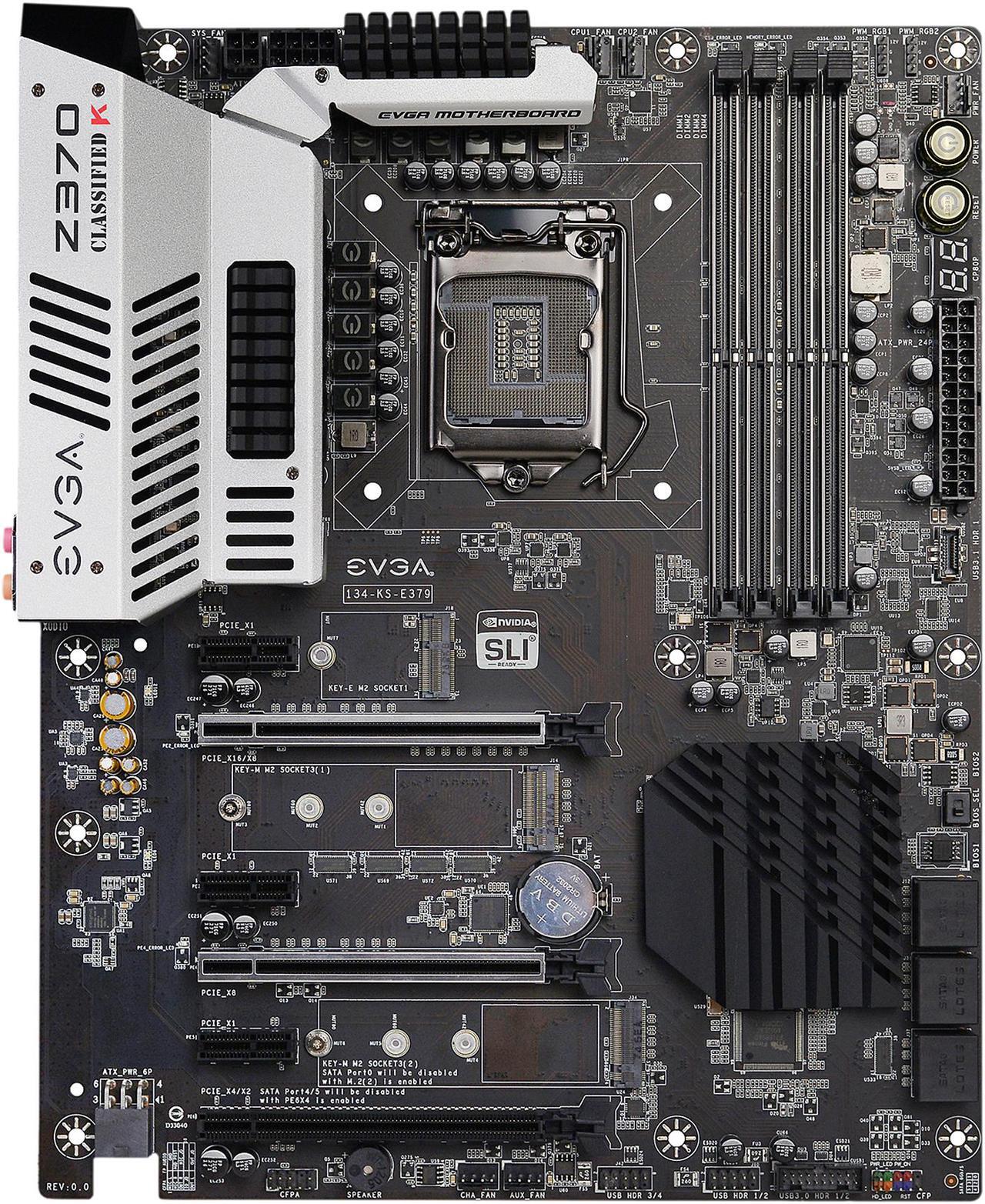

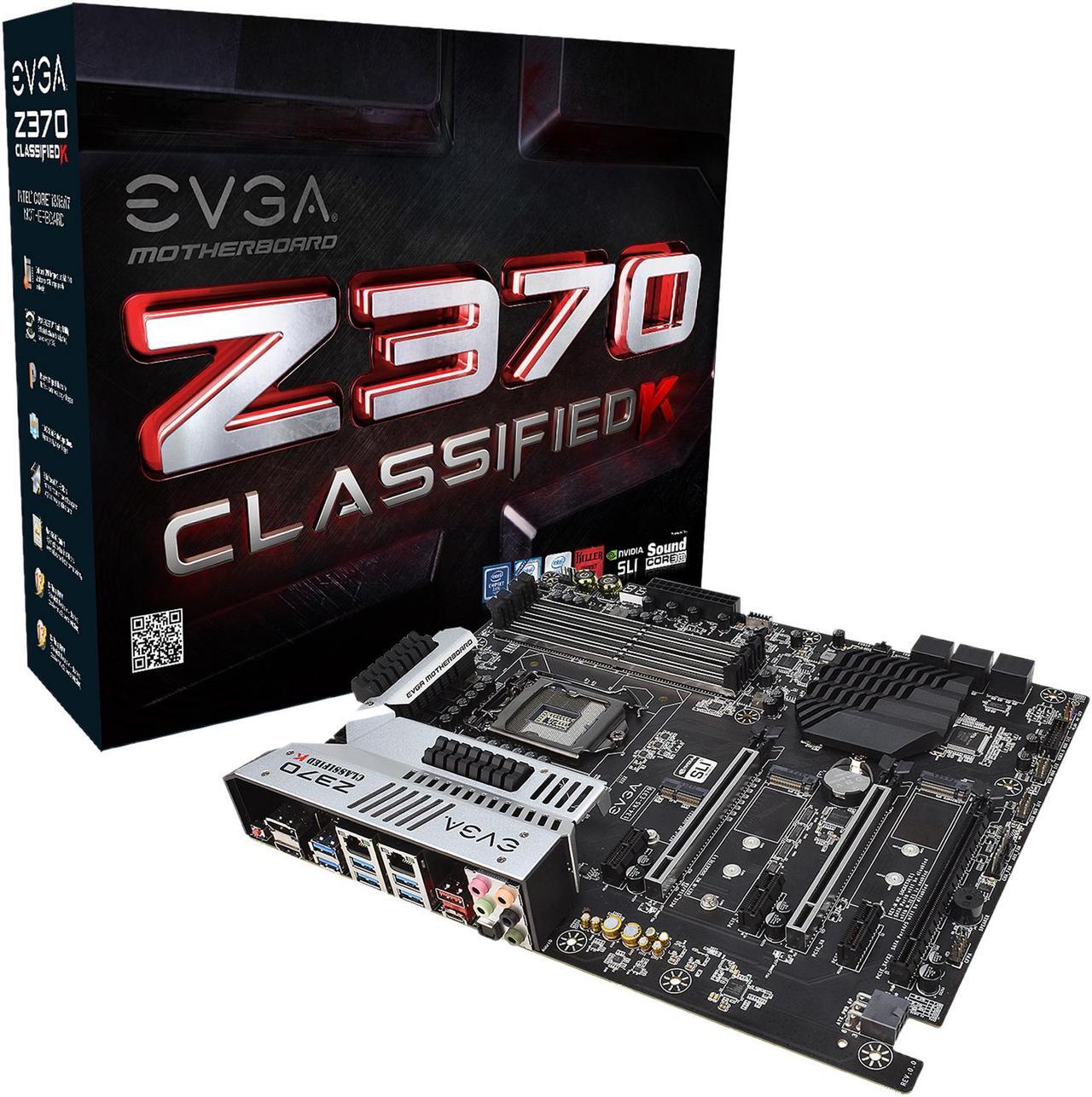

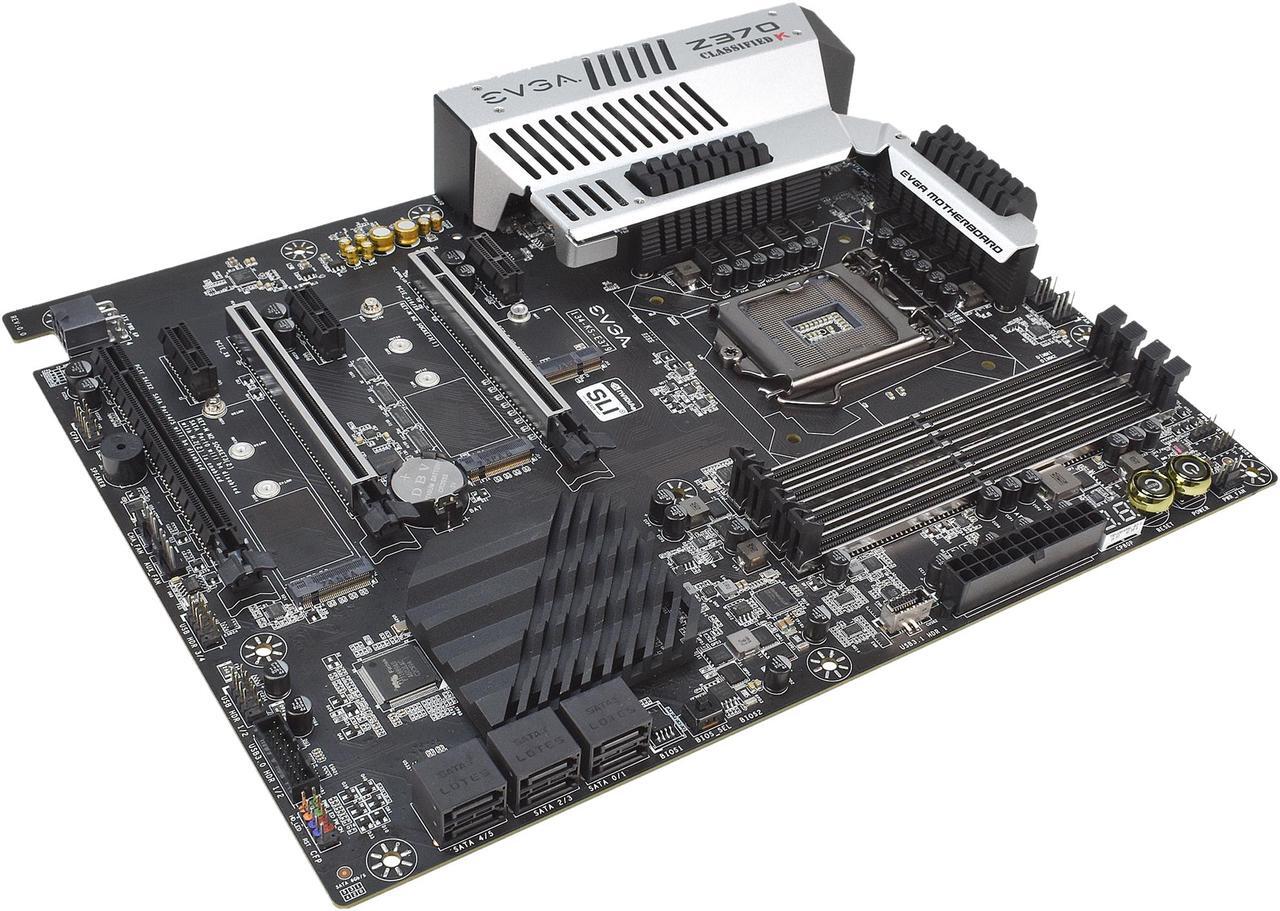

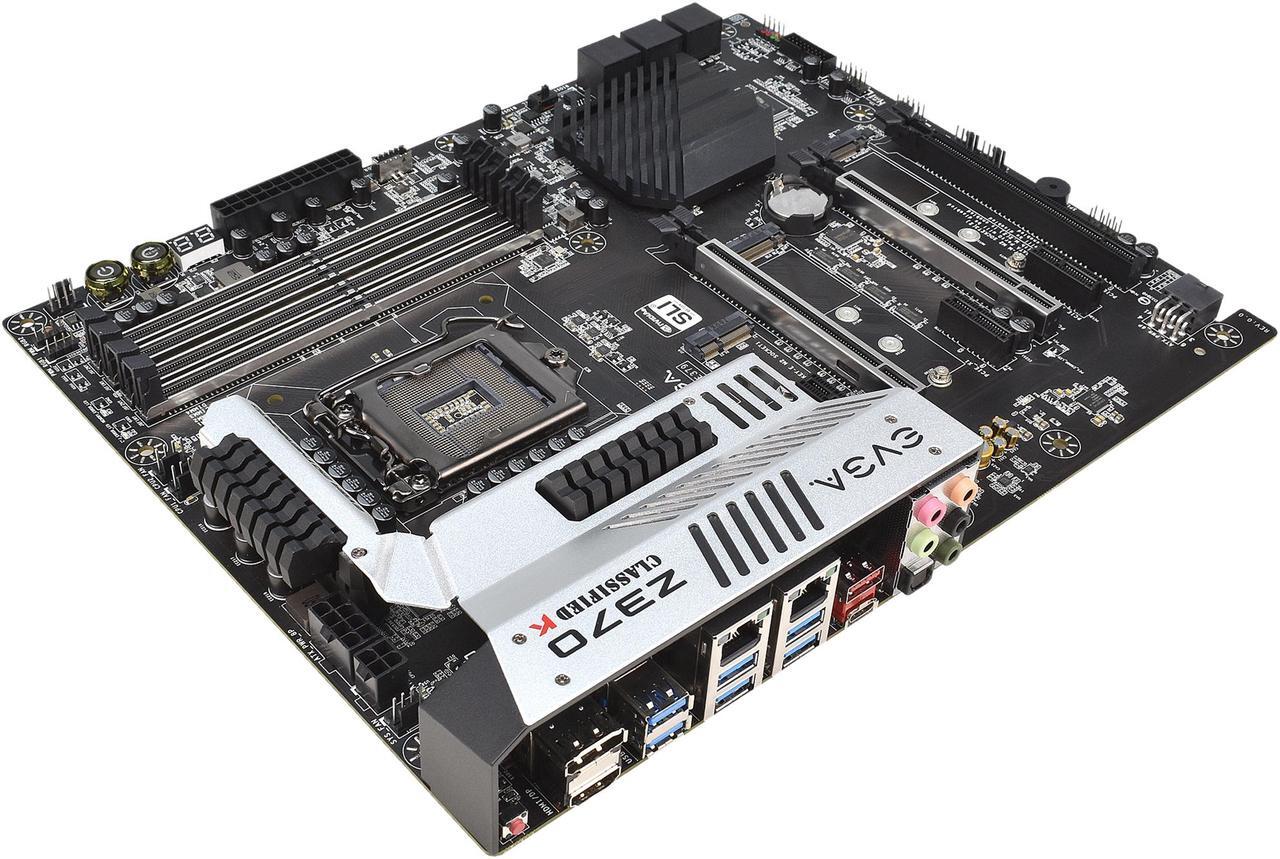

EVGA Z370 Classified K, 134-KS-E379-KR, LGA 1151, Intel Z370, HDMI, SATA 6Gb/s, USB 3.1, USB 3.0, ATX, Intel Motherboard
OPEN BOX Product Type
- Intel Z370 Chipset - supports Intel Core 8th Generation Processor Family for LGA1151 socket (i3/i5/i7).
- ATX Form Factor. HDMI 2.0, DP 1.2. Metal Reinforced PCIe x16 slots (x16/8, x8, x4). Supports 2-Way SLI + PhysX. 3 PCIe x1 slots.
- 4 Metal Reinforced DDR4 DIMM Dual-Channel 4133MHz+ (up to 64GB). 3 x USB 3.1 (1 x Type-A, 1 x Type-C, 1 x internal header), 8 x USB 3.0, and 4 x USB 2.0.
- 6 SATA III 6Gb/s ports, 2 M.2 Key-M 80mm (up to 32Gbps), 1 M.2 Key-E 32mm, Intel Optane Memory Ready.
- Creative Sound Core3D 5.1 Audio. 2 x Killer E2500 Gigabit NIC w/ DoubleShot Pro.
Specs
Learn more about the EVGA 134-KS-E379-KR
| Brand | EVGA |
|---|---|
| Model | 134-KS-E379-KR |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Core i7/ i5/ i3 / Coffee Lake-S Processors * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z370 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 up to 4133MHz+ |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 3 x PCIe x16 slot (1 x16/8, 1 x8, 1 x4/2 (Shared with SATA 4/5 for PE6)) |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| Other Slots | 1 x M.2 Key E |
| Serial ATA (SATA) | 6 x SATA 6Gb/s, by Intel Z370 PCH |
|---|---|
| M.2 | 2 x M.2 Key-M 80mm slot (Shared with SATA 1 for bottom M.2) |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Creative Sound Core 3D |
|---|---|
| Audio Channels | 5.1 Channels |
| LAN Chipset | 2 x Killer E2500 NIC w/ DoubleShot Pro |
|---|---|
| Max LAN Speed | 2 x 1Gbps |
| HDMI | 1 x HDMI 2.0 |
|---|---|
| DisplayPort | 1 x Display Port 1.2 |
| USB 3.1 | 2 x USB 3.1 (Type A / Type C) |
| USB 3.0 | 6 x USB 3.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 1 x USB 3.1 + 2 x USB 3.0 + 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | 100% Solid State Capacitors 150% Increased Socket Gold Content 1 x M.2 Key E (32mm) + 2 x M.2 Key M (80mm) 2-Way SLI Support + PhysX EVGA E-LEETX Tuning Support EVGA GUI BIOS External Clock Gen. HDMI 2.0 and DisplayPort 1.2 Highly-Efficient 13 Phase Digital VRM Intel Optane Memory Ready Killer E2500 NIC with DoubleShot Pro On-Board Power Button with Integrated Power Light On-Board Reset Button with Integrated HDD Activity Light Reinforced PCIe and DIMM slots RGB Header Support Supports Intel Core i3, i5, and i7 Socket 1151 Coffee Lake-S Processors Switchable Dual BIOS USB 3.1 Internal Header for USB Fast Charge Support |
|---|
| Date First Available | October 17, 2018 |
|---|
