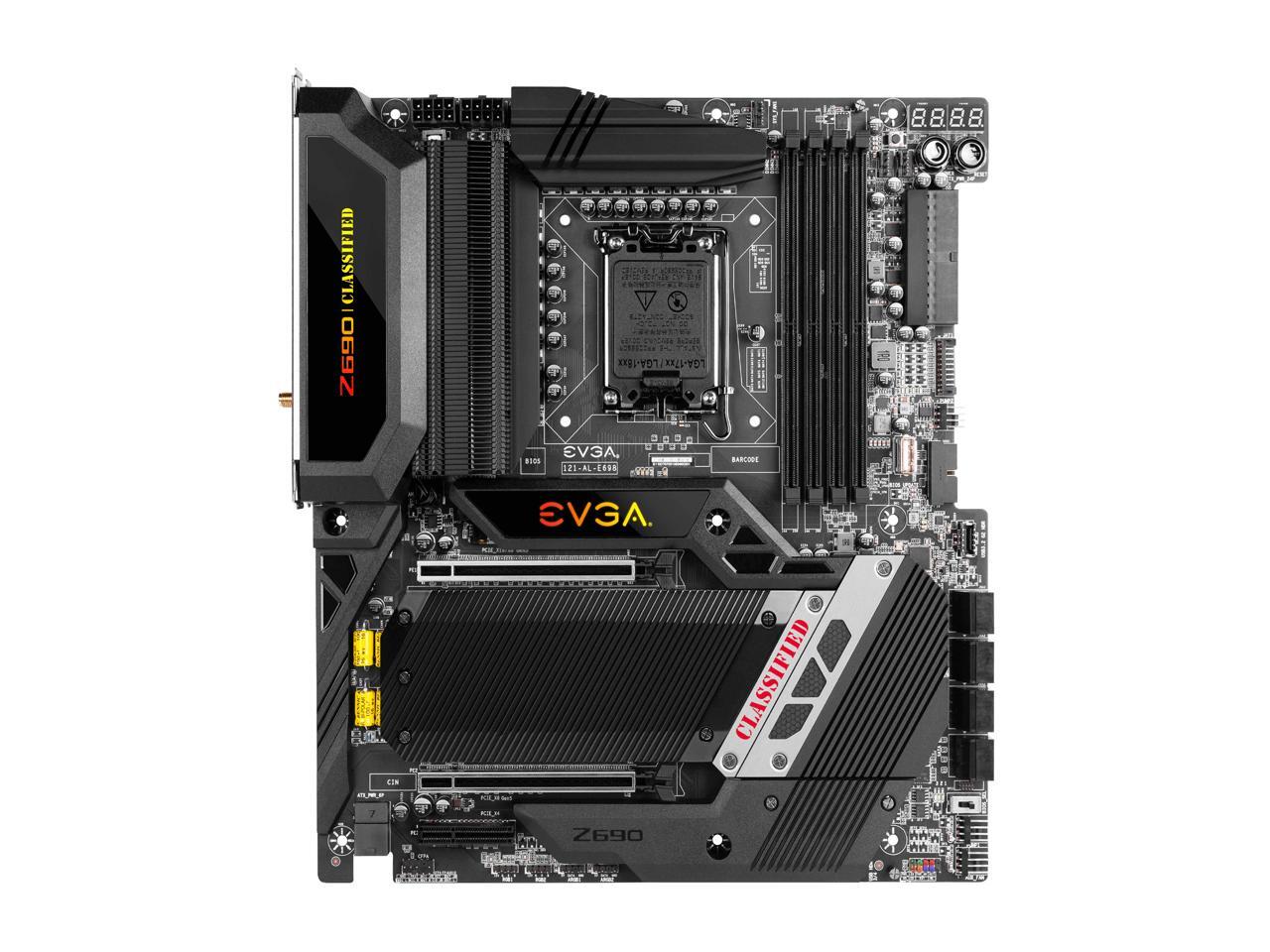

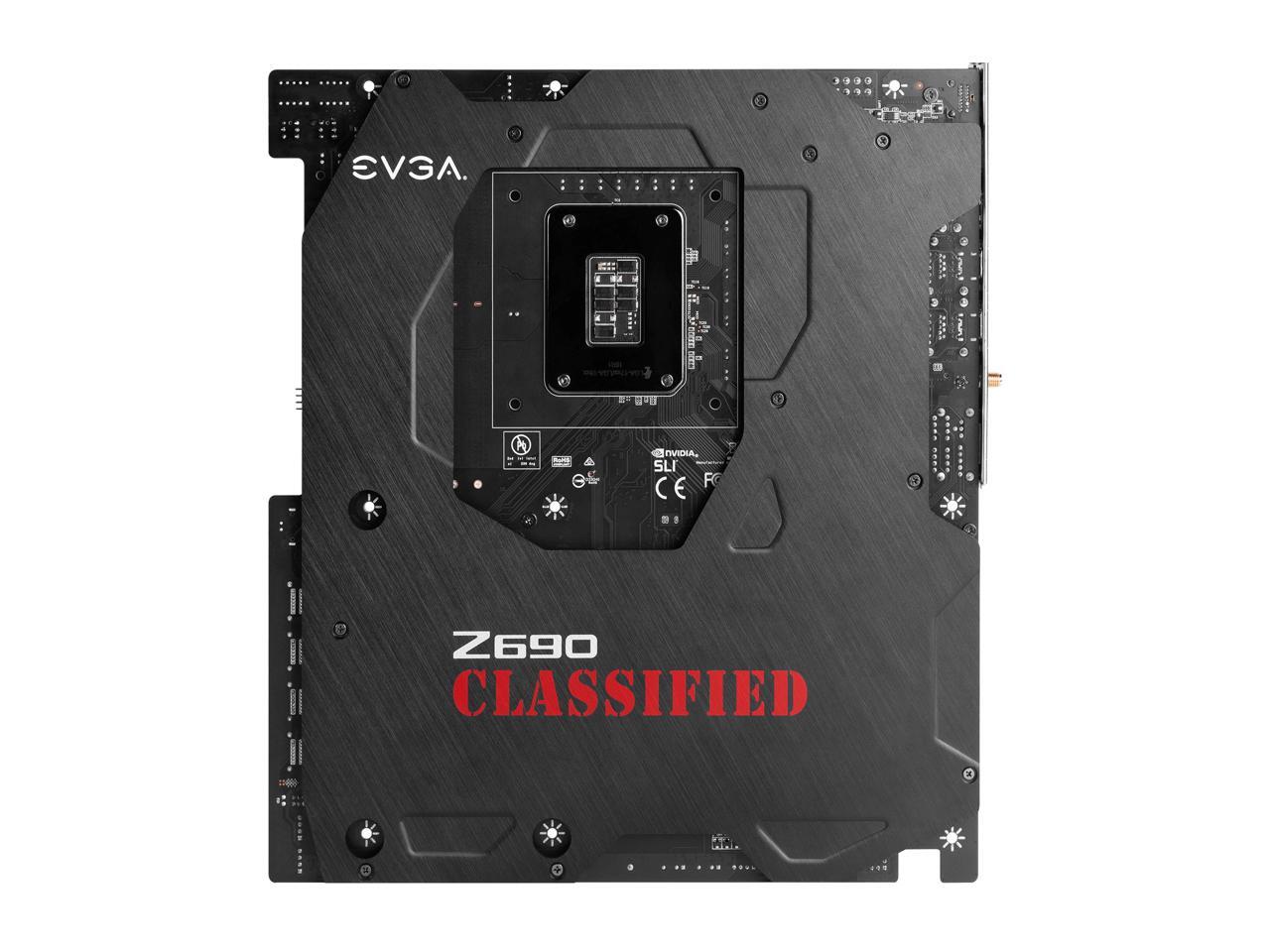

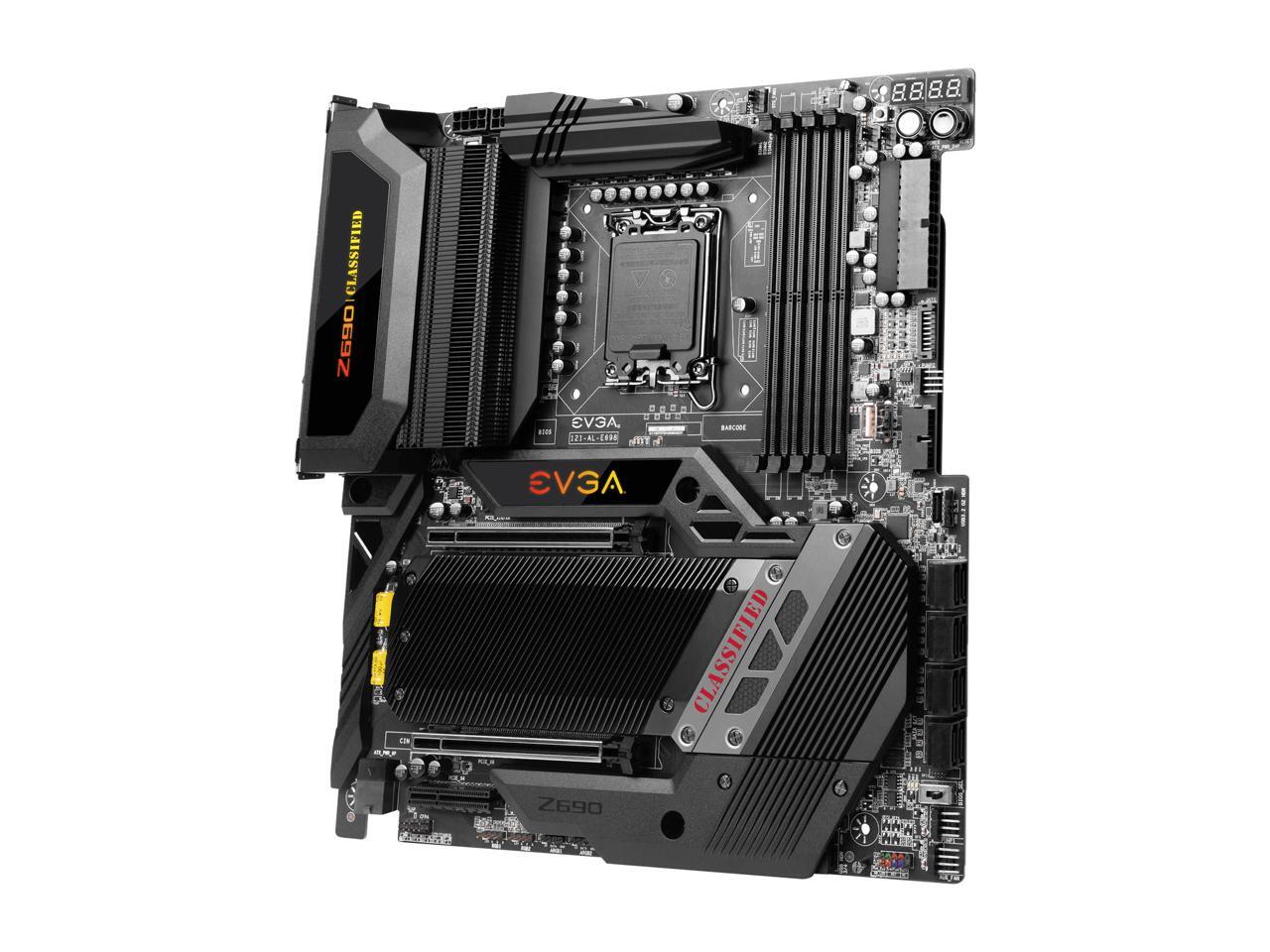

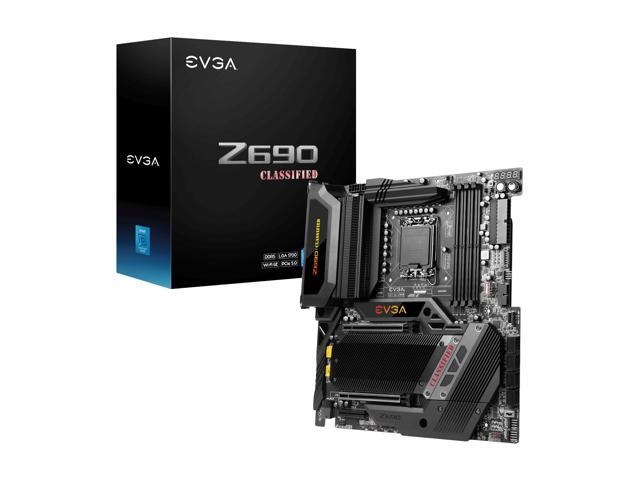

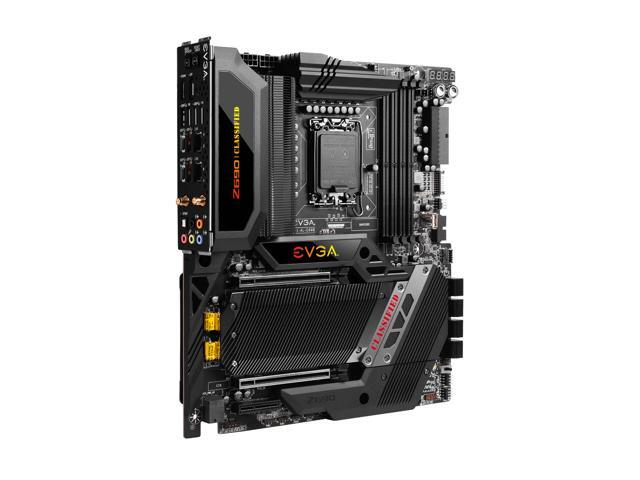

EVGA Z690 CLASSIFIED, 121-AL-E698-KR, LGA 1700, Intel Z690, PCIe Gen5, SATA 6Gb/s, 2.5Gb/s LAN, WiFi6E/BT5.2, USB 3.2 Gen2x2, M.2, EATX, Intel Motherboard

Be the first to review this product...
See more "evga z690"
In stock.
Ships from United States.
  • Intel Z690 Chipset, Supports 12th Gen Intel Core processors for LGA1700 socket
  • PCIe Gen5, M.2 Gen4, EATX Form Factor, 10 Layer PCB, 19 Phase PWM, Metal Reinforced PCIe Slots, NVIDIA SLI Ready, Preinstalled rear I/O cover
  • 4 DIMM Dual-Channel supports up to 128GB 6400MHz+(OC), 9 USB 3.2 Gen2 Ports (6x Type A, 2x Type-C Gen2x2, 1x Type-C Header)
  • 8 SATA 6Gb/s, 3x M.2 Key-M 110mm, 1x M.2 Key-E 32mm with installed WiFi 6E/BT 5.2, HDMI 2.0a+DP 1.4 outputs, 2x Intel 2.5 Gb/s NICs
  • Onboard ARGB lighting + 2x ARGB / 2x RGB Headers fully customizable through EVGA ELEET X1
Specs
Reviews

Learn more about the EVGA Z690 classified

Model
Brand EVGA
Model Z690 classified
Part Number 121-AL-E698-KR
Supported CPU
CPU Socket Type LGA 1700
CPU Type Core / Pentium / Celeron (12th Gen, LGA1700)
Chipsets
Chipset Intel Z690
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Support DDR5 6600(O.C.)/ 6400(O.C.)/ 6000(O.C.)/ 5600(O.C.)/ 5200(O.C.)/ 4800/ 4400
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 2 x PCIe 5.0 x16 (x16/x8, x8)
PCI Express x4 1 x PCIe 3.0 x4
Storage Devices
SATA 6Gb/s 8 x SATA 6Gb/s
M.2 3 x M.2 Key-M 110mm PCIe 4.0 (Up to 64Gb/s)
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset 2 x Intel i225V
Max LAN Speed Dual 10/100/1000/2500Mbps
Wireless LAN Intel AX211 Wi-Fi 6E
Bluetooth Bluetooth 5.2
Rear Panel Ports

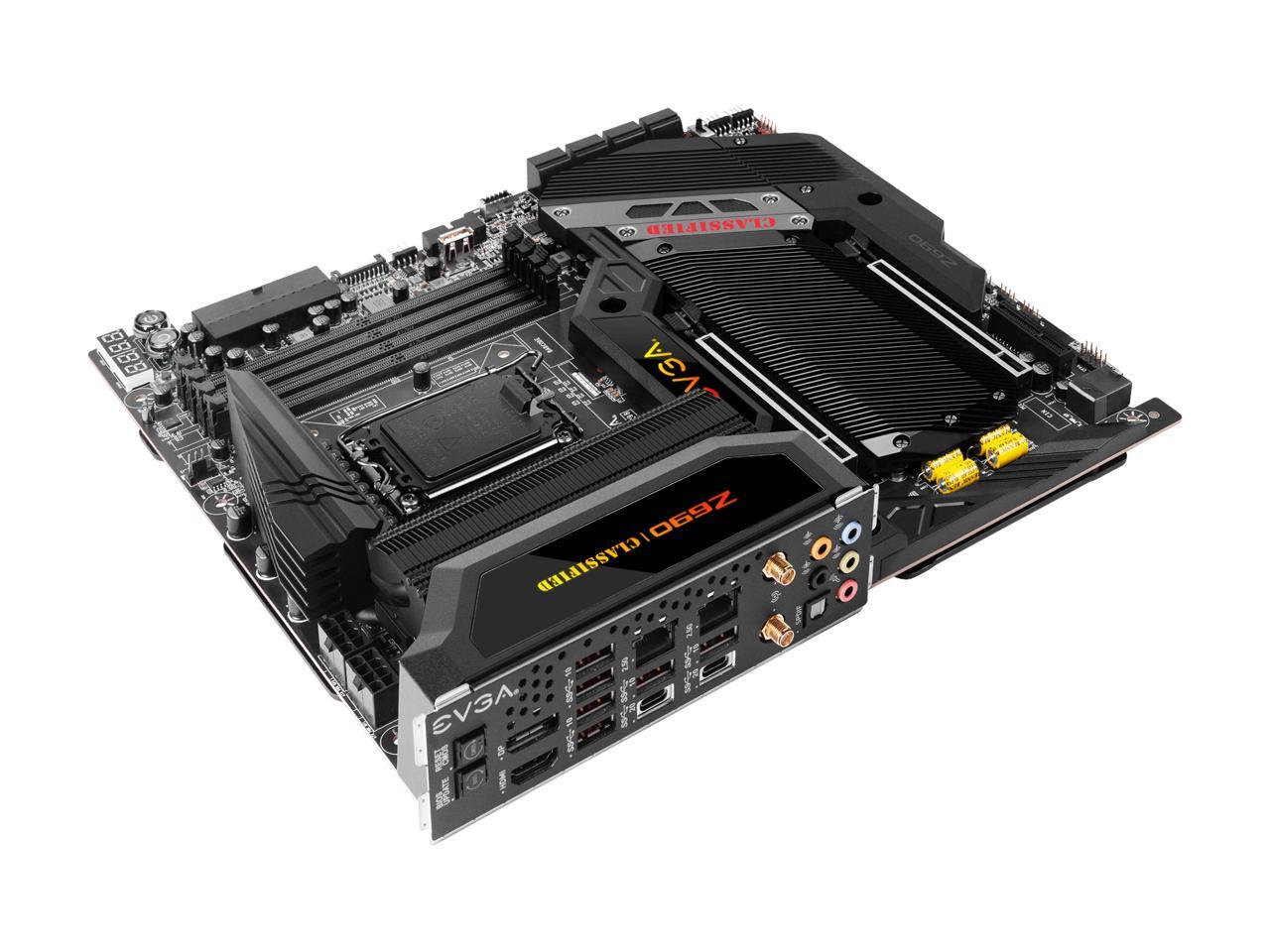

Back I/O Ports 1 x DisplayPort
1 x HDMI
2 x Antenna Bracket
2 x LAN (RJ45)
2 x USB 3.2 Gen 2x2
6 x USB 3.2 Gen 2
1 x Optical S/PDIF Out
5 x Audio Jacks
BIOS/CMOS Reset Button
BIOS Update Button
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Port (for BIOS update), 2 x USB 2.0 Headers
1 x USB 3.2 Gen1 Header, 1 x USB 3.2 Gen2 Type-C Header
Physical Spec
Form Factor Extended ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 10.9"
Power Pin 24 Pin
Windows Compatibility
Windows 11 Supported
Packaging

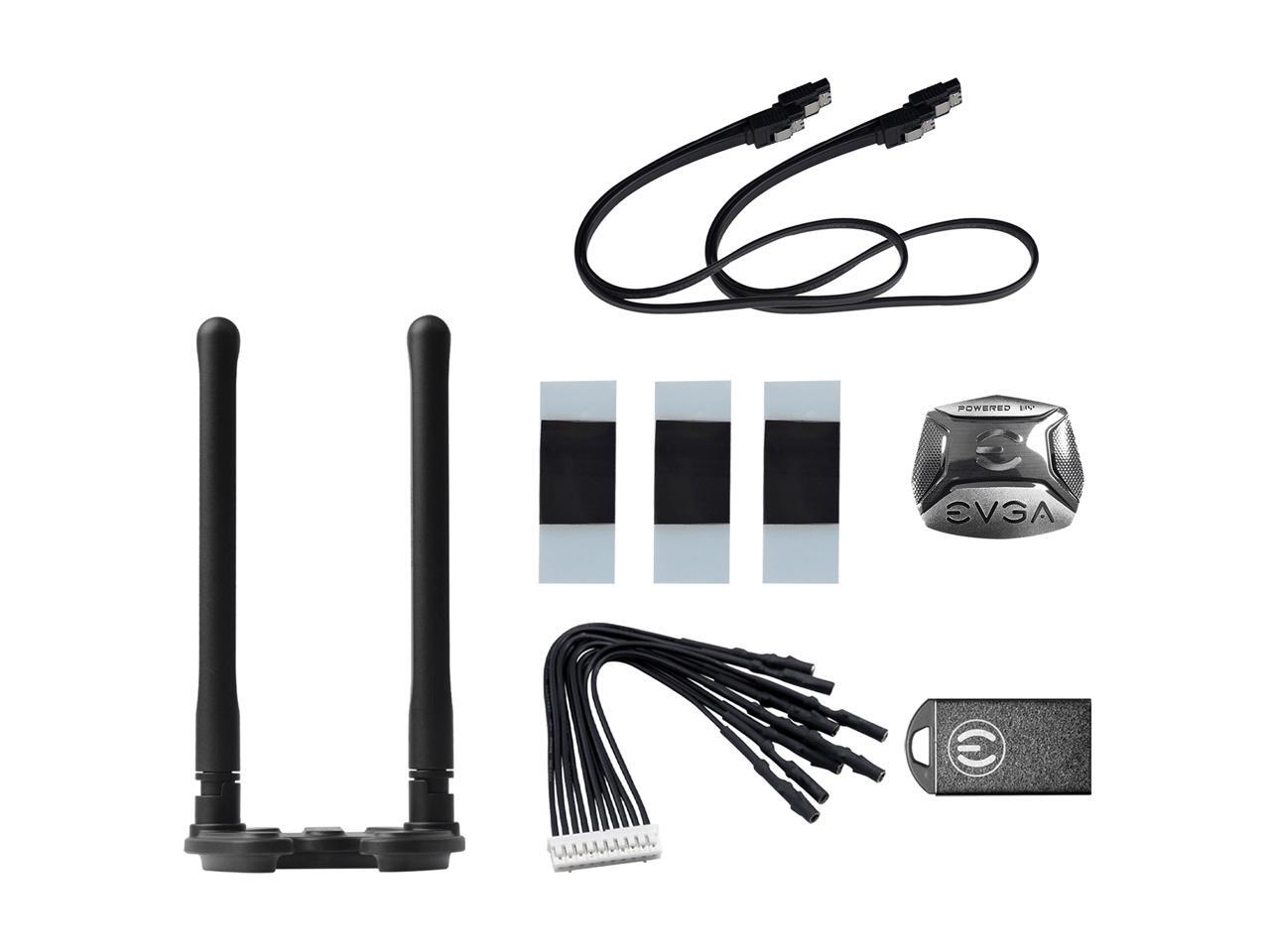

Package Contents ACCESSORIES:
EVGA Quick Installation Guide
2x SATA 6Gb/s Data Cables
M.2 Thermal Pads
All-new EVGA Wi-Fi Antenna
2x ProbeIt Cable
Baseplate, screws, and standoffs
M.2 Screw Kit
USB Flash drive with driver and manual
Additional Information
Date First Available July 05, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
