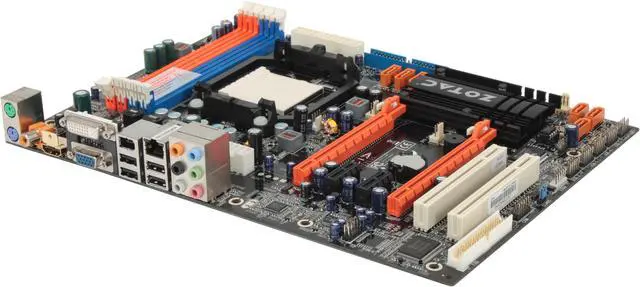

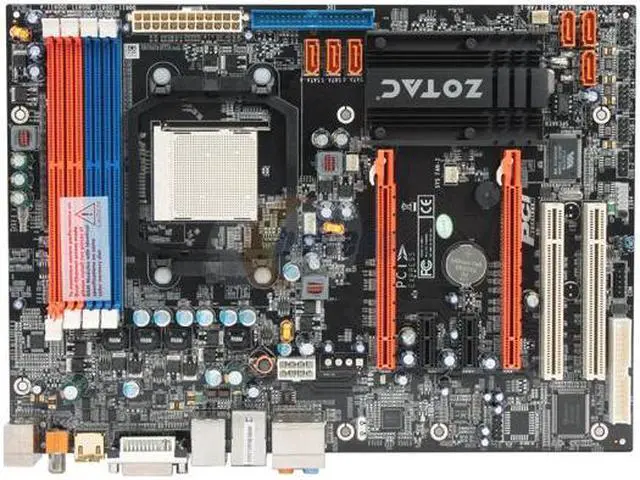

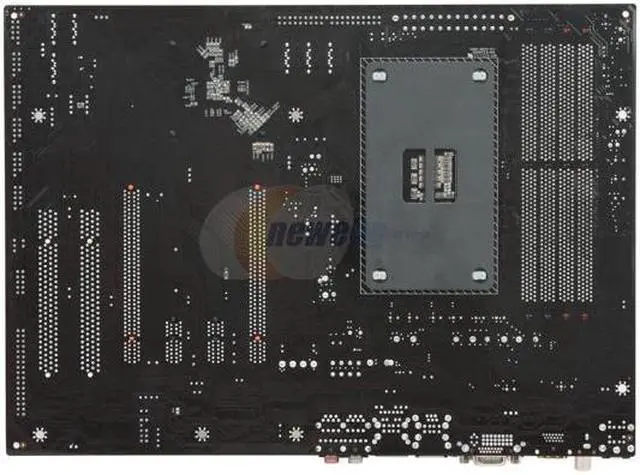

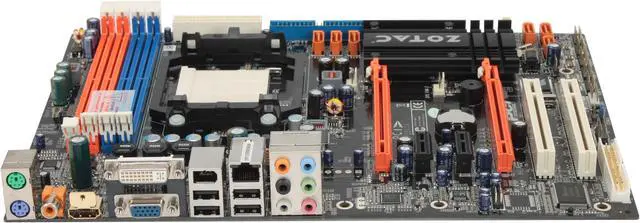

ZOTAC NF750A-A-E AM2+/AM2 NVIDIA nForce 750a SLI HDMI ATX AMD Motherboard
- NVIDIA nForce 750a SLI
- Phenom / Athlon 64 X2 / Athlon 64 / Sempron
- DDR2 1066
Specs
Reviews (54)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ZOTAC NF750A-A-E
| Brand | ZOTAC |
|---|---|
| Model | NF750A-A-E |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom / Athlon 64 X2 / Athlon 64 / Sempron |
| FSB | 2600 MHz |
| Chipset | NVIDIA nForce 750a SLI |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 8GB |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | NVIDIA GeForce 8 series |
|---|
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 8 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |

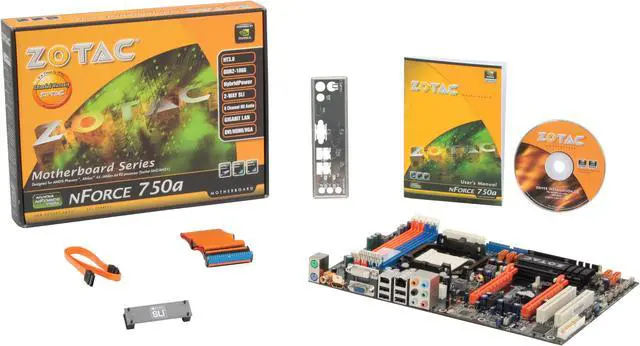

| Package Contents | NF750A-A-E Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable SLI Bridge |
|---|
| First Listed on Newegg | November 12, 2008 |
|---|
