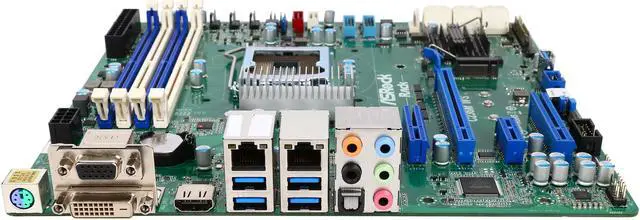

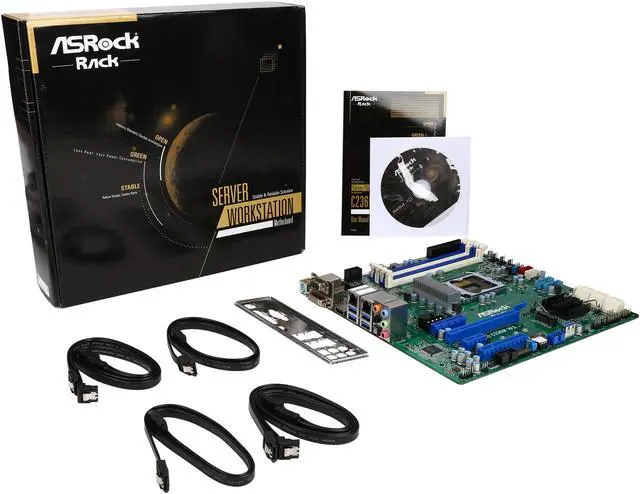

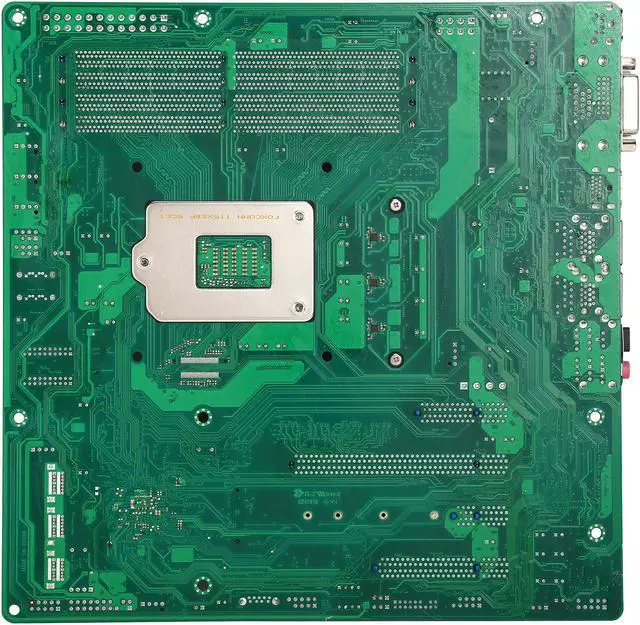

ASRock Rack C236M WS Micro ATX Server Motherboard LGA1151 Intel C236

(3) Write a Review
  • Micro ATX 9.6" x 9.6"
  • Single Socket LGA 1151 H4 Intel Xeon processor E3-1200 v5/v6 series
  • Support 4 x DIMM. Dual Channel DDR4 2133/1866 ECC DIMM
  • Support 1 x PCIe3.0 x16/x0 or x8/x8 + 1 x PCIe 3.0 x8 x8/x0 + 1 x PCIe3.0 x4/1x M.2 slot Co Layout + 1 x PCIex1
  • Support 8 x SATA3 by Intel C236, support RAID 0,1,5,10
  • Support 2 x GLAN by Intel i219LM and i210
  • Support Audio by ALC 1150 (5+1 jack)
Specs
Reviews (3)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock Rack C236M WS

Model
Brand ASRock
Model C236M WS
Supported CPU
CPU Socket Type LGA 1151
CPU Type Intel Xeon E3-1200 v5 / v6 Series Processors
*BIOS version 2.0 or above is required for v4 series
Chipsets
North Bridge Intel C236
Memory
DDR4 Standard DDR4 2400*/2133/1866/1600 ECC / non-ECC* UDIMM memory
*Only E3-1200 v6 CPUs can support DDR4 2400.
*non-ECC UDIMM support Client OS only.
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCIe 3.0 x16 slot (PCIE4/6: x0/x16, x8/x8 )
PCI Express x8 1 x PCIe 3.0 x8 slot(PCIE4: x8/x0)
PCI Express x4 1 x PCIe 3.0 x4 slot (PCIE7: shared with M.2)
PCI Express x1 1 x PCIe 3.0 x1 slot (PCIE5)
Storage Devices
SATA 8 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1150
Onboard LAN
LAN Chipset 2 x RJ45 GLAN by Intel i210+Intel i219
LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 1
Video Ports 1 x D-Sub x 1, 1 x DVI, 1 x HDMI
RJ45 RJ45: 2 x GLAN (by Intel i210+ Intel i219)
LAN Ports with LED (ACT / LINK LED and SPEED LED)
USB 3.0 4 x USB 3.0
Features
Features Micro ATX 9.6" x 9.6"

Single Socket LGA 1151 H4 Intel Xeon processor E3-1200 v5 / v6 series

Supports Dual Channel DDR4 2133 / 1866 ECC DIMM, 4x DIMM

Supports 8 x SATA3 by Intel C236

Supports 2 x PCIe3.0 x16/x0 or x8/x8, 1 x PCIe3.0 x4 / 1 x M.2 slot Co Layout, PCIe x1

Support 2 x GLAN by Intel i219LM and i210
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
First Listed on Newegg February 08, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
  • Read full return policy for details.
