The GPU is not only is only making graphics look better, but also playing big roles in other high performance applications.

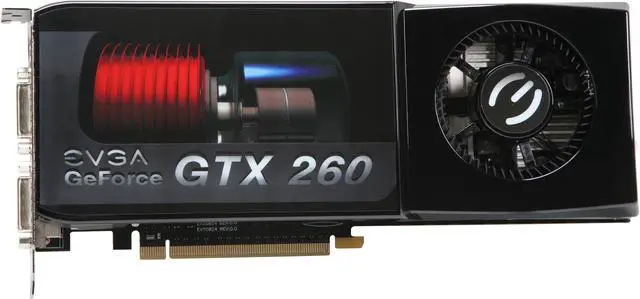

Introducing the Force GTX 260 Core 216 Superclocked Edition. The Core 216 refers to the 216 shader processors in the GPU which is 24 shader processors more than the regular GTX 260 (192 Cores). 8 texture address units and 8 texture filtering units were added so that Nvida's CUDA, PhysX and PureVideo HD technologies will do create more fps. Last but not the least, EVGA set the GPU clock at 626Mhz and the memory clock at 2106 MHz making this high-mid-end graphic card an unbeatable value.
The GPU is not only is only making graphics look better, but also playing big roles in other high performance applications.
Introducing the Force GTX 260 Core 216 Superclocked Edition. The Core 216 refers to the 216 shader processors in the GPU which is 24 shader processors more than the regular GTX 260 (192 Cores). 8 texture address units and 8 texture filtering units were added so that Nvida's CUDA, PhysX and PureVideo HD technologies will do create more fps. Last but not the least, EVGA set the GPU clock at 626Mhz and the memory clock at 2106 MHz making this high-mid-end graphic card an unbeatable value.
2nd Generation NVIDIA Unified ArchitectureSecond generation architecture features enhanced processor cores that provide incredible shading horsepower, cranking out 50% more gaming performance over the previous generation.
NVIDIA PhysX-ReadyWith NVIDIA’s PhysX physics engine, the GeForce GTX260 Core 216 creates the most compelling physical effects that mimic the real word, making your gaming experience a truly immersive one.
3-way NVIDIA SLI TechnologyBy implementing 3-way AFR (Alternate Frame Rendering), 3-way NVIDIA SLI technology brings up to 2.8X performance increase over a single GPU configuration, taking extreme gaming to a whole new level.
NVIDIA CUDA TechnologyCUDA technology unlocks the processing power of the GeForce GTX260 Core 216 to solve the most demanding computer-intensive tasks - such as video encoding - in a fraction of the time required on a CPU, so you can work and play at full speed.
NVIDIA PureVideo HD TechnologyThe combination of high-definition video decoding acceleration and post-processing delivers unprecedented picture clarity, smooth video, accurate color and precise image scaling for all video content, especially movies.
NVIDIA HybridPower TechnologyDesigned for PC enthusiasts and hard-core gamers, HybridPower Technology switches graphics processing from the GeForce GTX260 Core 216 graphics card to your motherboard GeForce GPU when running less graphics-intensive applications for reduced energy consumption, quieter operation, and less heat generation.
Learn more about the EVGA 896-P3-1257-AR
Model
Brand
EVGA
Series
GeForce GTX 200 SuperClocked
Model
896-P3-1257-AR
Interface
Interface
PCI Express 2.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU
GeForce GTX 260
Core Clock
626MHz
CUDA Cores
216 Cores
Memory
Effective Memory Clock
2106MHz (effective)
Memory Size
896MB
Memory Interface
448-Bit
Memory Type
GDDR3
3D API
DirectX
DirectX 10
OpenGL
OpenGL 2.1

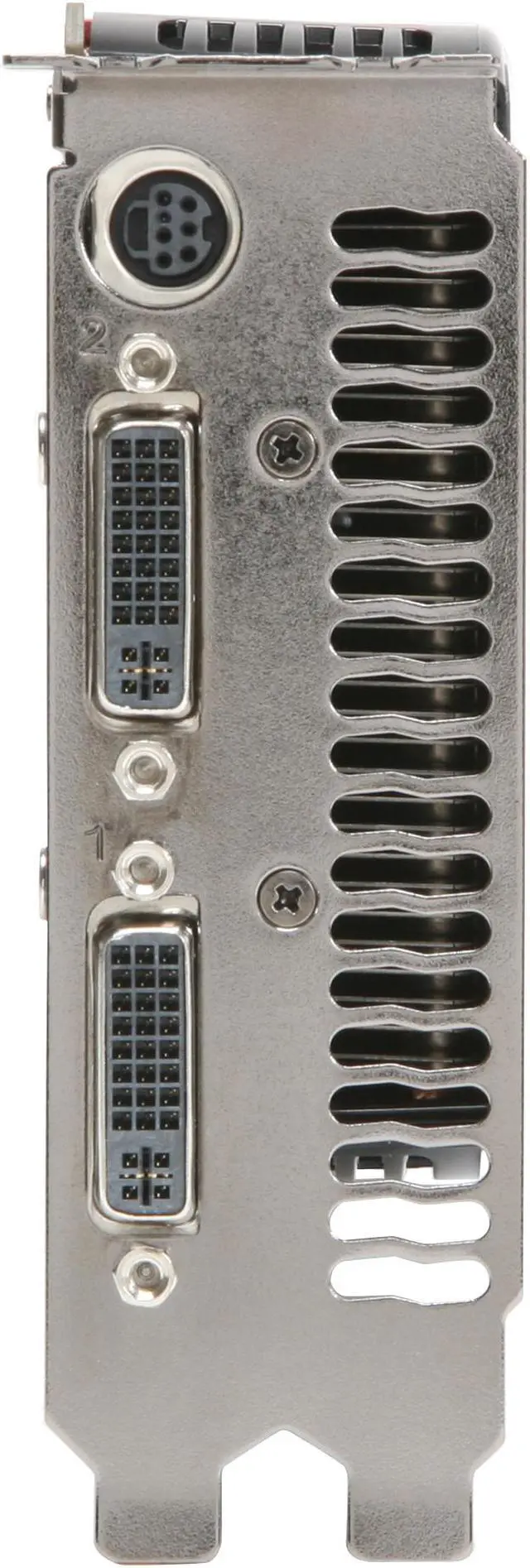

Ports
HDMI
1 x HDMI (via Adapter)
DVI
2 x DVI
TV-Out
HDTV / S-Video Out
Details
RAMDAC
400MHz
Max Resolution
2560 x 1600
3D VISION Game Ready
Yes
SLI Support
3-Way SLI
Cooler
Single Fan
System Requirements
Minimum of a 500 Watt power supply. (Minimum recommended power supply with +12 Volt current rating of 36 Amp Amps.) Two available 6-pin Molex hard drive power dongles

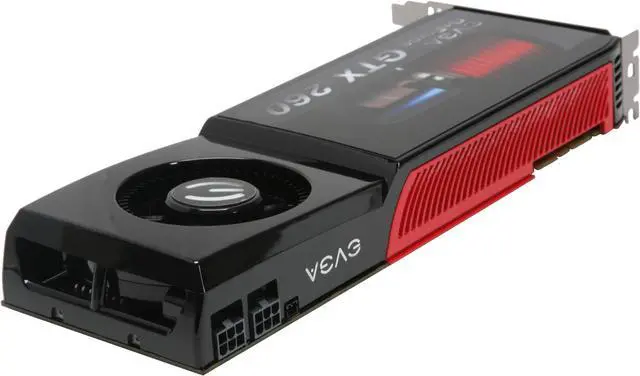

Power Connector
2 x 6-Pin
Dual-Link DVI Supported
Yes
HDCP Ready
Yes
Packaging

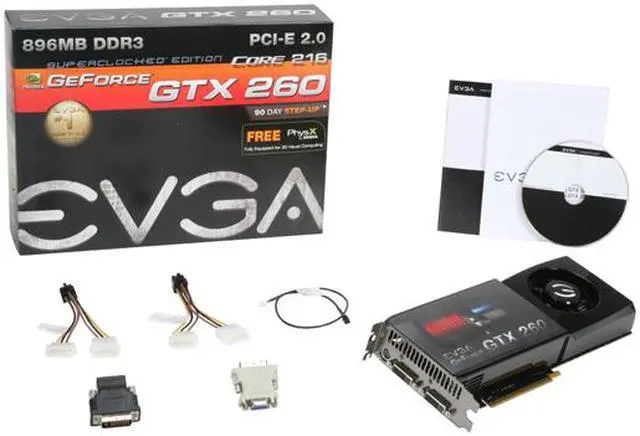

Package Contents
896-P3-1257-AR Driver Disk User's Manual Power Cable DVI to VGA/D-sub Adapter DVI to HDMI Adapter S/PDIF Cable
