Question 1

Can you run Two Monitors at the same time with this card ?

Accepted Answer

Yes you can run two monitors with this card. Depending on your motherboard, it might take a couple of minutes to boot up the first time. Then all you have to do is right click on your desktop, then left click on screen resolution. Your monitor 2nd  will show up there, but you might have to right click on it and left click enable.

Question 2

Does this come with a cable to run the dual link? If not where can i get one.

Accepted Answer

No it does not come with cables. My HP Monitors had both DVI and VGA cables with them so check your monitor to see if it takes DVI. Newegg will have cables or a local computer store.

Question 3

Is the fan loud?  Does it run continuously?

Accepted Answer

Jerry,

I sent this card back and replaced it with the following:

EVGA 02G-P3-2639-KR GeForce GT 630 2GB 128-bit DDR3 PCI Express 2.0 x16 HDCP Ready Video Card.

This card is great and quiet!

I recommend it....

Question 4

Can this card support two monitors, of which one is dual-link DVI quad-def?  The second monitor would be an ordinary 1080p....

This would be for programming - lots of windows, lots of text - no games.

Accepted Answer

Yes. The quad link is definitely needed as well but it dies work. I have sli setup and dual monitors. One of which is at 144Hz. And ive had them installed for the past couple of months with minor issues.

Question 5

Will this support 3 monitors?

Accepted Answer

It does, but one of them will turn off and turn on, by itself and very often you will see a "there is no signal" message. estrange but is happening to me, still trying to solve the problem....The monitor that is going to give you this problem is the one that I have connected to the mini HDMI connection ....the other to DVI work fine.

Question 6

Will this dorp in a slot and output HDMI from a HP Envy 700xt Desktop?

Accepted Answer

I bought it for an e-machine desktop. The onboard video card malfunctioned, so I disabled it and used this video card; saved ditching the motherboard which is still working fine. This video card works great and since it has a HDMI port, it should work for you. Hope this helps.

Question 7

What is the min. power supply rating??

Accepted Answer

I run a 400 watt power supply with no problems. The card does not draw much. The card is being used in a business workstation with only the video card, DVD burner, and the disk drive. Not much of a current draw in that system. I would think that any power supply 500 watts or better would be more than adequate. For my home system I run a 700 watt power supply as the higher wattage power supplies are generally better quality.

Question 8

What is the minimum power supply requirements for this card?

Accepted Answer

The minimum power supply depends on other factors in your system such as number of disk drives, fans, memory, CPU, etc. The video card is not the only consideration.

A 700 watt power supply would work just fine with a fairly well populated system.

The system will only draw as much power as needed. A larger power supply will not be as stressed as a smaller power supply. Don't skimp on the power supply as a sub par power supply will be nothing but aggravation.

Question 9

is this a half length/full height card?  I have two dual monitor cards I can't use due to size and my lenovo says that is the length/height i need.

Accepted Answer

This is not a very good video card. It is ok, but you may be disappointed in the quality of the picture. As far as size, it is exactly the length/height it says it is.

Question 10

Is this compatible with an 300watt power supply?

Accepted Answer

It may run with a 300 watt psu but i definitely would NOT recommend it. Under load it would probably crash due to lower power issues. If you can even get it to run with that small psu

Brand	EVGA
Model	01G-P3-1526-KR

Chipset Manufacturer	NVIDIA
GPU	GeForce GT 520 (Fermi)
Core Clock	810MHz
Shader Clock	1620MHz
CUDA Cores	48 Cores

Effective Memory Clock	1000 MHz
Memory Size	1GB
Memory Interface	64-Bit
Memory Type	DDR3

DirectX	DirectX 12 (feature level 11_0)
OpenGL	OpenGL 4.1

RAMDAC	400MHz
Max Resolution	2560 x 1600
SLI Support	No
Cooler	Single Fan
Dual-Link DVI Supported	Yes
HDCP Ready	Yes

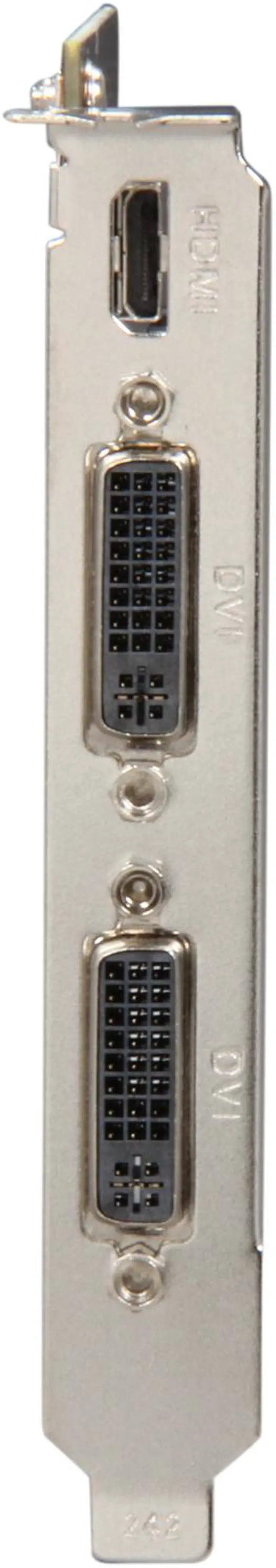

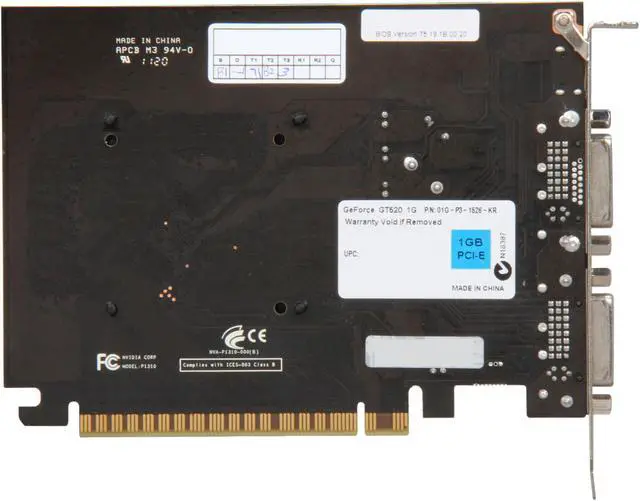

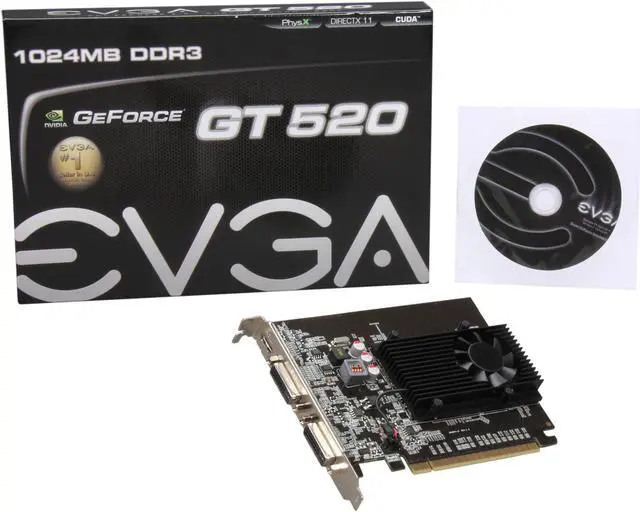

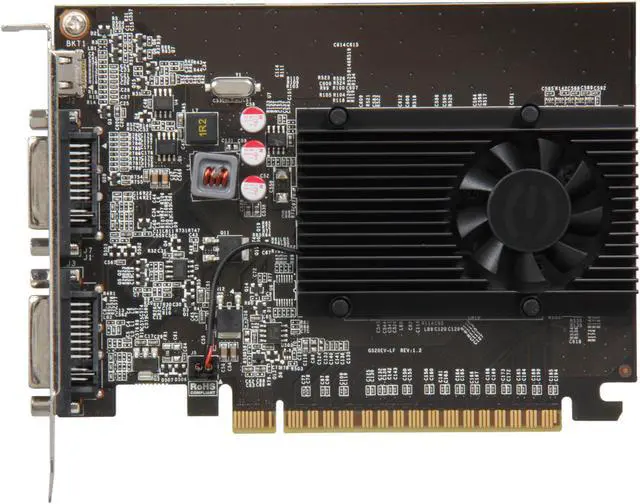

EVGA GeForce GT 520 (Fermi) 1GB DDR3 PCI Express 2.0 x16 Graphics Card 01G-P3-1526-KR

Learn more about the EVGA 01G-P3-1526-KR

Customer Reviews of the EVGA 01G-P3-1526-KR

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Form Factor & Dimensions
Card Dimensions (L x H)	5.7" x 4.38"
Slot Width	Single Slot

Item#: N82E16814130680
