Canopus / Grass Valley High Definition (HDV)capture card and software EDIUSNX(W)STD
- PCI 64-bit/66MHz Interface
- HDV, DV, IEEE1394, Composite, S-Video, Audio in/out
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Grass Valley EDIUSNX(W)STD
| Brand | Canopus / Grass Valley |
|---|---|
| Model | EDIUSNX(W)STD |
| Type | Video Capture & Editing |
|---|---|
| Others | 800MB free disk space ATA100/5400rpm hard disk or faster recommended (requires Ultra SCSI 160 or better when playing two streams or more while reading uncompressed files) Soundcard DVD-ROM reader to access sample content |
| TV Standards | No |
|---|---|
| FM Tuner | No |
| Remote Control | No |
| Interface | PCI 64-bit/66MHz |
| Ports In | HDV, DV, IEEE1394, Composite, S-Video, Audio in/out |
| Specifications | While editing HDV, the ability to view compositions accurately is critical and only a HD monitor can faithfully display HDV output modes, including 1080i. EDIUS NX for HDV's Expansion Kit option features component HD video output for full-quality, full-resolution, realtime monitor output of 1080i HD video. Additionally, the Expansion Kit module features stereo RCA unbalanced audio output connectors and incorporates audio processing circuitry to ensure perfect audio and video synchronization during playback. EDIUS NX for HDV includes capture support for HDV cameras and decks, including Sony's HDR-FX1 camera. When used with the Expansion Kit, or any IEEE 1394 OHCI FireWire controller, EDIUS NX for HDV provides direct capture support from HDV devices, such as Sony's HDR-FX1, either using the native HDV MPEG-2 transport stream format or Canopus's proprietary HQ codec. EDIUS NX for HDV also includes an export-to-tape utility for edited sequences, and supports full device control options for Sony and JVC HDV devices. |
| Processor | Intel Pentium 4 3.0GHz processor or faster (Intel Xeon 3.2GHz dual processors recommended for HD/HDV editing, Hyper-Threading supported) |
| Graphics Card | Graphics card with hardware-based DirectDraw overlay and 32-bit color display at a 1024 x 768 resolution DirectX 9.0 or later |
| Memory | 1GB RAM |
| Available Slot | One free PCI 64-bit/66MHz slot (rev. 2.2) IEEE 1394 OHCI FireWire or EDIUS NX for HDV Expansion Kit for HDV capture/export |
| Operating Systems Supported | Windows 2000/XP |
| Features | Realtime mixed format editing of HD, HDV, DV, MPEG-2, uncompressed and lossless video with EDIUS Pro 3 editing software Realtime HD / SD resolution conversion and output Realtime aspect ratio conversion and output, including 16:9-4:3 Realtime frame rate conversion and output, including NTSC-PAL Realtime HD / SD effects, keyers, transitions and titles High-quality proprietary software codecs, including the award-winning Canopus HQ codec High-quality analog and digital inputs/outputs for DV, S-Video, composite video and unbalanced audio Hardware-based video overlay design for accelerated HD / SD editing Realtime, full resolution, full quality component HD and SD video output* Filtering and noise reduction technology for analog input Bidirectional analog/DV conversion from any Windows NLE when used with IEEE 1394 OHCI or the Expansion Kit Direct-to-DVD timeline export Future-proof codec and performance scalability Capture / video output plug-in for Adobe Premiere Pro and video output plug-ins for Adobe After Effects and Adobe Photoshop |
|---|

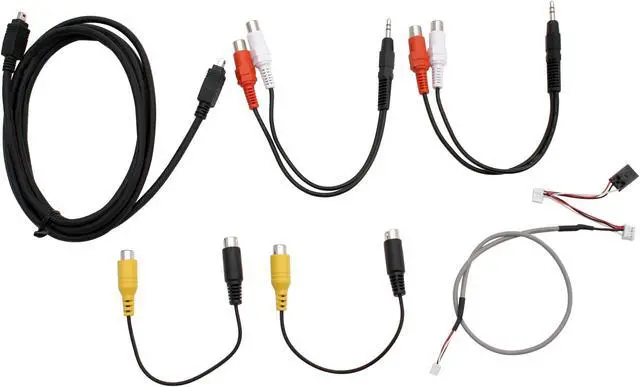

| Package Contents | EDIUS NX for HDV 64-bit PCI bus card 1 x FireWire cable (4-pin - 4-pin) 1 x 4-pin internal audio connector cable 2 x 3.5mm minijack to RCA audio cable 2 x S-Video to composite conversion cable EDIUS NX for HDV installation manual EDIUS Pro 3 installation CD-ROM EDIUS Pro 3 user manual EDIUS Pro 3 reference manual Sample footage DVD-ROM |
|---|
| Date First Available | March 07, 2005 |
|---|
