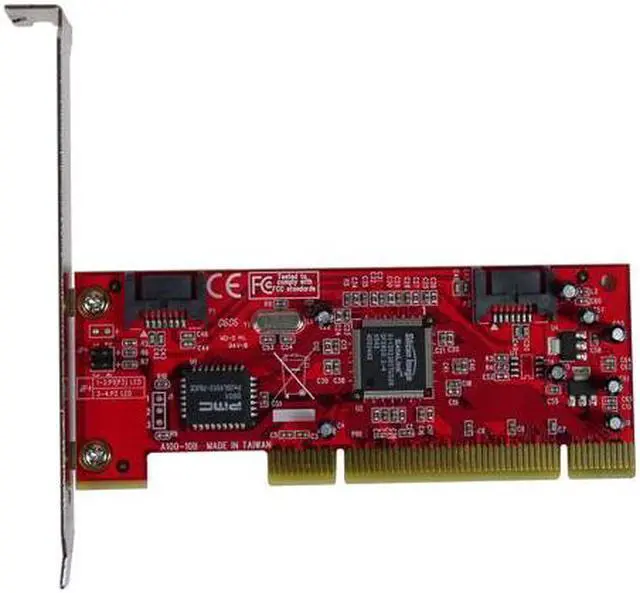

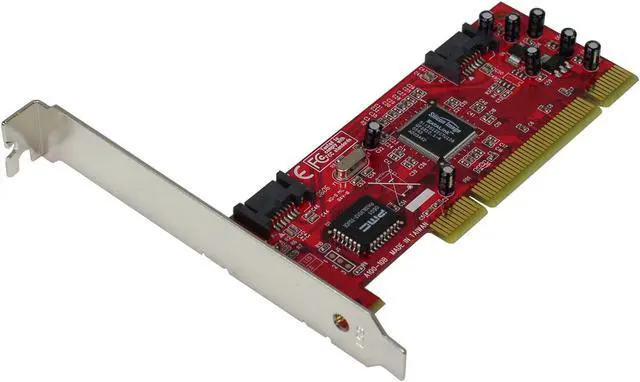

SABRENT SBT-SRD2 2-Port PCI SATA RAID Controller Host Card Adapter RAID 0/1
- RAID 0/1
- 2 x Serial ATA 150 Internal Connectors
Specs
Reviews (26)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the Sabrent SBT-SRD2
| Brand | SABRENT |
|---|---|
| Model | SBT-SRD2 |
| Type | SATA |
|---|---|
| Internal Connectors | 2 x SATA 150 |
| Interface | PCI |
| Transfer Rate | 1.5Gb/s |
| RAID | RAID 0/1 |
| Operating Systems Supported | Windows 98SE / Me / NT4.0 / 2000 / XP/NT 4.0, Windows Server 2003, Linux, Novell Netware |
| Features | RAID function: Supports RAID 0 (striped), RAID 1 (mirror); Supports co-exist RAID set and Non-RAID HDD; Allows HDDs with different sizes to be configured in a RAID set Provides 2 Brackets to Support Low profile PCI and Regular size PCI in one card Breaks Capacity-Limit to Support HDD larger than 137GB RAID 0 (Striping) to greatly increase the performance of data transfer by simultaneously writing data to 2 drives Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives Supports Spread Spectrum in receiver Independent 256-byte FIFOs (32 bit x 64 deep) per Serial ATA channel for host reads and writes Compliant with PCI Specification, revision 2.2 Integrated PCI DMA engines 32 bit, 33/66MHz fully compliant PCI host interfact Acts as NON-RAID when not BIOS configured RAID |
|---|

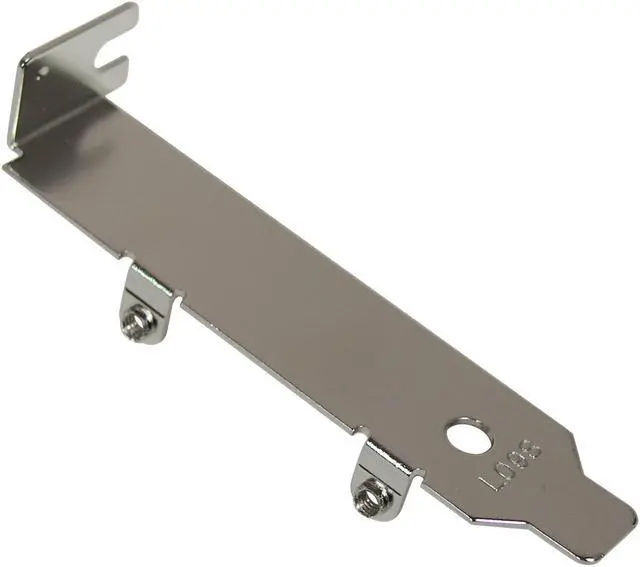

| Package Contents | Serial ATA 2 Port RAID PCI Controller Card Low Profile PCI Bracket Drivers on CD Quick Installation guide |
|---|
| First Listed on Newegg | November 30, 2005 |
|---|
