Pinnacle 82301002871 Studio MovieBox Ultimate

  • USB 2.0 Interface
  • Composite video input and output (RCA connector) NTSC S-Video input and output(mini-DIN connector) NTSC Stereo audio input and output (2 x RCA connectors) IEEE 1394 In connector (6-pin type)
Specs
Reviews (7)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the Pinnacle System 82301002871

Model
Brand Pinnacle
Model 82301002871
Details
Type Video Capture & Editing
Others 3 GB of disk space
DVD-ROM drive to install software
Specifications Capture Options:
Capture from DV, HDV and Digital8 camcorders or VCRs
Capture from analog camcorders, 8 mm, HI 8, VHS, SVHS, VHS-C, SVHS-C, or VCRs (NTSC/PAL/SECAM).
Import from AVCHD* camcorders (requires USB 2.0 and a UDF driver)

Output Options:
Output to DV, HDV or Digital8 tape
Output to analog videotape
Output to Apple iPod and Sony PSP formats

Video Capture to Computer:
Analog PAL & SECAM/NTSC input
HDV/DV (IEEE 1394) camcorder capture. Full camera control support
Compression: MPEG-2, MPEG-1, DV, MJPEG (User selectable. Available real-time capture formats depend on CPU speed.)

Video Playback from Computer:
Analog output from computer
HDV/DV (IEEE 1394) output to camcorder. Full camera/device control support
TV
TV Standards No
Remote Control No
Tuner
Interface USB 2.0
FM Tuner No
Video Format Import Formats:
AVCHD*, DV, HDV, AVI, MPEG-1, MPEG-2, DivX*, MPEG-4*, 3GP(MPEG-4)*, WMV, Non-encrypted DVD titles*

Export Formats:
VideoCD (VCD) or S-VCD with optional CD burner (CD-R or CD-RW)
AVCHD*, Blu-ray BD*, HD-DVD*, DVD* disc with optional disc burner (incl. dual layer)
Apple iPod and Sony PSP compatible (MPEG-4) formats*
DV, HDV, AVI, DivX*, RealVideo 8, WMV, MPEG-1, MPEG-2, MPEG-4*, Flash, 3GP*, WAV
Audio Import Formats:
MP3, MPA, WAV, AC3*

Export Formats:
MP3* files, Dolby Digital 2 channel* and 5.1 channel audio
Image Format Import Formats:
BMP, GIF, JPG, PCX, PSD, TGA, TIF, WMF

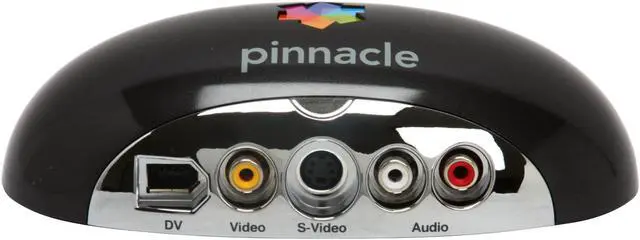

Ports In Composite video input and output (RCA connector) NTSC
S-Video input and output(mini-DIN connector) NTSC
Stereo audio input and output (2 x RCA connectors)
IEEE 1394 In connector (6-pin type)
Ports Out IEEE 1394 Out connector (6-pin type)
System
Processor Intel Pentium or AMD Athlon 1.8 GHz (2.4 GHz or higher recommended)
Intel Pentium HT or AMD Athlon 2.4 GHz or 1.6 GHz Dual core required for Windows Vista
Intel Core 2 Duo 2.4 GHz or higher required for 1440 x 1080 AVCHD editing
Intel Core 2 Quad 2.66 GHz or higher required for 1920 x 1080 AVCHD editing
Graphics Card DirectX 9 or 10 compatible graphics card with 64 MB (128 MB or higher recommended), 128 MB required for Plug-ins (for Magic Bullet Looks: Pixelshader 2 required, Intel GMA integrated graphics not supported; for VitaScene with HD: 512MB recommended)
- 128 MB required on Windows Vista (256 MB or higher recommended)
- 256 MB required for HD and AVCHD
DirectX 9 or higher compatible sound card
Memory 1 GB system memory recommended
2 GB required for AVCHD, recommended for HD and/or Windows Vista
Operating Systems Supported Windows XP SP2 (SP3), Windows Vista (SP1)
Features
Features Take control of your videos with professional strength editing tools
Capture, edit and burn: The complete native HD solution
Includes: Boris Graffiti, Red Giant Magic Bullet Looks, proDAD VitaScene
Package Contents
Package Contents 8230-10028-71
User Manual
Driver Disk

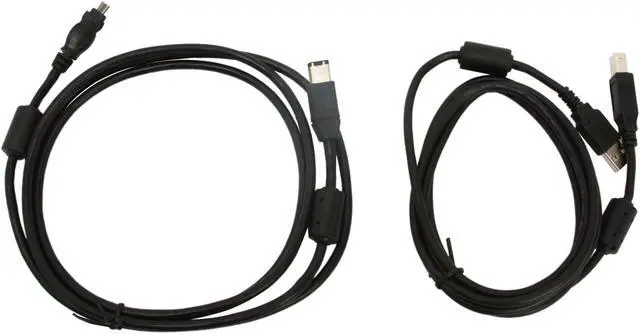

Cable
Additional Information
First Listed on Newegg October 17, 2008
