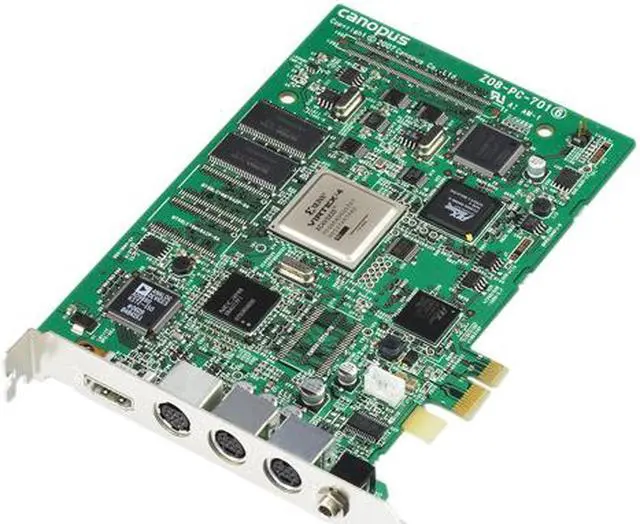

Canopus / Grass Valley HD/SD Video Capture For Archiving & Distribution Pegasus
- PCI-Express x1 Interface
- 1 x HDMI type A (Ver1.1 HDCP not supported) 1 x 7-pin miniDIN (analog Y, Pb, Pr component) 1 x 4-pin miniDIN (S-Video, composite video) 1 x 9-pin miniDIN (analog RGB) 1 x stereo mini jack
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Grass Valley Pegasus
| Brand | Canopus / Grass Valley |
|---|---|
| Model | Pegasus |
| Others | 40 MB free disk space for the drivers and application software Internal 4-Pin audio input connector for audio preview ATA 3 GB/s, 7200 rpm or faster hard disk for video capture (if capturing graphics output from the same PC, a second physical hard disk drive is recommended) DirectX 9.0 or later |
|---|---|
| Type | Video Capture & Editing |
| Interface | PCI-Express x1 |
|---|---|
| Ports In | 1 x HDMI type A (Ver1.1 HDCP not supported) 1 x 7-pin miniDIN (analog Y, Pb, Pr component) 1 x 4-pin miniDIN (S-Video, composite video) 1 x 9-pin miniDIN (analog RGB) 1 x stereo mini jack |
| Ports Out | 1 x 4-pin connector for internal PC connection (AUX) |
| Specifications | Supported Input Resolutions: - HDMI 1920x1080/59.94,60i 1920x1080/50i 1280x720/59.94,60p 1280x720/50p 720x480/59.94,60p 720x576/50p 720x480/59.94,60i 720x576/50i 640x480/59.94,60p - DVI 1280x1024/60p 1024x768/60p 800x600/60p 640x480/60p - Analog RGB 1280x1024/60p 1024x768/60p 800x600/60p 640x480/60p - Analog Component 1920x1080/59.94i 1920x1080/50i 1280x720/59.94p 1280x720/50p 720x480/59.94p 720x576/50p 720x486/59.94i 720x576/50i - S-Video, Composite Video 720x486/59.94i 720x576/50i - Digital Video Input 1 x HDMI type A (Ver1.1 HDCP not supported) Video Capture File Format: AVI (Canopus HQ, LPCM) Video Capture Resolution: 1920x1080 1440x1080 (1920 3/4) 1280x1080 (1920 2/3) 1280x1024 1280x720 960x720 (1280 3/4) 1024x768 800x600 720x576 720x486 720x480 640x480 Audio Capture: Line In, Monitor Out Stereo @ 24-bit, 48 kHz HDMI Input LPCM 2-8 ch. @ 24-bit 32-/44.1-/48 kHz |
| Processor | Intel Pentium 4 2.80 GHz CPU or faster (AMD CPU also supported) |
| Graphics Card | Graphics card with support for PixelShader Model 2.0 (i.e. DX9-based) or hardware-based DirectDraw overlay, and 32-bit color display at a 1024x768 resolution |
| Memory | 1 GB RAM (2 GB RAM recommended) |
| Available Slot | One free PCI Express bus slot |
| Operating Systems Supported | Windows XP Home or Windows XP Professional (SP2 or later, 32-bit) Windows Vista (SP1 or later, 32-bit), including the following operating systems: Windows Vista Home Basic Windows Vista Home Premium Windows Vista Business Windows Vista Ultimate |
| Features | High-quality capture of standard- and high-definition (SD and HD) video using an onboard Canopus HQ hardware encoding chip Capture up to 1920x1080/60i, 50i**, and 1280x720/60p, 50p video Capture PC display signals up to 1280x1024 without downscaling Capture via HDMI*, DVI***, S-Video, YUV, and RGB component inputs HQ recorder to capture software via three modes: Auto capture (when an input signal is detected) Manual capture Scheduled capture Includes Canopus codec pack for import of Canopus HQ AVI files in Windows-based video applications Software development kit (SDK) for software engineers to create custom solutions based on Pegasus technology *HDMI support for 1.0 (HDMI 1.1-1.3, HDCP not supported) **1080p capture not supported ***DVI capture requires HDMI-DVI converter, sold separately Note: Video that contains copy control, such as copy-once, copy-never, or Macrovision cannot be captured. |
|---|
| First Listed on Newegg | October 15, 2010 |
|---|
