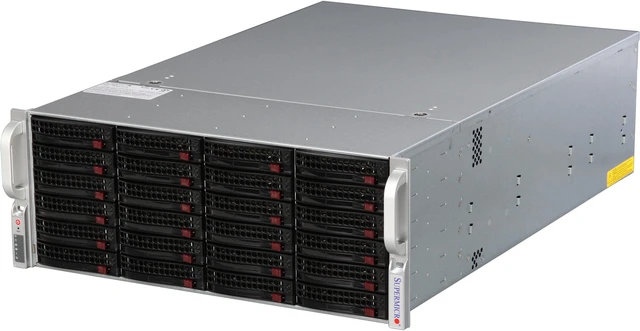

SUPERMICRO SSG-6047R-E1R24N 4U Rackmount Server Barebone Dual LGA 2011 Intel C602 DDR3 1600/1333/1066/800

(1) Write a Review
  • Dual LGA 2011
  • Dual Intel Xeon E5-2600 (up to 130W TDP) Series
  • 24 x 240Pin Memory Slots
  • 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C 80 PLUS, Platinum Level (94%)
Overview
Specs
Reviews (1)
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

Try me now


SUPERMICRO SSG-6047R-E1R24N 4U Rackmount Server Barebone

Key Features


PHILIPS
  1. 1. Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
  2. 2. Up to 1.5TB ECC DDR3, up to 1866MHz; 24x DIMM slots
  3. 3. 3x PCI-E 3.0 x16 slots (FHFL) and 1x PCI-E 3.0 x8 slot (FHHL)
  4. 4. Intel® i350 GbE Controller; 4x ports
  5. 5. 24x 3.5" Hot-swap SAS2 (with LSI expander) / SATA3 HDD Bays
  6. 6. Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
  7. 7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  8. 8. 3x Heavy duty PWM fans
  9. 9. 920W Redundant Power Supplies Platinum Level (94%)


Specifications

Product SKUs
SSG-6047R-E1R24N SuperServer 6047R-E1R24N (Black)
Motherboard
Super X9DRi-LN4F+
Processor/Cache
CPU
  • Dual Socket R (LGA 2011)
  • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
Note † BIOS version 3.0 or above is required
Cache
  • Up to 30MB
System Bus
  • QPI up to 8 GT/s
System Memory
Memory Capacity
  • 24x 240-pin DDR3 DIMM slots
  • Up to 1.5TB DDR3 ECC LRDIMM
  • Up to 768GB DDR3 ECC Registered memory (RDIMM)
  • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C602 Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS
  • LSI 2108 SAS2 RAID (BBU optional)
  • Hardware RAID 0, 1, 5, 6, 10, 50, 60
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® i350 Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • Matrox G200eW
Input / Output
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
  • 8x SATA 2.0 ports (3Gbps)
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
JBOD
  • 2x JBOD Expansion Ports
USB
  • 9x USB 2.0 ports total
    (4x rear + 4x via header + 1x Type A)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header

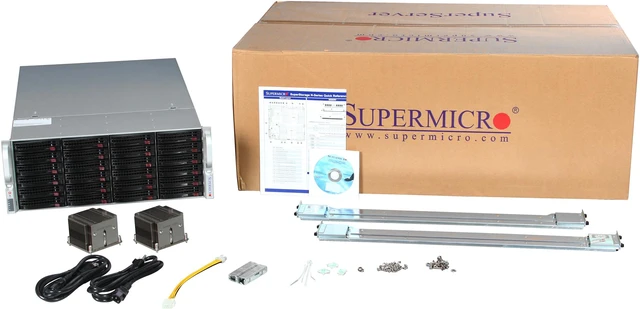

What's in the Box

PHILIPS

Supermicro's extensive range of rackmount storage server solutions provides exceptionally high storage density while leveraging high-efficiency power to maximize performance-per-watt savings to reduce TCO.

The product line includes 2U, 3U, and 4U form factors, with each server capable of supporting up to 7 PCI expansion slots and Supermicro's wide line of DP and UP motherboards. Offering up to 93% power efficiency, cooling redundancy, power redundancy, hot-swappable drive bays and fans, Supermicro storage servers are designed to meet the requirements of today's sophisticated enterprise data centers and high performance applications with new levels of storage performance, scalability and reliability. Direct attached HDD backplane (E16 version) and expander backplane (E1 and E2 versions) are available for application-specific solution optimization.
