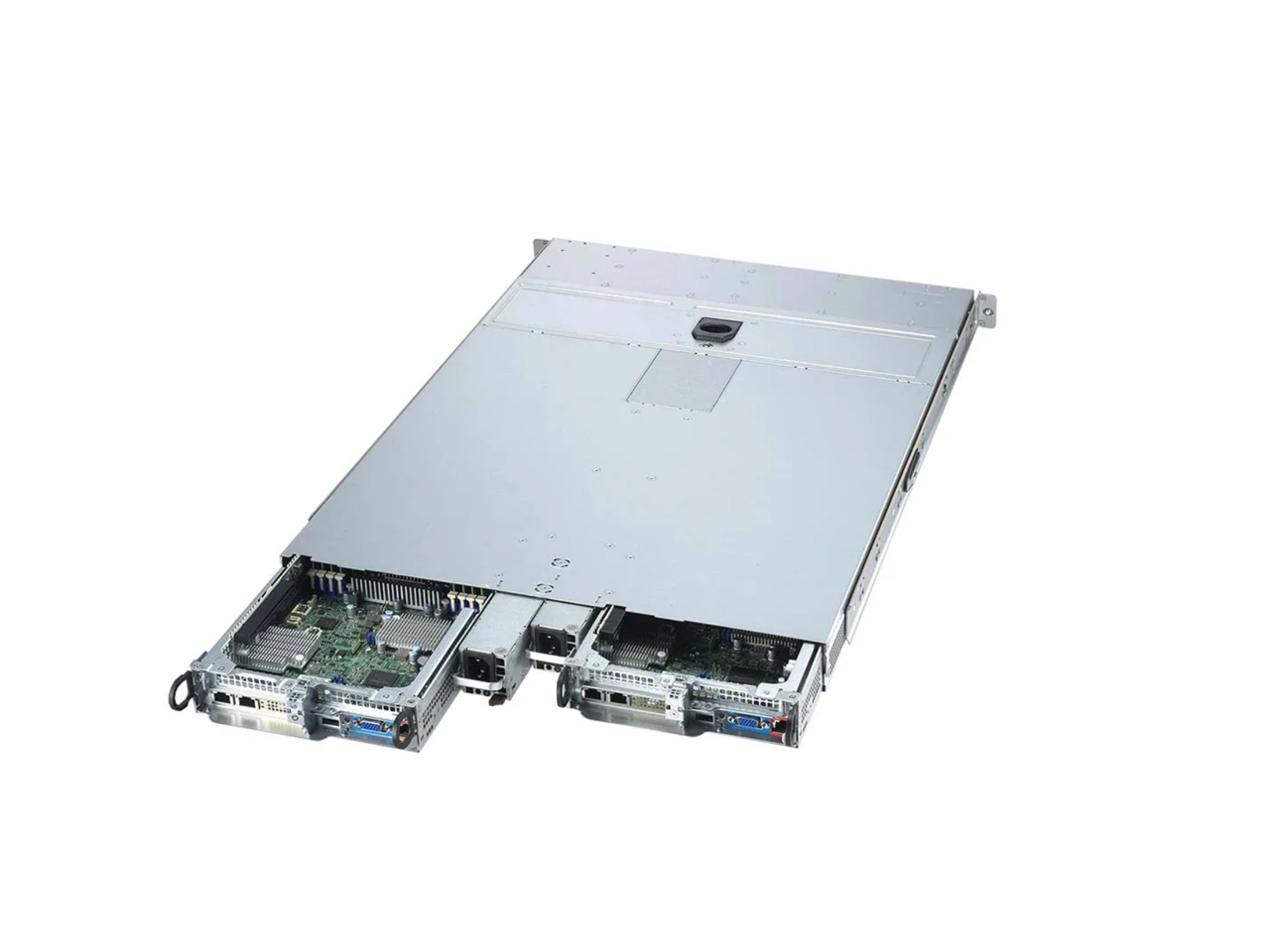

Supermicro Twin SuperServer SYS-120TP-DTTR, 1U 2-node TwinPro with 4 2.5" SATA drives per node

Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:
Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
Intel® C621A Chipset
16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
2 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
Intel® X710 Dual port 10GBase-T LAN onboard
4x 2.5" hot-swap SATA drive bays
6 counter-rotating 4cm PWM fans with optimal fan speed control (Per System)
Two 1000W redundant power supplies with PMBus
SATA (6Gbps); 4 slots per node; RAID 0, 1, 5, 10 support.
ASPEED AST2600 BMC, 2 USB, VGA. RoT
