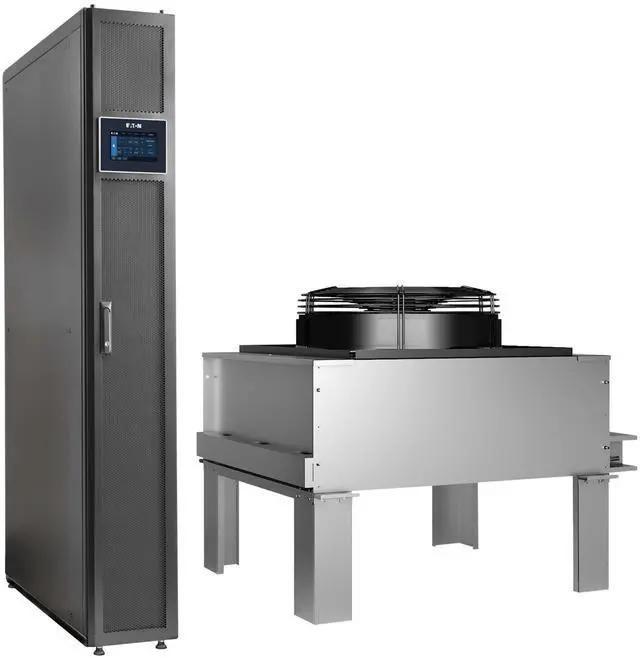

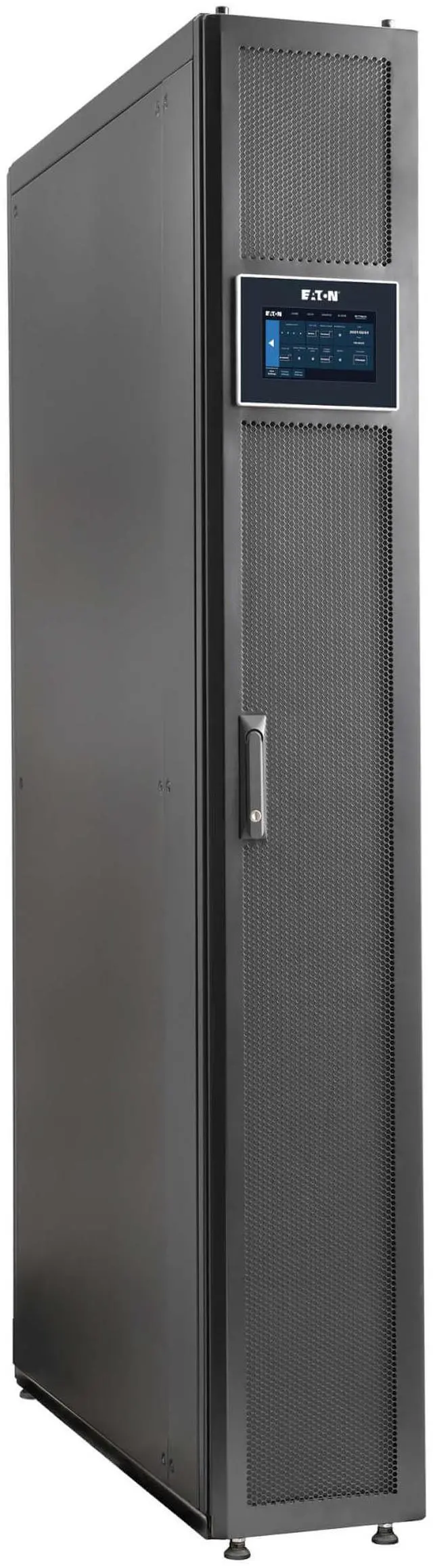

Tripp Lite by Eaton - SRCOOLDXRW25 - In-Row Precision Cooling System - 25.8 kW (88,000 BTU), 3PH, 208V, 42U, 300mm
- Electrical Consumption (Max): 10 kW
- Nominal Input Voltage(s) Supported: 208V AC
- Nominal Input Voltage Description: 208V AC 60 Hz
- Maximum Input Amps: 27
- Input Connection Type: 3-wire / 4-wire + Ground
- Airflow: 2,950 CFM
- Cooling Type: Active
- Cooling Capacity (BTUs): 88000
- Cooling Capacity (kW): 25.8
- Refrigerant: R410a (Environmentally friendly, Non ozone depleting)
- Refrigerant Amount: 17.4 lb. / 8.0 kg (Nominal)
- Front Panel LEDs: 7-inch color touchscreen
- Storage Temperature Range: -40° to 140° F (-40° to 60°C)
- Operating Elevation: 0-13123 ft. (0-4000 m)
- Audible Noise: 68 dBA
- Operating Temperature: 4° to 115°F (-16° to 46°C)
- Operating Humidity Range: 5 to 80%
+
+
Learn more about the Detailed Specifications
| Brand | Tripp Lite by Eaton |
|---|---|
| Part Number | SRCOOLDXRW25 |
| Type | Air Conditioners |
|---|---|
| Color | Black |
| Specifications | INPUT Electrical Consumption (Max): 10 kW Nominal Input Voltage(s) Supported: 208V AC Nominal Input Voltage Description: 208V AC 60 Hz Maximum Input Amps: 27 Input Connection Type: 3-wire / 4-wire + Ground Input Plug Features: 3-wire / 4-wire + Ground Voltage Compatibility (VAC): 208 Input Frequency: 60 Hz OUTPUT Frequency Compatibility: 60 Hz COOLING Airflow: 2,950 CFM Cooling Type: Active Cooling Capacity (BTUs): 88000 Cooling Capacity (kW): 25.8 Refrigerant: R410a (Environmentally friendly, Non ozone depleting) Refrigerant Amount: 17.4 lb. / 8.0 kg (Nominal) USER INTERFACE, ALERTS & CONTROLS Front Panel LEDs: 7-inch color touchscreen PHYSICAL Color: Black Material of Construction: Aluminium, Steel ENVIRONMENTAL Storage Temperature Range: -40° to 140° F (-40° to 60°C) Operating Elevation: 0-13123 ft. (0-4000 m) Audible Noise: 68 dBA Operating Temperature: 4° to 115°F (-16° to 46°C) Operating Humidity Range: 5 to 80% Condensate Drain Pumps (L/HR): Max distance 150ft (45m), max lift 26.5ft (8m) Condensate Water Drains: 1/4 in. Connection COMMUNICATIONS SNMP Compatibility: Yes, WEBCARDLXMINI card included FEATURES & SPECIFICATIONS Compressor Type: Rotary (Inverter Driven) Sound Level (Noise): 68 DBA @ 3000 CFM @ 1 METER Fans (Type/Quantity): 0-3000 RPM x 6 OPERATION Operation Mode: Cooling, Standby, Off, Maintenance Mode Supply Air Temperature (Celsius): 18-27 deg. C (limited by heating load) Applied Containment Types: Close/Open Fan Controls: Automatic Force Modes: Maintenance Mode, Rotation Mode Installation Modes: Condenser above or slightly below In-Row; horizontal or vertical condenser. Manual Modes: Service and factory setting menus for manual adjustment Power Redundancies: Single only Package Includes Indoor in-row air conditioning unit Outdoor condenser Side discharge panels / adapters Hardware kits Owner's manual |
| Features | Slim Air Conditioning System Saves Space While Delivering Primary Precision Cooling Uses DX Technology to Deliver Cool Air to Loads High Cooling Efficiency Saves You Money Inverter compressor and EC fan technology automatically regulate cooling output to match heat load and conserve energy during off-peak hours, lowering your overall energy costs and lengthening the lifespan of the equipment being cooled. Easy to Operate with the Color Touchscreen Reconfigure Your Cooling Needs as Your Equipment Needs Change The modular, in-row cabinet design easily facilitates expansion or movement on its built-in casters, allowing your increasing cooling needs to be reconfigured as your data center grows. Pre-Installed WEBCARDLXMINI Network Interface Offers 24/7 Access Designed for Simple Maintenance and Convenience By placing the SRCOOLDXRW25 close to a rack, you can eliminate hot spots. |
|---|
| First Listed on Newegg | January 29, 2026 |
|---|
