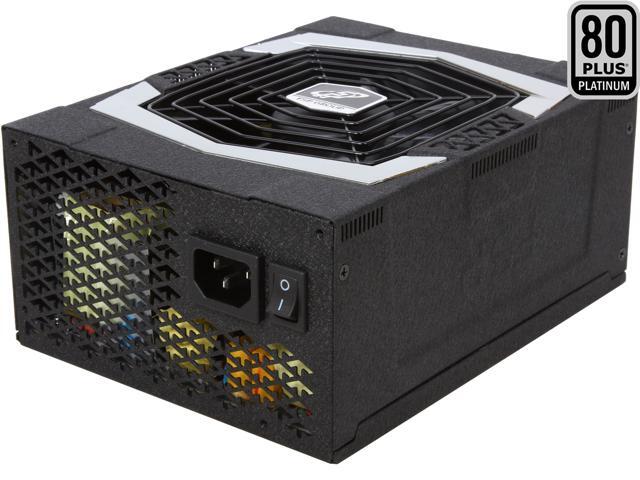

The AURUM PT Series, a high end modular PSU, is designed specifically for gaming enthusiasts and demanding overclockers. At 80 Plus® Platinum certification, the AURUM PT Series delivers a premium product and is the ideal choice for those seeking high-performance, reliability and quality.
The modular cable design simplifies installation and allows flexibility and simplicity, in choosing only those cables needed.

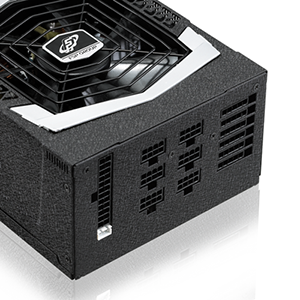

Arrow-shaped ventilation to provide remarkable air ventilation and superior cooling performance.

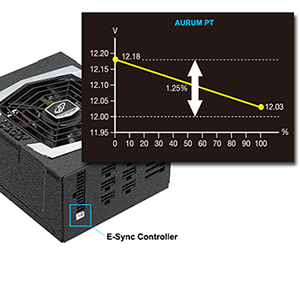

Synchronize 3.3V/5V/12V with stable signal, allows AURUM PT to provide better ripple/noise performance.

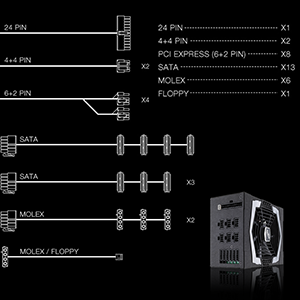

13 SATA and 8 PCI-E cables provide the most flexible support for your hardware setup.
Fully Compatible with 4th Generation Intel Core Series Processors
FSP's power supply provide 100% Compatible with Haswell CPUs.
+12V Single Rail Design
- Designed for power-intensive VGA cards
- Provides strong power to any overloading condition
SATA Array Cable, Easy Installation
50mm intervals for 4 SATA device installation
- Optimized the airflow in case
- No-hassle with case side panel
Full Safety Approved
OVP/UVP/OCP/SCP/OTP/OPP
protect you and your system
105°C Japanese-made Capacitor and Solid Capacitor
makes prolonged life span possible
Active PFC
Power factor≥ 99%
Quiet and Durable Cooling
power by low noise and long-lasting FDB fan
2013 ErP/Eup Ready
The total AC power consumption of the completed system is less than 0.5W in standby mode
| Model No. | PT-1200FM | ||||
|---|---|---|---|---|---|
| AC Input | 100 ~ 240VAC | 15-9A | 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max. Output Current | 25A | 25A | 100A | 0.8A | 3.0A |
| Max. Combined Power | 160W | 1200W | 24.6W | ||
| Total Power | 1200W | ||||
Strong Single +12V Rail Compliant with ATX12 v2.4/EPS12 v2.9 specifications, the FSP Group AURUM PT1200FM power supply delivers 1200W total continuous output @ 40°C. The single +12V rail offers the high current needed to power your high-end CPU and GPU, as well as a multi-GPU configuration. Synchronize 3.3V/5V/12V with a stable signal to provide better ripple/noise performance.
80PLUS Platinum certified The 80 PLUS Platinum certified power supply provides ultra-high power efficiency of at least 92% at any load between 20% and 100%, saving you money on your electric bill, reducing heat in your computer's system, and prolonging its life.

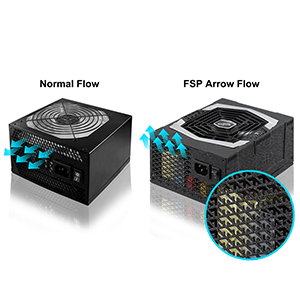

Silent Cooling The FSP’s unique arrow-flow technology provides remarkable air ventilation and superior cooling performance.
High-quality Japanese capacitors This power supply utilizes 105° Japanese-made capacitor and a solid capacitor, providing a higher quality over regular electrolytic caps.
SLI and CrossFire Ready With eight 6+2 pin PCI-E connectors, and SLI and CrossFire support, you can build a multi-GPU configuration for the maximum graphics performance.
Enhanced cable management The unique SATA array cable design allows for better cable management. The modular cable design allows use of only the cables you need, resulting in an improved internal airflow with reduced system clutter.
Pros: none yet
Cons: didn't work right out of the box
Pros:
-Full modular design
-Long cables
-Silent
-Great performance
-Easy to mount
-amazing 1200 Watts
-80 Plus platinum certified
- can handle dual gtx980 video card
Cons: None, always better to get more than sorry
Overall Review:
I7-4790k
Dual Evga gtx980
16gb corsair vegengeance 1600 Mhz ram
Asks z97 sabertooth mb
Fsp 1200w arum pt
Intel 730 240gb sad
Seagate Barracuda 2tb 7200rpm
Pros: Very quiet, full modulator, superstable, looks very sexy, and enough power to run anything you throw at it
Cons: Will need big case
Overall Review: I originally bought corsair ax1200i but quickly went dead within hours of usage with burning smell. Luckily, I immediately got this as replacement and installation was quick and painless. No burning smells and psu is running silent. Lesson learned, always buy from true manufacturer than private label.
Pros:
- 1200 watt
- 80 plus platinum certified
- full modulator
- ultra quiet
- running 2 x gtx780ti with no issue and still silent while gaming
- looks beautiful
- seems very efficient
Cons: None
Overall Review: This PSU has plenty of power and for gamers, you will for sure love this because it is completely silent. Review already shows this baby should be enough power if you throw tons of upgrade or even get to 3-4 high end via cards SLI/crossfire. I yet need that kind of upgrade but very tempting to try after seeing how it performed on my rig.
Pros:
- Very quiet for such a high output PSU
- This PSU can handle system built with mid-towers HDDs farm & 2 VGA Cards
- Excellent efficiency and stability probably because of the full-bridge design with 4 MOSFETs component
- 7 years warranty
Cons:
- Don't just install without going through the user manual, you may screw up if you don't connect things right, user manual have all the detail info of each connectors.
- You will need a decent size case if you have multiple HDD & the right motherboard to handle 2+ VGA cards, this can takes up tons of space.
Overall Review: If you are a true gamer with multiple VGA cards or a graphic designer with multi-monitor output/VGA cards, or simply loves overclocking, then this PSU will be one of the best option available. I got it because I've seen this PSU handling 4 x Nvidia Titan cards + overclocking and is still quiet.
Pros: I have two babys I need to take care of during a day. Super quiet fan plus its E-Sync remote make my desktop really quiet! So I can enjoy my game time while my babys are sleeping! Moreover, I am fully satisfied about the stable and high efficiency of PT1200FM. I will definitely get another one for my husband.
Cons: I'm satisfied so far.
Pros: Really good efficiency, not too loud
Cons: Random restarts beginning a few days after purchase, ugly, cabling was low quality, had to force one of the modular cables into the PSU because of a bent pin
Overall Review: Just get something better. This isn't worth your money.
