KINGWIN ABT-600CW 600W ATX 12V Ver.2.2 SLI Certified CrossFire Ready Modular Power Supply

  • ATX 12V Ver.2.2
  • 115~120 Vac/200~240 Vac
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (43)

Learn more about the Kingwin Inc. ABT-600CW

General
Brand KINGWIN
Model ABT-600CW
Details
Type ATX 12V Ver.2.2
Maximum Power 600 W

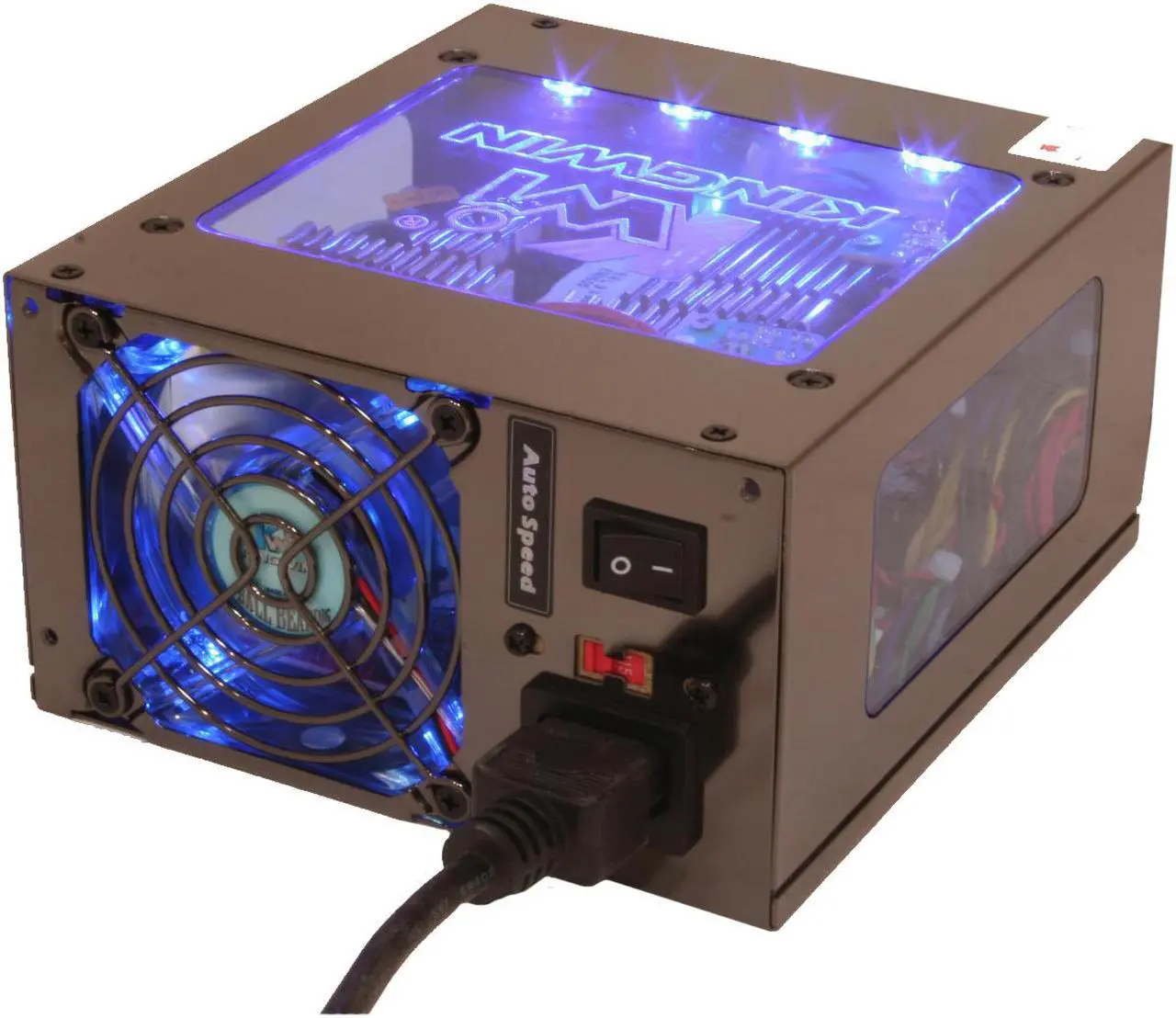

Fans 1 x 80mm front blue LED fan
1 x 60mm rear blue LED fan
PFC No
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 2 x 6-Pin
SLI SLI Certified
CrossFire CrossFire Ready

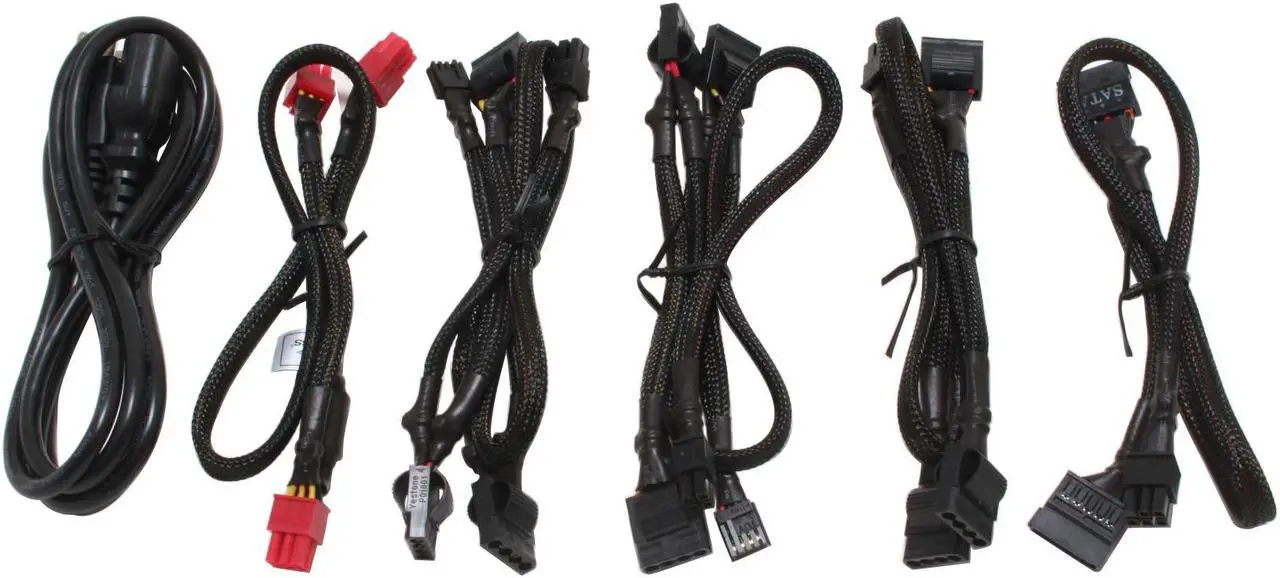

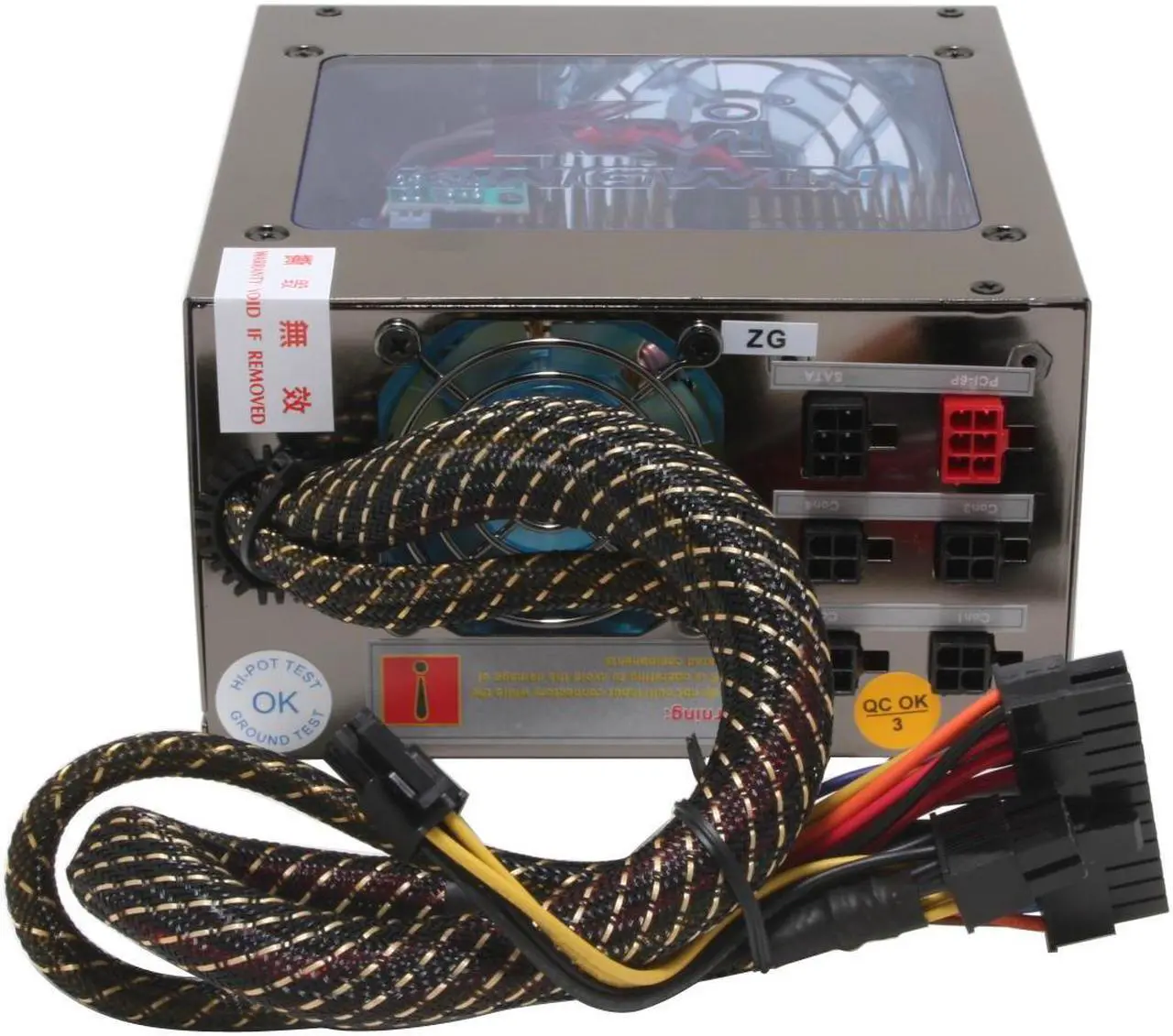

Modular Modular type cable management system
Efficiency > 70%
Over Voltage Protection +5V output is between 5.7V to 6.5V/+12V output is between 13.2V to 14.4V/+3.3V output is between 3.7V to 4.1V.
Overload Protection 105%~150%
Input Voltage 115~120 Vac/200~240 Vac
Input Frequency Range 50/60 Hz
Input Current 10.7A@115V/6.2A@230V.

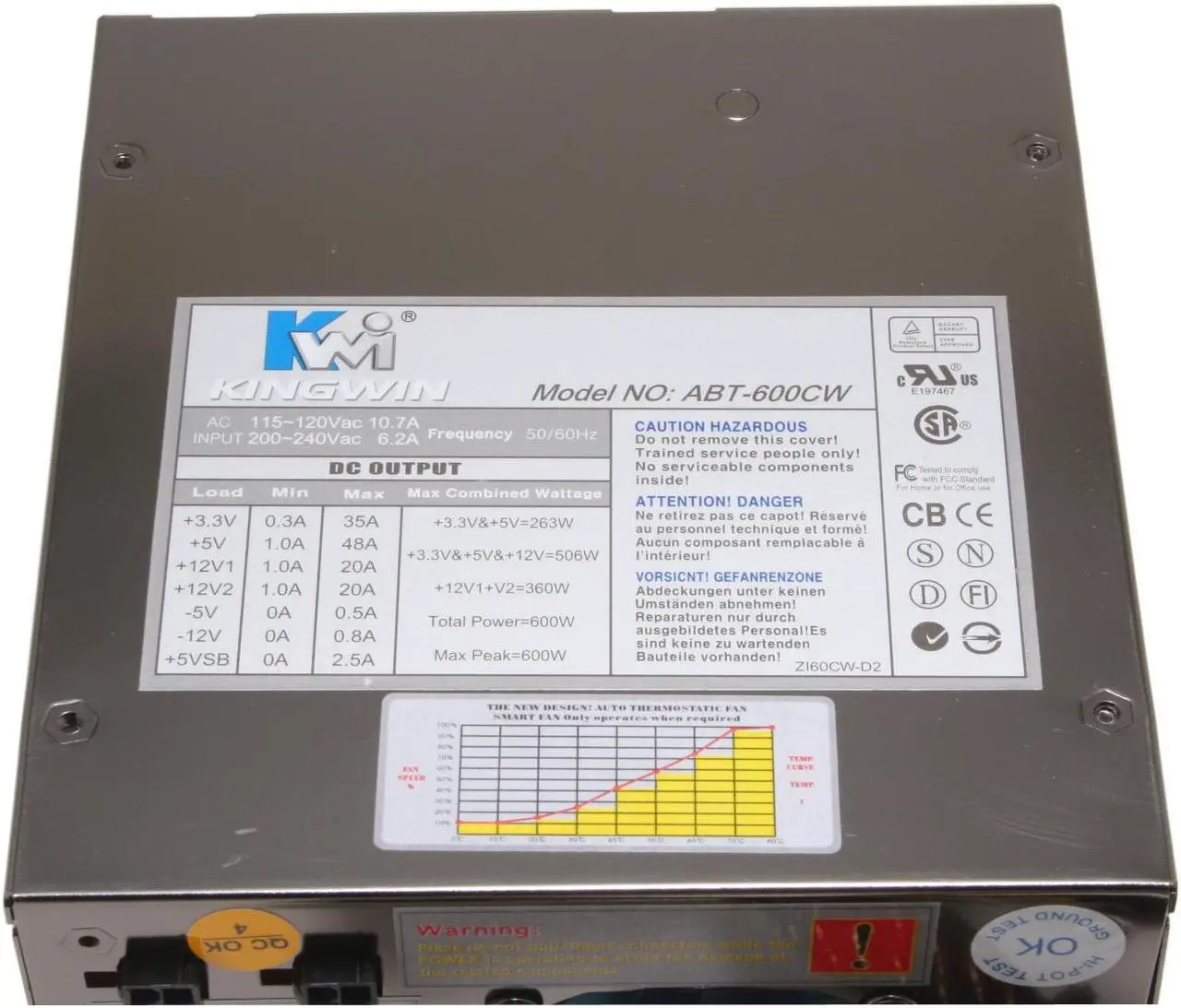

Output +3.3V@35A,+5V@48A,+12V1@20A,+12V2@20A,
[email protected],[email protected],[email protected]
MTBF >100,000 Hours
Approvals CB, CE, FCC, CSA, UL

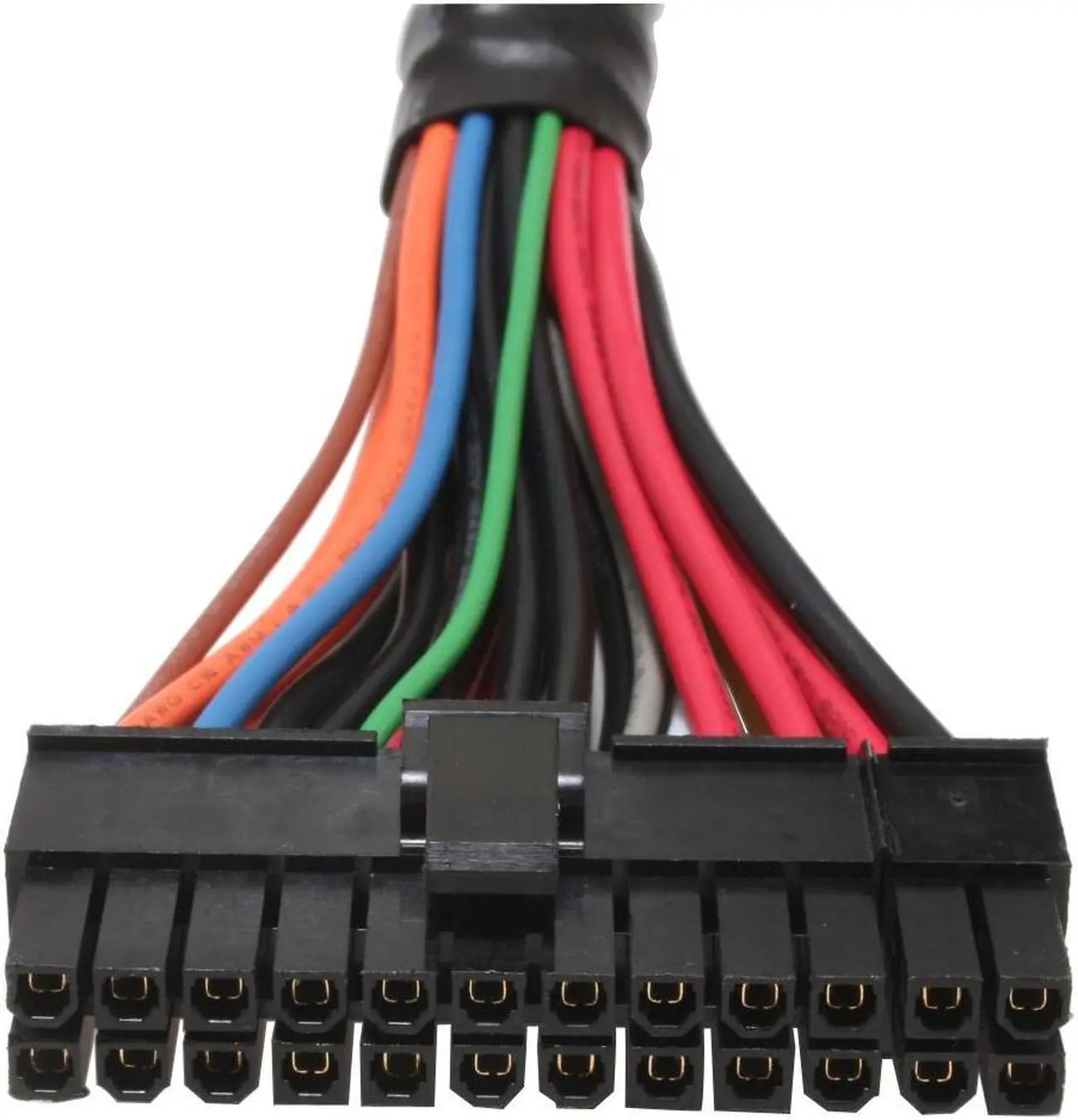

Connectors 1 x Main connector (20+4Pin)
1 x 12V (P4)
1 x 12V(8Pin)
9 x peripheral
2 x SATA
2 x Floppy
2 x PCI-E
Features

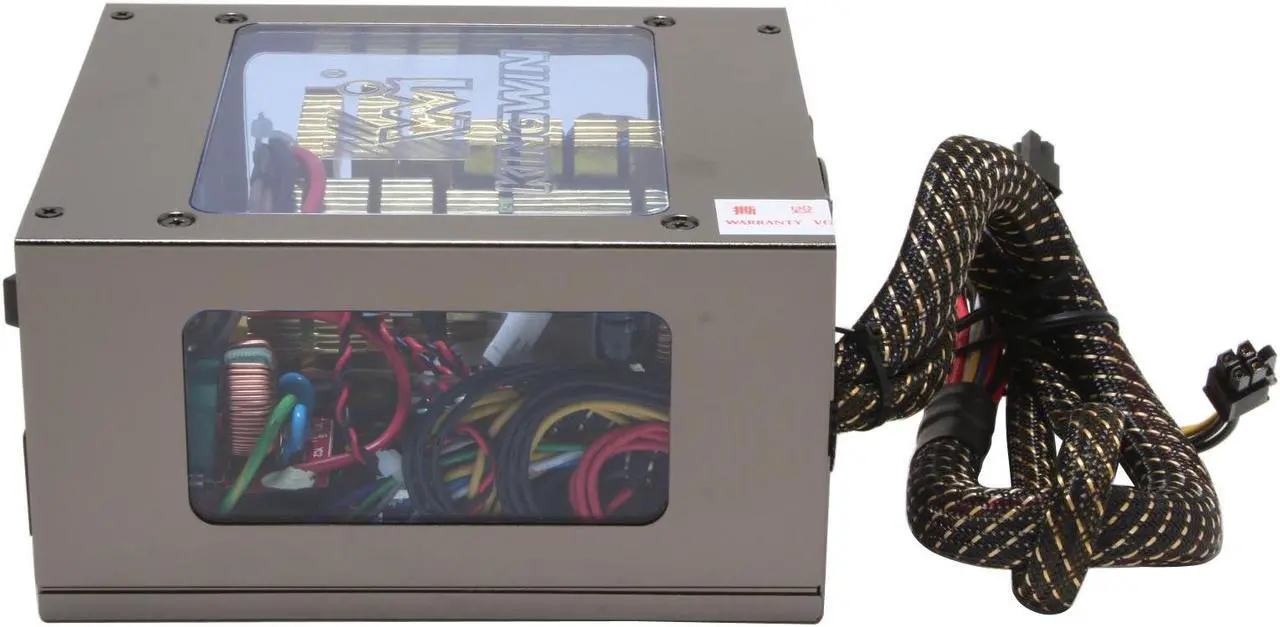

Features Triple Window Design
Output gold-coated connector
Nickel-Plated
Input waveform: Sine wave, modified sine wave or square wave
Withstand voltage: Input to output 1800Vac 3 sec/Input to ground 1800Vac 3 sec.

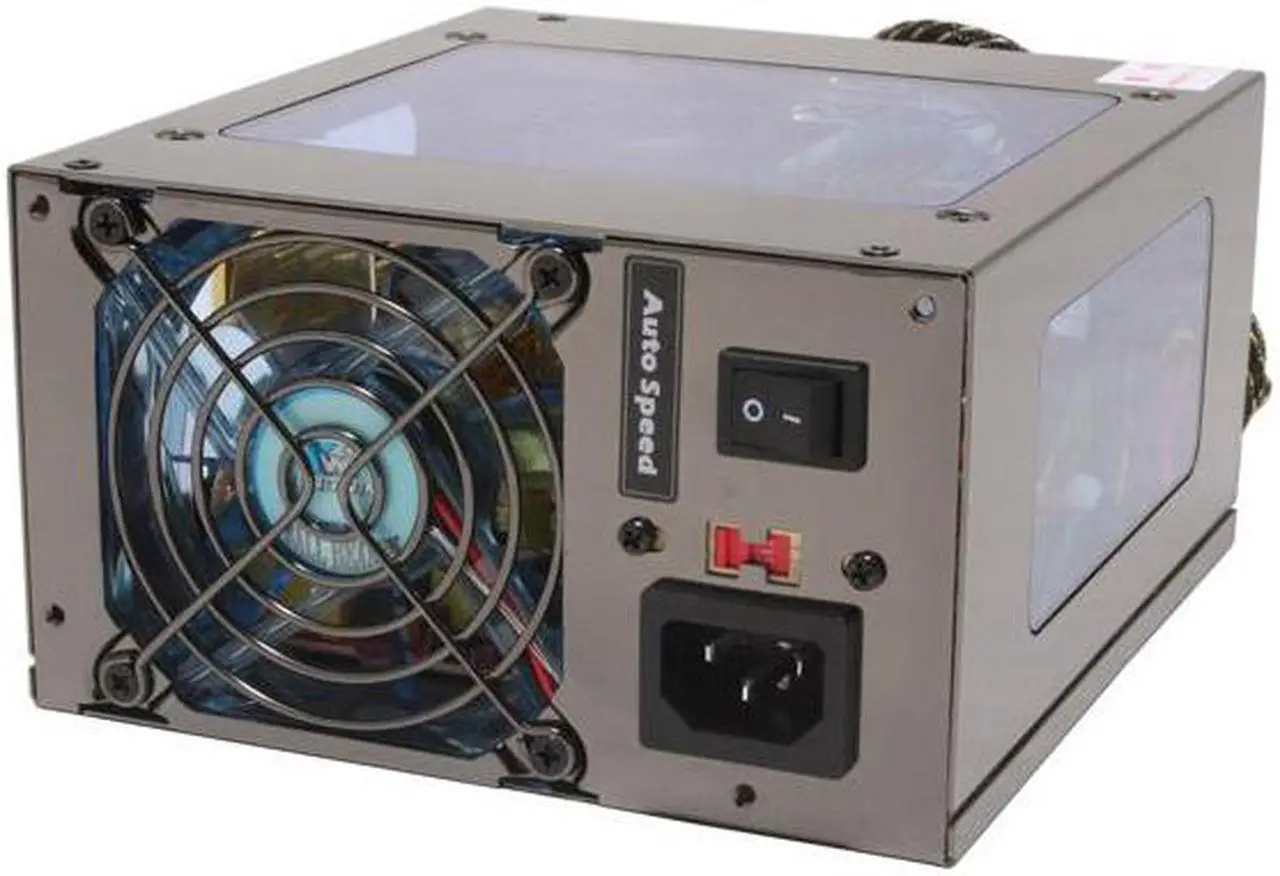

Switches: ATX Logic power rocker switch.
Support EPS & Intel 945/955 chipset
Additional Information
Date First Available January 17, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
