iStarUSA BPU-340SATA-BPL 3 x 5.25" to 4 x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack - OEM

  • RoHS Compliance Version: Yes
  • Standard Drive Bays:
  • 5.25" Drives: 3
  • Hotswap 3.5": 4
  • Indicators: Power, HDD, fan, and high temperature
  • Material of Handle: Aluminum
  • Material of Main Chassis: Aluminum Design with Conductive Dissipation Grooves
  • Cooling Fan: 1 x 80 mm
  • Dimensions: 4.96" x 5.75" x 8.03"
  • Package Content: SATA Cable Included (4pcs)
+
+
Overview
Specs
Reviews (41)
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

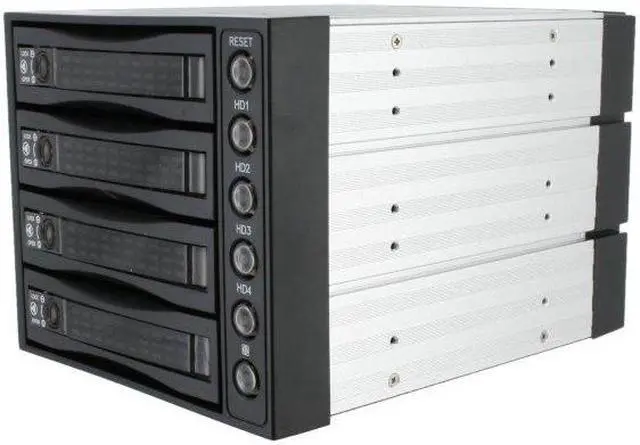

iStarUSA Hot-Swap Cage - Three 5.25" to Four 3.5" SAS/SATA 6.0Gbps

With a high level Raid and high storage availability in a compact design, the BPU-340SATA series adds extra memory and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high-end data storage server or workstation.

High density multi-disk storage backplane allows four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SATA supports RAID 1/0/1+0/5 configurations for high performance or redundancy data application. The aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, and is designed with excellent front-to-back-vent airflow.

Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.

Features

StarUSA

  • Stylish aluminum handle and heat-sink body
  • Supports Hot-Swap & RAID Configuration (needs an additional RAID controller)
  • Aluminum Design with Conductive Dissipation Grooves
  • Power, fan and high temperature LED indicators
  • High Performance Transfer Rate up to 6.0Gbps
  • Support 2.5"/3.5" SAS I/II & SATA I/II/III HDDs
  • Equipped with Fan Speed Control Switch
  • 4TB Hard Drive Compatible


Specifications

StarUSA

Model Number BPU-340SATA
RoHS Compliance Version Yes
Standard Drive Bays 5.25" Drives: 3
Hotswap 3.5": 4
Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III
Indicators Power, HDD, fan, and high temperature
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Aluminum Design with Conductive Dissipation Grooves
Color of Front Bezel Black / Blue / Red / Silver
Color of Main Chassis Black

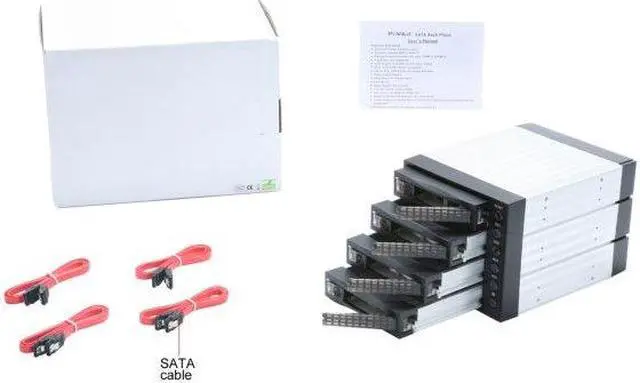

Package Content SATA Cable Included (4 pcs)
Cooling Fan 1 x 80mm
Ordering Information
(Part Number)
Black Tray: BPU-340SATA-BLACK
Blue Tray: BPU-340SATA-BLUE
Red Tray: BPU-340SATA-RED
Silver Tray: BPU-340SATA-SILVER
Lockable Tray: BPU-340SATA-BPL
Dimensions (W x H x D) 5.75 x 4.96 x 7.95 inches
146.0 x 126.0 x 201.9mm

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.

Manufacturer Contact Info

LOADING...
LOADING...

The iStarUSA BPU-340SATA-BPL is a hot-swap drive cage that fits four 3.5-inch SAS/SATA drives into three 5.25-inch bays, making it suitable for server and workstation builders who need more accessible storage in a compatible chassis. It supports transfer rates up to 6 Gbps; RAID requires a separate controller.

Recommended For

  • Home-server and workstation builders with three available 5.25-inch bays who want to add four front-accessible 2.5- or 3.5-inch SAS/SATA drives for storage expansion.
  • Small-office or home-server operators who want a compact multi-drive setup for disk-to-disk backups or redundant storage, and already have a compatible RAID controller or SAS/SATA host connections.
  • Operators of DVR or surveillance systems who need several SATA/SAS drives in a chassis with three 5.25-inch bays, plus drive-status and temperature indicators.
  • Users who swap drives occasionally and value individual drive power controls and status indicators, rather than tool-free, rapid drive changes.

Spec Summary

AttributeValue
Best ForAdding four hot-swap 3.5-inch bays for 2.5-inch or 3.5-inch SAS/SATA drives in three 5.25-inch bays
Drive Bay ConfigurationFits three 5.25-inch bays and provides four hot-swap 3.5-inch drive bays
Drive Compatibility And TransferSupports 2.5-inch and 3.5-inch SAS I/II and SATA I/II/III drives, with transfer rates up to 6.0 Gb/s; compatible with 6 TB hard drives
Hot-Swap And RAIDSupports hot-swap and RAID configurations; RAID requires an additional controller
Cooling And IndicatorsOne 80 mm cooling fan, a fan-speed control switch, and power, HDD, fan, and high-temperature indicators
Materials And ConstructionAluminum handle and chassis with conductive dissipation grooves
Dimensions4.96 × 5.75 × 8.03 inches
Included AccessoriesFour SATA cables included
ComplianceRoHS compliant
Model IdentifiersiStarUSA BPU-340SATA-BPL
