Question 1

The specs say that it has 10 x 6+2 pin power connectors. so is that 10 pcie connectors. The image only shows 7. Is there something i'm not understanding here? I want this power supply for the worst case scenario when Amd releases Vega if powercolor is the only company who will do a dual gpu set up and ends up with some ridiculous 4x 8 pin power connectors like the 390x2. i assume vega will be much more power efficient though so i'll be okay with this 1200 power supply. but just in case i want 8 x 8 pin power connectors.

Accepted Answer

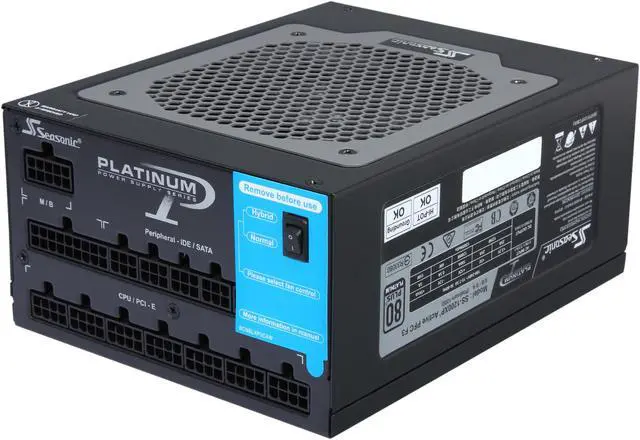

I own this PSU and I can confirm that it has 8 x 8-pin pcie connectors. The picture shows 7, but there is another one hidden by the blue sticker near the power switch. When you remove the sticker (it has some basic info and is supposed to be removed) you can then see the 8th connector.

Question 2

So this might be a stupid question but i'm not sure how all of this works. So lets say Hypothetically i have a device that uses four of the pci-e ports and said device requires 28amps per port. This power supply has 100Amps on the 12V rail. Does that mean this power supply would not be able to support this device? or is that now how these things work? each pcie port is rated above the 28 amps. But does that mean the 100amps on teh 12v rail isn't enough for the total 112amps of the device?

Accepted Answer

A simple rule of thumb to remember when working with electricity is that voltage multiplied by amperage equals wattage. What you propose would place high amounts of stress if not burn out the power supply. Four drains at 28 amps is a total of 112 amps, at twelve volts this comes out to 1,344 watts. You are right in assuming that it will not be able to provide your device with sufficient power without exceeding the power supplies rated limits.

Question 3

The warranty is 7 year? Or 1 year as newegg said?

Accepted Answer

Hello,

Thank you for contacting us in regards to your question.  The warranty for this item is 1 year.

Thank you,
Newegg Support

Question 4

Info for this product shows only a 1 year limited warranty for parts and labor. Is this a misprint? Other Seasonic PSU's appear to all have 5 year warranty.

Accepted Answer

Seasonic lists this model as having a 7-Year Warranty:
Special Features -

?1. 80PLUS® Platinum Certified Super High Efficiency
?2. DC Connector Panel with Integrated VRM [Voltage Regulator Module]
?3. DC to DC Converter Design
    4. Dual Copper Bars
?5. Active Power Factor Correction [99% PF Typical]
?6. Conductive Polymer Aluminum Solid Capacitors
?7. Highly Reliable 105°C Japanese Aluminum Electrolytic Capacitors
?8. Gold Plated High Current Terminals
?9. Ultra Tight Voltage Regulation
?10. High +12V Output
?11. Dual Sided PCB Layout

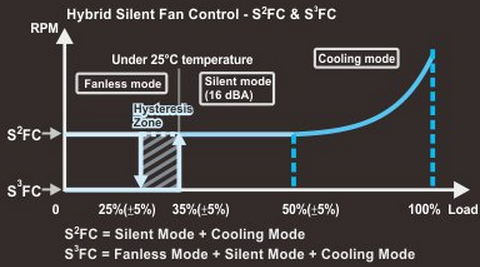

?12. Seasonic Patented Hybrid Silent Fan Control
?13. Sanyo Denki San Ace Silent Fan
?14. Ultra Ventilation [Honeycomb Structure]
?15. Full Modular Cabling Design
?16. Multi-GPU Technology Support
?17. All-in-One DC Cabling Design
?18. Easy Swap Connector
?19. Universal AC Input [Full Range]
?20.  7 Years Warranty

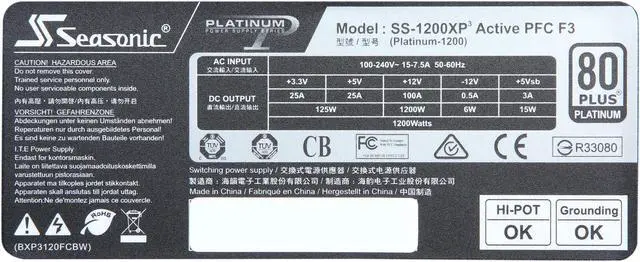

DC Output Voltage	+3.3V	+5V	+12V	-12V	+5Vsb
Maximum Load	25A	25A	100A	0.5A	3A
Combined Load	125W		1200W	6W	15W
Total Output	1200W

Brand	SeaSonic
Model	Platinum-1200(SS-1200XP3)

Type	ATX12V / EPS12V
Maximum Power	1200 W
Fans	1
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	10 x 6+2-Pin
SATA Power Connector	14
Energy-Efficient	80 PLUS PLATINUM Certified
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	15-7.5A
Output	+3.3V@25A, +5V@25A, +12V@100A, [email protected], +5Vsb@3A

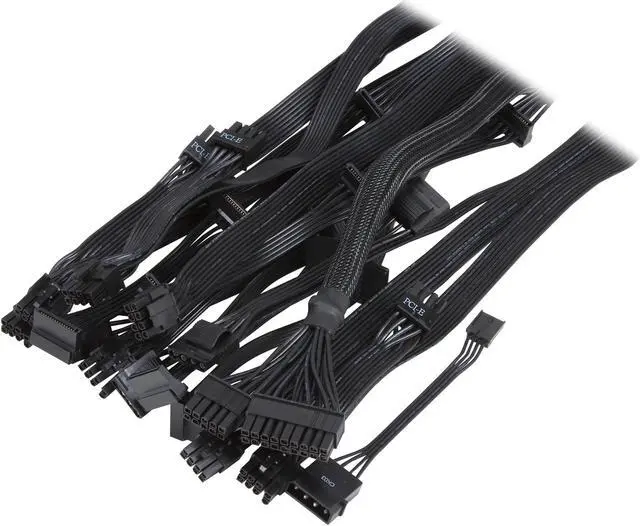

Connectors	M/B 24/20 Pin Connector x 1 CPU 8/4 Pin x 1 CPU 8 Pin x 1 PCI-E 8/6 Pin x 10 Peripheral 4 Pin x 5 SATA x 14 Floppy x 1

Dimensions	7.48" x 5.90" x 3.38" (D x W x H)
Weight	13.00lbs

SeaSonic Platinum-1200(SS-1200XP3) 1200W ATX12V / EPS12V 80 PLUS PLATINUM Certified SLI Ready CrossFire Ready Full Modular Power Supply Intel 4th Gen CPU Compatible 7yr Warranty
