Question 1

Does this power supply include all the wires and plugs?

Accepted Answer

Yes.
It has the following:
A 12/24 pin ATX power connector.
One 4 pin CPU connector.
Two SATA power connectors.
Two IDE power connectors.
And a small 4 pin with a IDE together on one.

Plus the 110v power cable.

Question 2

with this fit in this case? DIYPC DIY-5823BK Black SECC ATX Mid Tower Computer Case with 1 x 80mm Fan?

Accepted Answer

its a atx case any atx power supply will fit including that one

Question 3

is it compatible for Gateway GM5626 computer?

Accepted Answer

Yes, this will be compatible for Gateway GM5626 computer.

You computer only requires 300 Watts, so this PSU will provide enough power and it will physically fit into your case.

Don't be worrying that this is a 480 Watt PSU,  your motherboard will only draw what it needs.

Question 4

compatibility with medion desk top computer MD 8825 ?

Accepted Answer

Yes, this power supply will work just fine with that computer.

Question 5

how do you size up the  correct power supply for the PC?

Accepted Answer

There are 2 approaches to this question that I like to take. 1 - as you are spec-ing out the build, you can get the voltage of each part - from the motherboard on up - including all peripherals and plugin cards. Once you have a total voltage - go for a power supply that has at least 10% more voltage output. Or 2 - get the biggest PSU you can afford. Seriously - unless you are doing a major game PC build - or high end graphics or music station - 500 watts is a perfect number to start with. A seriously powerful PC may need 1000 watts - but like I said - that is really high end. One other thing to remember - make sure the PSU you choose has the connectors you need! Good luck!

Question 6

can I use this unit to replace an allied al-c350atx? Are the connectors the same?

Accepted Answer

You need to find out if the PC that you are going to install has sata connectors or IDE connectors. The you can make that decision.

Question 7

what is the warrantee on this?

Accepted Answer

Up to now, this power supply, ITA w.orking perfect,this is not an extreme solution, but for a normal tear and wear iits a good quality-price relatio

Question 8

i have hp pavilion 6736 power supply is bad is going to replace?
please call 609 750 1500

Accepted Answer

With out knwoing what mother board, gfx cards or anything else within the system is self I am unsure if it will suit your needs.. the power supply I bought was for a run of the mill. Average computer. It works well in the computer I put it in.  This power supply would not power my own personal computer seeing as I require at least 750 watts if the power and this supply is only a 480..

Assuming the pavilion 6736 is stock then it should work fine.. but don't quote me on that since have have no way to look up power useages atm.

If the power supply you are buying has more watts then the bad one and you are not adding any other parts it should work fine...

Question 9

Will this psu work w/ an HP Pavilion  a1350y    ?????

Accepted Answer

Short answer is Yes it will.
Long answer is 99.9% sure that it will unless you have added a high end video card that requires its owne power, this power supply doesn't have a video card power cord so if you did then you will need one that does.

Question 10

Will this Power supply work in a HPCompaq dx2250 microtower?

Accepted Answer

I use these power supply's in full mid and micro towers with issues only with the microtower because of the length of your cd or dvd player and if you use two players. Some times the cd rom or the dvd cdrw will hit the back of the power supply not leaving enough room! I usually install a smaller dvd cdrw (Length)!

Brand	LOGISYS Computer
Model	PS480D

Type	ATX12V
Maximum Power	480 W
Fans	1
PFC	No
Main Connector	20+4Pin
+12V Rails	Single
SATA Power Connector	2
SLI	No
Haswell Support	No
Modular	No
Over Voltage Protection	Yes
Input Voltage	100 - 120V / 200 - 240V
Input Frequency Range	50/60 Hz
Input Current	10 / 5A

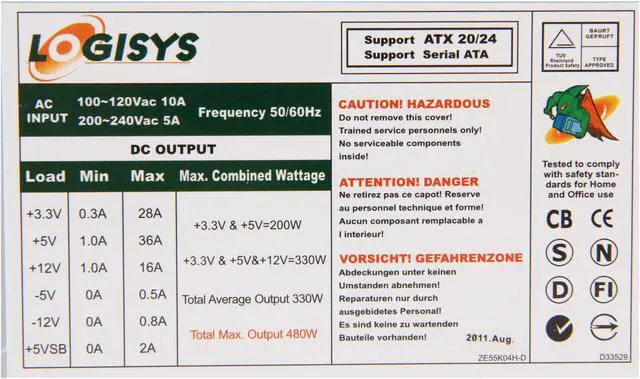

Output	+3.3V@28A, +5V@36A, +12V@16A, [email protected], +5VSB@2A
MTBF	>100,000 Hours
Approvals	CB, CE, CSA, FCC, cUL,TUV

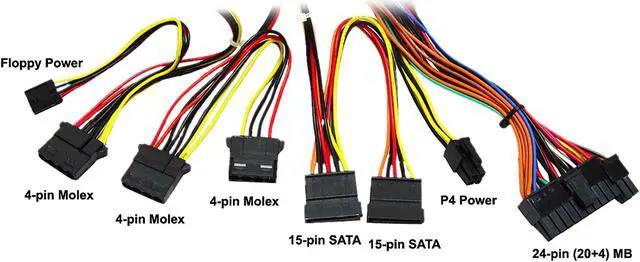

Connectors	1 x Main connector (20+4Pin) 1 x 12V P4 connector (4-pin) 3 x 4-pin Molex Connector 2 x SATA (Serial ATA) connector 1 x Floppy connector

Dimensions	3.25" x 6.00" x 5.50"
Weight	3.00 lbs.

LOGISYS Computer PS480D 480 W ATX12V Power Supply
