Cooler Master V650 Gold V2 White Edition Full Modular, 650W, 80+ Gold Efficiency, Semi-fanless Operation, 16AWG PCIe High-efficiency Cables, 10 Year Warranty

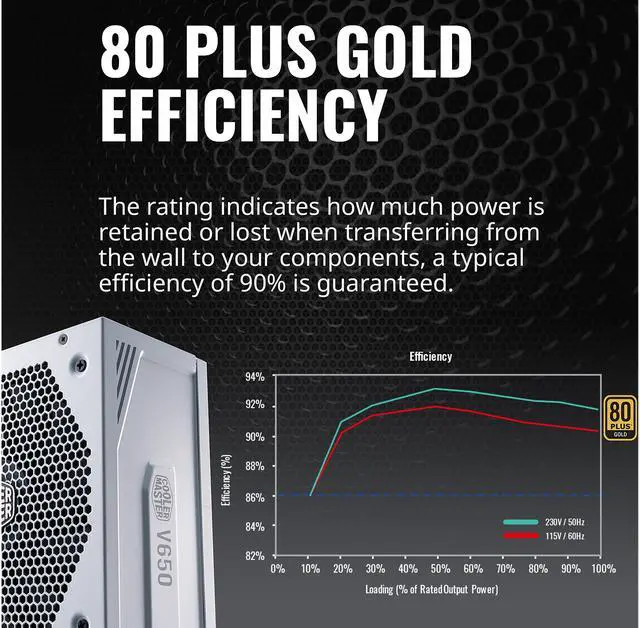

80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions.
Performance Driven Topology: The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

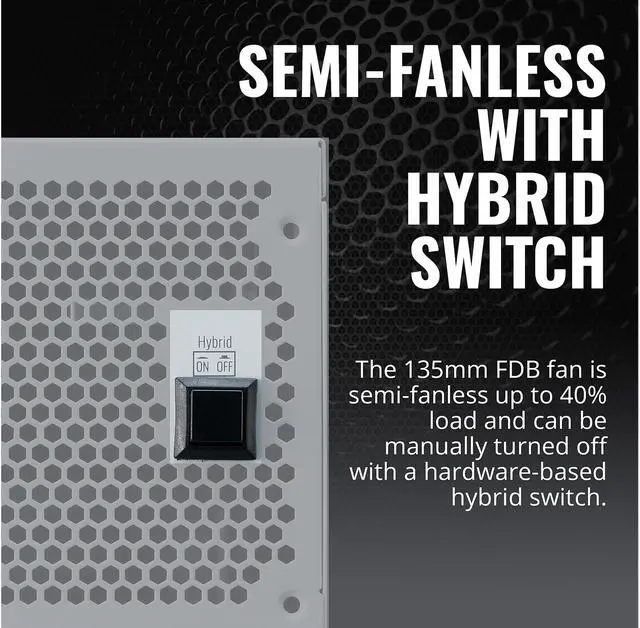

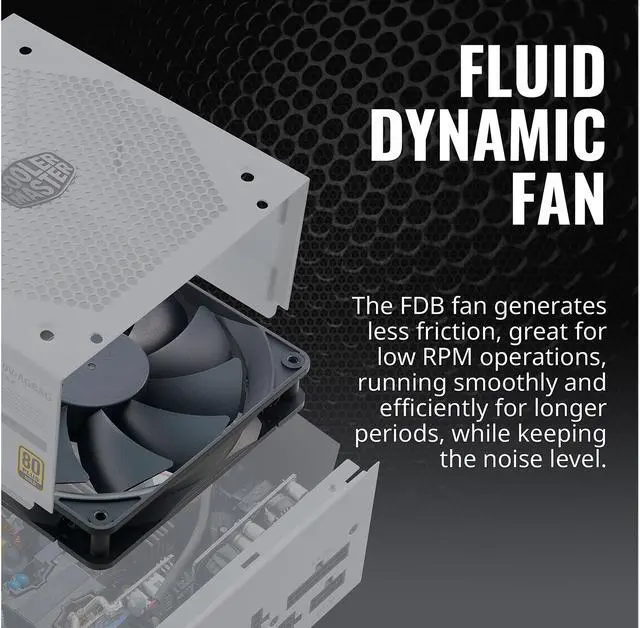

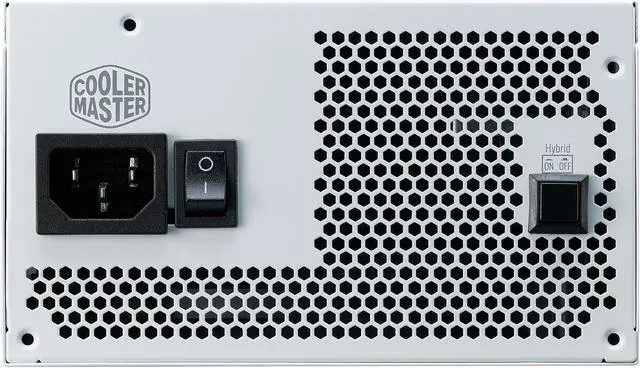

Semi-Fanless Mode with Hybrid Switch: The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware-based hybrid switch.

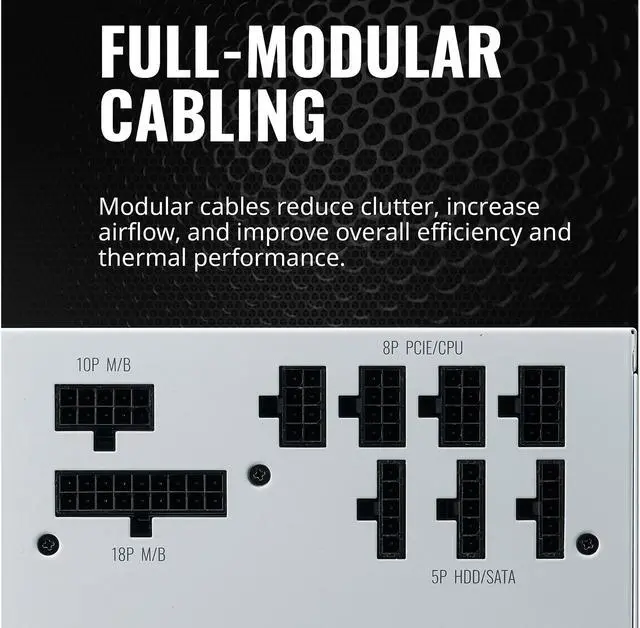

Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.

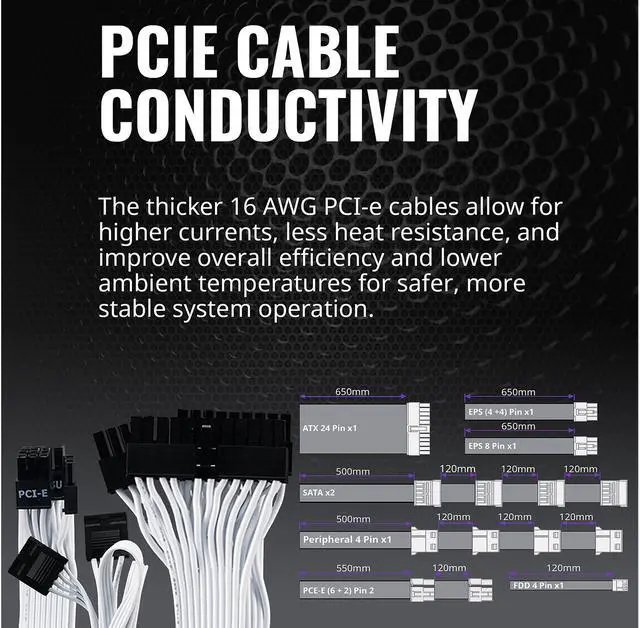

16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
10 Year Warranty: This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (10)

Any questions? Our AI beta will help you find out quickly.

Try me now

Details
Color	White
Type	ATX 12V Ver. 2.52
Maximum Power	650 W
Fans	1 x 135mm FDB fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	8
Max PSU Length	160 mm
Modular	Full Modular
Power Good Signal	100-500ms
Hold-up Time	17ms min.
Efficiency	90% @ Typical Load
Energy-Efficient	80 PLUS GOLD Certified
Protection	OVP / OPP / SCP / OCP / UVP / OTP
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	9 - 4.5 A

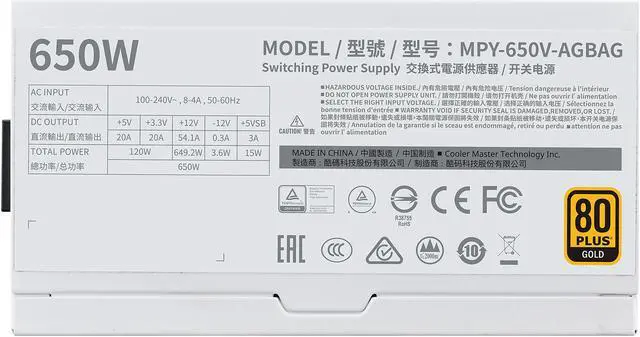

Output	+3.3V@20A, +5V@20A, +12V@54A, [email protected], +5VSB@3A
MTBF	>100,000 Hours
Approvals	CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Connectors	1 x ATX 24 Pin 1 x EPS 4+4 Pin 1 x EPS 8 Pin 4 x PCI-e 6+2 Pin 8 x SATA 4 x Peripheral 4 Pin 1 x FDD

Features
Features	80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions. Performance Driven Topology: The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency. Semi-Fanless Mode with Hybrid Switch: The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware-based hybrid switch. Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance. 16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety. 10 Year Warranty: This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.

Dimension & Weight

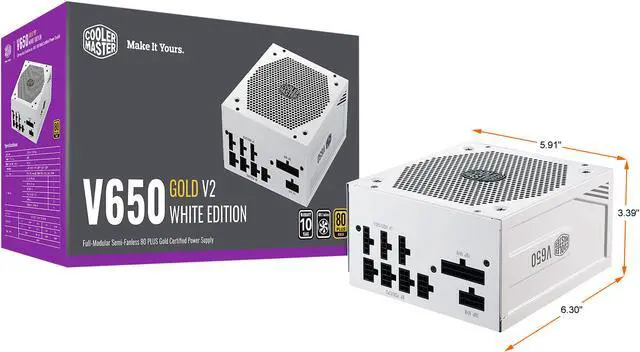

Dimensions	3.39" x 5.91" x 6.30"
Weight	4.32 lbs.
