Images from RETAIL item, box contents may vary.

Rosewill SMG Series, SMG1200, 1200W Fully Modular Power Supply, 80 PLUS GOLD Certified, Low Noise Fluid Dynamic Bearing Fan with Auto Speed Control, Japanese Capacitors, Black

OPEN BOX

80 Plus Gold Certified: Delivers 90% or more efficiency under typical load conditions and provides numerous defenses for your sensitive equipment, including protection from short-circuit, over-current, over-voltage, over-power, under-voltage, and over-temperature.

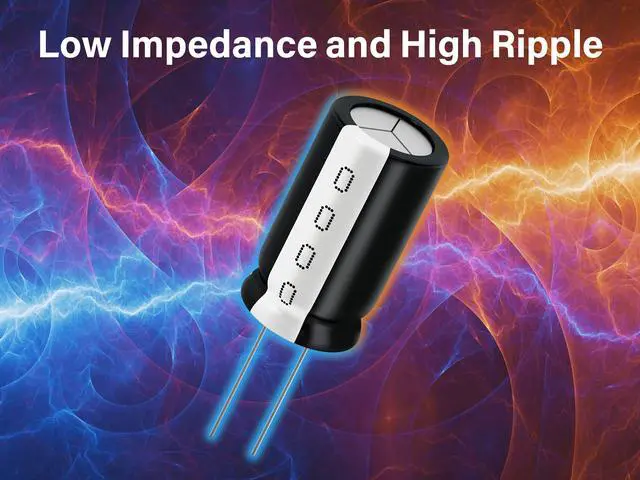

Function First: Built for high performance with 100% Japanese capacitors to ensure top-notch operations for your system. Reduce dust build-up and achieve better cable management with this fully modular power supply using only the cables your build requires.

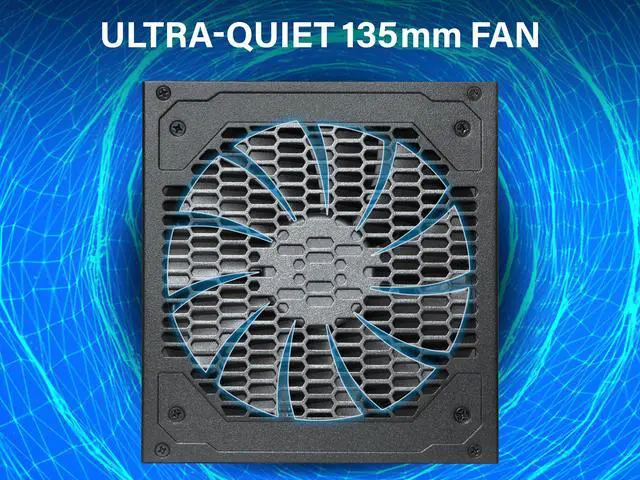

Sound of Silence: The 135mm Fluid Dynamic Bearing fan provides the PSU with optimal airflow with lower sound. Enjoy your content without extra noise pollution.

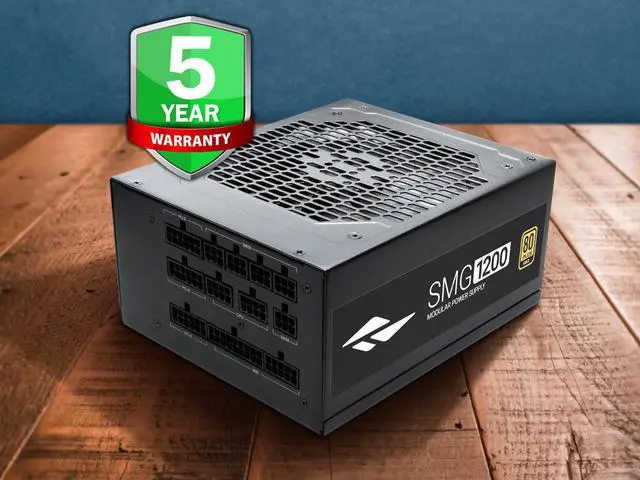

5-Year Warranty: Dependability is paramount, and if anything does go wrong, your 1200w PSU is protected.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Rosewill SMG1200

Details
Type	ATX12V v2.31 & EPS12V v2.92
Maximum Power	1200 W
Fans	1 x Silent 135mm Auto Speed Control fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	8 x 6+2-Pin
SATA Power Connector	16
SLI	SLI Ready
CrossFire	CrossFire Ready
Max PSU Length	180 mm
Modular	Full Modular
Power Good Signal	100-500ms
Hold-up Time	16ms min.
Efficiency	Up to 92%
Energy-Efficient	80 PLUS GOLD Certified
Protection	Over Temperature Protection / Over Current Protection / Over Voltage Protection / Power Protection, Under Voltage Protection, and Short Circuit Protection
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz

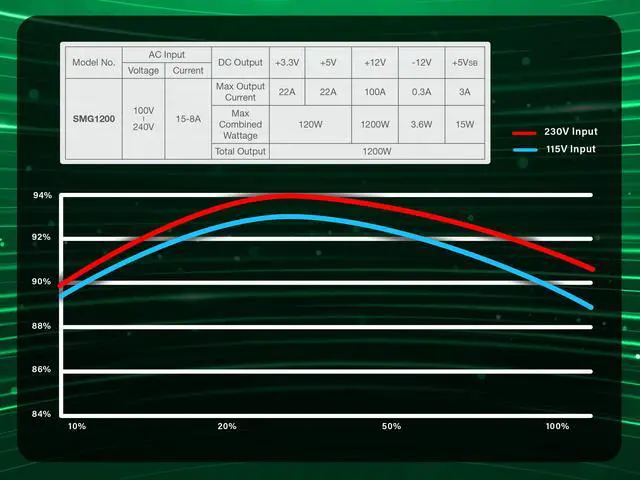

Output	+3.3V@22A, +5V@22A, +12V@100A, [email protected], +5VSB@3A
MTBF	>100,000 Hours
Approvals	TUV, cTUVus, CE, FCC certified
Connectors	1 x 24 pin (20+4) ATX 2 x 8 pin (4+4) EPS (CPU) 8 x 8 pin (6+2) PCIe 16 x SATA 4 x 4 pin Peripheral 1 x Floppy

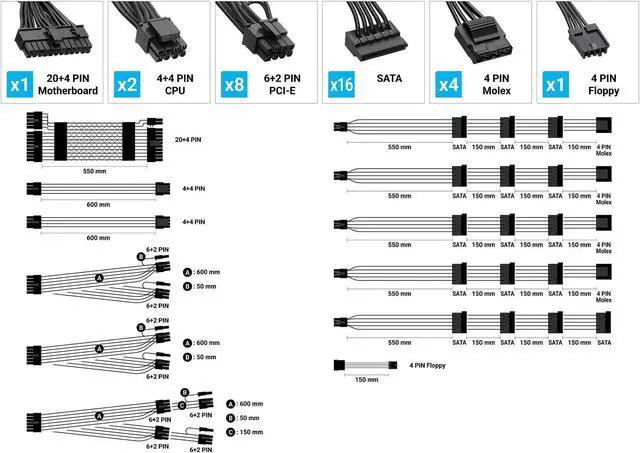

Cable Spec	20+4Pin MB: One cable (550mm) 4+4Pin CPU: Two cables (600mm) 2 x 6+2Pin PCIe: Two cables (600+600mm) 4 x 6+2Pin PCIe: One cable (150+600+600+150mm) 4 x SATA: One cable (550+150+150+150mm) 3 x SATA + 1 x Molex: Four cables (550+150+150+150mm) 1 x Floppy: One cable (150mm)

Features
Features	The SMG1200 1200 watt power supply offers great quality and even greater performance for your gaming desktop PC. 80 Plus Gold certified to deliver more than 90% efficiency under typical load conditions and features various protections. The fully modular design of the power supply allows for neater cable management, reduces dust build-up and improves airflow within your case. Built to be a high performance gaming power supply, the SMG1200 features high quality PC parts, including 100% Japanese capacitors and an ultra quiet, FDB 135mm fan.

Dimension & Weight
Dimensions	3.39" x 5.91" x 7.09"

Additional Information
First Listed on Newegg	October 22, 2021
