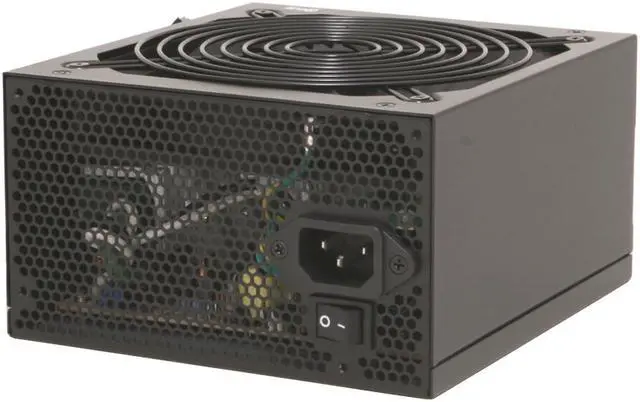

XCLIO STABLEPOWER 460W 460W ATX V2.2 Active PFC Power Supply
- ATX V2.2
- 100 - 240 V
Specs
Reviews (30)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Detailed Specifications
| Brand | XCLIO |
|---|---|
| Series | STABLEPOWER 460W |
| Type | ATX V2.2 |
|---|---|
| Maximum Power | 460 W |
| Fans | 1 |
| PFC | Active |

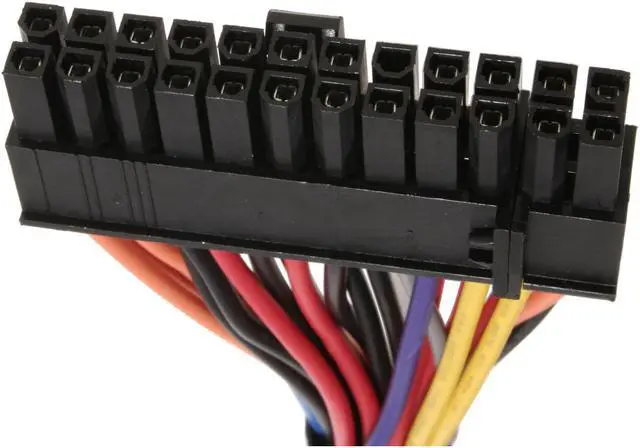

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 1 x 6-Pin |
| SATA Power Connector | 4 |
| Modular | No |
| Power Good Signal | 100-500ms |
| Hold-up Time | 17ms min. |
| Efficiency | 80% under full Load at nominal input voltage |
| Over Voltage Protection | +3.3V, +5V and +12V. |
| Overload Protection | +3.3V, +5V. |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 8/ 4A |

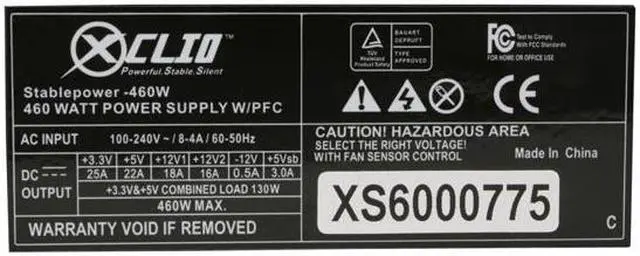

| Output | +3.3V@25A, +5V@22A, +12V1@18A, +12V2@16A, -12V@0.5A, +5VSB@3.0A |
| MTBF | 100K hrs minimum, 25°C ambient |
| Approvals | UL, CUL, TUV, CB, VDE, FIMKO, DEMKO, NEMKO, SEMKO |

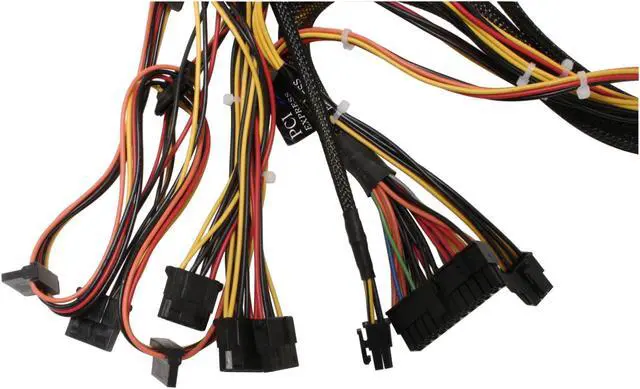

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 6 x peripheral 4 x SATA 1 x Floppy 1 x PCI-E |
| Features | 14cm cooling fan with safety fan grill Total combined output of 3.3V and 5V is 130W |
|---|
| Dimensions | 5.9" x 6.3" x 3.38" |
|---|
| Dimensions | 150 x 86 x 140 (mm) |
|---|
| First Listed on Newegg | January 02, 2007 |
|---|
