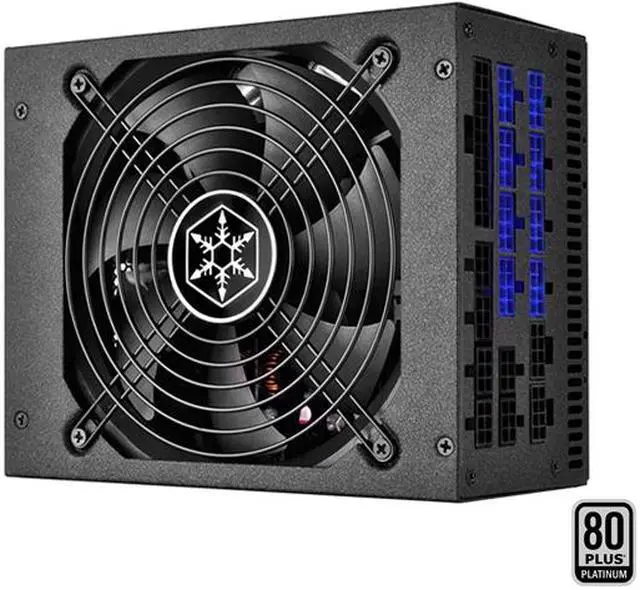

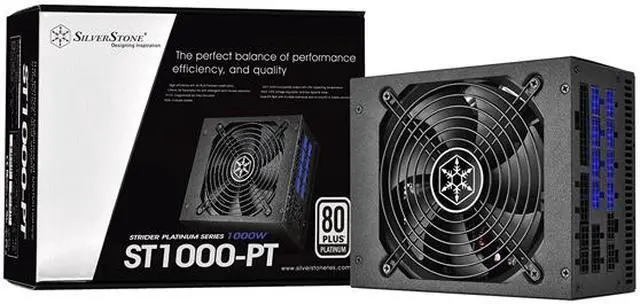

SilverStone Strider Platinum series SST-ST1000-PT 1000 W ATX12V / EPS12V 80 PLUS PLATINUM Certified Active PFC Power Supply
- ATX12V / EPS12V
- 80 PLUS PLATINUM Certified
- 90 - 264 V 47 - 63 Hz
- +3.3V@22A, +5V@25A, +12V@83A, [email protected], [email protected]
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Silverstone SST-ST1000-PT
| Brand | SilverStone |
|---|---|
| Series | Strider Platinum series |
| Model | SST-ST1000-PT |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 1000 W |
| Fans | Single 139mm silent fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 16 |
| Efficiency | 89% - 92% |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |

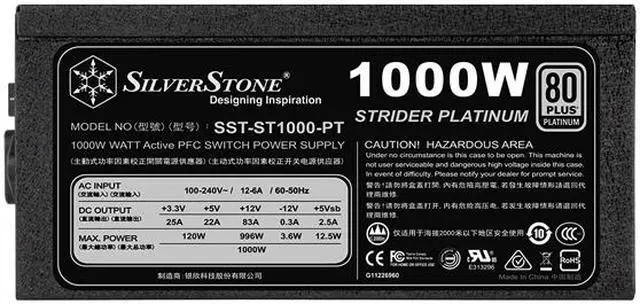

| Output | +3.3V@22A, +5V@25A, +12V@83A, [email protected], [email protected] |
| MTBF | >100,000 Hours |

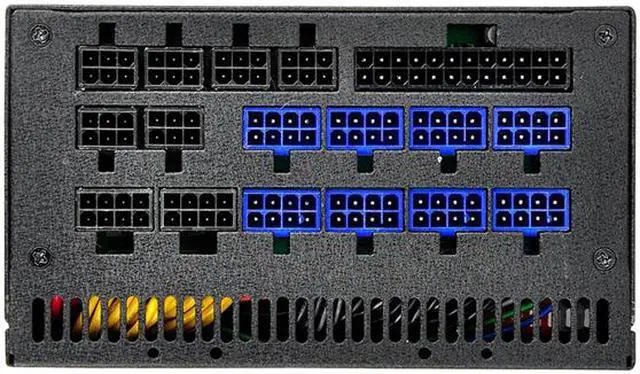

| Connectors | 1 x 24 / 20-Pin motherboard connector 1 x 8 / 4-Pin EPS / ATX 12V connector 1 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIE connector 16 x SATA connector 6 x 4-Pin Peripheral connector 2 x 4-Pin Floppy connector |
| Features | High efficiency with 80 PLUS Platinum certification 139mm Air Penetrator fan with intelligent semi-fanless operation FF141 magnetized fan filter included 100% modular cables 24/7 continuous power output with 40 degree C operating temperature Strict +/- 3% voltage regulation and low ripple & noise Dual EPS 8pin with multiple individual one-on-one PCI-E 8/6pin connectors Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Temperature Protection |
|---|
| Dimensions | 3.39" x 5.91" x 7.09" |
|---|---|
| Weight | 7.28 lbs. |
| First Listed on Newegg | October 17, 2016 |
|---|
