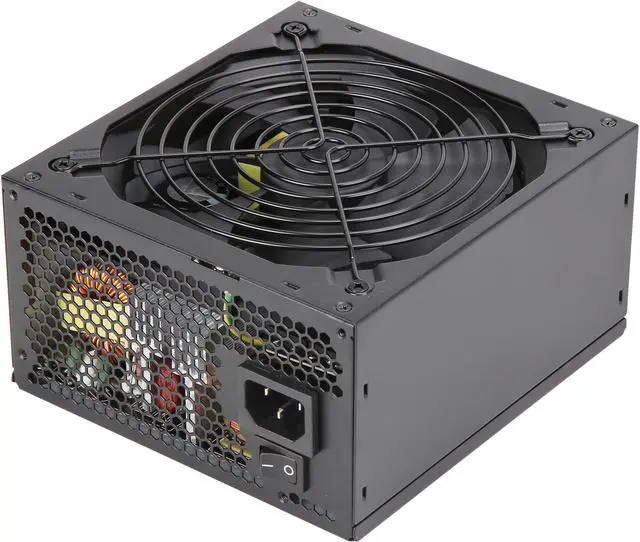

Apexgaming STG-650 650 W ATX 12V V2.4 / EPS 12V V2.92 80 PLUS GOLD Certified Non-Modular Active PFC Power Supply

(6) Write a Review
  • ATX 12V V2.4 / EPS 12V V2.92
  • Non-Modular
  • 80 PLUS GOLD Certified
  • 100 - 240 V 47 - 63 Hz
  • +3.3V@20A, +5V@20A, +12V@54A, [email protected], +5VSB@3A
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (6)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the APEXTECHUSA STG-650

General
Brand Apexgaming
Model STG-650
Details
Type ATX 12V V2.4 / EPS 12V V2.92
Maximum Power 650 W
Fans 1 x 140mm Sleeve Bearing fan
PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 2 x 6+2-Pin
SATA Power Connector 6
Max PSU Length 160 mm
Modular Non-Modular
Power Good Signal 100-500ms
Hold-up Time > 16 ms @ 80% load
Efficiency 90% Typically
Energy-Efficient 80 PLUS GOLD Certified
Over Voltage Protection OVP / OCP / UVP / SCP / OTP / OPP
Input Voltage 100 - 240 V
Input Frequency Range 47 - 63 Hz
Input Current 8 - 4A

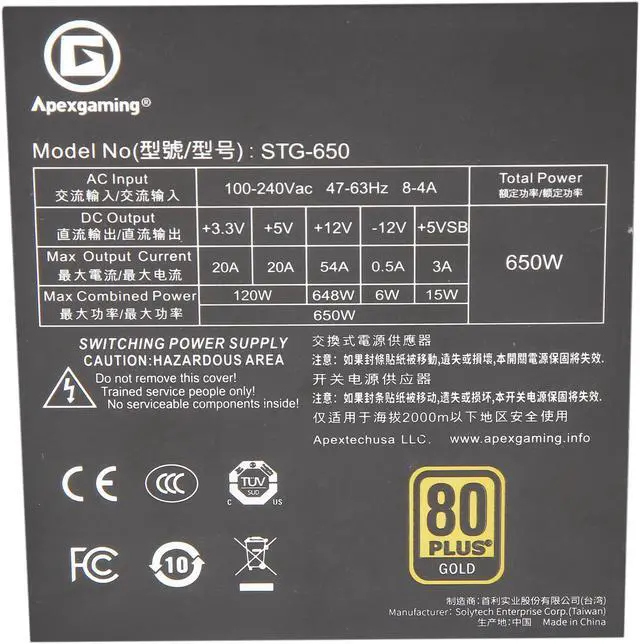

Output +3.3V@20A, +5V@20A, +12V@54A, [email protected], +5VSB@3A
MTBF 100,000 Hours
Approvals CB, CE, CCC, cTUVus, FCC
Connectors 1 x MB 20+4 pin
1 x CPU 12V 4+4Pin
2 x PCI-e 6+2Pin
6 x SATA
3 x Peripheral 4 Pin
1 x FDD Cable 4 Pin
Features
Features 80 PLUS Gold Certified
The 80 PLUS Gold certification guaranties a typical efficiency of 90%.

Advanced Circuitry
Power Supply is designed with LLC, Synchronous and DC-DC topology, which offers reliable and stable of the output voltage rails.

Powerful Single +12V
Powerful single +12V rail for strong resistance to any overloading of CPU and graphic card.
Dimension & Weight
Dimensions 3.39" x 5.91" x 6.30"
Additional Information
First Listed on Newegg June 14, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 10 years
  • Limited Warranty period (labor): 10 years
