Four independent slots: It's like having four charger-analyzers for AA and AAA NiMH/NiCD batteries
Large backlit LCD display: Digitally displays capacity, voltage, time and current
Overview
Specs
Reviews (25)
The advanced and multi-featured POWEREX MH-C9000 charger-analyzer is an ideal and affordable choice for charging and maintaining your rechargeable batteries. It comes equipped with four independent slots for AA and AAA NiMH / NiCD batteries, along with a large backlit LCD for displaying capacity, voltage, time and current. Offering 29 selectable charging and discharging rate, this charger-analyzer allows you to charge batteries with charging current from 0.2A to 2.0A and discharge batteries with discharging current from 0.1A to 1.0A in 0.1A increments.
Thanks to five operation modes including Charge, Refresh & Analyze, Break-In, Discharge and Cycle, you can not only normally charge or discharge the batteries but also refresh and activate the poorly performing rechargeable batteries, bringing the batteries to a new life. In addition, you can group batteries with similar actual capacity with the Battery Matching function, and activate the batteries stored for extended period with the Battery Forming function, resulting in a maximized runtime and premium maintenance.

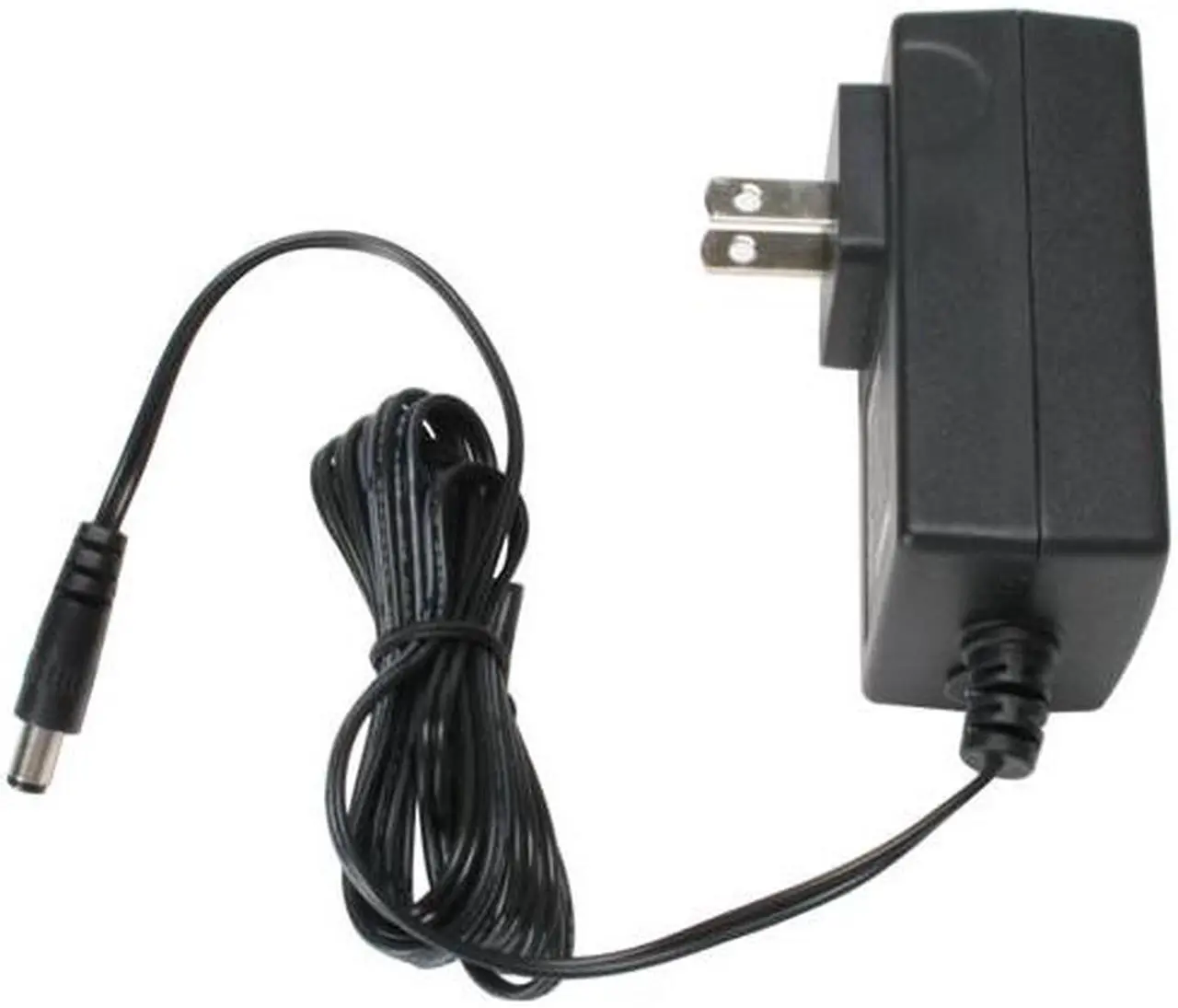

In combination with the worldwide 100-240V switching adapter, the POWEREX MH-C9000 can be used almost everywhere, providing extreme versatility and convenience.
The advanced and multi-featured POWEREX MH-C9000 charger-analyzer is an ideal and affordable choice for charging and maintaining your rechargeable batteries. It comes equipped with four independent slots for AA and AAA NiMH / NiCD batteries, along with a large backlit LCD for displaying capacity, voltage, time and current. Offering 29 selectable charging and discharging rate, this charger-analyzer allows you to charge batteries with charging current from 0.2A to 2.0A and discharge batteries with discharging current from 0.1A to 1.0A in 0.1A increments.
Thanks to five operation modes including Charge, Refresh & Analyze, Break-In, Discharge and Cycle, you can not only normally charge or discharge the batteries but also refresh and activate the poorly performing rechargeable batteries, bringing the batteries to a new life. In addition, you can group batteries with similar actual capacity with the Battery Matching function, and activate the batteries stored for extended period with the Battery Forming function, resulting in a maximized runtime and premium maintenance.
In combination with the worldwide 100-240V switching adapter, the POWEREX MH-C9000 can be used almost everywhere, providing extreme versatility and convenience.

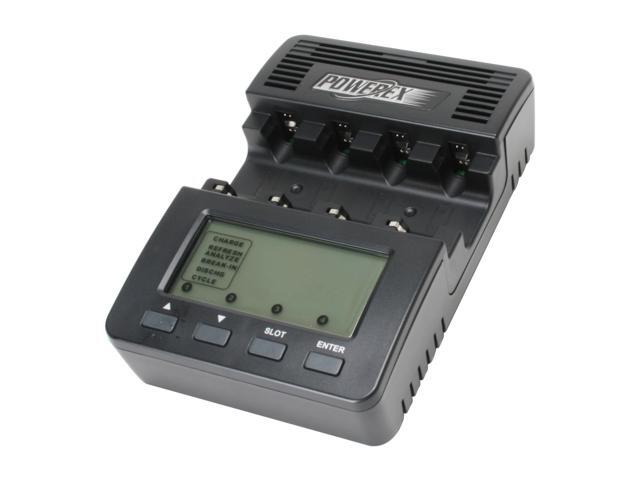

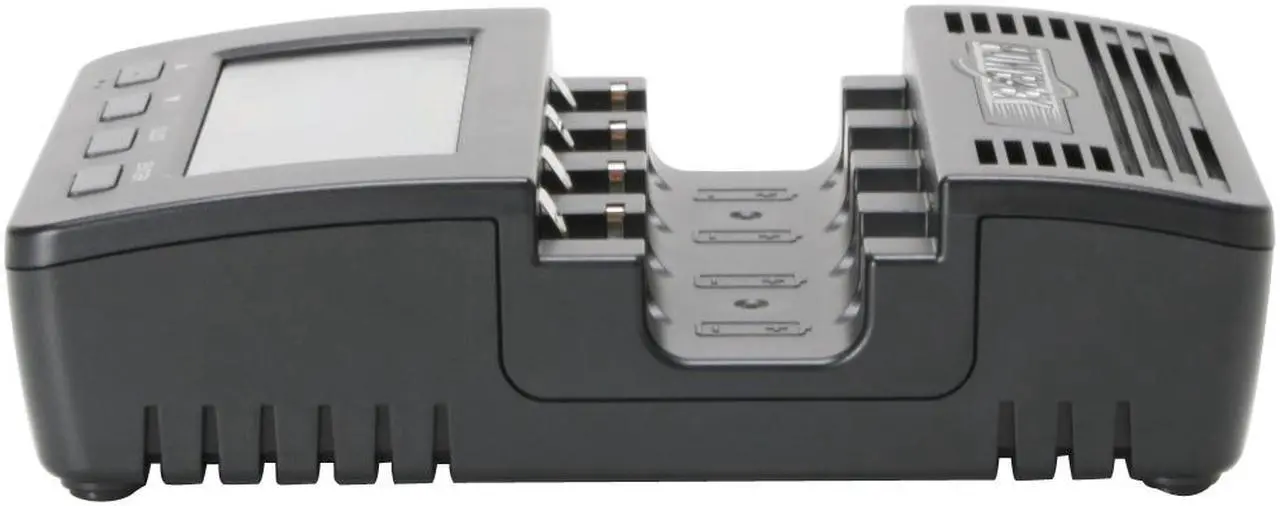

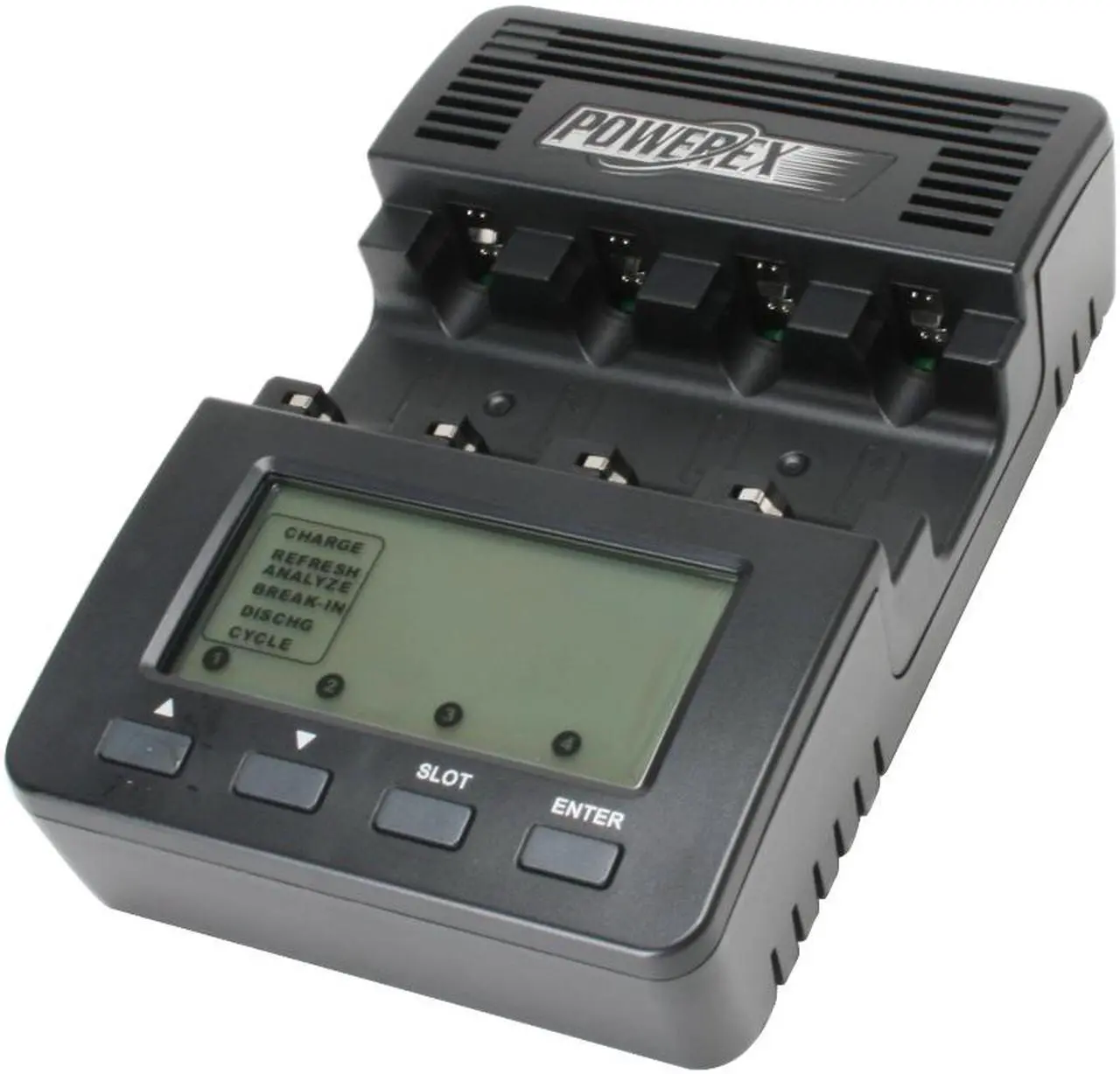

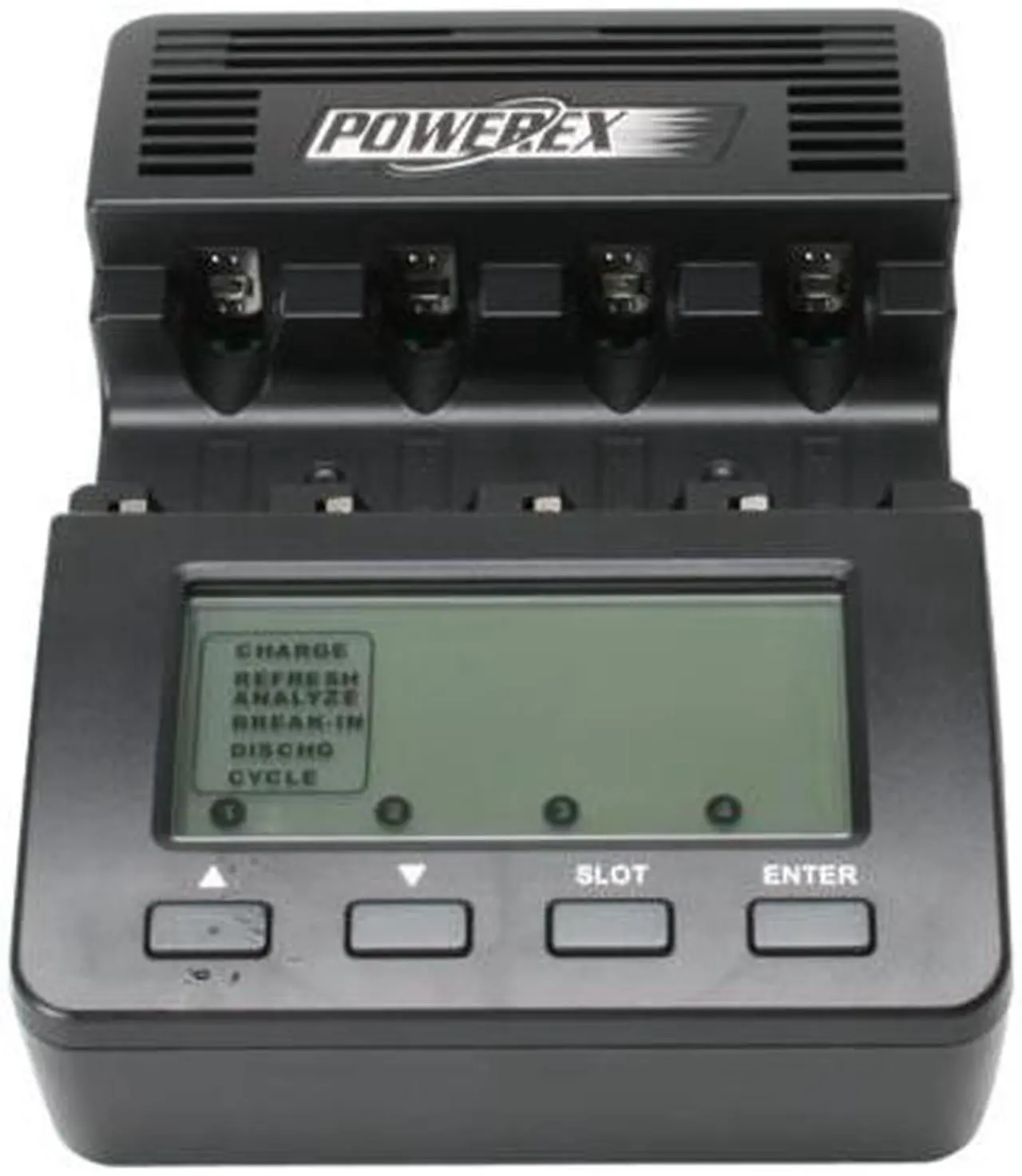

Four Slots with Large LCD DisplayThe POWEREX MH-C9000 features four independent slots to adopt AA and AAA NiMH / NiCD batteries, and a large backlit LCD to display capacity, voltage, time and current information.
Multiple Programming PossibilitiesThe POWEREX MH-C9000 features charging current which is programmable from 0.2A to 2.0A in increments of 0.1A and discharge current which is programmable from 0.1A to 1.0A in increments of 0.1A, providing up to 29 selectable charging and discharging rate.
Five Operation ModesThe POWEREX MH-C9000 features five operation modes, including Charge, Refresh & Analyze, Break-In, Discharge and Cycle, providing maximum flexibility, allowing you to handle batteries according to specific situation.
Battery Matching & Battery FormingBattery Matching function can help you group batteries with similar actual capacity to use them in a series for a maximum runtime and Battery Forming function can activate the new and long term stored batteries to keep them running at better performance.
Learn more about the Maha Energy Corp. MH-C9000
Model
Brand
POWEREX
Model
MH-C9000
Details
Specifications
Charging Current: Programmable from 0.2A to 2.0A in increments of 0.1A Topoff Charging Current: 100mA Maintenance Charging Current: 10mA Discharge Termination: Voltage 1.00V Discharge Current: Programmable from 0.1A to 1.0A in increments of 0.1A Capacity Storage Memory: 12 (Cycle mode only) Supported Capacity: 100 to 20,000mAh. Charger Input Power: 12V 2.0A Adapter Input: 100-240V 50/60Hz
Large backlit LCD display Endless programming possibilities - over 10,000 ways Five modes of operation: Charge, Refresh & Analyze, Break-In, Discharge, Cycle New ways to take care of your batteries and maximize runtime Delivers just the right charge Super light travel worldwide power supply and 12V compatible
Type
Charger
Charging Seats
4 x AA / 4 x AAA
Feature
Feature
Four independent slots Large backlit LCD display Endless programming possibilities - over 10,000 ways Five modes of operation: Charge, Refresh & Analyze, Break-In, Discharge, Cycle Delivers just the right charge-Independent negative delta V, temperature and timer protection eliminates over and undercharging. Super light travel worldwide power supply and 12V compatible-Worldwide 100-240V switching adapter - light weight and small. Also compatible with 12V input. Will work on car when used with the optional cigarette lighter adapter. New ways to take care of your batteries and maximize runtime: Battery Matching In most devices, usually two or more batteries are used together. When batteries are used in a series, the performance is limited by the worst one. In other words, one poorly performing battery can significantly reduce the device runtime. Battery matching refers to grouping batteries with similar “actual” capacity. To perform this, use the Refresh & Analyze mode to determine the battery capacity. Group batteries with capacity within about +/- 5% of the rated capacity. Battery Forming New batteries and those stored for extended period become chemically deactivated. Battery forming is a charge-discharge-charge cycle which forces a full charge into the battery at a very slow rate. This process activates the battery. In certain cases, it needs to be repeated two or three times. Battery forming can be performed using the Break-In mode.
Additional Information
Date First Available
July 26, 2007
