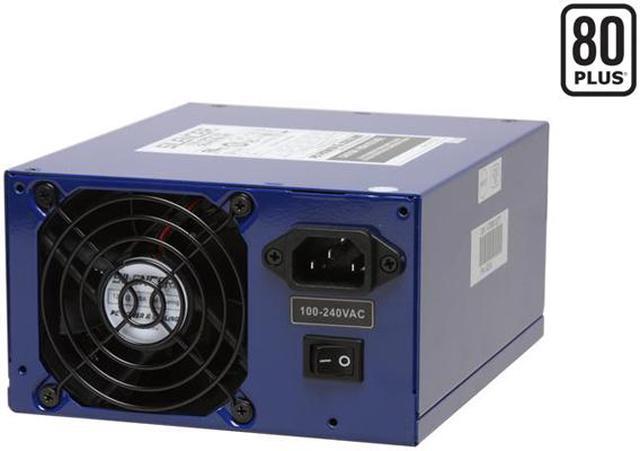

PC Power & Cooling Silencer PPCS750QBL 750W ATX12V / EPS12V SLI Certified CrossFire Ready 80 PLUS Certified Active PFC Power Supply
- ATX12V / EPS12V
- 80 PLUS Certified
- 100 - 240 V 50/60 Hz
- +5V @ 30A +12V @ 60A (Powerful Single Rail) -12V @ 0.8A +3.3V @ 24A +5VSB @ 3A
Specs
Reviews (66)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the PC Power and Cooling PPCS750QBL
| Brand | PC Power and Cooling |
|---|---|
| Series | Silencer |
| Model | PPCS750QBL |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 750 W |
| Fans | 1 |
| PFC | Active |

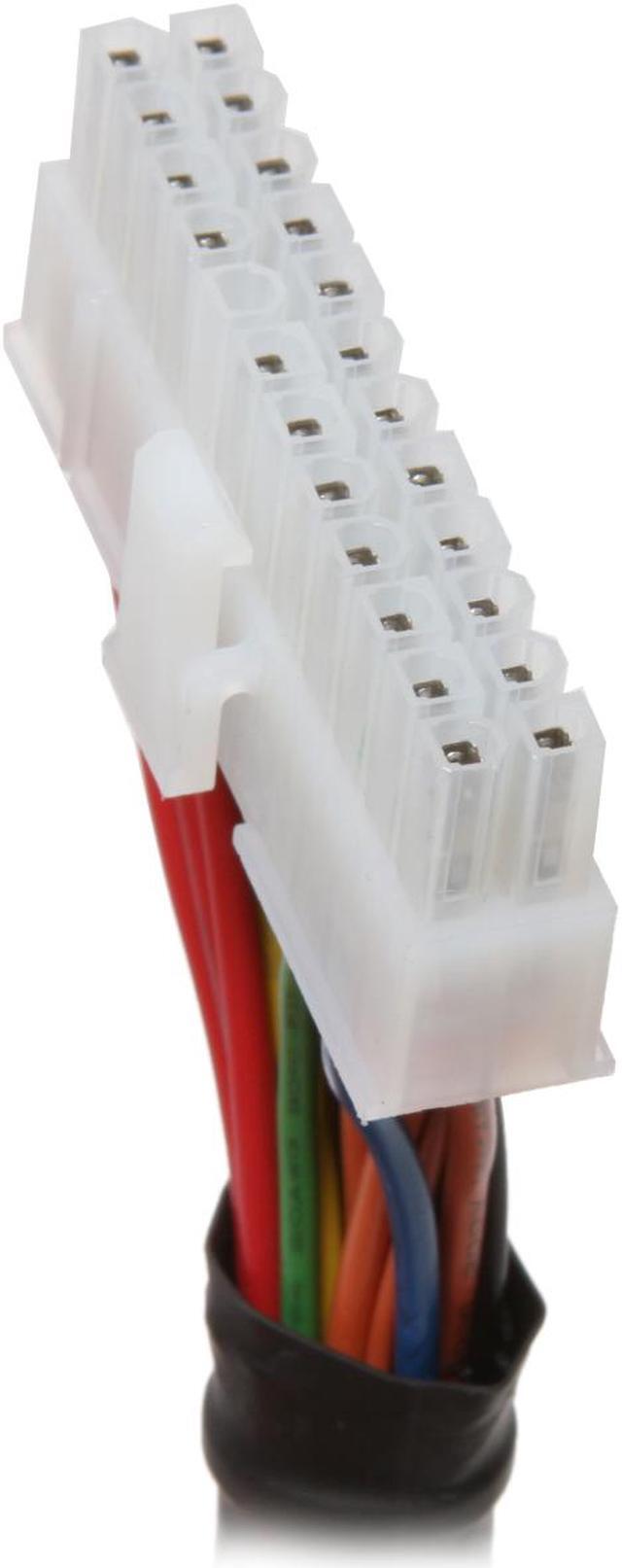

| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6-Pin, 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| SLI | SLI Certified |
| CrossFire | CrossFire Ready |
| Modular | No |
| Power Good Signal | 300ms |
| Hold-up Time | 16ms min. |
| Efficiency | 83% |
| Energy-Efficient | 80 PLUS Certified |
| Over Voltage Protection | +3.3V, +5V, +12V |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 12A |

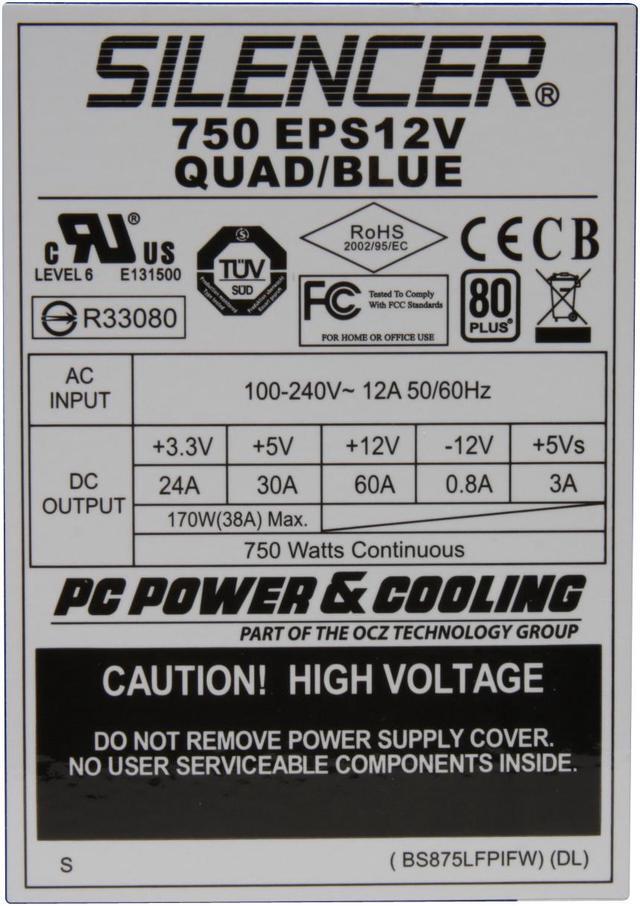

| Output | +5V @ 30A +12V @ 60A (Powerful Single Rail) -12V @ 0.8A +3.3V @ 24A +5VSB @ 3A |
| MTBF | >100,000 Hours |
| Approvals | UL, ULC, CE, CB, RoHS |

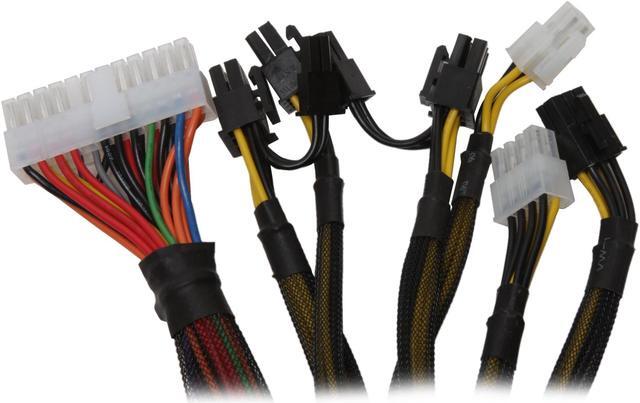

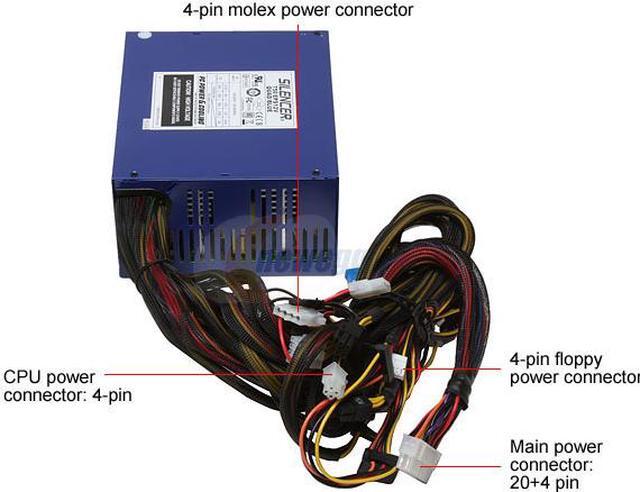

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V (4Pin) 1 x 12V(8Pin) 8 x peripheral (4Pin) 6 x SATA 1 x Floppy 4 x PCI-E |
| Features | NVIDIA SLI Certified (Dual 8800 GTX) 750W Continuous @ 40°C (825W Peak) Up to 90% (10dB) Less Noise per Watt High Efficiency (83%); .99 Active PFC Rock-Solid, Super-Clean DC Output Automatic Fan Speed Control Circuit |
|---|
| Date First Available | June 03, 2008 |
|---|
