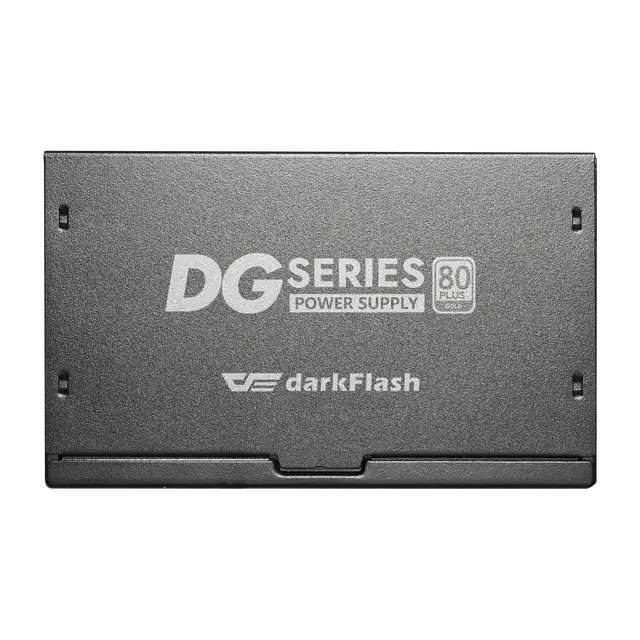

DG SERIES
FULL MODULAR ATX 3.1 POWER SUPPLY
DG 750
FULL MODULAR ATX 3.1 POWER SUPPLY
BLACK

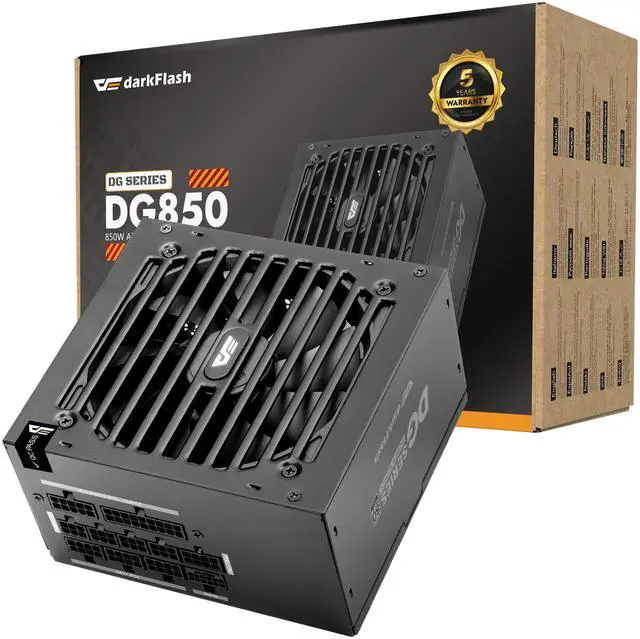

DG 850
FULL MODULAR ATX 3.1 POWER SUPPLY
BLACK
DG 1050
FULL MODULAR ATX 3.1 POWER SUPPLY
BLACK
DG 1250
FULL MODULAR ATX 3.1 POWER SUPPLY
BLACK
DC TO DC CONVERTER
18AWG PCI-E CABLE
TAIWANESE ELECTROLYTIC CAPACITORS
98% ACTIVE PFC

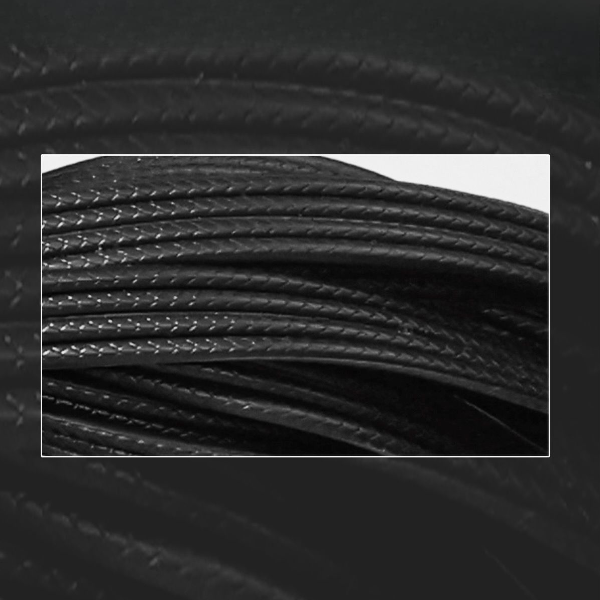

EMBOSSED CABEL
SINGLE +12V Output Rail
FULL MODULAR
120MM HDB FAN
EMI FILTERS
PROTECTION TECHNOLOCY
FIVE-TRUTH SERVICE
ATX 3.1 COMPLETE SUPPORT
Advanced High-performance Power supply with ATX 3.1 PCI-E 5.1 Response 12V-2x6 Support
Intel has adapted the updated ATX 3.1 specification for the next generation of hardware power needs.
New VGA card secondary red source specification 12V-2x6 connector is provided, providing high transient current. It has been upgraded to provide a reliable supply and supports both the latest Intel and AMD CPU and VGA cards. And it can cover up to 600W level of graphics cards perfectly. Delivers unmatched performance and experience for gamers, creators, and professionals using high-performance gaming PCS.

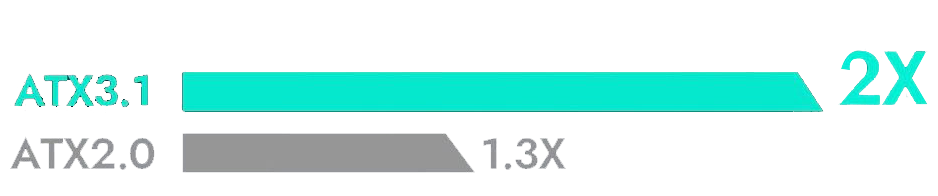

TOTAL POWER EXCURSION
Intel ATX 3.1 Standards Support
Complies with the Intel PSDG (Power Supply Design Guide) ATX 3.1 standard, it can be used reliably for up to 2 times of instantaneous peak power.
12V-2x6 600W PCI-E 5.1
GRAPHICS CARD PERFECT COMPATIBILITY
PCI-E 5.1 Response 12V-2x6 support
The 12V-2x6 cable in body PSU BOX component is a built-in. 12V-2x6 cable. It supports NVIDIA RTX 50 Series and features PCI-E 5.1. With a product that has been verified for compatibility with graphics cards, it can output up to power reliably.
Unlike the existing 6-8 pin PCI-E auxiliary power connectors, the 12V-2x6 connector One terminal solves power supply, so the internal structure can be decorated simple, which has a positive effect on improving system stability.

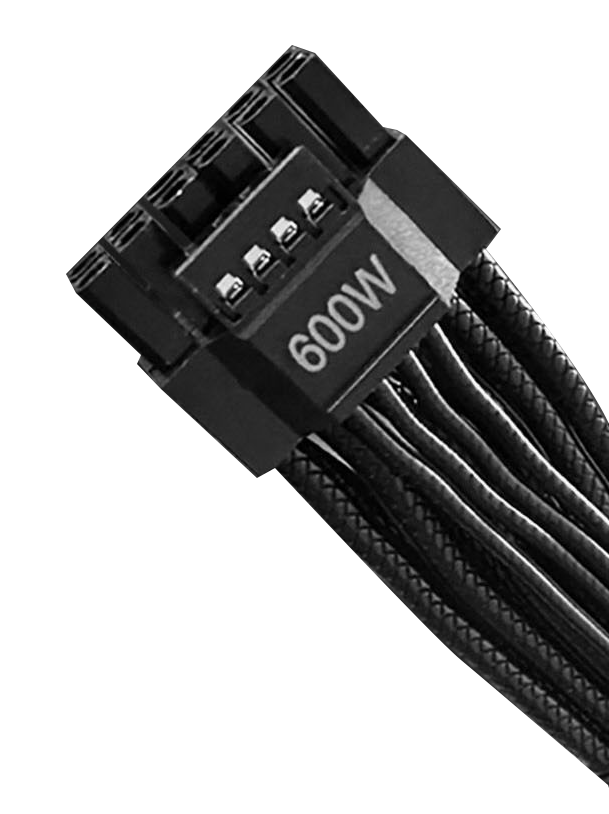

Direct Connected 12V-2x6 High-quality 16-pin
1 cable built-in
3x peak power correspondence of instantaneous 2x And GPU auxiliary power relative to rated capacity

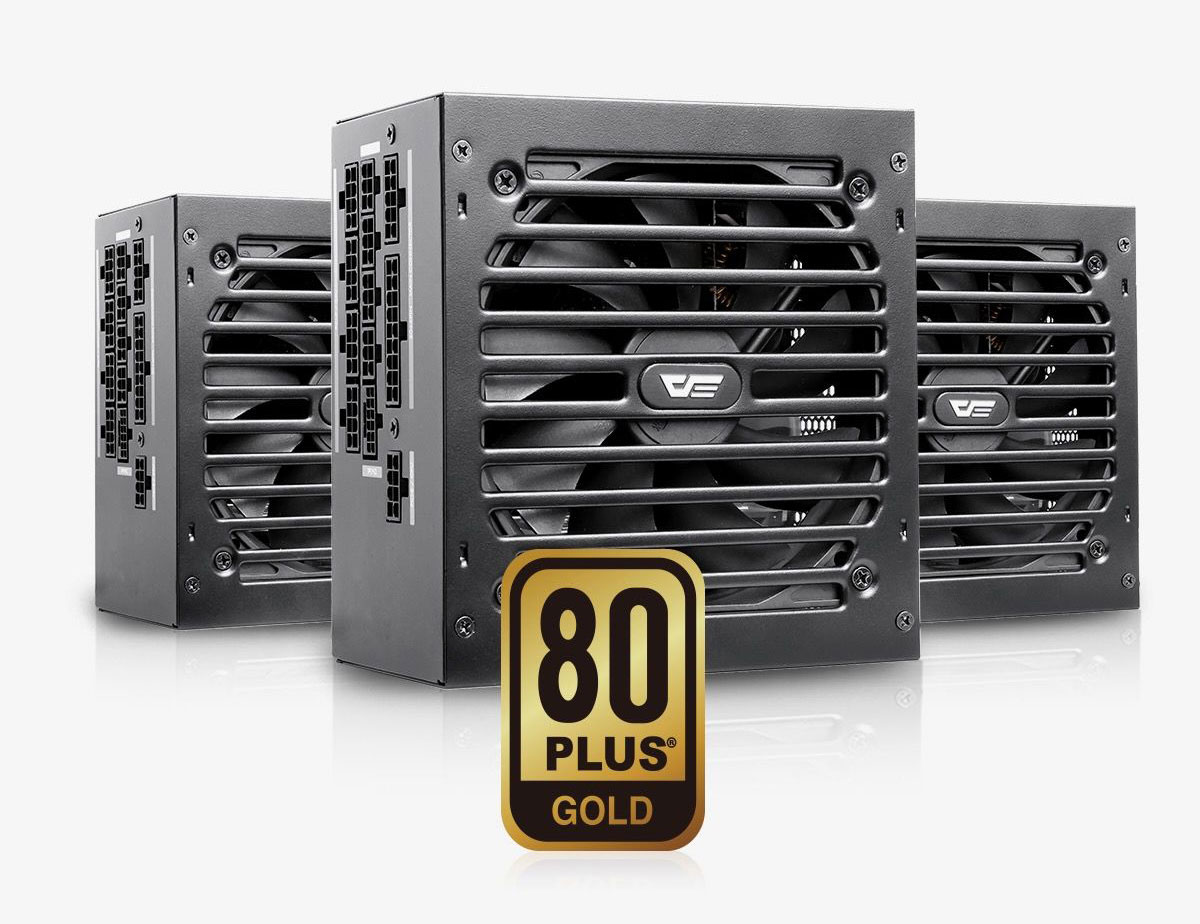

80 PLUS GOLD EFFICIENCY
80 PLUS GOLD CERTIFICATION
DG series are products which have obtained 80 PLUS GOLD certification, the standard of efficiency and quality of power supply. High power efficiency is ensured so that there is no unnecessary waste of power; and good reliability and stability through high energy efficiency.

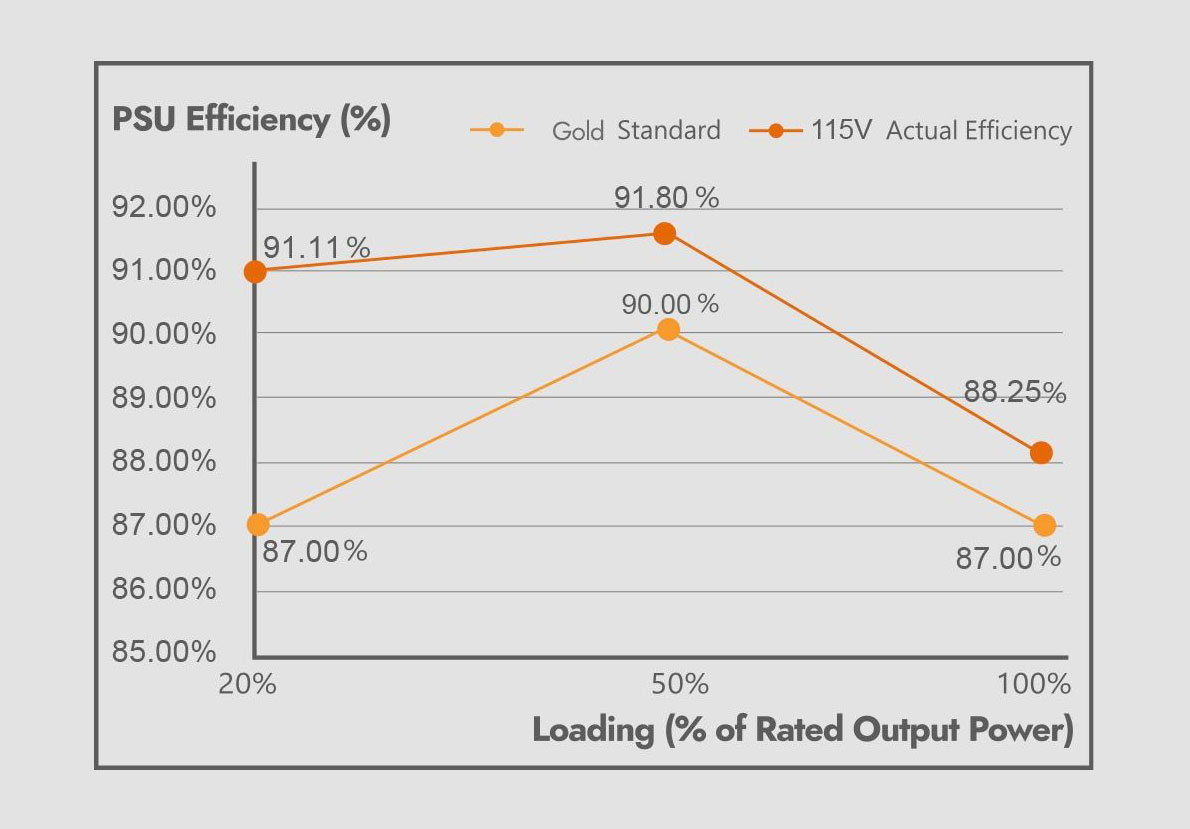

91% EFFICIENCY MAX
HIGH EFFICIENCY UP TO 91% AND ABOVE
Up to 91% higher energy conversion efficiency reduces power leakage, effectively reducing maintenance costs. Good energy - saving, and build a stable use environment.
+12V SINGLE RAIL
AVAILABLE CAPACITY >99% +12V SINGLE RAIL
Reliable power supply is essential with the latest processors and high performance graphics cards. Implement channel-free system output, Adopt +12V single rail design to provide reliable power even situation of instantaneous power overload.

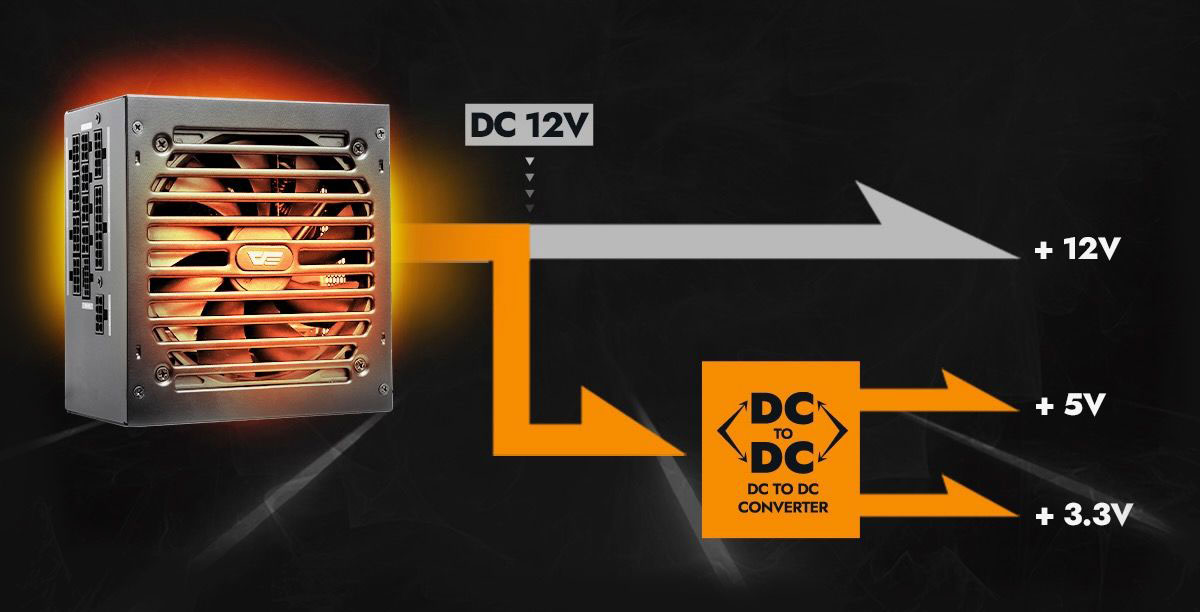

DC TO DC CONVERTER
DC TO DC CONVERTER CIRCUIT DESIGN
Applying 100% available single-rail output to critical +12V output in high-performance systems. Reliably digests any high performance components, and through DC to DC design with excellent efficiency and reliability. We implemented a flexible power supply environment for all parts.
- Even under load condition for each voltage, the output stability of other voltages is less affected.
- It represents precise output with less voltage fluctuation.
- Ensure low heating and stability, high efficiency.

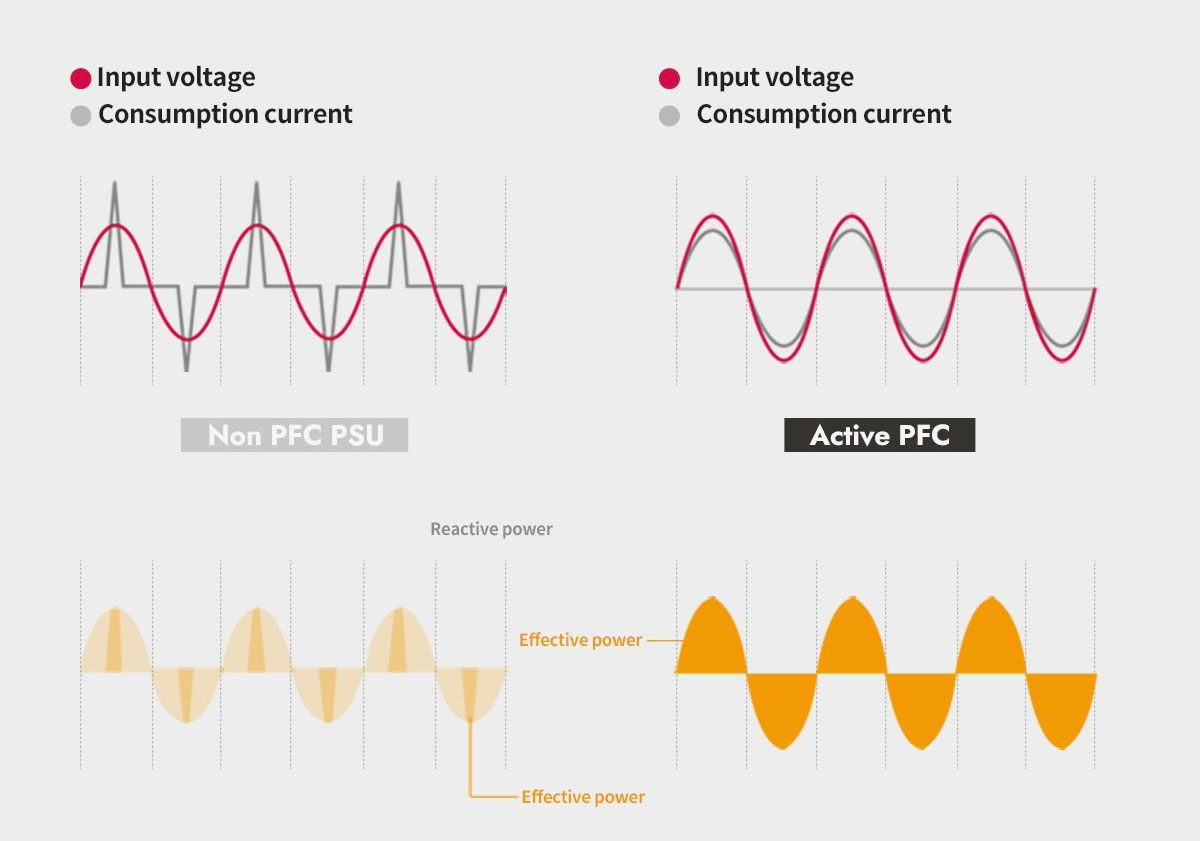

ACTIVE PFC 98%
WITH 98% ACTIVE PFC RECRUITMENT
REVERSE RATE AND EFFICIENCY IMPROVEMENT
REVERSE RATE AND EFFICIENCY IMPROVEMENT
Provides maximum reverse rate of 98% for maximum power efficiency. Active PFC circuit design provides high power efficiency.
Active PFC 98%
It can supply a steady current to each component in use in The system. It also prevents unnecessary waste current from being converted into heat. lt reduces the electromagnetic wave.

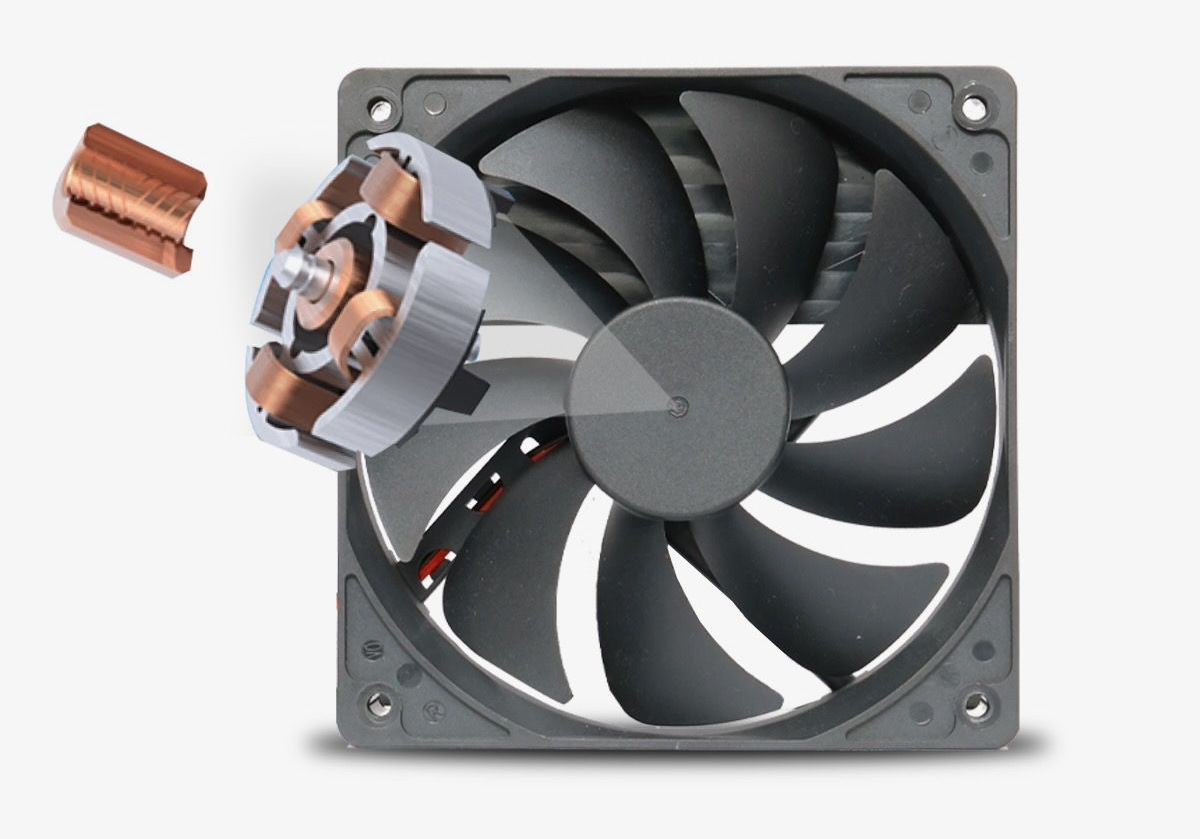

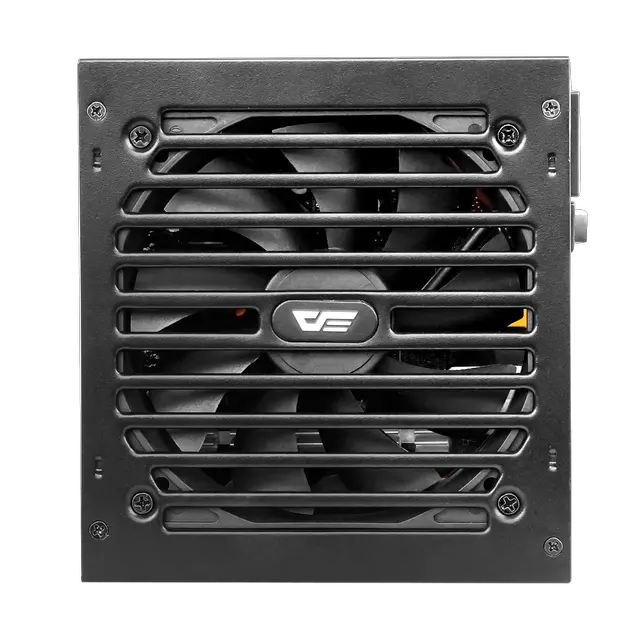

120MM HDB FAN
HYDRO-DYNAMIC BEARING 120MM COOLING FAN
Equipped with pemium HDB bearings-boasting superior durability over standard alternatives and ultra-quiet operation. By minimizing internal friction, these bearings boost longevity, unlock higher motor torque, cut down heat buildup, and optimize heat dissipation to the fullest extent.

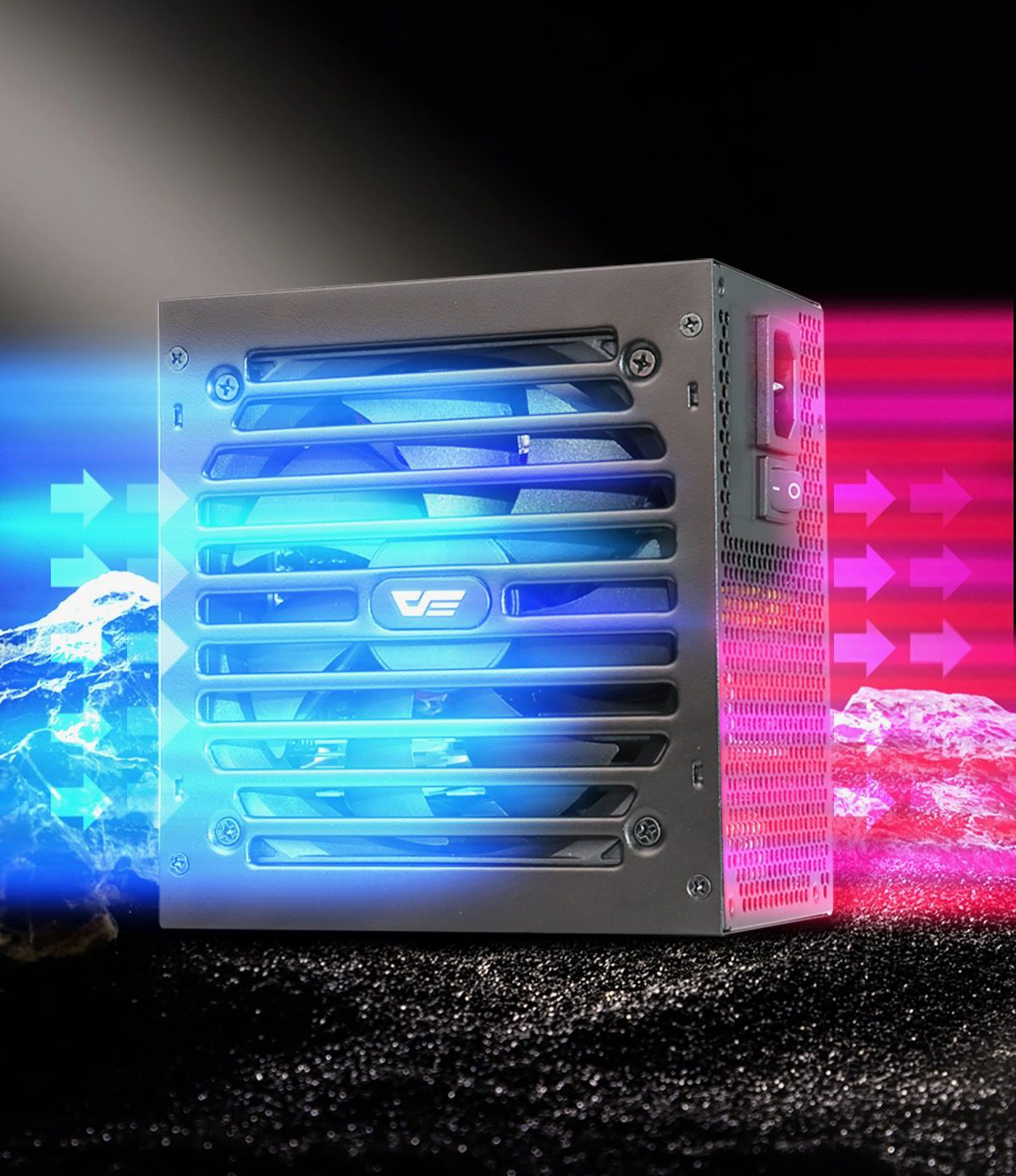

COOLING AIR HOLE
GRILLE HEAT DISSIPATION HOLES HONEYCOMB STRUCTURE VENT REAR AIR HOLE
The upper air hole applied a neat and simple grille pattern design. The rear air hole was applied with honeycomb tong pong structure.

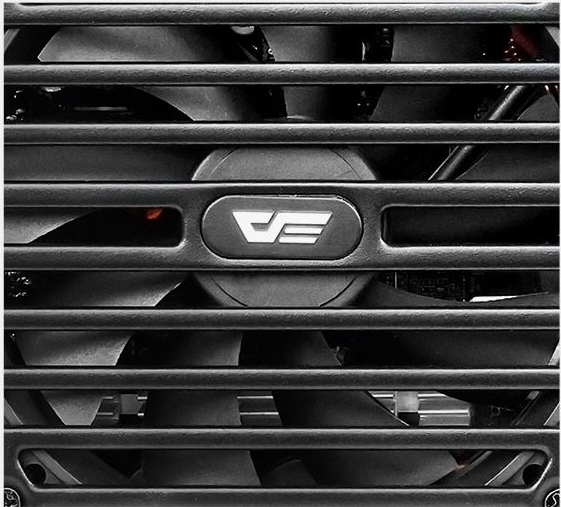

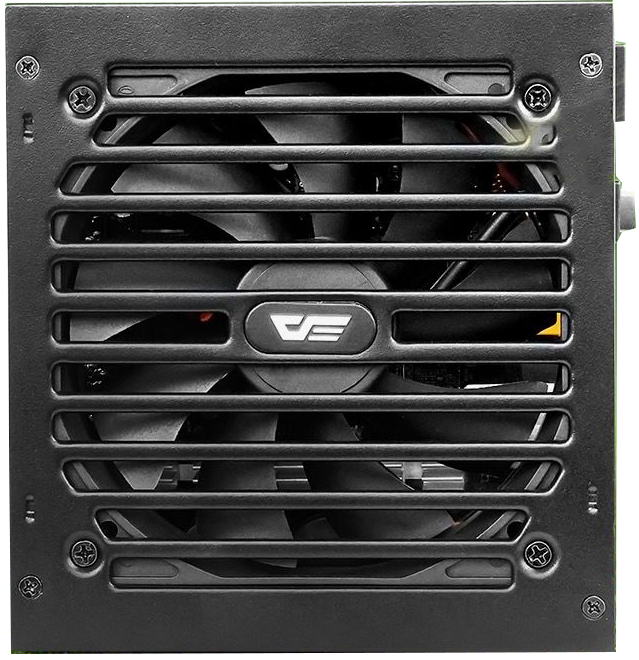

GRILLE HEAT DISSIPATION HOLES
Grating cooling holes adopted on darkFlash DG series cases. Pair perfectly with the case's powerful performance, darkFlash boasts a cobesive aesthetic and delivers enhanced cooling efficiency.

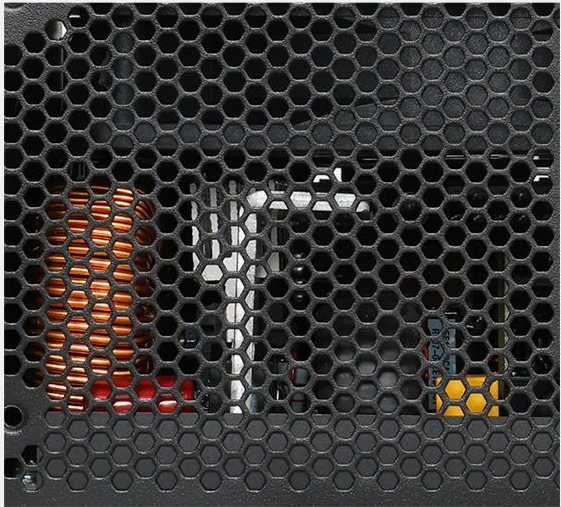

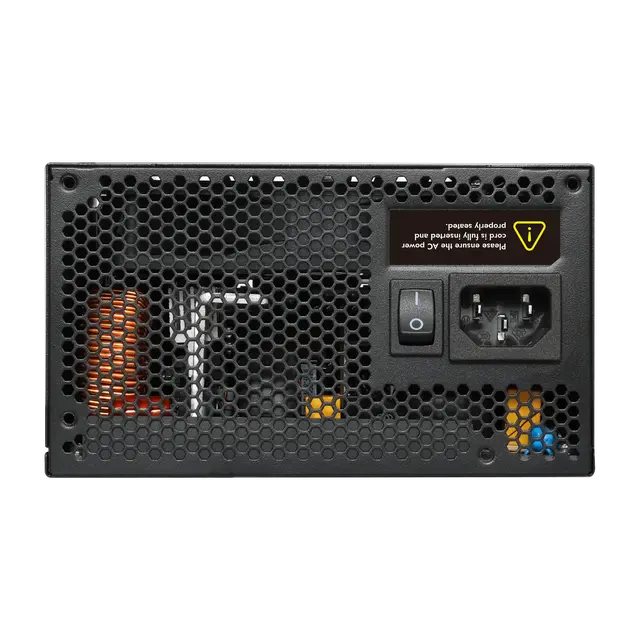

HONEYCOMB STRUCTURE VENT REAR AIR HOLE
With honeycomb Tong pong structure with excellent performance in air and ventilation, the heated air inside is quickly discharged to the outside.
STANDBY POWER CONSUMPTION LESS THAN 0.5 WATTS
HIGH ENERGY EFFICIENCY WITH LOW POWER DESIGN F SYSTEM STANDBY POWER LESS THAN 0.5W
Upmost power supplies achieve an impressive level of energy efficiency, which minimises lost electricity and eliminates unnecessary power consumption, making it an excellent cost effective power supply for electricity conservation.
PROTECTION TECHNOLOGY
BEST SYSTEM PROTECTION APPLICATION OF SEVEN-FOLD PROTECTION CIRCUIT TECHNOLOGY
We have the best protection that protexts the prodcuts and the parts of the PC safely in any environment, such as overvoltage protection, overcurrent protection, overload protection, No-load protection, short circuit protection, overheat protection, undervoltage protection. Built-in circuitry keeps your system safe.
SIX-FOLD PROTECTION CIRCUIT TECHNOLOGY
- (OVP): Prevent excessive voltage from being supplied.
- (OPP): Protects your PC by preventing high output above the output baseline
- (OCP): Prevents PC damage due to higher than permissible current.
- (UVP): Low voltage to prevent poor stability.
- (SCP): PC shutdown due to short circuit, avoid durability degradation.
- (OTP): To protect the product from excessive high temperature.
- (NLP):Power supply no load

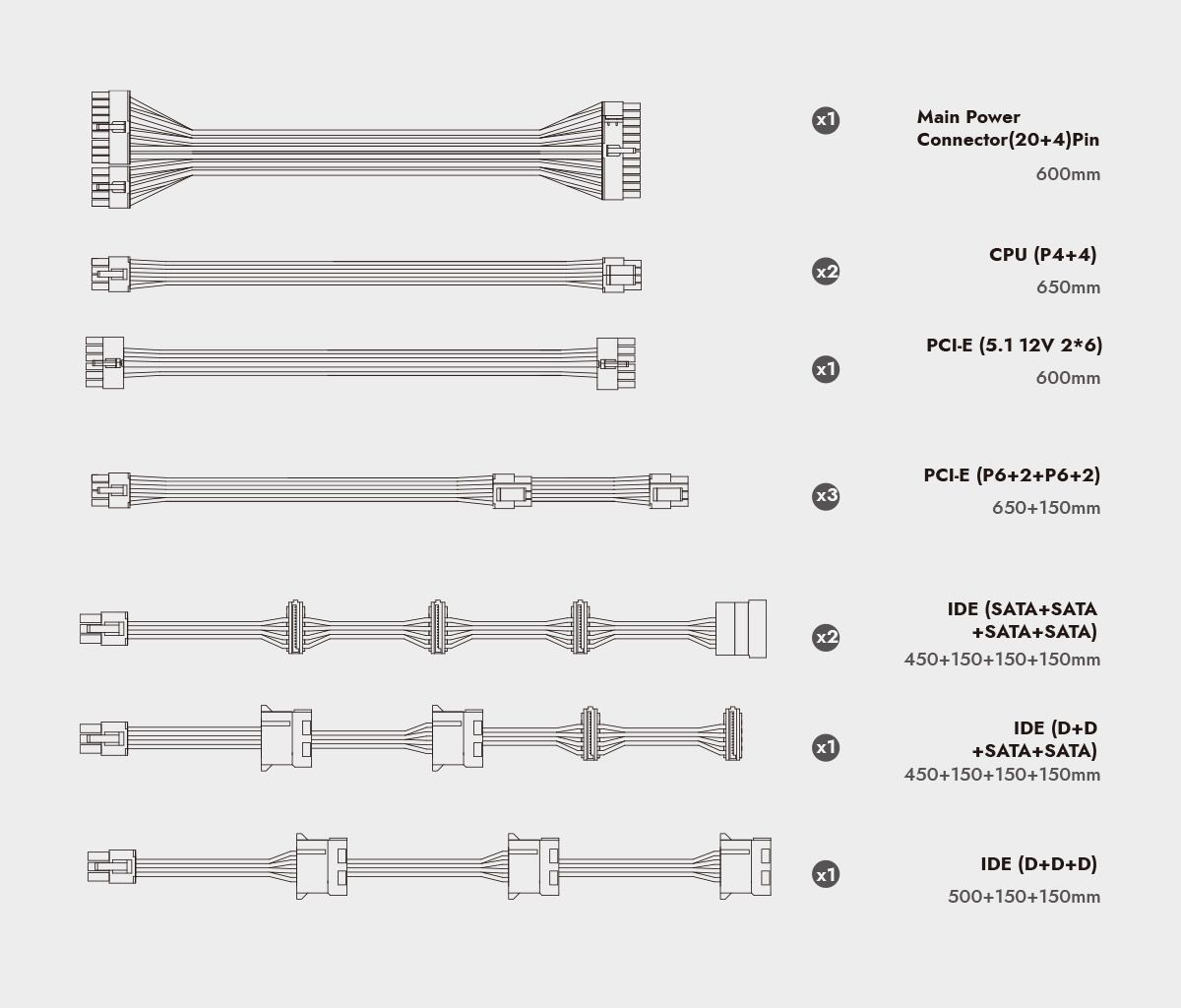

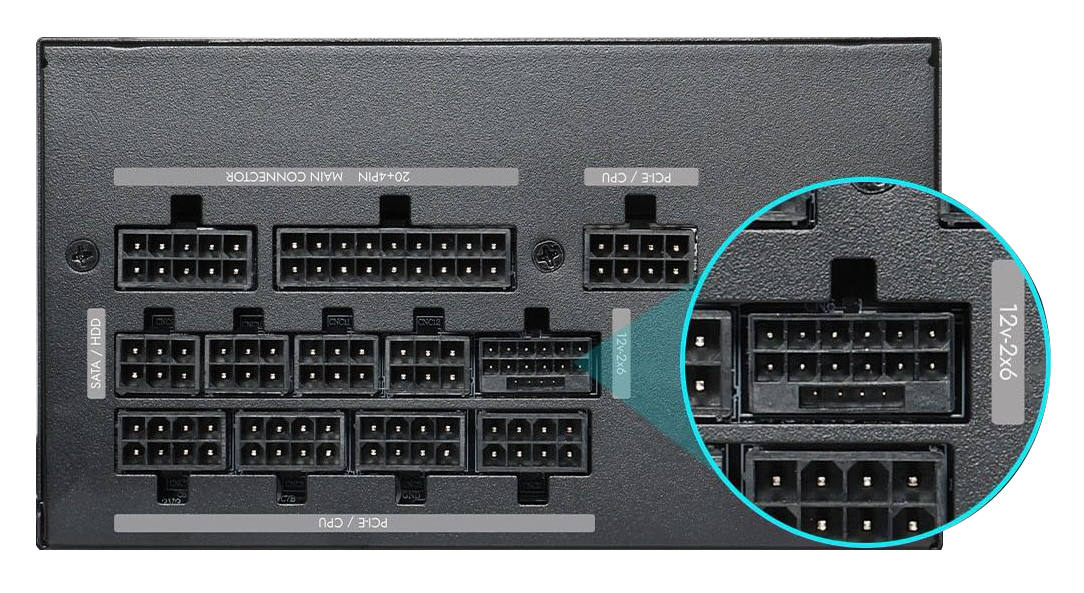

MODULAR CABLE CONFIGURATION
With a full modular design that allows the user to select and use only the desired cable The inside of the PC case is free and is effective in cooling the system with smooth air flov.

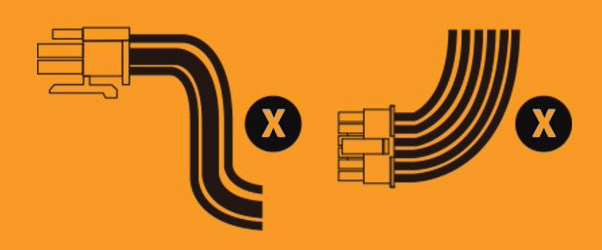

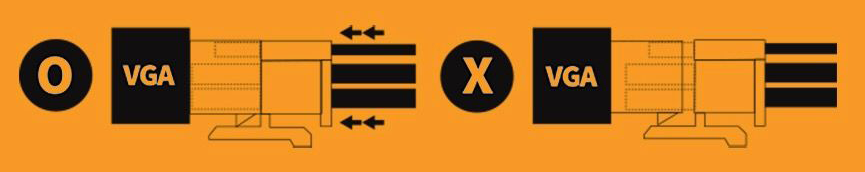

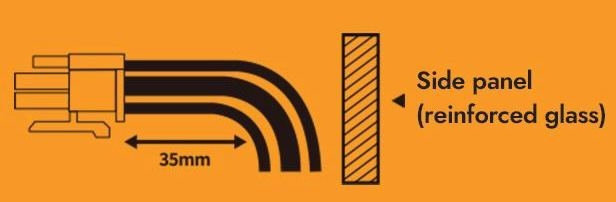

12V-2X6 CABLE NOTICE
PRECAUTIONS ON CABLING 12V-2X6
1 Pay attention to the direction of the connector and join the clasp until it is fully engaged.
2Pay attention to the direction of the connector and join the clasp until it is fully engaged.
3 To avoid the risk of breakage, do not break the cable with strong force.
FULL MODULAR - ALL CABLE
FULL MODULARITY FLEXIBLE FLAT CABLE APPLICATION
Fully modular design lets you pick and choose the cables you want to use, freeing up space inside your PC case and ensuring smooth airflow to keep your system cool.
INTEL AMD PROCESSOR COMPATIBILITY
INTEL & AMD LATEST HIGH PERFORMANCE PROCESSOR PERFECT COMPATIBILITY

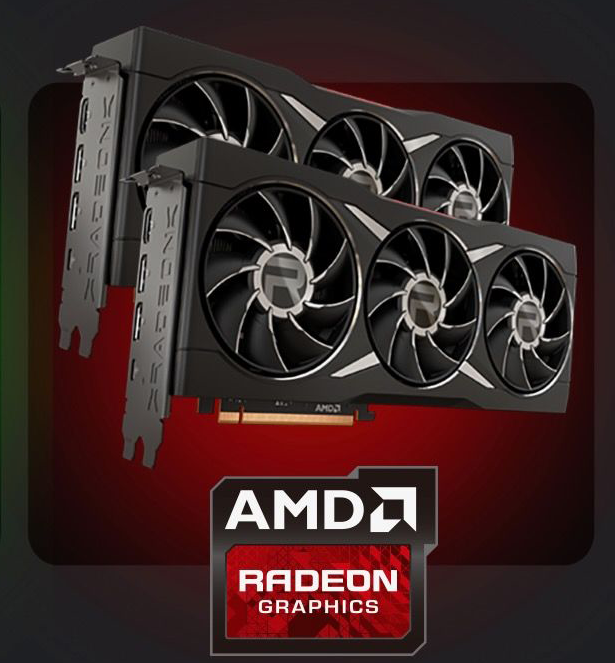

MULTI-GPU COMPATIBILITY
FOR GAMING PCS
BLENDED WITH - GPU COMPATIBILITY
BLENDED WITH - GPU COMPATIBILITY
You can configure a multi graphics environment for high spec gaming and professional graphics operations. The 6+2PCI-E auxiliary power connector can significantly improve game performance and support NVIDIA NV Link/SLI and AMD Cross Fire technologies.

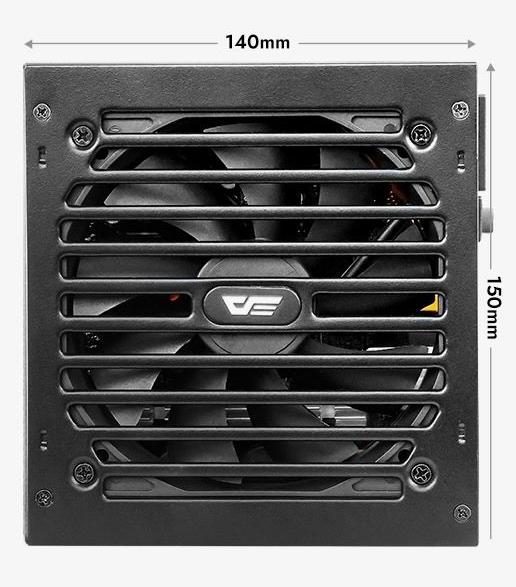

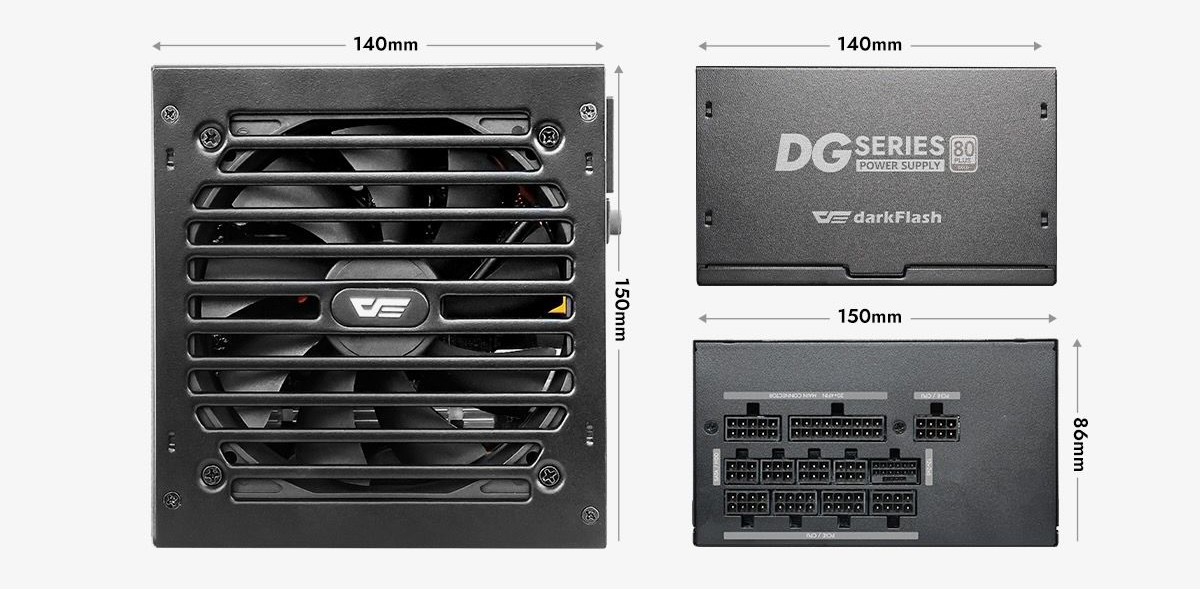

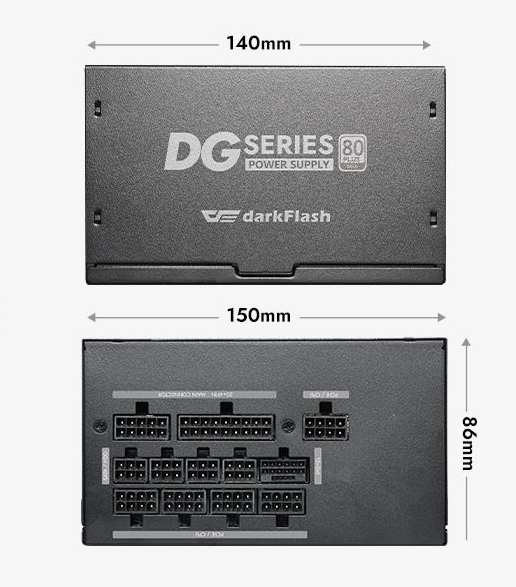

SIZE
Product size
