Compared to the 4 bay model that can handle a 1 TB (HDD x1). Why can't this one handle the same instead of a 750 GB (HDD x1)?

I just plugged a SpinPoint 1TB ST1000lM024 drive into the enclosure without difficulty. Each bay can handle a drive up to 9.5mm in height, which is standard for laptop 2.5" HDDs and SSDs. Unless you've got a drive (like the Velociraptor) that's taller than 9.5mm, you should have no problems. I don't own any other big 2.5" drives right now, so I can only speak directly for this particular SpinPoint model. HTH, --Ed--

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

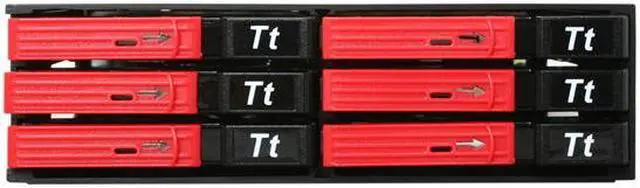

Main image of Thermaltake RC1600101A MAX-1562 5.25" (x1) Bay to 2.5" (x6) Bay Mobile Rack HDD Canister

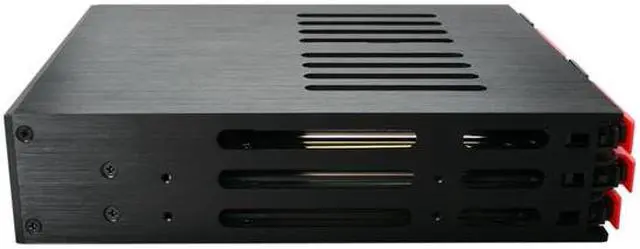

Alt view image 2 of 5 - Thermaltake RC1600101A MAX-1562 5.25" (x1) Bay to 2.5" (x6) Bay Mobile Rack HDD Canister

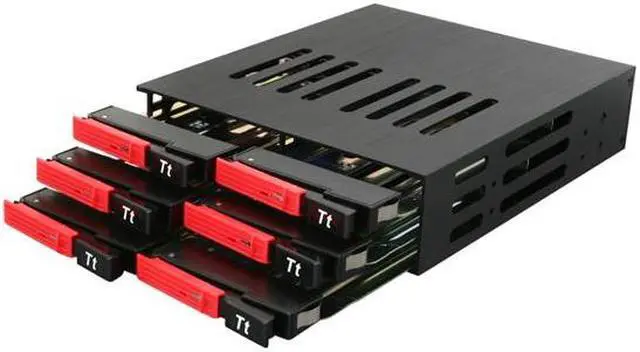

Alt view image 3 of 5 - Thermaltake RC1600101A MAX-1562 5.25" (x1) Bay to 2.5" (x6) Bay Mobile Rack HDD Canister

Alt view image 4 of 5 - Thermaltake RC1600101A MAX-1562 5.25" (x1) Bay to 2.5" (x6) Bay Mobile Rack HDD Canister

Alt view image 5 of 5 - Thermaltake RC1600101A MAX-1562 5.25" (x1) Bay to 2.5" (x6) Bay Mobile Rack HDD Canister

Shop All Thermaltake Products

Thermaltake RC1600101A MAX-1562 5.25" (x1) Bay to 2.5" (x6) Bay Mobile Rack HDD Canister

(12) Write a Review

Specs

Reviews (12)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Thermaltake RC1600101A

Model
Brand	Thermaltake
Model	RC1600101A

Details
Specifications	HDD Interface: Six 2.5" SAS / SATA / SSD HDD Thickness Height: up to 9.5 mm HDD Capacity: up to 750 GB (HDD x1), 4.5 TB (HDD x6) RAID Levels: 0, 1, 5, 6, 10 Transfer Rate: up to 6 Gbps (Max) for SAS & 3 Gbps (Max) for SATA I / II / SSD Power Connector: 4-pin Molex (x1) OS Compatible: Linux, Macintosh, Windows 7 / 2008 / Vista / 2003 / XP / 2000 Cooling Fan: 40 x 20 mm (x2) / Speed: 2500±15% RPM / Noise Level: 18 dBA LED Indicators: Power & HDD Status Indicator for each individual 2.5" HDD Tray Security Lock: Built-In for each 2.5" HDD Tray Material: Aluminum & ABS Plastic Dimension: 5.75 (W) x 6.77 (D) x 1.65 (H) inches Weight: 1.72 lbs.

Features

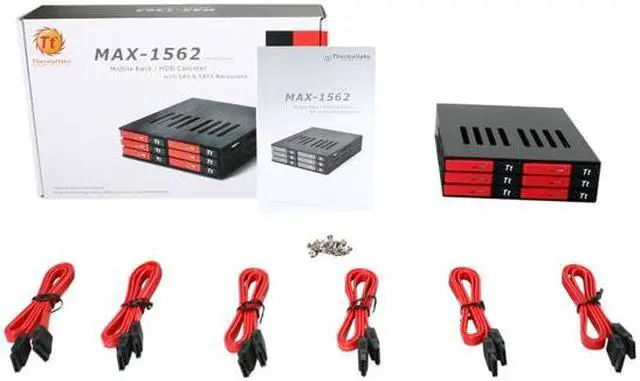

Features	Read & Write 6 Hard Drives simultaneously Supports All Standard 2.5" SAS, SATA (SSD) Hard Drives up to 9.5mm thickness in height Support and Compatible with All Computer Cases (Desktop or Industrial Rackmount) with any available 5.25" Drive Bay Plug & Play / Hot-Swap Capability for Rapid Multi HDDs Access & Exchange Dedicated Hard Drive LED Status Indicators for each individual HDD Tray High Performance Transfer Rate up to 6Gbps for SAS & 3Gbps for SATA (SSD) Support RAID 0, 1, 5, 6,10 functions Aluminum Body Construction for Durable Stability Built-in Dual 40mm Cooling Fans maximizes Heat Dissipation & Exhaust Included 6 Performance SATA Cables

Additional Information
First Listed on Newegg	December 29, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Thermaltake RC1600101A MAX-1562 5.25" (x1) Bay to 2.5" (x6) Bay Mobile Rack HDD Canister
