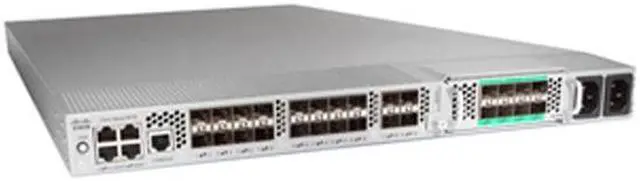

Main image of CISCO Nexus 5000 Series N5K-C5010P-BF Switch

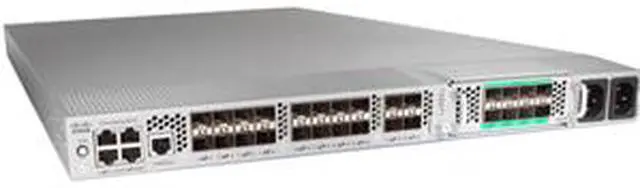

Alt view image 2 of 2 - CISCO Nexus 5000 Series N5K-C5010P-BF Switch

Shop All Cisco Systems, Inc. Products

CISCO Nexus 5000 Series N5K-C5010P-BF Switch

Be the first to review this product...

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The Cisco Nexus 5010 10 Gigabit Ethernet, Cisco Data Center Ethernet, FCoE, and Fibre Channel switch providing more than 520-Gbps throughput with very low latency. It has 20 fixed 10 Gigabit Ethernet, Cisco Data Center Ethernet, and FCoE SFP+ ports. The first 8 fixed ports are dual speed, supporting both 10 Gigabit Ethernet and 1 Gigabit Ethernet in hardware, and providing a smooth migration path to 10 Gigabit Ethernet. One expansion module slot can be configured to support up to 6 additional 10 Gigabit Ethernet, Cisco Data Center Ethernet, and FCoE SFP+ ports, up to 8 Fibre Channel switch ports, or a combination of 4 additional 10 Gigabit Ethernet, Cisco Data Center Ethernet, and FCoE SFP+ ports with 4 additional 4/2/1-Gbps Fibre Channel switch ports.

Cisco Nexus 5000 1Ru Switch Chassis - No Power Supply 2 X Fan Modules 20 Ports (Req Sfp+) The Cisco Nexus 5010 Is A 1Ru 10 Gigabit Ethernet Fcoe And Fiber Channel Switch Providing More Than 520-Gbps Throughput With Very Low Latency. It Has 20 Fix

Model
Brand	CISCO
Series	Nexus 5000 Series
Model	N5K-C5010P-BF

Format & Standards
Format	Rackmount
Standards	IEEE 802.1D: Spanning Tree Protocol IEEE 802.1p: CoS prioritization IEEE 802.1Q: VLAN tagging IEEE 802.1s: Multiple VLAN instances of Spanning Tree Protocol IEEE 802.1w: Rapid reconfiguration of Spanning Tree Protocol IEEE 802.3: Ethernet IEEE 802.3ad: LACP with fast timers IEEE 802.3ae: 10 Gigabit Ethernet SFF 8431 SFP+ CX1 support RMON

Ports & Interface
Primary Port Speed	10/100/1000Mbps + 10 Gbps

Data Transmission
VLAN Support	Yes
Jumbo Frames	9216 bytes

Details
Security	Ingress ACLs (standard and extended) on Ethernet and virtual Ethernet ports Standard and extended Layer 2 ACLs: MAC addresses, protocol type, etc. Standard and extended Layer 3 to 4 ACLs: IPv4 and v6, Internet Control Message Protocol (ICMP), TCP, User Datagram Protocol (UDP), etc. VLAN-based ACLs (VACLs) Port-based ACLs (PACLs) Named ACLs ACL logging and statistics Optimized ACL distribution
SNMP	Yes
QoS	Yes
LACP	Yes
Layer	1
Module Support	Yes

Power Supply
Power	Typical operating power: 350W Maximum power: 450W Input voltage: 100 to 240 VAC Frequency: 50 to 60 Hz Efficiency: 88 to 90% Heat dissipation: 1536 BTU/hr

Dimensions & Weight
Dimensions	1.72 x 17.3 x 30.0 in.(4.4 x 43.9 x 76.2 cm)

Environmental
Temperature	0°C to 40°C (32°F to 104°F)
Humidity	5% - 95%, Non-condensing

Features
Features	Layer 2 hardware forwarding at 520 Gbps or 386.9 mpps MAC address table entries: 16,000 Low-latency cut-through design that provides predictable, consistent traffic latency regardless of packet size, traffic pattern, or enabled features on 10 Gigabit Ethernet interfaces Line-rate traffic throughput on all ports 20 fixed 10 Gigabit Ethernet and FCoE Ports (ports 1 to 8 are Gigabit Ethernet and 10 Gigabit Ethernet); additional interfaces through one expansion module Expansion modules: - 6-port 10 Gigabit Ethernet and FCoE module - 4-port Fibre Channel plus 4-port 10 Gigabit Ethernet and FCoE module - 8-port native 4/2/1-Gbps Fibre Channel expansion module - 6-port native 8/4/2/1-Gbps Fibre Channel expansion module Extension through the Cisco Nexus 2000 Series (up to 12 fabric extenders per Cisco Nexus 5000 Series Switch)

Additional Information
First Listed on Newegg	September 09, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): Lifetime
Limited Warranty period (labor): Lifetime
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-553-6387
Support Website
