Enermax ELC-LMR240-BS Liqmax II 240 / ELC-LMR240-BS / Liquid CPU Cooler 25mm Fan/ INTEL/AMD with AM4 Support

(52)(4) Write a Review
  • 500 - 1200 / 1600 / 2000 RPM +/- 10% 27.7 - 58.3 / 75.5 / 96.0 CFM
  • 47.1 - 99.1 / 128.3 / 163.1 m3/h
  • Radiator Dim. 274.00 x 120.00 x 27.00 mm
  • Fan Dim. 120.00 x 120.00 x 25.00 mm
  • Fan Noise 16 - 23 / 30 / 35dBA
Overview
Specs
Reviews (52)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
General Information
  • Cooling & Design
    • Maintenance-free Cooling System

    All-in-One liquid CPU cooler with pre-filled coolant offers best usability and maximum cooling performance for powerful PC systems with multi-core CPUs.

    • Shunt-Channel Technology

    Patented cold plate design for maximum cooling performance. The shunt inside the micro fin structure minimizes the "Boundary Layer" effect, eliminates hot spots much quicker and ensures a perfect heat dissipation.

    • Stylish Water Block

    Low operating noise and efficient cooling performance thanks to long-lasting ceramic bearing pump. The white LED logo displays the operating mode.

    • Double-length Radiator

    Higher heat exchange capacity thanks to double-length 240mm radiator. First choice for systems with overclocked CPU.

Fan Information
  • Number of Fans: 2
  • Fan Speed (rpm): 2 x 2200 rpm
  • Fan Bearing Type: Ceramic Bearing
  • Air Flow: 2 x 96 CFM

Heatsink Information
  • Cooler Type: Liquid
  • Compatible Processor Socket: Socket T LGA-775
  • Compatible Processor Socket: Socket H3 LGA-1150
  • Compatible Processor Socket: Socket H2 LGA-1155
  • Compatible Processor Socket: Socket H LGA-1156
  • Compatible Processor Socket: Socket B LGA-1366
  • Compatible Processor Socket: Socket R LGA-2011
  • Compatible Processor Socket: Socket AM2 PGA-940
  • Compatible Processor Socket: Socket AM2+ PGA-940
  • Compatible Processor Socket: Socket AM3 PGA-941
  • Compatible Processor Socket: Socket AM3+
  • Compatible Processor Socket: Socket FM1
  • Compatible Processor Socket: Socket FM2
  • Compatible Processor Socket: Socket FM2+

Interfaces/Ports
  • Connectors: 3-pin
  • Connectors: 4-pin

Physical Characteristics
  • Material: Aluminum Radiator
  • Material: Polyamide Tubing
  • Material: Copper Plate
  • Material: Rubber Pad
  • Fan Diameter: 2 x 120 mm

Miscellaneous
  • Application/Usage: Processor

Liqmax II 240 Product Information

Liqmax II 240Liqmax II 240

Liqmax II 240 Overview

LIQMAX II is the 2nd generation of LIQMAX All-In-One CPU liquid coolers series. Different from the 1st generation of LIQMAX, LIQMAX II has two models and each model collocates two fans. The two models of LIQMAX II is LIQMAX II 120S and 240 with the defferent radiator lengths: 120mm and 240mm; the TDP rated at 320W+ and 350W+. LIQMAX II 120S can be installed on the rear of a chassis and LIQMAX II 240 can be installed on the top panel or at the bottom. Both models support the most modern CPU socket types, including LGA1150, LGA2011, AM3+ and FM2+. Users can select the model based on their need.

LIQMAX II features a new cooling block with advanced impellers, ENERMAX patented Shunt Channel Technoloty (S.C.T) and the 2nd generation batwing fans with patented APS (Adjustable Peak Speed) triple RPM range setting function. It also offers the elastic and impermeable rubber tube, the LED logo on the cooling block to indicate power status, pressure adjustment spring screws to ensure a perfect contact force between the cooling block and CPU without damaging the CPU and the highly recommended: Dow Corning TC-5121 thermal conductivity grease.

Liqmax II 240 Features

Liqmax II 240

Patented Shunt-Channel-Technology (SCT) boosts thermal conductivity and eliminates any heat surge.

Liqmax II 240

The 2nd generation Batwing blades fan creates continuous burst air flow to penetrate the radiator and dissipate the heat efficiently.

Liqmax II 240

Patented smart APS (Adjustable peak speed) control provides 3 peak rpm options.

Liqmax II 240

Luminous LED logo indicates power on status.

  • Advanced impellers increase pump pressure and flow momentum performance to provide smooth coolant circulation.
  • Ceramic bearing pump provides exceptional durability and noiseless operation.
  • Anti-vibration rubber pads provide noiseless stable operation.
  • Durable and flexible rubber tubes ensure zero permeability.
  • Easy-installation bracket with pressure adjustment spring screws ensures perfect contact force with CPU.

Liqmax II 240 Patented Shunt-Channel-Technology (SCT)

Liqmax II 240

With SCT design, the cold plate can eliminate the "Boundary Layer" to increase coolant flow momentum and accelerate heat transfer performance.

Liqmax II 240 Patented APS PWM control

Liqmax II 240

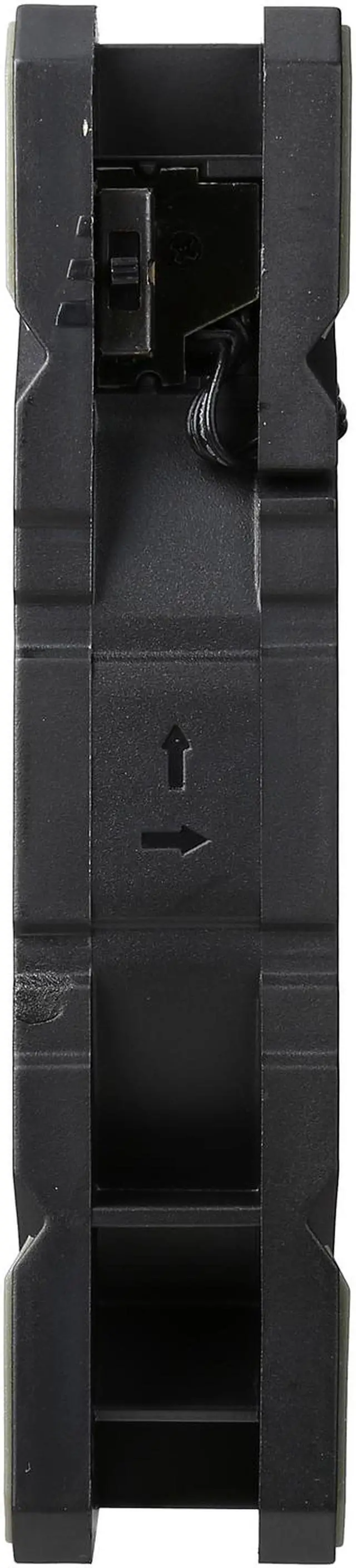

Users can choose the most suitable mode depending on the system application without pushing fan speed up to the limit. Just gently slide the small switch at the fan frame, and an easy adjustment can be made to suit different cooling performance requirements.

Liqmax II 240 Specification

Model ELC-LMR240-BS
Cold Plate
 Material Copper
Pump Bearing Ceramic Bearing
MTBF 50,000 hours
Motor Speed 2700 rpm ±10%
Rated Voltage 12 V
Rated Current 0.3 A
Radiator Dimension 274 x 120 x 27 mm
Material Aluminum
Tube Material Rubber
Length 300 mm
Weight (w/o fan) 740 g
Bracket Compatibility Intel® LGA 775/1150/1155/1156/1366/2011,
AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
Fan Dimension 120 x 120 x 25 mm
Speed 500-1200/1600/2000 rpm ±10%
Rated Voltage 12V
Rated Current 0.09/0.19/0.38 A
Air Flow 27.7~58.3/75.5/96.0 CFM
47.1~99.1/128.3/163.1 m3/h
Static Pressure 0.4~1.3/2.4/3.0 mm-H2O
Noise Level 16~23/30/35 dBA
Connector 4 pin PWM

Liqmax II 240 Dimension

Liqmax II 240Liqmax II 240

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
