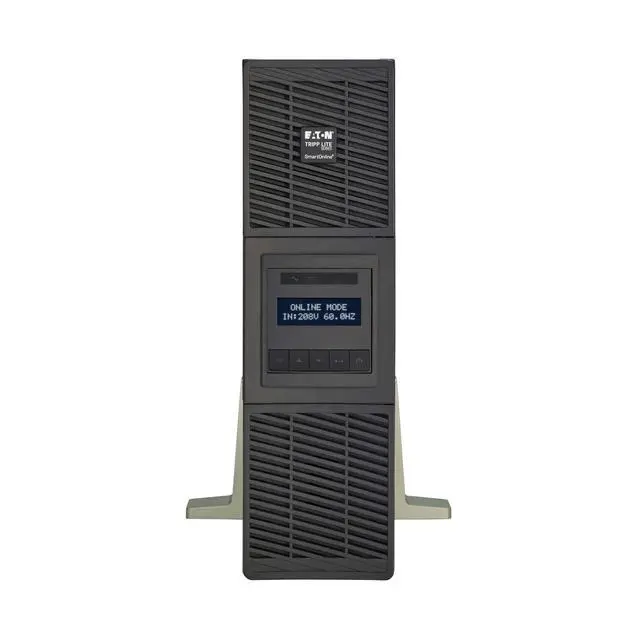

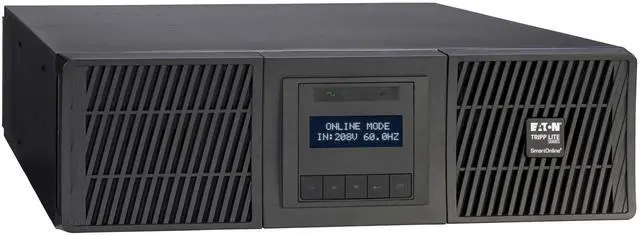

    Tripp Lite SU5000RT series SmartOnline SU5000RT 5000VA Rack/tower UPS - 3U Rack/Tower - AVR - 3 Minute Stand-by - 230 V AC Input - 230 V AC, 240 V AC, 220 V AC, 208 V AC, 200 V AC, 250 V AC Output

    Be the first to review this product...
    • Input Phase Single-Phase
    • Rated input current (Maximum Load) 23.3A
    • Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
    • Nominal Input Voltage Description Factory configured to 208V
    • UPS Input Connection Type Hardwire; L6-30P
    • Input Circuit Breakers Recommended 30A upstream
    • UPS Input Cord Length (ft.) 10
    • Recommended Electrical Service 30A
    • Maximum Input Amps 23
    • Input Plug Type NEMA L6-30P
    • Total Harmonic Distortion < 2% THDV on linear load; < 5% THDV on non-linear load
    • Input Cord Length (ft.) 10
    • Output Capacity (VA) 5000
    • Output Capacity (kVA) 5
    • Output Capacity (Watts) 4500
    • Output Capacity (kW) 4.5
    • Power Factor 0.9
    • Crest Factor 3:1
    • Nominal Voltage Details 200V, 208V, 220V, 230V, 240V
    • Frequency Compatibility 50 / 60 Hz
    • Frequency Compatibility Details 50 or 60Hz, autosensing or configurable as a frequency converter
    • Output Voltage Regulation (Line Mode) +/- 1%
    • Output Voltage Regulation (Battery Mode) +/- 1%
    • Output Circuit Breakers 20A breaker protects L6-20R outlets
    • Output AC Waveform (AC Mode) Pure Sine wave
    • Output AC Waveform (Battery Mode) Pure Sine wave
    • Nominal Output Voltage(s) Supported 200V; 208V; 220V; 230V; 240V; 250V

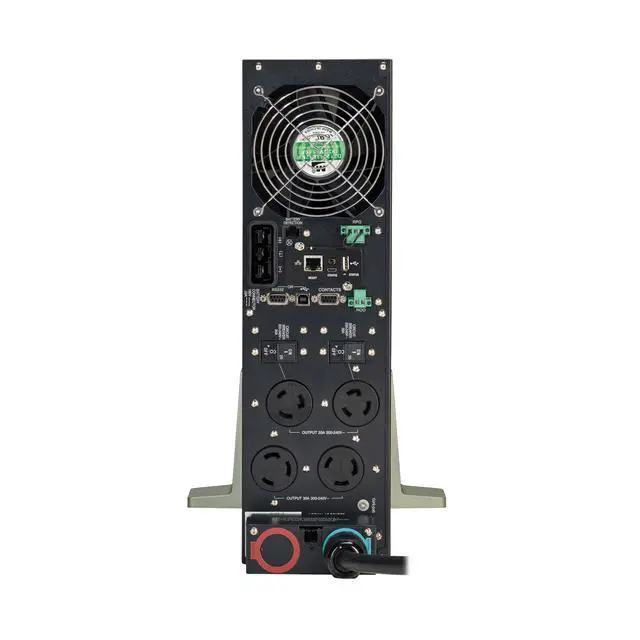

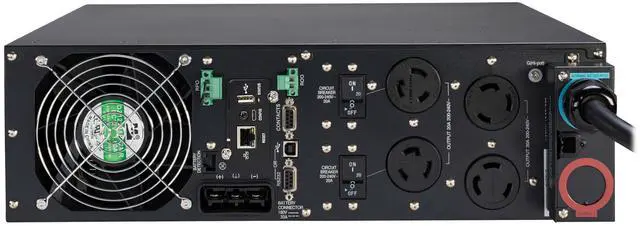

    • Output Receptacles (2) L6-20R; (2) L6-30R; Hardwire
    • Battery Type Valve Regulated Lead Acid (VRLA)
    • Runtime Full Load (min.) 3 min. (4500W)
    • Runtime Half Load (min.) 11 min. (2250W)
    • Expandable Runtime Yes

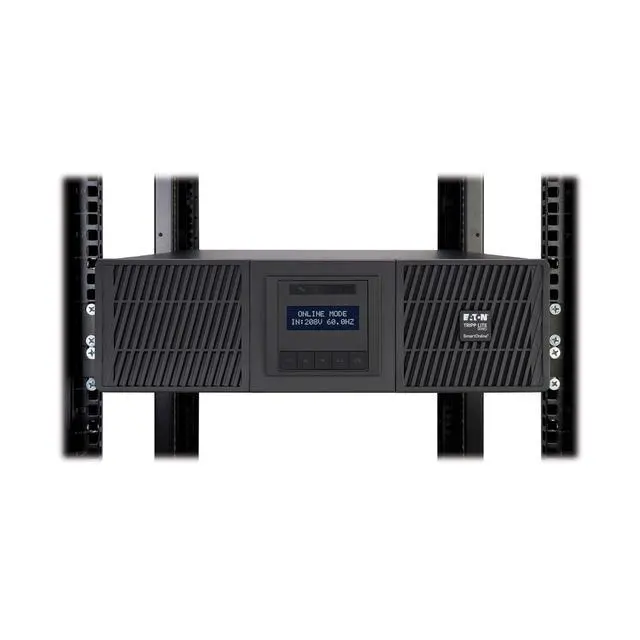

    • Primary Form Factor Rackmount; Tower
