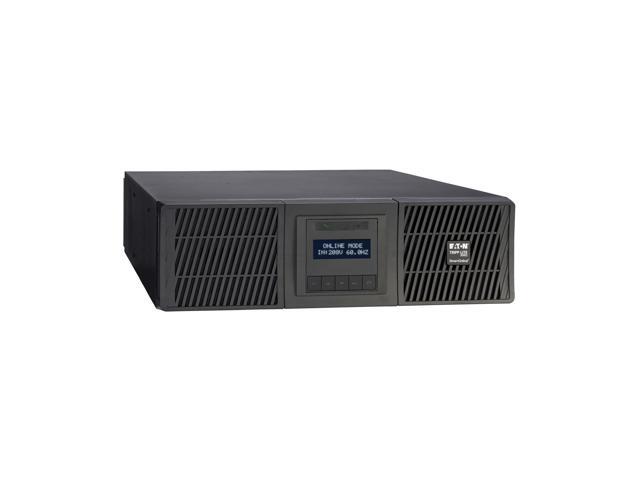

Tripp Lite SU5000RT series SmartOnline SU5000RT 5000VA Rack/tower UPS - 3U Rack/Tower - AVR - 3 Minute Stand-by - 230 V AC Input - 230 V AC, 240 V AC, 220 V AC, 208 V AC, 200 V AC, 250 V AC Output

Input Phase Single-Phase
Rated input current (Maximum Load) 23.3A
Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Nominal Input Voltage Description Factory configured to 208V
UPS Input Connection Type Hardwire; L6-30P
Input Circuit Breakers Recommended 30A upstream
UPS Input Cord Length (ft.) 10
Recommended Electrical Service 30A
Maximum Input Amps 23
Input Plug Type NEMA L6-30P
Total Harmonic Distortion < 2% THDV on linear load; < 5% THDV on non-linear load
Input Cord Length (ft.) 10
Output Capacity (VA) 5000
Output Capacity (kVA) 5
Output Capacity (Watts) 4500
Output Capacity (kW) 4.5
Power Factor 0.9
Crest Factor 3:1
Nominal Voltage Details 200V, 208V, 220V, 230V, 240V
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details 50 or 60Hz, autosensing or configurable as a frequency converter
Output Voltage Regulation (Line Mode) +/- 1%
Output Voltage Regulation (Battery Mode) +/- 1%
Output Circuit Breakers 20A breaker protects L6-20R outlets
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery Mode) Pure Sine wave
Nominal Output Voltage(s) Supported 200V; 208V; 220V; 230V; 240V; 250V

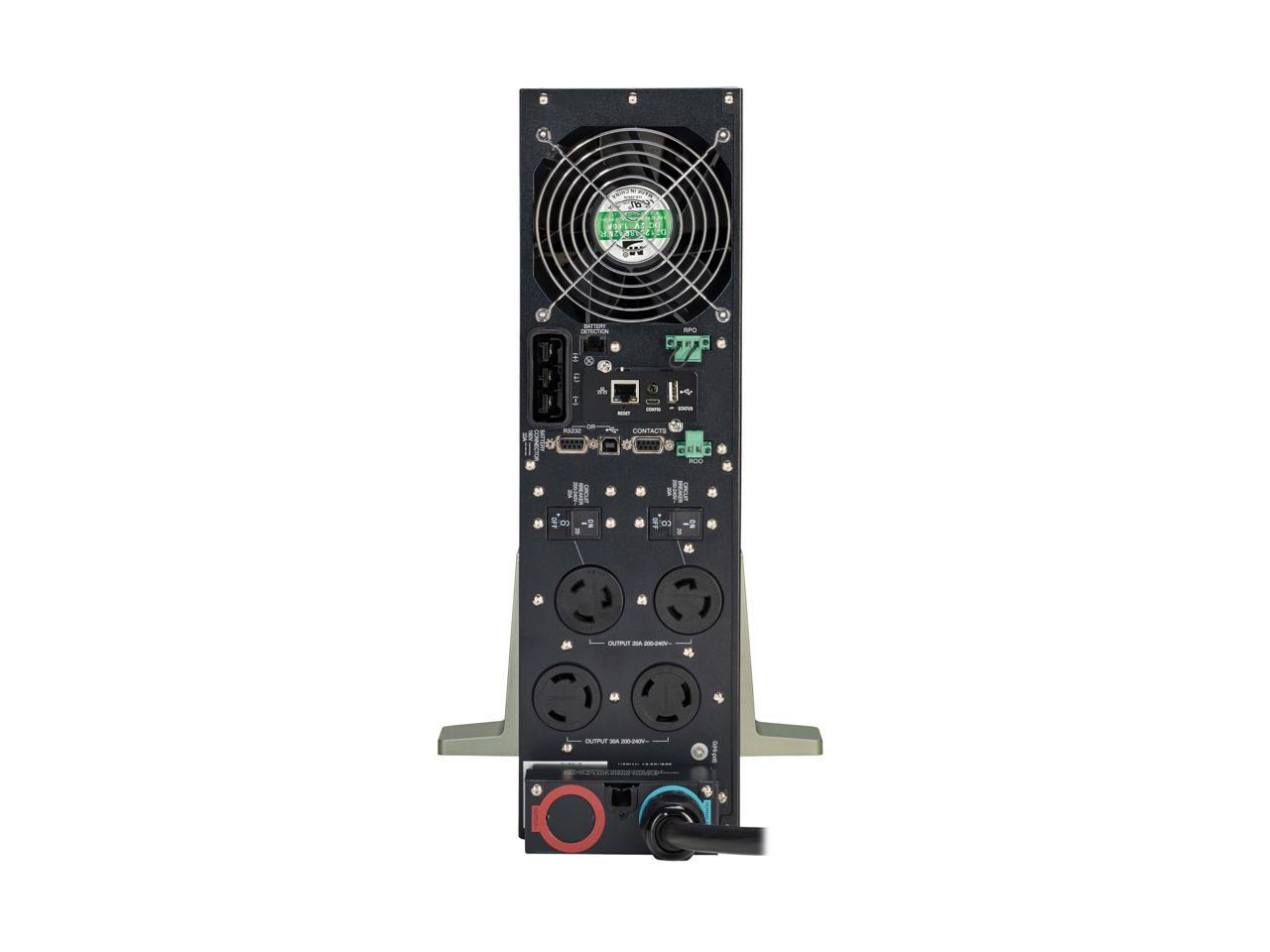

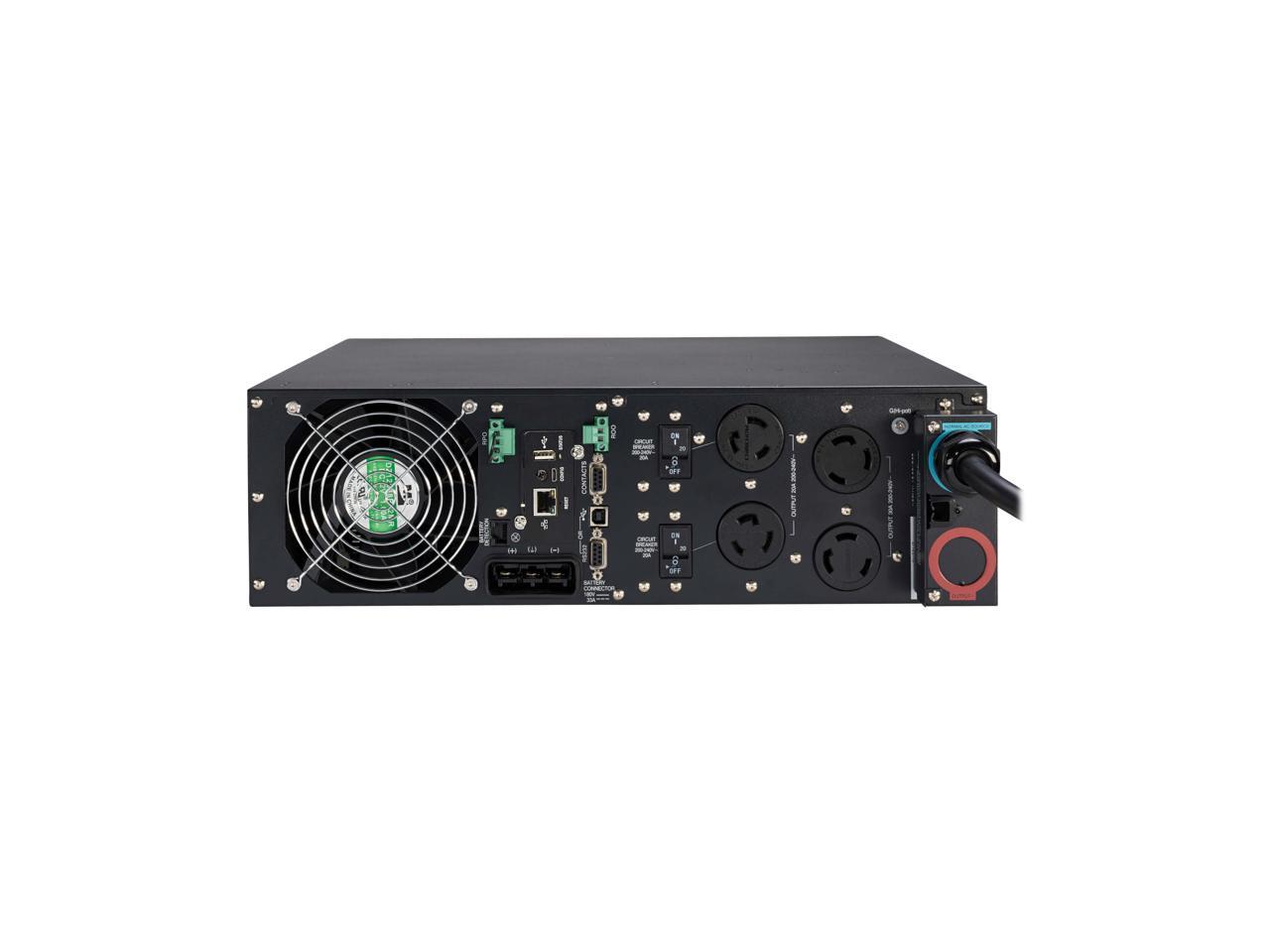

Output Receptacles (2) L6-20R; (2) L6-30R; Hardwire
Battery Type Valve Regulated Lead Acid (VRLA)
Runtime Full Load (min.) 3 min. (4500W)
Runtime Half Load (min.) 11 min. (2250W)
Expandable Runtime Yes
Primary Form Factor Rackmount; Tower

$4,599^.99 –
