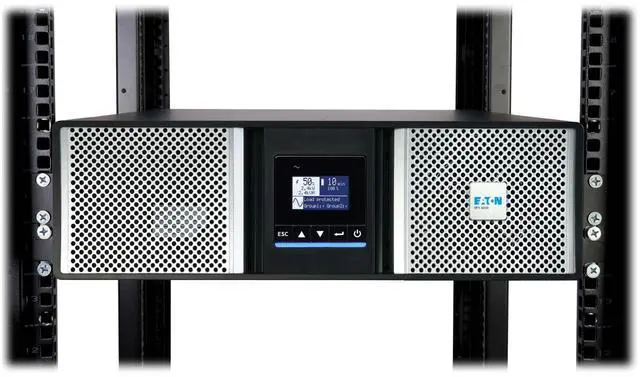

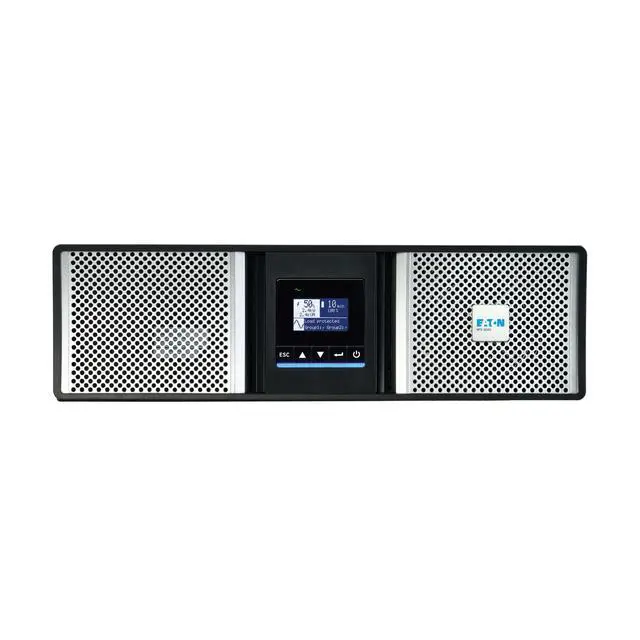

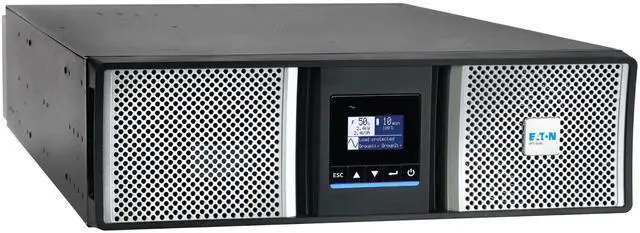

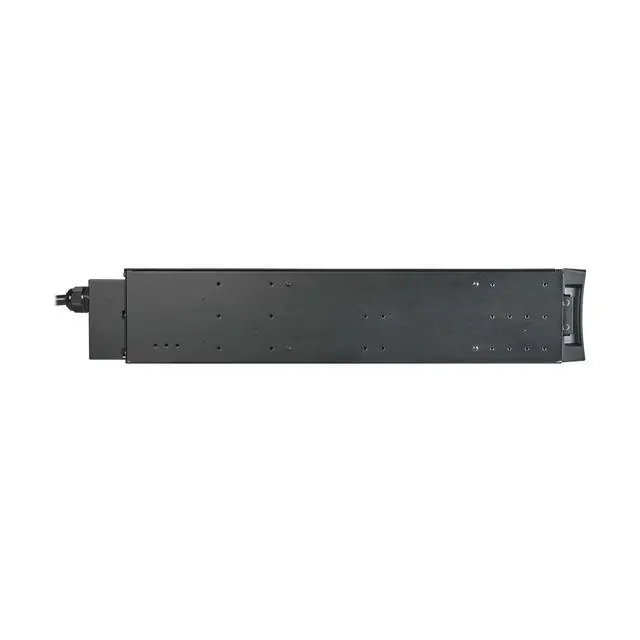

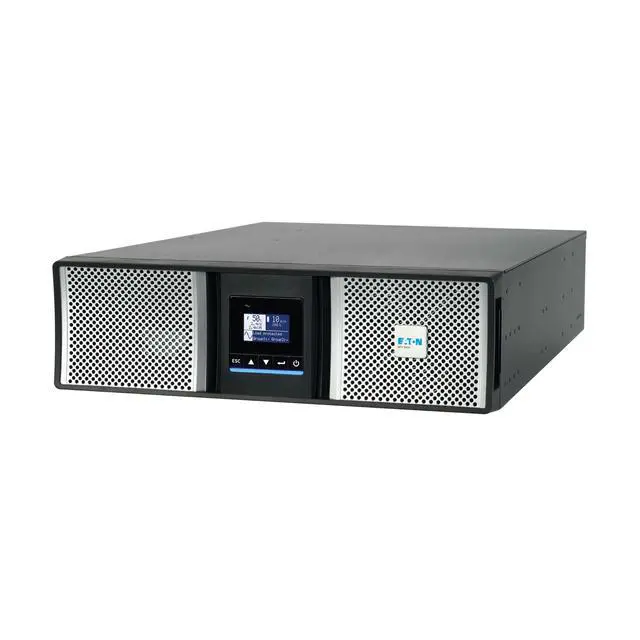

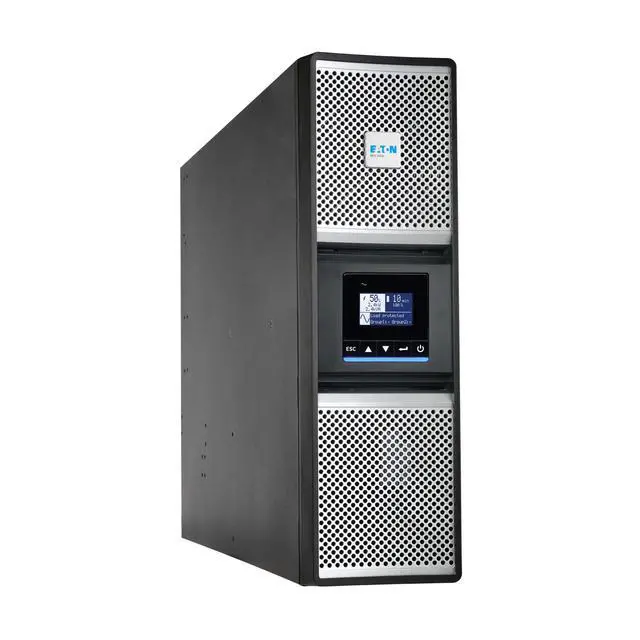

Eaton 9PX5KG2 5000VA 5000W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower - 3U Rack/Tower
- Input Phase Single-Phase
- Rated input current (Maximum Load) 24.4A
- Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
- UPS Input Connection Type Hardwire; L6-30P
- UPS Input Cord Length (ft.) 10

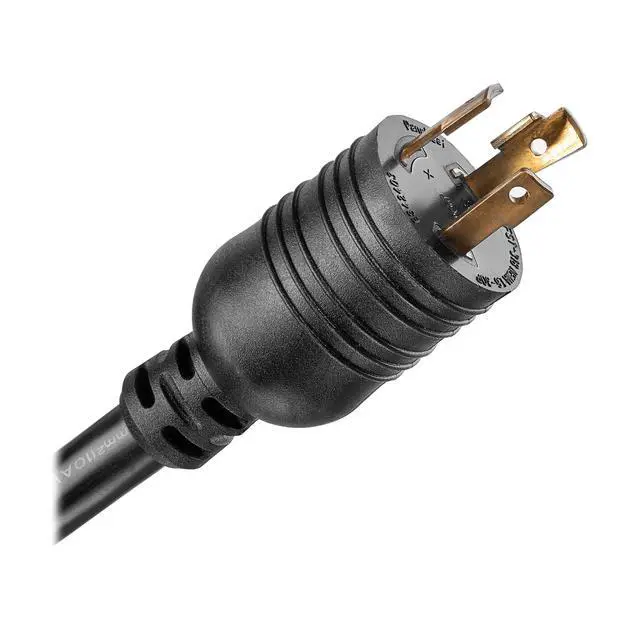

- Input Plug Type Hard-wire; NEMA L6-30P
- utput Capacity (VA) 5000
- Output Capacity (kVA) 5
- Output Capacity (Watts) 5000
- Output Capacity (kW) 5
- Output Capacity Details 240/230/220V: 5000 watts 208V: 4800 watts 200V: 4600 watts
- Power Factor 1
- Crest Factor 3:1
- Nominal Voltage Details 200V, 208V, 220V, 230V, 240V
- Frequency Compatibility 50 / 60 Hz
- Output AC Waveform (Battery Mode) Pure Sine wave
- Nominal Output Voltage(s) Supported 200V; 208V; 220V; 230V; 240V; 250V

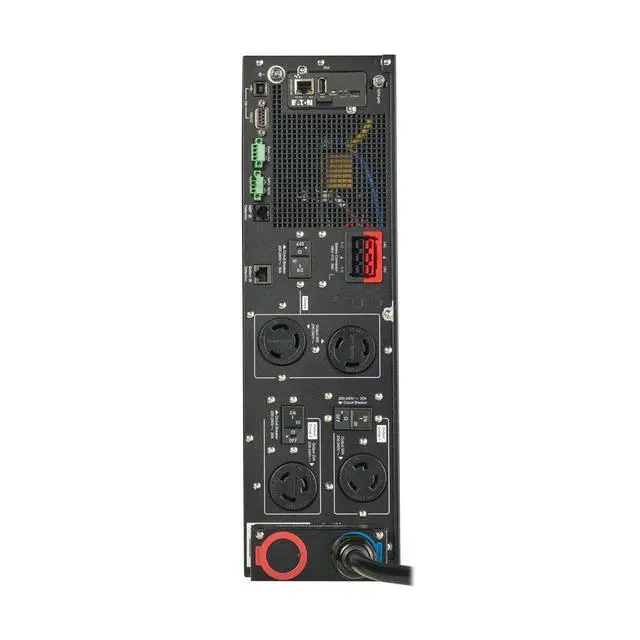

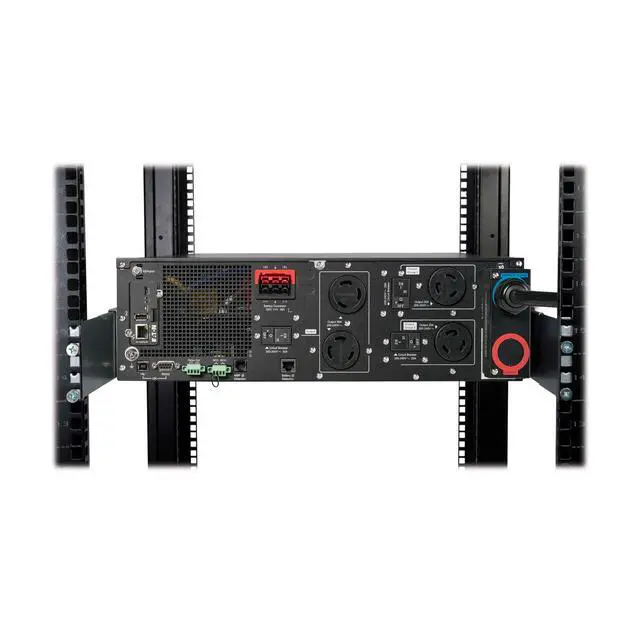

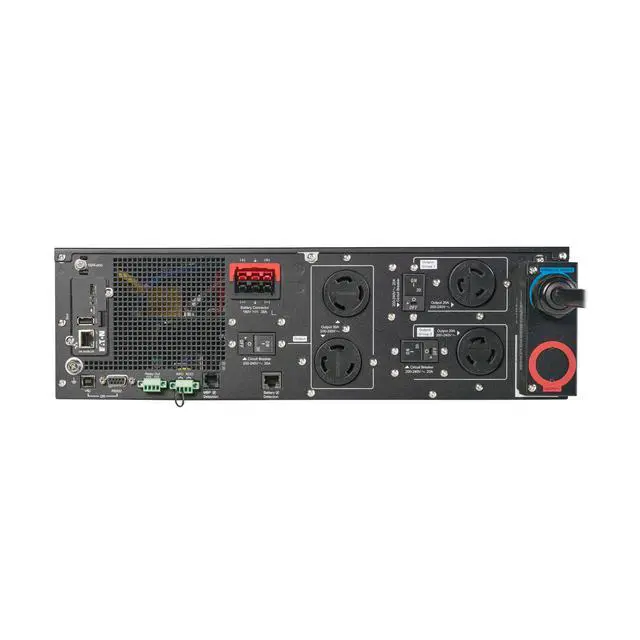

- Output Receptacles (2) L6-20R; (2) L6-30R; Hardwire
- Individually Controllable Load Banks Yes
- Battery Type Valve Regulated Lead Acid (VRLA)
- Runtime Full Load (min.) 3.5 min. (5000W)
- Runtime Half Load (min.) 9.4 min. (2500W)
- Expandable Runtime Yes

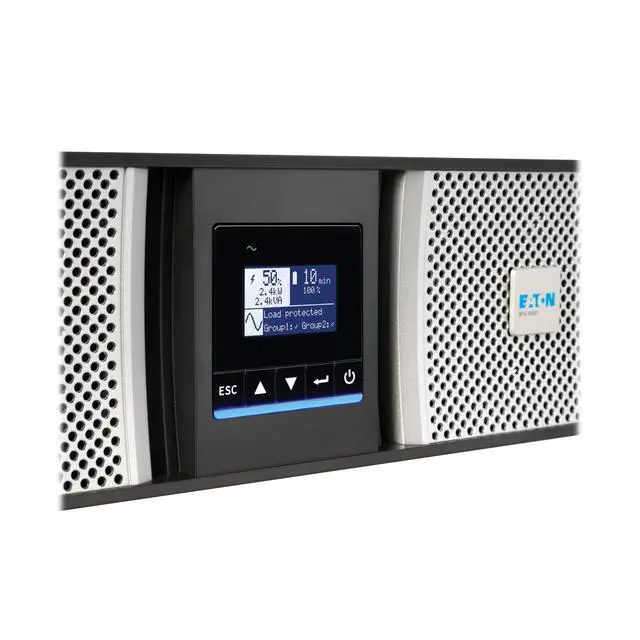

- ront Panel LCD Display LCD graphical display
- Switches RPO / ROO
- Alarm Cancel Operation Press ESC to silence the alarm
+
+
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-386-1911
- Support Website
- View other products from Eaton
LOADING...
LOADING...
The Eaton 9PX5KG2 is a 3U rack/tower online double-conversion UPS for data centers, server rooms, and other facilities protecting critical 200–240V equipment, with up to 5,000W output, pure sine-wave battery power, and expandable runtime.
Recommended For
- IT teams protecting 208V server or network racks that need online double-conversion power and no transfer interruption during a utility outage.
- Small data-center or server-room operators who want a 3U rack/tower UPS with remote network monitoring and controlled load banks for managing connected equipment.
- Businesses that need a short battery bridge for saving work or orderly server shutdown, and can add external battery modules when they need longer runtime.
- Facilities with compatible 200–240V power and high-draw IT or commercial equipment that use L6-20R, L6-30R, or hardwired connections.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Backup-power use for equipment operating at 208 V AC and drawing up to 5,000 W |
| Power Capacity | Up to 5,000 W output |
| Electrical Compatibility | 208 V AC input and output, with a listed output current of 21 A |
| Connections | NEMA connector type and 4 outlets |
| Physical And Packaging | Listed item and package weight: 1,968 oz; package dimensions: 39 × 24 × 13 in; color: multicolor |
| Model And Manufacturer | Eaton 9PX5KG2; manufacturer listed as Eaton Electrical |
