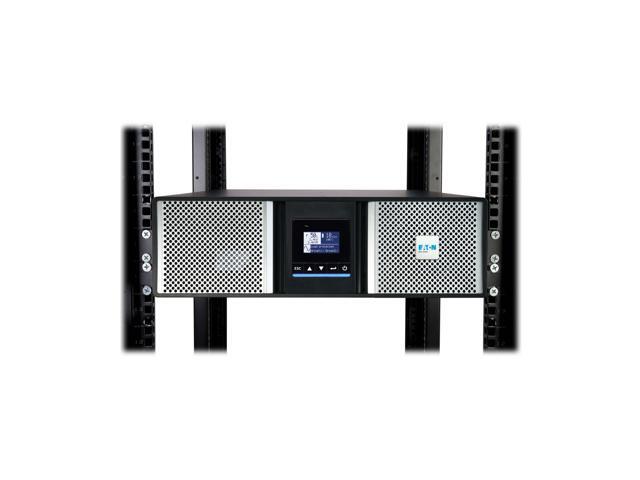

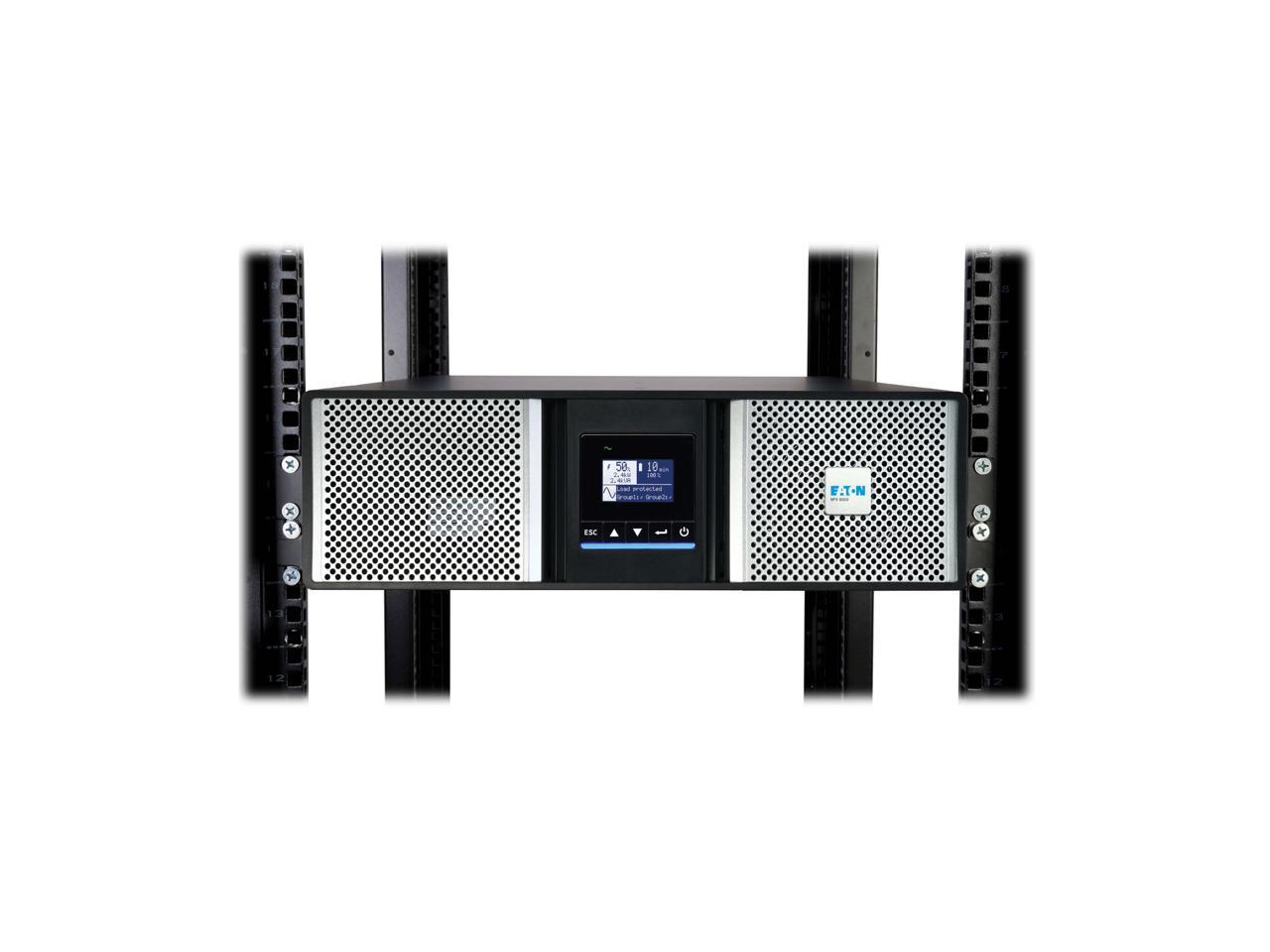

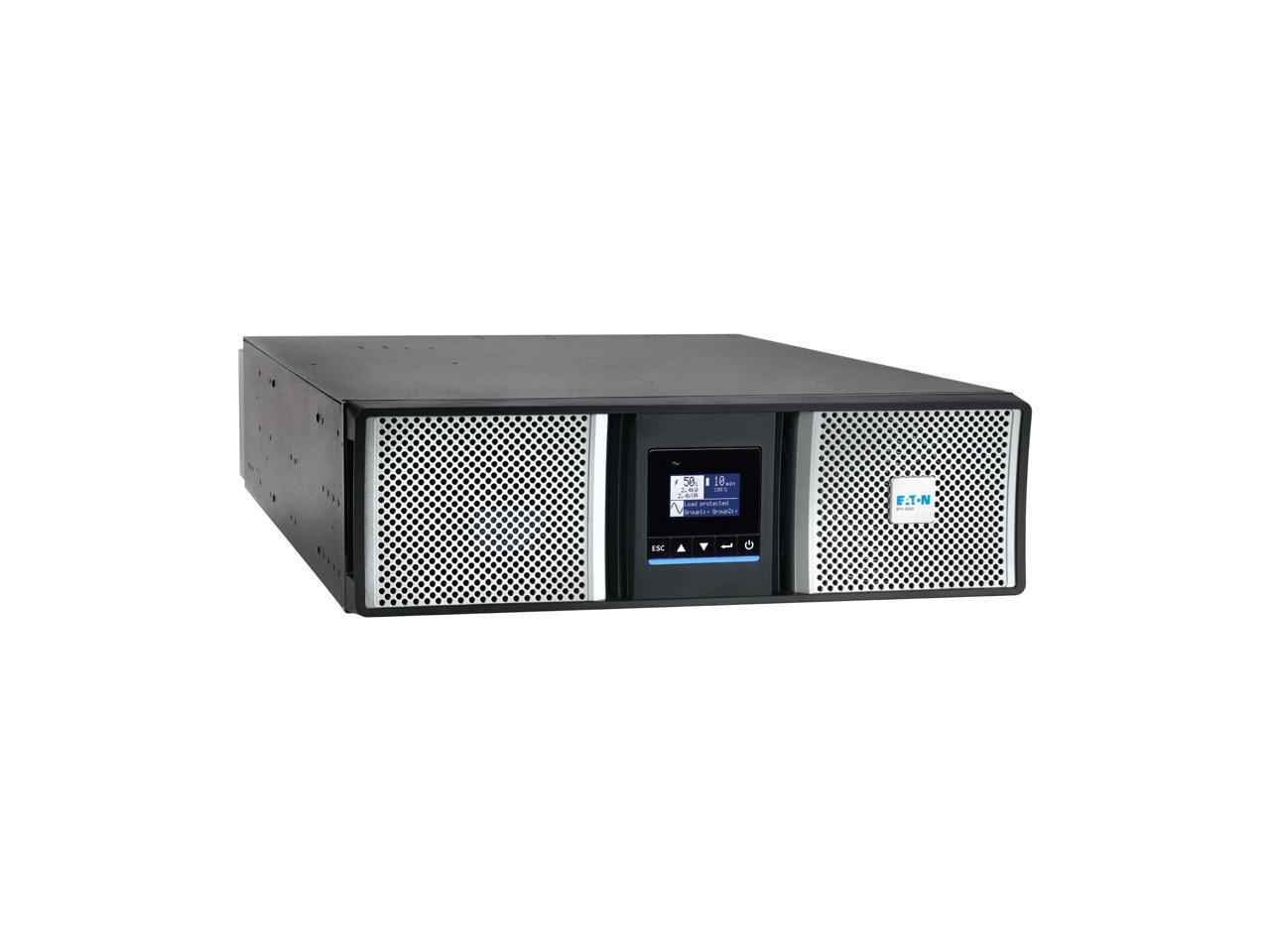

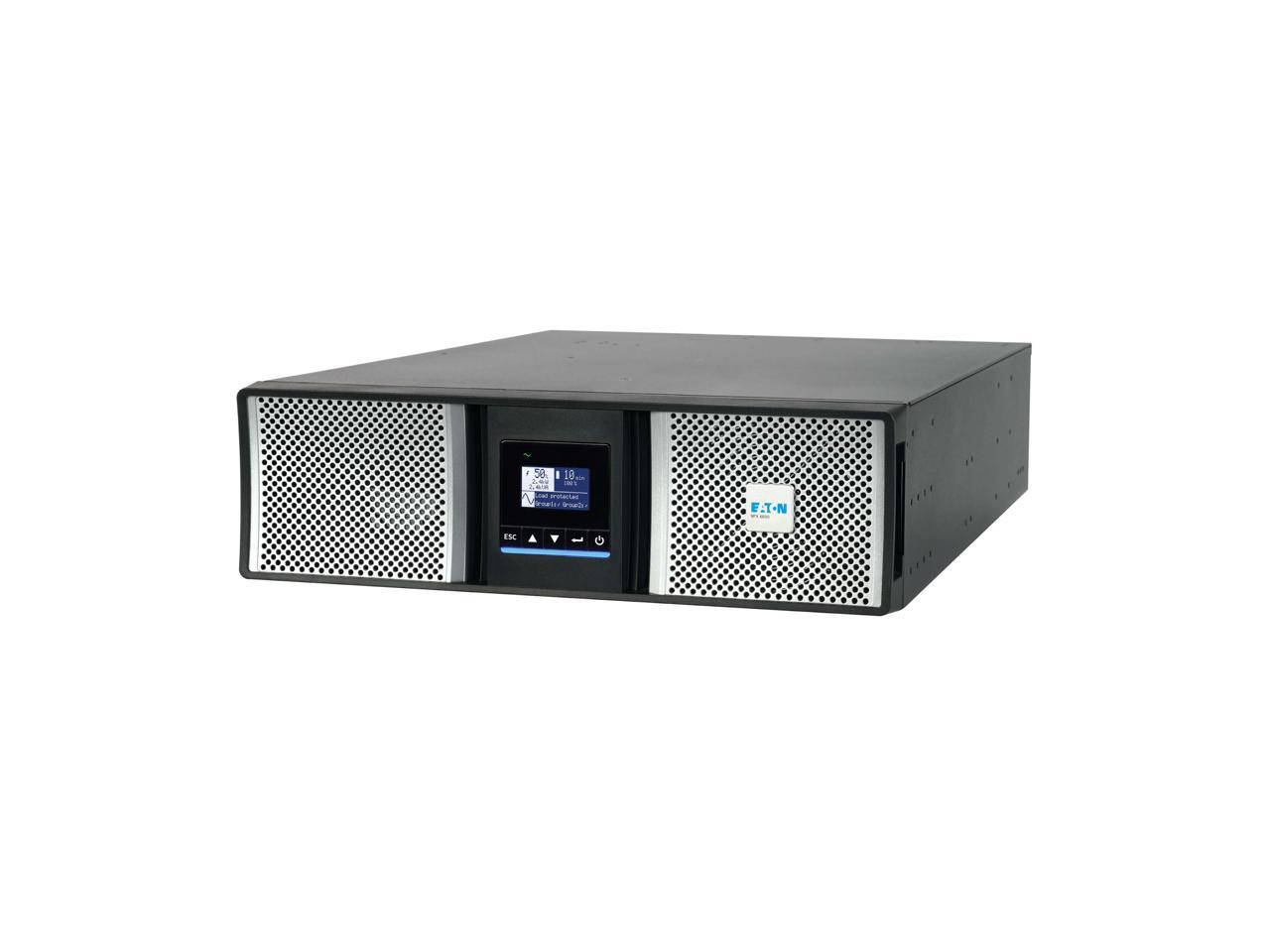

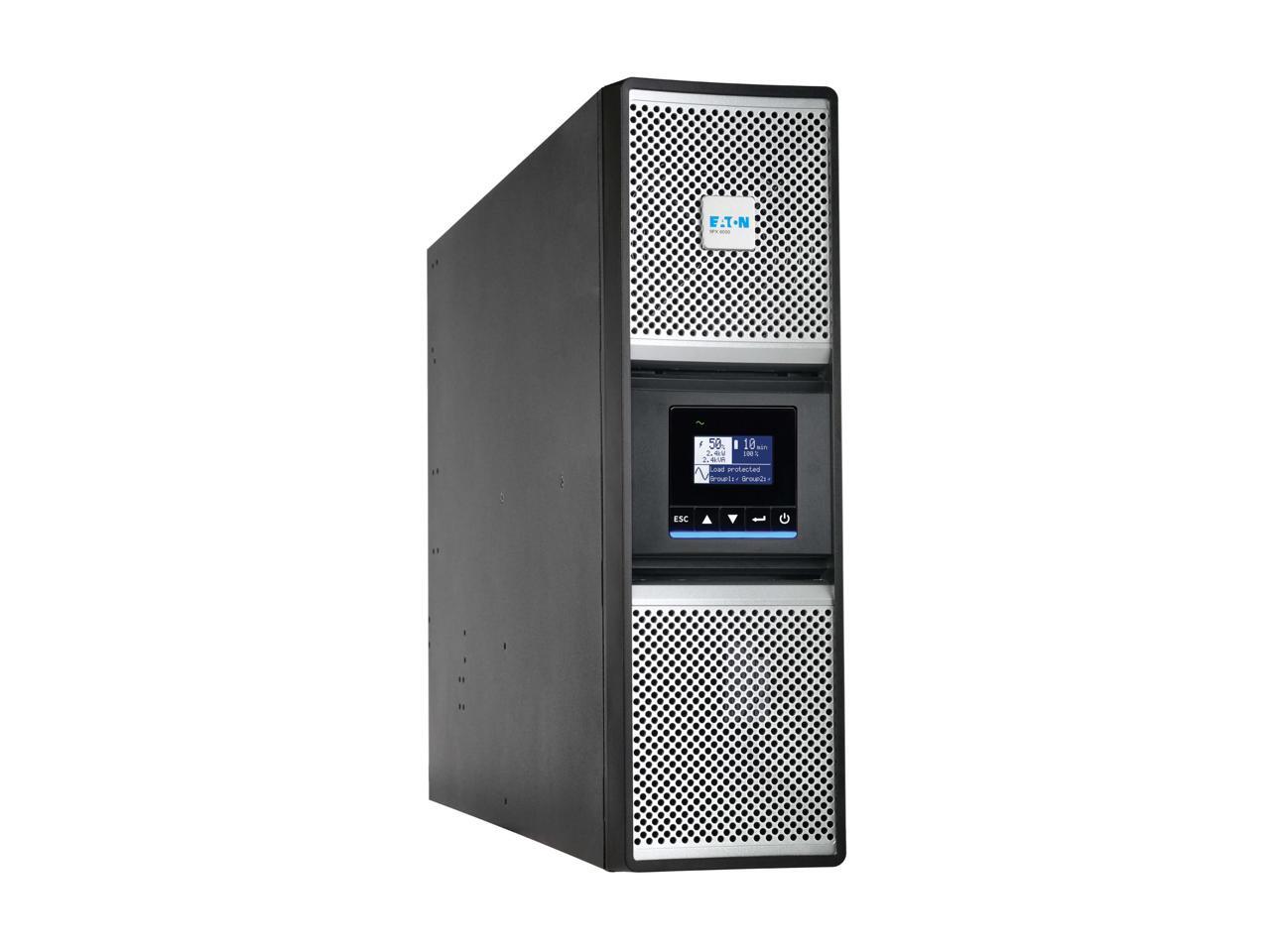

Eaton 9PX5KG2 5000VA 5000W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower - 3U Rack/Tower
- Input Phase Single-Phase
- Rated input current (Maximum Load) 24.4A
- Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
- UPS Input Connection Type Hardwire; L6-30P
- UPS Input Cord Length (ft.) 10

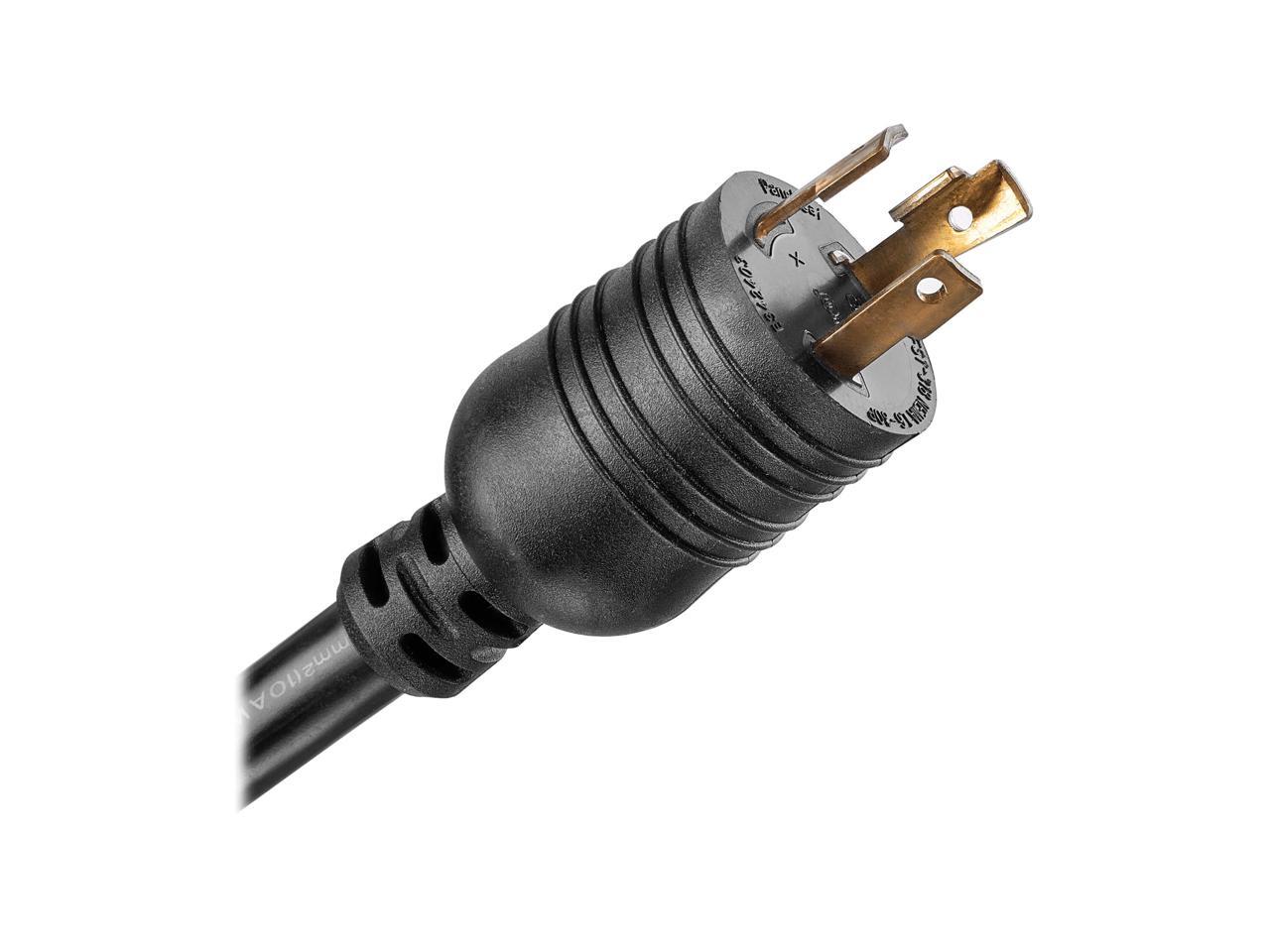

- Input Plug Type Hard-wire; NEMA L6-30P
- utput Capacity (VA) 5000
- Output Capacity (kVA) 5
- Output Capacity (Watts) 5000
- Output Capacity (kW) 5
- Output Capacity Details 240/230/220V: 5000 watts 208V: 4800 watts 200V: 4600 watts
- Power Factor 1
- Crest Factor 3:1
- Nominal Voltage Details 200V, 208V, 220V, 230V, 240V
- Frequency Compatibility 50 / 60 Hz
- Output AC Waveform (Battery Mode) Pure Sine wave
- Nominal Output Voltage(s) Supported 200V; 208V; 220V; 230V; 240V; 250V

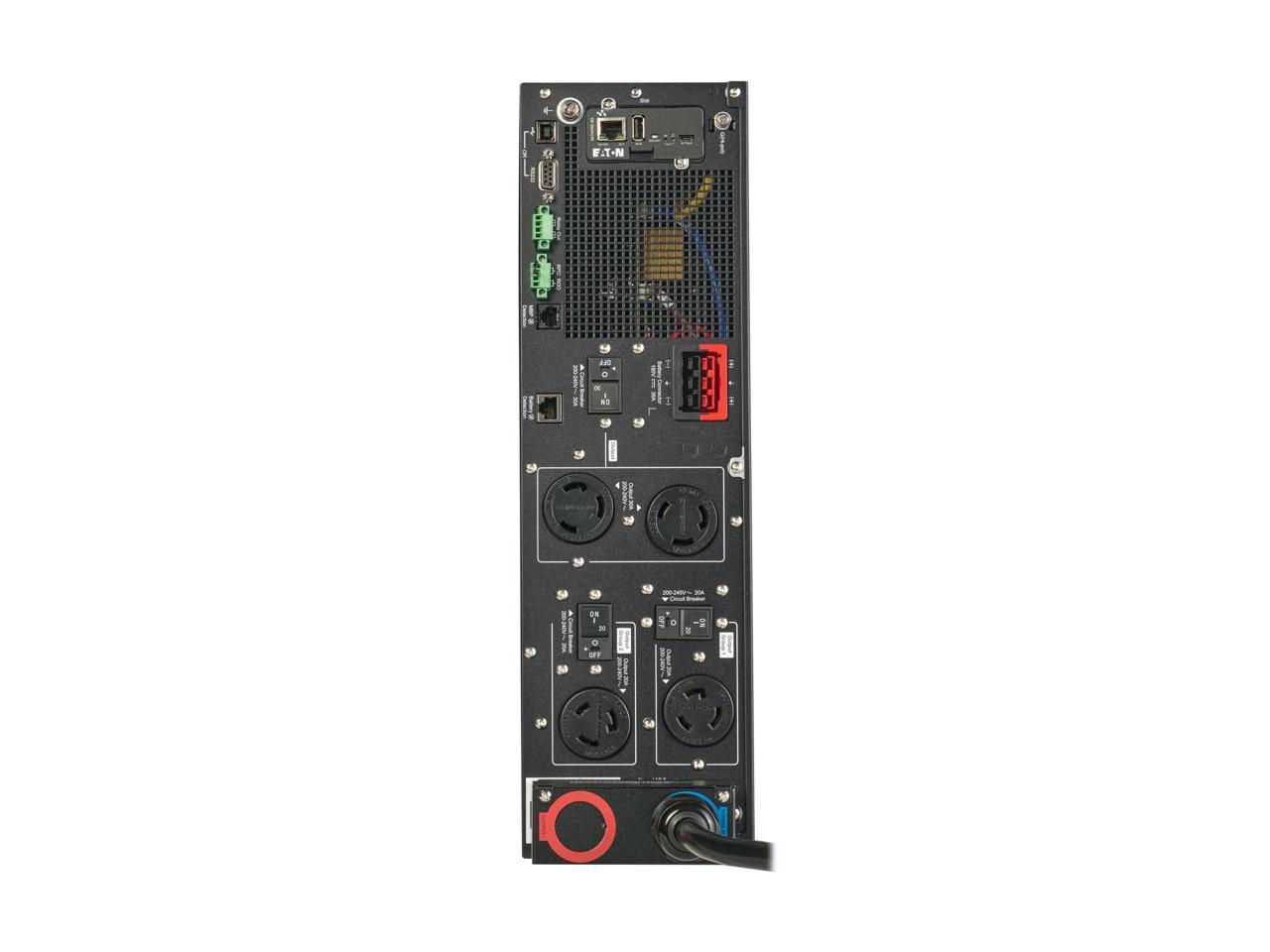

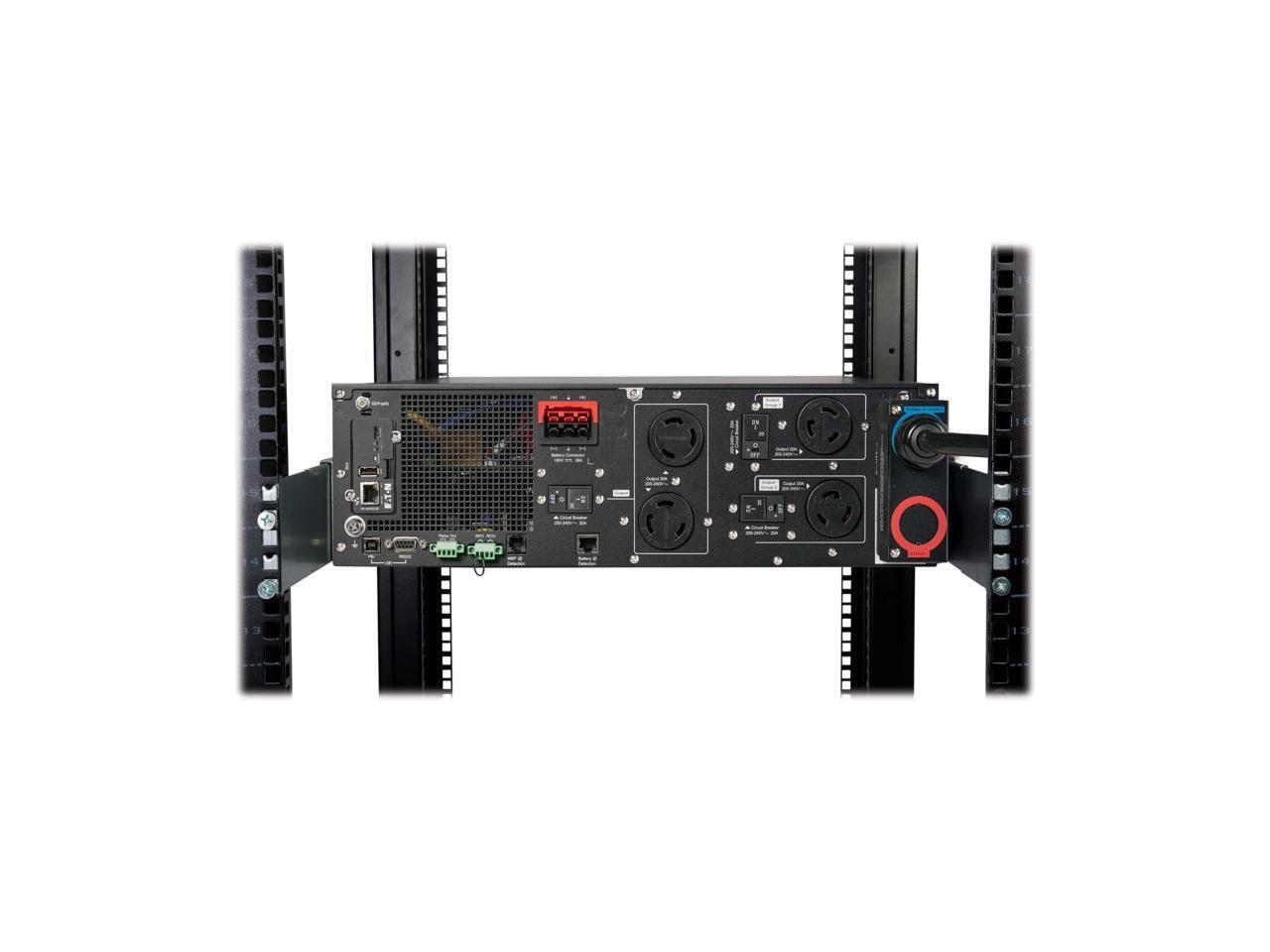

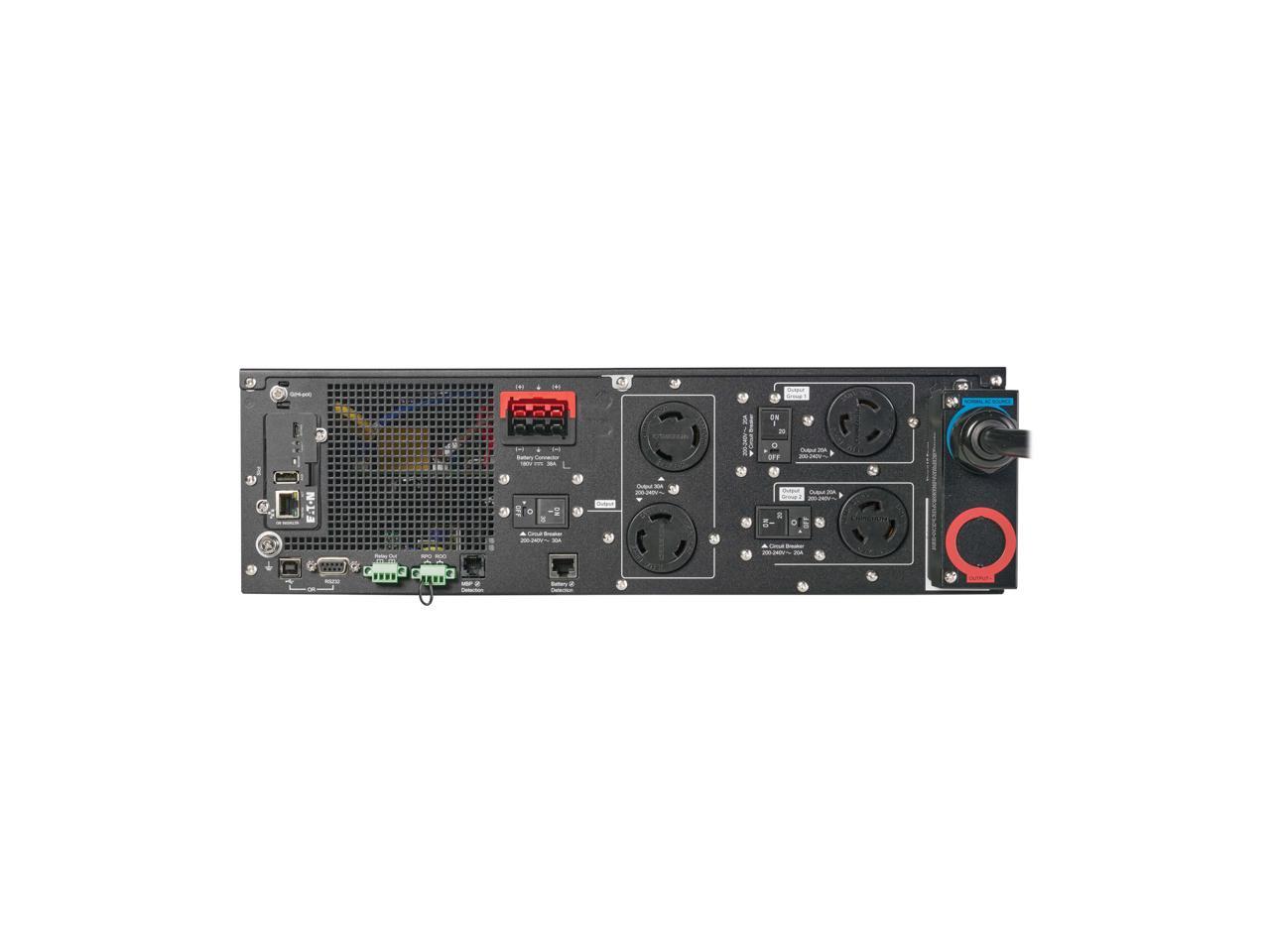

- Output Receptacles (2) L6-20R; (2) L6-30R; Hardwire
- Individually Controllable Load Banks Yes
- Battery Type Valve Regulated Lead Acid (VRLA)
- Runtime Full Load (min.) 3.5 min. (5000W)
- Runtime Half Load (min.) 9.4 min. (2500W)
- Expandable Runtime Yes

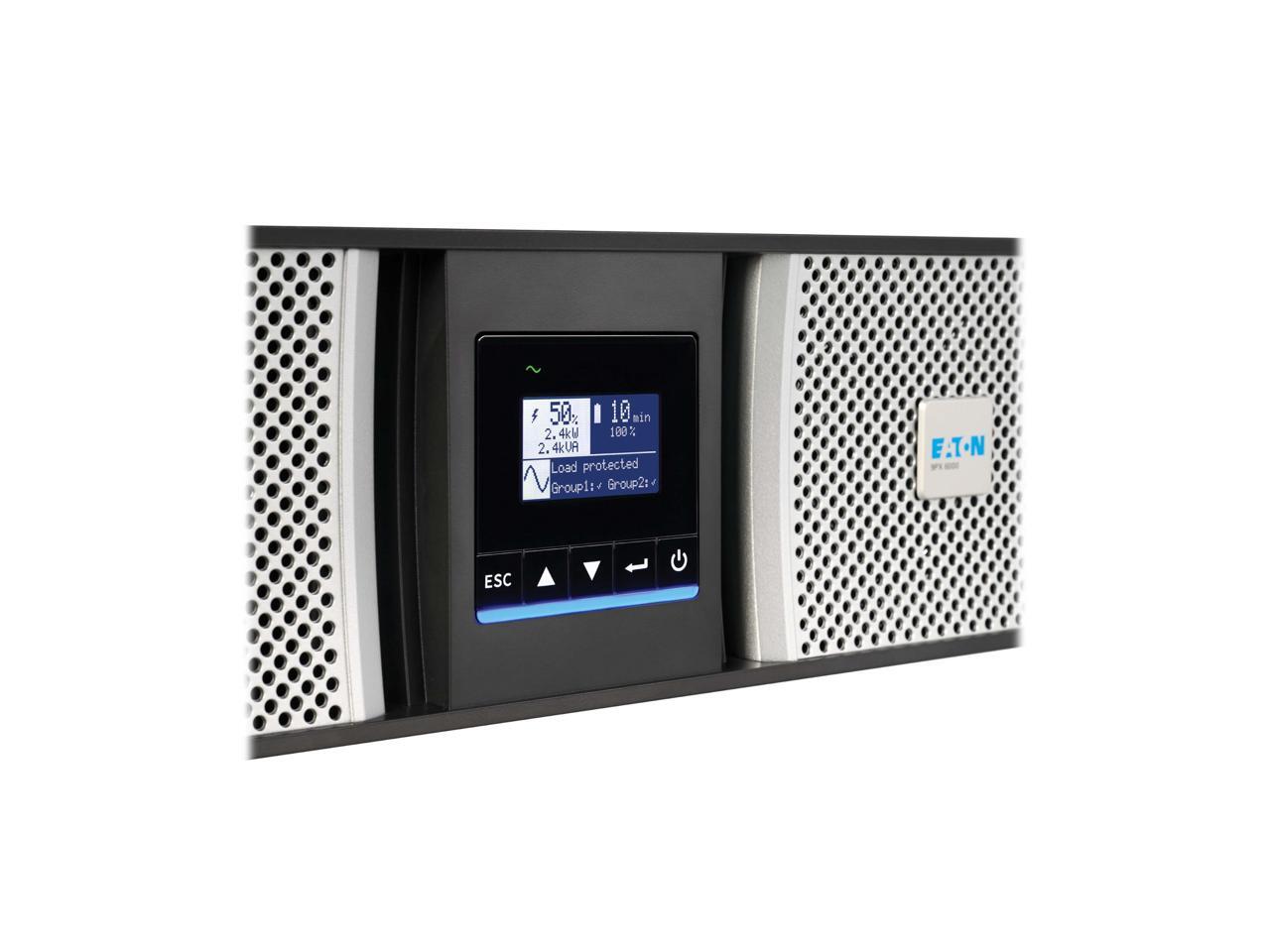

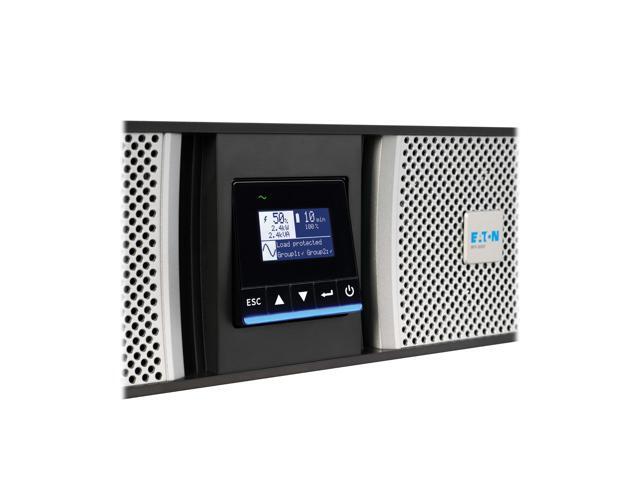

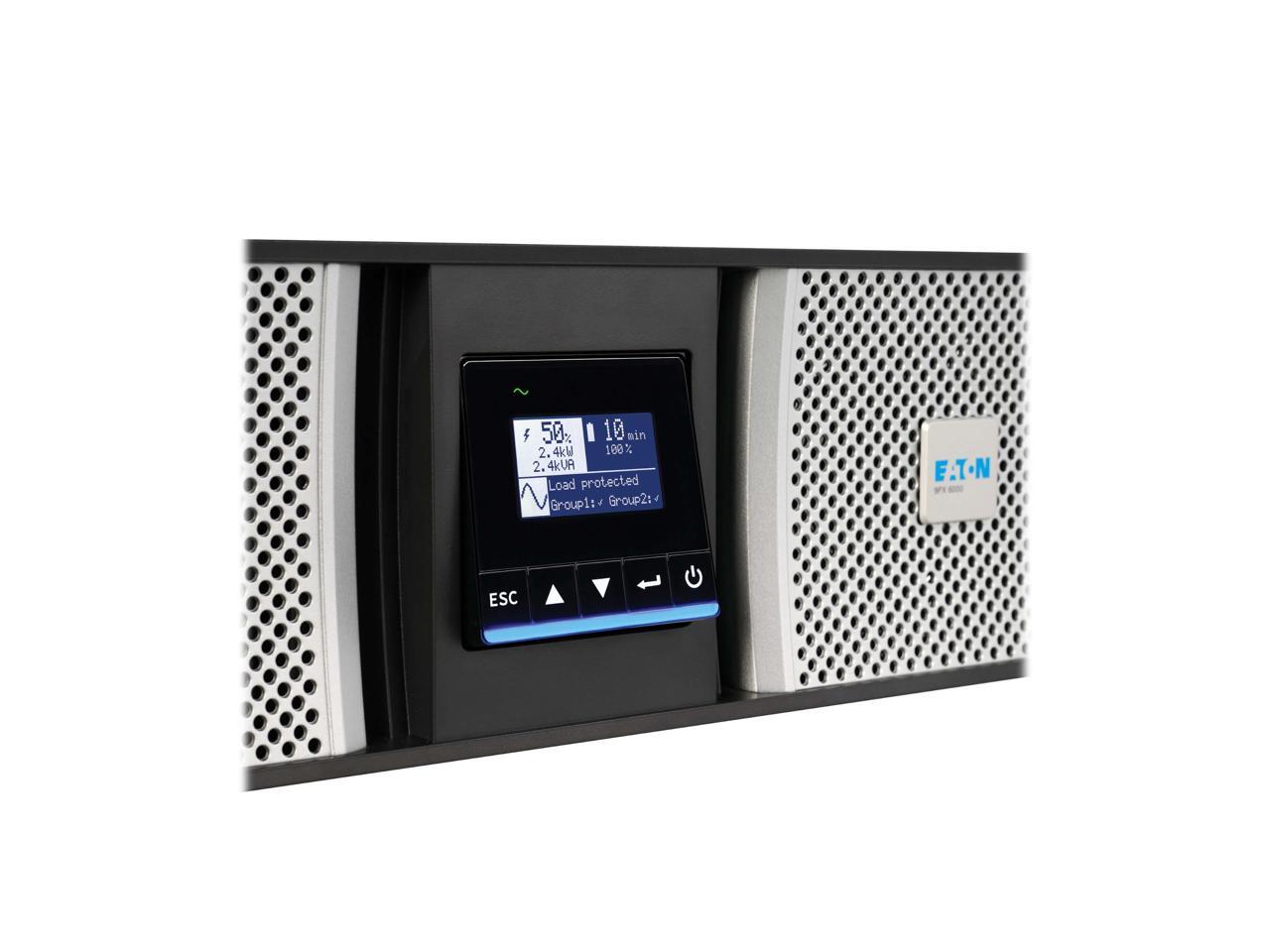

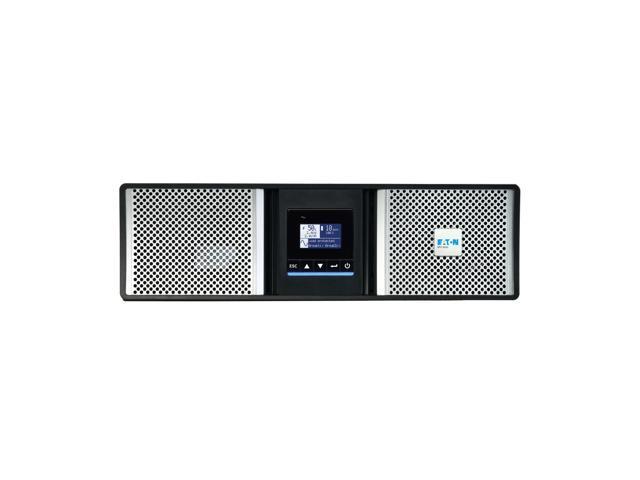

- ront Panel LCD Display LCD graphical display
- Switches RPO / ROO
- Alarm Cancel Operation Press ESC to silence the alarm
- $6,799.99 –
