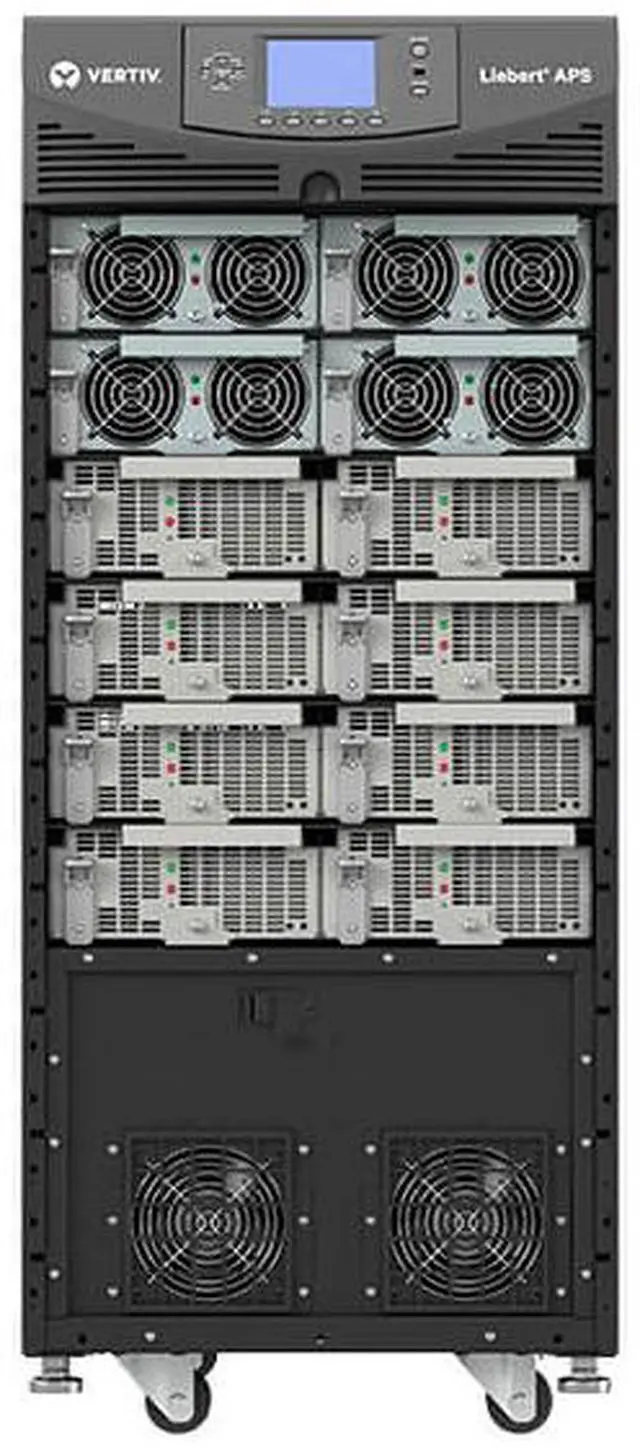

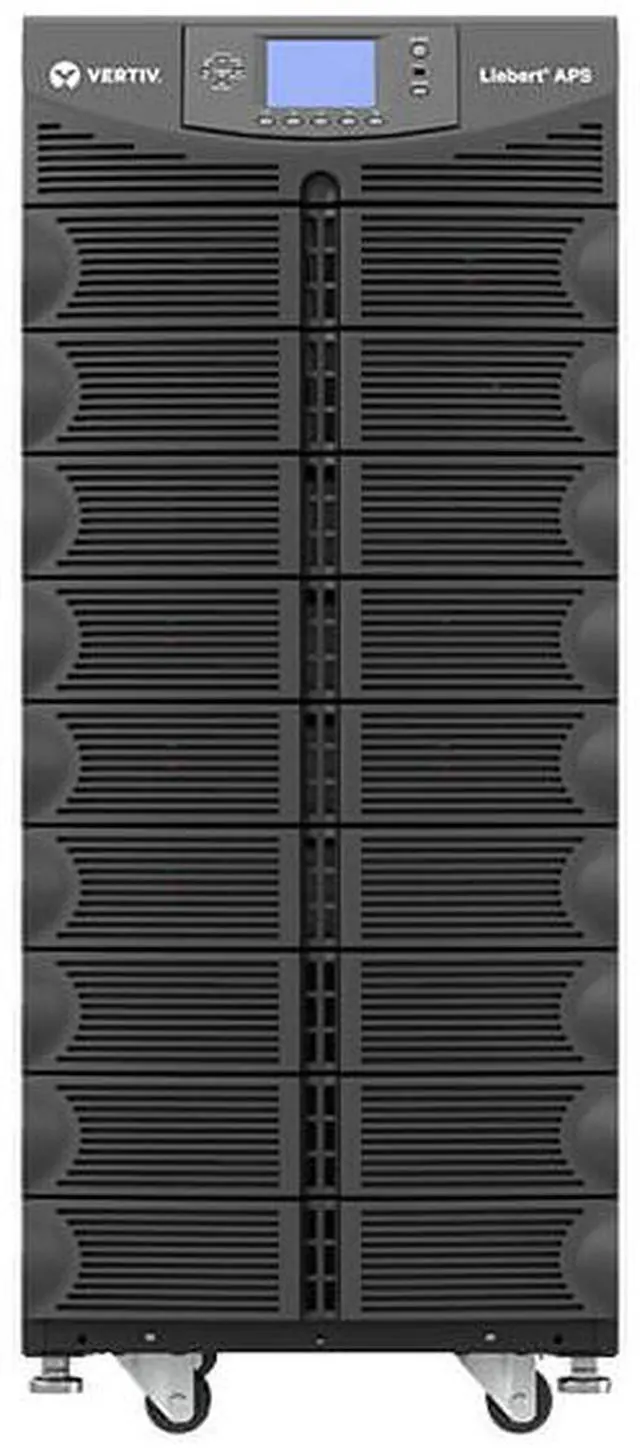

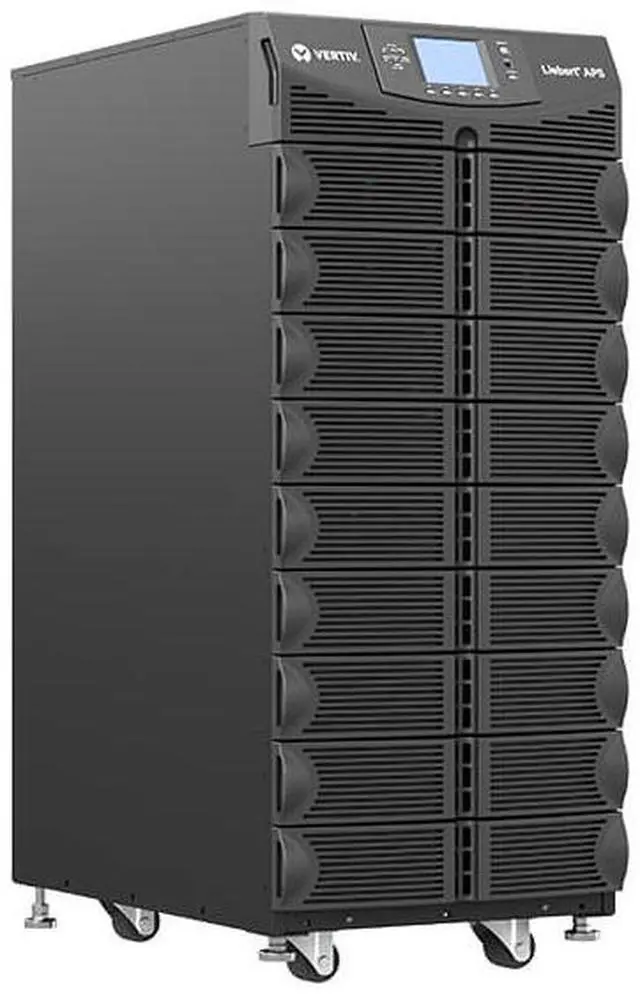

Vertiv Liebert AS3C0NCWGNNXLKB APS 15kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS - 5 Minutes Full-Load Runtime| Online Double Conversion UPS | Rack/Tower | Factory Installed SNMP/Webcard

Status Indicators LCD Display
Form Factor Rack/Tower
Battery Chemistry Lead Acid
Backup/Run Time (Half Load) 8 Minute
Backup/Run Time (Full Load) 5 Minute
Battery Characteristics Valve-regulated/Non-spillable
DC System Voltage 144 V DC
Thermal Dissipation 1233.24 W
Maximum Operating Temperature 104°F (40°C)
Environmental Sensors: Leak Detection Sensor, Humidity Sensor, Temperature Sensor
USB Yes
Network (RJ-45) Yes
Modem (RJ-11) No
Serial Port Yes
EPO Port Yes
Auto Shutdown Software: Trellis™ Power Insight
Extra Power for Future Expansion: 15kVA/13.5kW N+1
Relative humidity: % 0 - 95%, non-condensing
Altitude: m (ft) 3000 (10000) @ 25°C (77°F)
Output Voltage: 100-240VAC
VGA: No

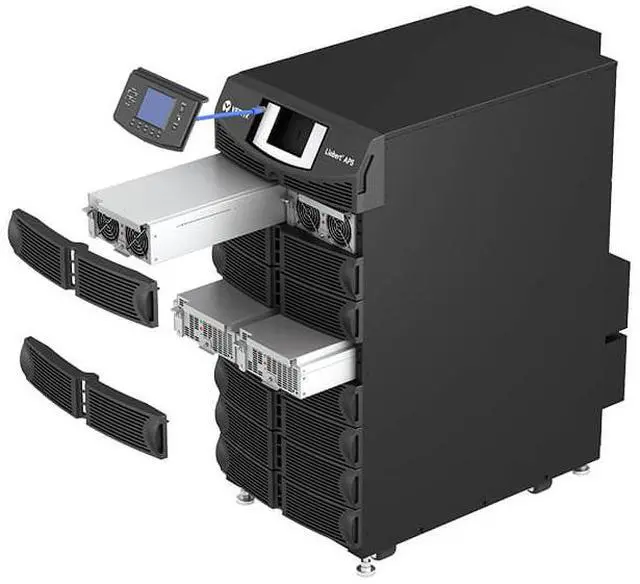

Hot-Swappable: Yes
Height 27"
Width 17"
Depth 32"
Environmentally Friendly Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Application/Usage: Business, Room, IT Infrastructure, Mission Critical Equipment

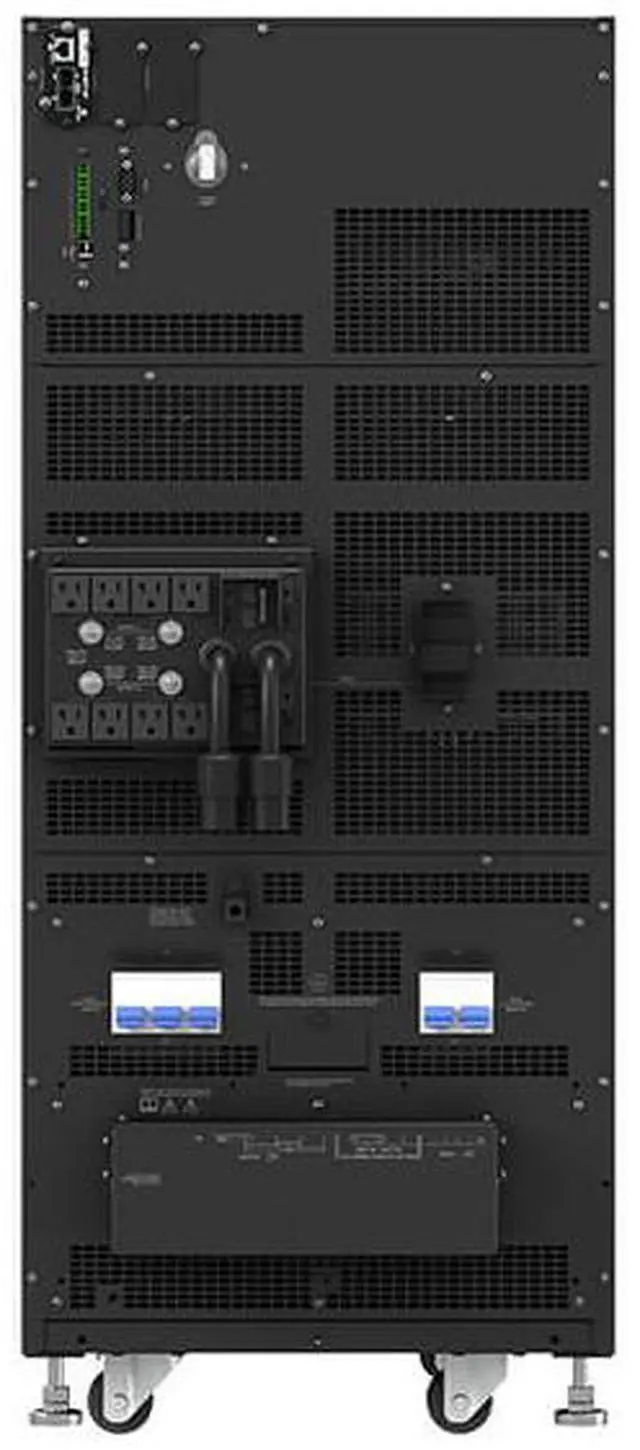

Plug/Connector Type Hard Wire 3-wire (L-L-G)
Phase Single Phase
Input Voltage: 230 V AC, 120 V AC
Output Voltage 100 V AC, 240 V AC
Input Voltage Range 120 V AC - 280 V AC
Output Frequency 60 Hz
Input Frequency 70 Hz
Load Capacity (VA) 15 kVA
