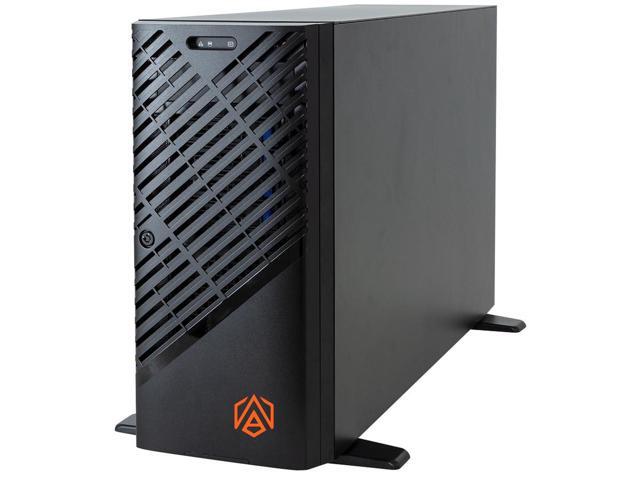

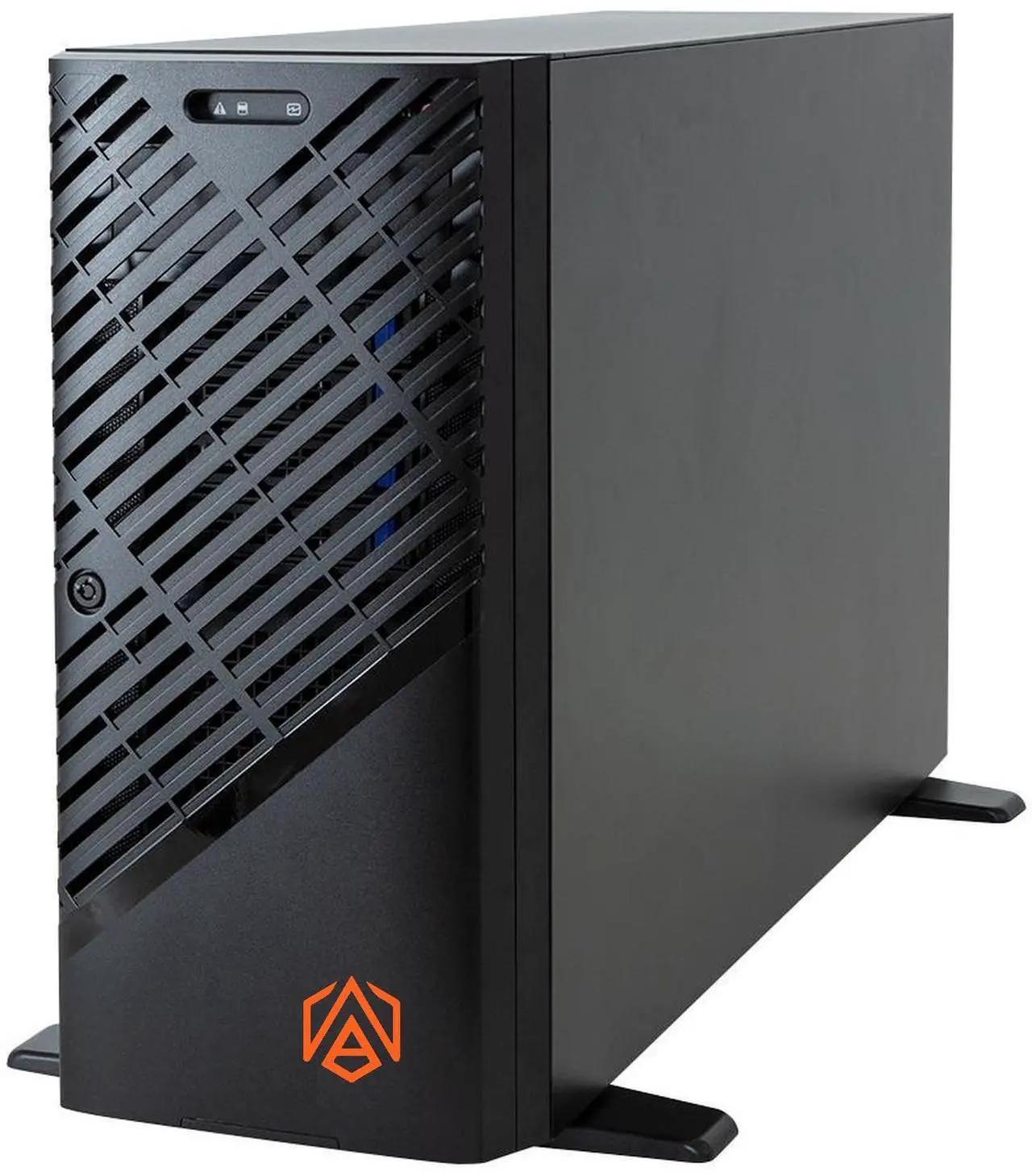

ABS Zaurion Ruby Tower · High-Capacity Tier
Double Everything.
AMD Ryzen Threadripper PRO 7975WX + NVIDIA RTX PRO 6000 Blackwell 96 GB
Same server-pedigree sTR5/WRX90 CPU platform, same flagship 96 GB
RTX PRO 6000 Blackwell GPU as this chassis lineup's base tier — but with
128 GB of DDR5 memory and 5.84 TB of installed
SSD storage, exactly double the base configuration. Built for datasets and model
checkpoints that outgrow a smaller footprint.
96 GB Flagship GPU128 GB DDR5Ubuntu ReadyAssembled in USA · TAA
96 GB
GDDR7 GPU memory
128 GB
DDR5, ECC Registered
5.84 TB
SSD storage installed
2×10 GbE
+ MLAN management
2000 W
80 PLUS Gold PSU
AI Silicon Spotlight · Hardware First
What This Pairing Actually Buys You
A server-pedigree CPU platform next to the family's flagship GPU, with the memory to match large working sets:

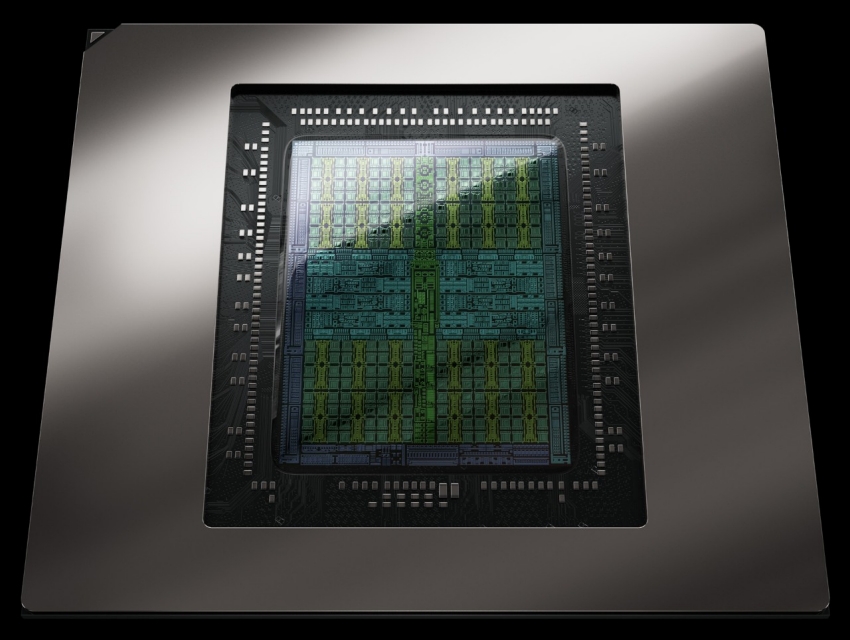

GPU · NVIDIA RTX PRO 6000 Blackwell
96 GB of GDDR7 — Nothing Held Back
The full 96 GB is identical to what this chassis lineup's base memory/storage tier carries — the extra system memory doesn't come at the GPU's expense.
Universal MIG partitions the card into isolated instances for concurrent workloads or users.
Blackwell 5th-gen Tensor Cores with FP4 accelerate agentic and generative AI at architecture-native speed.
4th-gen RT Cores drive photoreal, physically accurate rendering for design and simulation work.

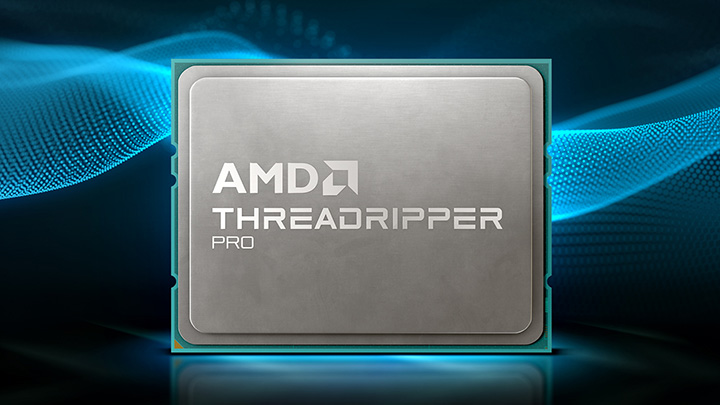

CPU · AMD Ryzen Threadripper PRO 7975WX
128 GB of 8-Channel DDR5, Fully Fed
sTR5 socket on the WRX90 chipset1 — a server-derived workstation platform designed around heavy multi-threaded throughput.
8-channel DDR5 memory gives 128 GB the bandwidth to move large datasets and model checkpoints without stalling the CPU or GPU.
ECC memory support and workstation-grade reliability bring server-class RAS features to a single-CPU tower running large, long jobs.
Frees the GPU to do GPU work — heavy parallel CPU tasks (simulation, encoding, batch rendering) run alongside GPU-accelerated AI without one starving the other.
Same Platform, More Room
Built to Hold More
This chassis lineup offers the identical CPU, GPU, and expansion platform at two memory/storage tiers — here's what doubling buys:
This Config
System Memory128 GB DDR5
OS SSD2 TB M.2 NVMe
Data SSD3.84 TB
Total SSD5.84 TB
Base Memory/Storage Tier
System Memory64 GB
OS SSD1 TB
Data SSD1.92 TB
Total SSD2.92 TB
Same AMD Ryzen Threadripper PRO 7975WX, same NVIDIA RTX PRO 6000 Blackwell 96 GB GPU, same
Gigabyte MH53-G40 platform — memory and storage are exactly doubled.
Compare options on this listing.
Room to Scale
The Platform Underneath Is Rated for Even More
This configuration populates 2 of 8 DIMM slots and 1 of 4 M.2 slots — the platform has room for more:

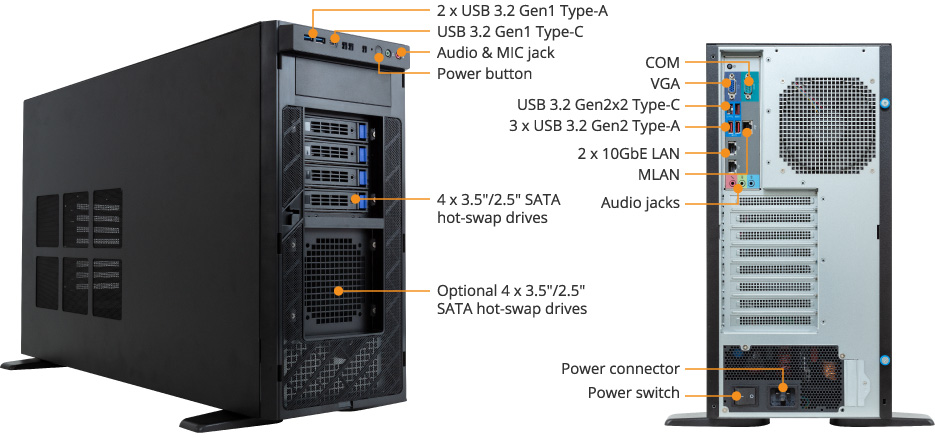

Front & rear I/O — official ABS product diagram for this platform.
Front: 2× USB 3.2 Gen1 Type-A + 1× USB 3.2 Gen1 Type-C, power button, audio/mic jack,
and 4× 3.5″/2.5″ SATA hot-swap bays installed (4 more optional — 8 total

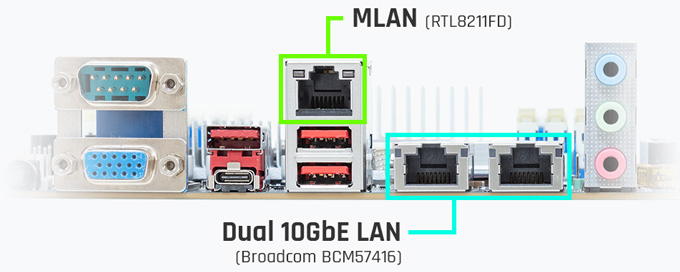

possible; this config's 3.84 TB data SSD occupies one). Rear: dual 10Gb/s LAN (Broadcom
BCM57416) plus a dedicated MLAN management port, USB and audio connectivity, and the 2000 W
power inlet.

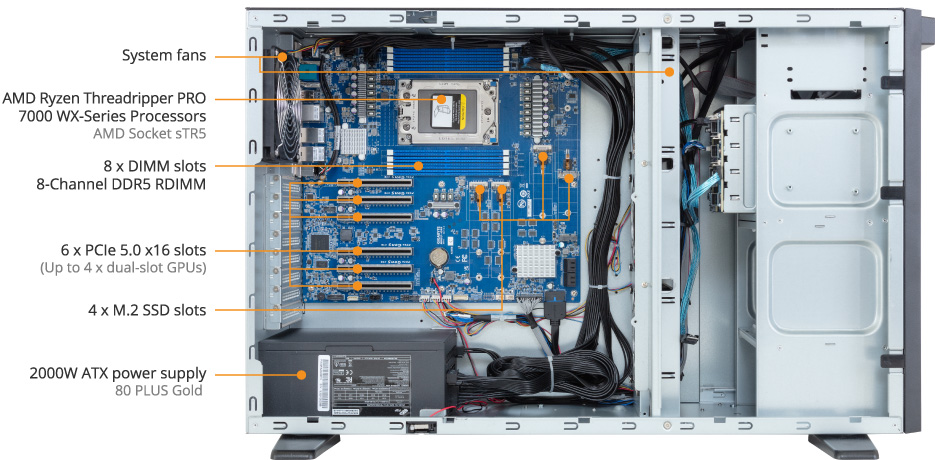

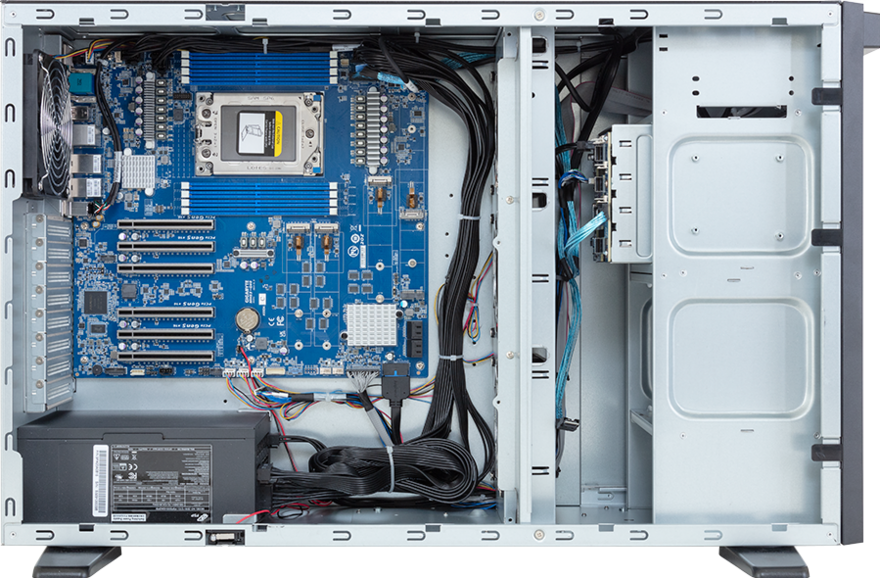

Inside the platform — official ABS product diagram for this platform.
8× DIMM slots on 8-channel DDR5 (2 populated with this config's 64 GB modules),
6× PCIe 5.0 x16 slots (platform-rated for up to 4× dual-slot GPUs), and
4× M.2 SSD slots with only one populated by the 2 TB OS drive.2
Headroom on top of headroom.
Usage Scenarios
Six Jobs, One High-Capacity Tower
The listing's own AI Features, translated into workloads that lean on both the CPU and the GPU:
AI Development
Accelerate AI development and inference workloads, and build agentic AI applications.
Data Science
Accelerate your data pipelines.
HPC
Accelerate scientific breakthroughs with enhanced accuracy.
AI-Driven Rendering & Graphics
Deliver stunningly realistic designs and simulations with speed and precision.
Video Content & Streaming
Boost performance for live media and video pipelines.
Game Development
Drive new possibilities for game development with AI.
Scene photos are AI-generated illustrations of typical deployments, not photographs of this exact product.
Optional VRAM Expansion
Fine-Tune Past 96 GB with Phison aiDAPTIV+
An optional add-on that offloads GPU memory to flash, reducing the VRAM full fine-tuning actually requires:
Target Model Size
VRAM Needed (Without aiDAPTIV+)
VRAM Needed (With aiDAPTIV+)
~13B
120–200 GB
32 GB
~34B
250–350 GB
96 GB — this workstation's GPU
~70B
500–700 GB
192 GB
Full fine-tuning without a multi-GPU server
Lower hardware cost, simpler deployment
Faster path to AI adoption
Phison aiDAPTIV+ SSD is an optional add-on and is not included by default. VRAM figures are vendor-published estimates for full fine-tuning.
Full Configuration
As Configured
ZRP7975WX-RP60002
CPU
AMD Ryzen Threadripper PRO 7975WX — sTR5 socket, WRX90 chipset1
GPU
NVIDIA RTX PRO 6000 Blackwell — 96 GB GDDR7
Memory
128 GB DDR5, ECC Registered, 8-channel
Storage
2 TB M.2 NVMe (OS) + 3.84 TB SSD (Data)
Networking
2× 10 Gb/s LAN (Broadcom BCM57416) + MLAN management port
What's different between this config and this chassis lineup's base memory/storage tier?
The CPU, GPU, and expansion platform are identical. This configuration exactly doubles memory and storage: 128 GB DDR5 vs 64 GB, a 2 TB M.2 OS SSD vs 1 TB, and a 3.84 TB data SSD vs 1.92 TB.
Who actually needs the extra memory and storage?
Workloads with large datasets, large local model checkpoints, or many concurrent VMs/containers that would be memory-constrained on the smaller tier. If your workload fits comfortably in less, the base tier carries the identical CPU and GPU for less.
How much room is there to expand further?
8× DIMM slots (2 populated), 6× PCIe 5.0 x16 slots rated for up to 4× dual-slot GPUs, and 4× M.2 SSD slots with only one populated. This unit ships with one GPU on a single 2000 W supply.
Does it come with an AI agent framework or local LLM pre-installed?
Not by default. OpenClaw and a Qwen 3.5 27B+ local LLM package are optional add-ons configured at order time.
What is Phison aiDAPTIV+ and do I need it?
An optional SSD that offloads GPU memory to flash, reducing the VRAM full fine-tuning requires — useful for fully fine-tuning models larger than 96 GB alone can hold. Not included by default.
Is it eligible for government / public-sector purchasing?
It is TAA compliant and assembled in the USA, with compliance documents available for purchase review.
Assembled in USA
TAA Compliant
128 GB DDR5, ECC Registered
Build to Order flexibility
1. AMD-published architecture features for the Threadripper PRO WX-Series (sTR5 socket, WRX90 chipset). The "up to 96 CPU cores" figure sometimes cited for this CPU family is a lineup-wide ceiling across multiple WX-Series SKUs, not a per-SKU spec for the 7975WX. GPU architecture features (5th-gen Tensor Cores, 4th-gen RT Cores, Universal MIG) are NVIDIA-published for the RTX PRO 6000 Blackwell.
2. Slot counts and the 4x dual-slot-GPU rating are the Gigabyte platform's published capability on the sTR5 socket, not a claim about this SKU's shipped configuration — this unit ships with one GPU on a single 2000 W PSU; adding GPUs would require a PSU upgrade.
ABS Zaurion Ruby ZRP7975WX-RP60002 · Gigabyte W773-H5D-AA01 platform (sTR5 socket) · Optional components and software are configured at time of purchase.
AI Development: Accelerate AI development and inference workloads, and build agentic AI applications. Data Science: Accelerate your data pipelines. HPC: Accelerate scientific breakthroughs with enhanced accuracy. AI-Driven Rendering and Graphics: Deliver stunningly realistic designs and simulations with speed and precision. Video Content and Streaming: Boost performance for live media and video pipelines. Game Development: Drive new possibilities for game development with AI.
Processor
CPU Type
AMD Ryzen Threadripper PRO 7975WX
Number of CPU Cores
32-Core Processor
# of Processors Installed
1
Memory
Installed Memory Size
128GB
Memory Type
DDR5
Storage
SSD (Installed)
OS SSD: 2TB M.2 Data SSD: 4TB SSD
Graphic Controller
Servers_Graphic Installed
1x NVIDIA RTX Pro 6000 Blackwell
Graphic Type
NVIDIA RTX Pro 6000 Blackwell
Video Memory
96 GB GDDR7
Software
Operating System
Ubuntu
Power
Power Characteristics
Single 2000W ATX 80 PLUS Gold power supply
Features
Features
GIGABYTE W773-H5D-AA01 GPU Workstation: Supports up to 4 x Dual slot Gen5 GPUs Single AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors 8-Channel DDR5 ECC RDIMM, 8 x DIMMs AMD WRX90 Chipset 2 x 10Gb/s LAN ports via Broadcom® BCM57416 4 x M.2 slots with PCIe Gen5 x4 interface Up to 8 x 3.5"/2.5" SATA bays 6 x PCIe Gen5 x16 slots Single 2000W ATX 80 PLUS Gold power supply
