how does it work? does it plug into your tv and record or dvr? how does it record and on what?

Plug it into a security system DVR with BNC-style inputs. Brands include, but are not limited to, KGuard, Q-See, Night Owl, Swann... It can also be plugged into a TV if the TV accepts composite input (RCA-style plug; not component) and you have a BNC-to-composite adapter cable; but then you can't use the TV for anything else. I have mine as part of an 8-CCTV system that can be monitored directly (attached monitor); PC (via web browser to the DVR), or remotely (smartphone) with appropriate software. This is a good device, although you have to adjust/preset the zoom manually.

Can I plug this into a laptop?

Not directly, the output is analog and it powers from a 12 volt source.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

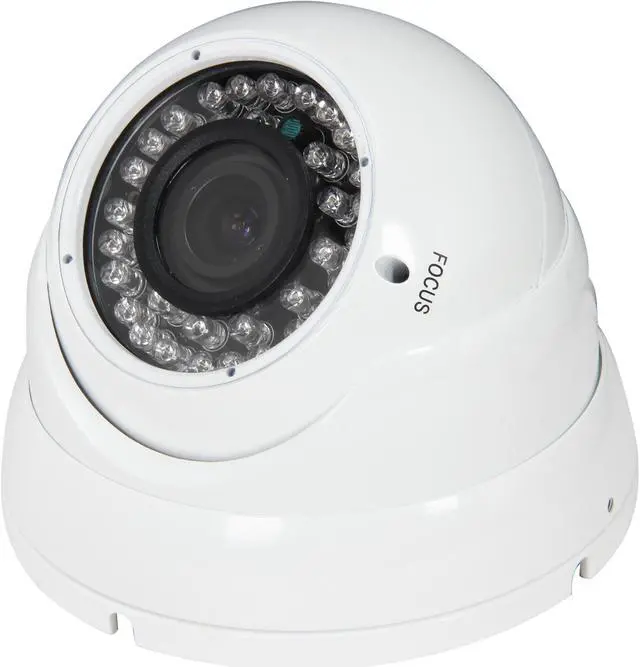

Main image of eSecure ES18C380 700 TVL Sony Effio DSP 2.8~12mm CCTV 36 IR Vandale Security Camera

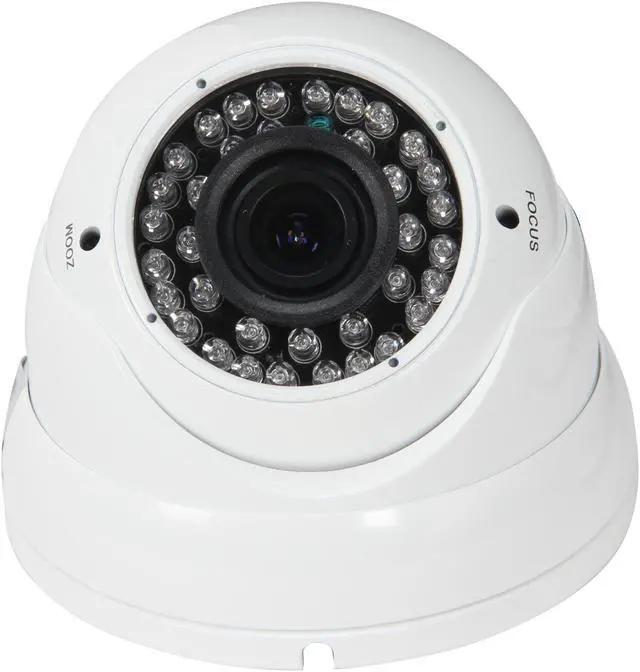

Alt view image 2 of 4 - eSecure ES18C380 700 TVL Sony Effio DSP 2.8~12mm CCTV 36 IR Vandale Security Camera

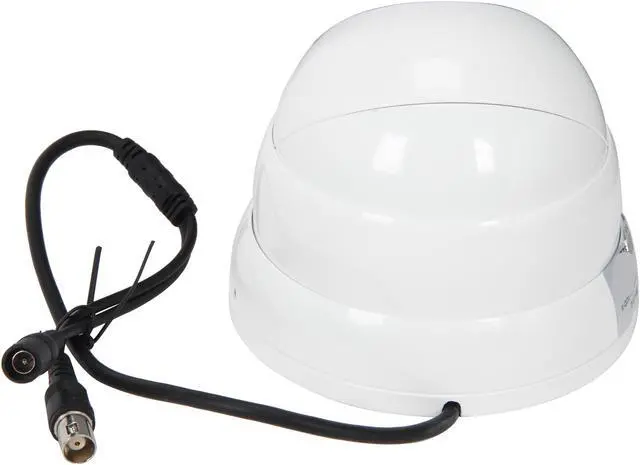

Alt view image 3 of 4 - eSecure ES18C380 700 TVL Sony Effio DSP 2.8~12mm CCTV 36 IR Vandale Security Camera

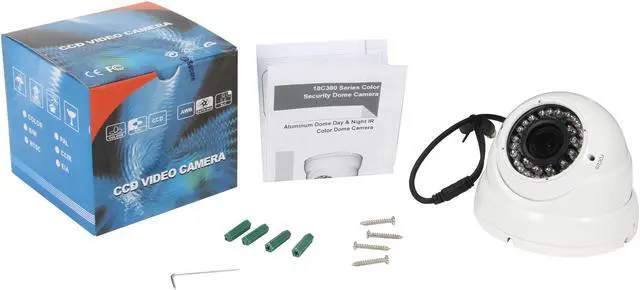

Alt view image 4 of 4 - eSecure ES18C380 700 TVL Sony Effio DSP 2.8~12mm CCTV 36 IR Vandale Security Camera

Shop All ESecure, Inc. Products

eSecure ES18C380 700 TVL Sony Effio DSP 2.8~12mm CCTV 36 IR Vandale Security Camera

(2) Write a Review

1/3" Sony SuperHAD CCD II
Sony Effio-E DSP, 700TVL
2.8~12mm Vari-Focal Lens, external adjustment
36 IR LED for night vision up to 75ft
Wall or Ceiling Mount, Outdoor or indoor use

Specs

Reviews (2)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the eSecure, Inc. ES18C380

Model
Brand	eSecure
Model	ES18C380
Color	White

Details
Network Camera	No
Type	Dome Camera

Network
Connection Type	BNC

Camera
Sensor & Detector	1/3" Sony SuperHAD CCD II
MAX Resolution	700 TV Lines
Lens Type	2.8~12mm Vari-Focal Lens
Night Vision	Yes

Feature
Features	1/3" Sony SuperHAD CCD II Sony Effio-E DSP, 700TVL 2.8~12mm Vari-Focal Lens, external adjustment 36 IR LED for night vision up to 75ft Wall or Ceiling Mount, Outdoor or indoor use

Additional Information
First Listed on Newegg	July 05, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
