What night vision range and field of view does this doorbell camera have?

The Doorbell Lite has built-in IR LED illumination with an IR cut filter for night vision up to 5 m (16 ft). Its field of view is 95.8° horizontal, 131.2° vertical, and 175.9° diagonal.

How does the Doorbell Lite power itself, and does it need a battery?

It is PoE powered over Ethernet, so it does not use a battery. The product description states it is powered over Ethernet through a 10/100 Mbps port, with 37-57V DC and up to 8W max.

eufy Security SoloCam S340 1-Cam Kit (HomeBase S380), Solar Security Camera, Wireless Outdoor Camera, 360° Pan and Tilt Surveillance, No Blind Spots, 2.4 GHz Wi-Fi, No Monthly Fee 1-Cam Kit

(11)

$249^.99 –
Save: 10%

$116^.00

Free 30-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

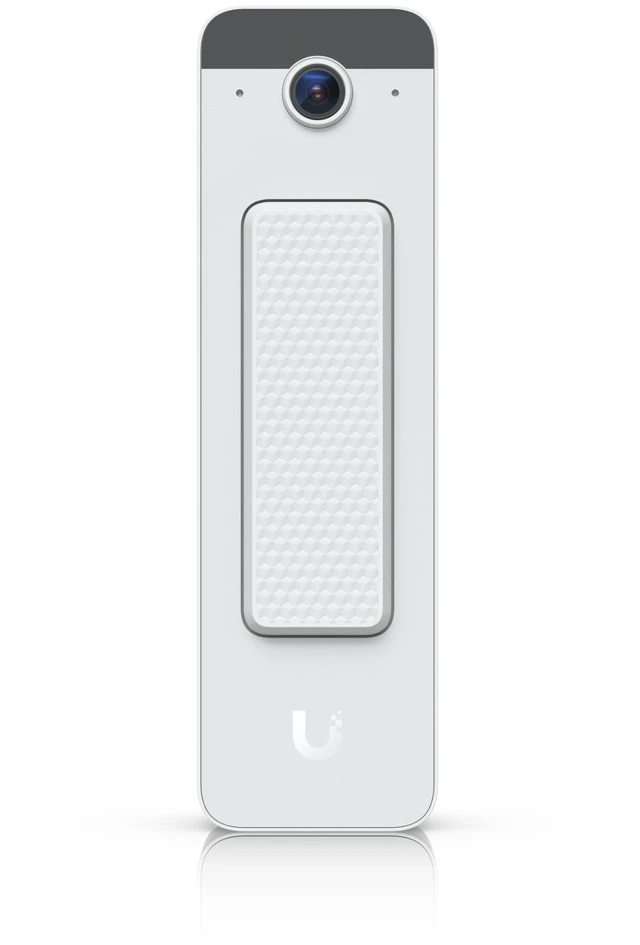

Main image of Ubiquiti UniFi Protect Doorbell Lite, 5MP PoE Video Doorbell Camera, Two-Way Audio, IR Night Vision, IPX5, White (UVC-DOORBELL-LITE-W)

Alt view image 2 of 8 - Ubiquiti UniFi Protect Doorbell Lite, 5MP PoE Video Doorbell Camera, Two-Way Audio, IR Night Vision, IPX5, White (UVC-DOORBELL-LITE-W)

Alt view image 3 of 8 - Ubiquiti UniFi Protect Doorbell Lite, 5MP PoE Video Doorbell Camera, Two-Way Audio, IR Night Vision, IPX5, White (UVC-DOORBELL-LITE-W)

Alt view image 4 of 8 - Ubiquiti UniFi Protect Doorbell Lite, 5MP PoE Video Doorbell Camera, Two-Way Audio, IR Night Vision, IPX5, White (UVC-DOORBELL-LITE-W)

Alt view image 5 of 8 - Ubiquiti UniFi Protect Doorbell Lite, 5MP PoE Video Doorbell Camera, Two-Way Audio, IR Night Vision, IPX5, White (UVC-DOORBELL-LITE-W)

Alt view image 6 of 8 - Ubiquiti UniFi Protect Doorbell Lite, 5MP PoE Video Doorbell Camera, Two-Way Audio, IR Night Vision, IPX5, White (UVC-DOORBELL-LITE-W)

Alt view image 7 of 8 - Ubiquiti UniFi Protect Doorbell Lite, 5MP PoE Video Doorbell Camera, Two-Way Audio, IR Night Vision, IPX5, White (UVC-DOORBELL-LITE-W)

Alt view image 8 of 8 - Ubiquiti UniFi Protect Doorbell Lite, 5MP PoE Video Doorbell Camera, Two-Way Audio, IR Night Vision, IPX5, White (UVC-DOORBELL-LITE-W)

Shop All Ubiquiti Networks Products

Ubiquiti UniFi Protect Doorbell Lite, 5MP PoE Video Doorbell Camera, Two-Way Audio, IR Night Vision, IPX5, White (UVC-DOORBELL-LITE-W)

Be the first to review this product...

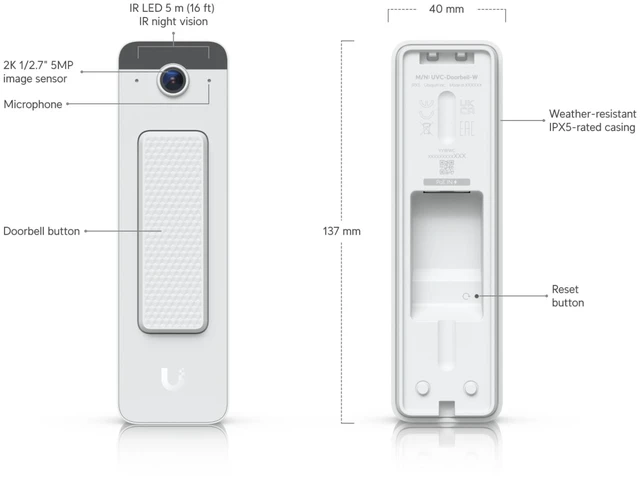

COMPACT 5MP POE VIDEO DOORBELL: The Ubiquiti UniFi Doorbell Lite White records 5MP video (1920 x 2560, 3:4) at up to 24 FPS with a 1/2.7" sensor, so you can see visitors and packages clearly from your UniFi Protect system.
WIDE VIEW & NIGHT VISION: 95.8° horizontal, 131.2° vertical, and 175.9° diagonal field of view, plus built-in IR LED illumination with an IR cut filter for night vision up to 16 ft (5 m).
SMART DETECTIONS & TWO-WAY AUDIO: Detects people, vehicles, and animals, and lets you talk to visitors with two-way audio through the UniFi Protect application.

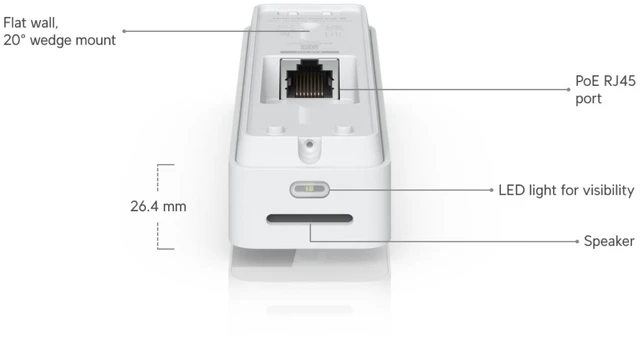

POE POWERED, NO BATTERY: Powered over Ethernet (37-57V DC, 8W max) through a 10/100 Mbps port, so there are no batteries to recharge; wall mount and 20° wedge mount included, with optional gang box and junction box mounts.
BUILT FOR OUTDOOR USE: IPX5 weatherproof, polycarbonate and metal enclosure, operates from -22°F to 122°F (-30°C to 50°C).

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Learn more about the Ubiquiti Networks Doorbell Lite

General
Brand	Ubiquiti
Model	Doorbell Lite
Part Number	UVC-Doorbell-Lite-W
Type	Smart Doorbell

Specification
Specifications	Mounting: Wall, 20° wedge (Included) Gang box, junction box (Optional) PERFORMANCE Networking Interface: 10/100 MbE port Video: Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay Max. Frame Rate: 24 FPS Resolution: 5MP 1920 x 2560 (3:4) Optics: Sensor: 1/2.7" 5MP Lens: Fixed focal length Night Mode: Built-in IR LED illumination and IR cut filter

Features
Features	IR Night Vision: 5 m (16 ft) Smart Detections (People, Vehicles, Animals) Resolution: 5MP Field of View: H: 95.8°, V: 131.2°, D: 175.9° Audio: Two-way audio Weatherproofing: IPX5

Dimension & Weight
Dimensions	137 x 40 x 26.4 mm (5.4 x 1.6 x 1")
Weight	Device: 142 g (5 oz) With flat wall mount: 165 g (5.8 oz) With 20° wedge mount: 179 g (6.3 oz)
