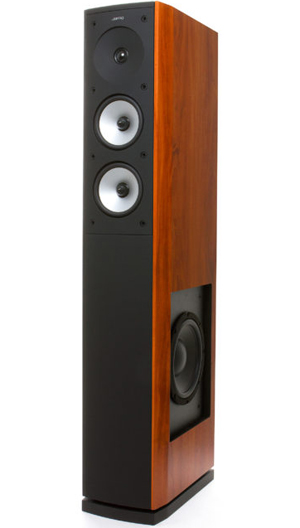

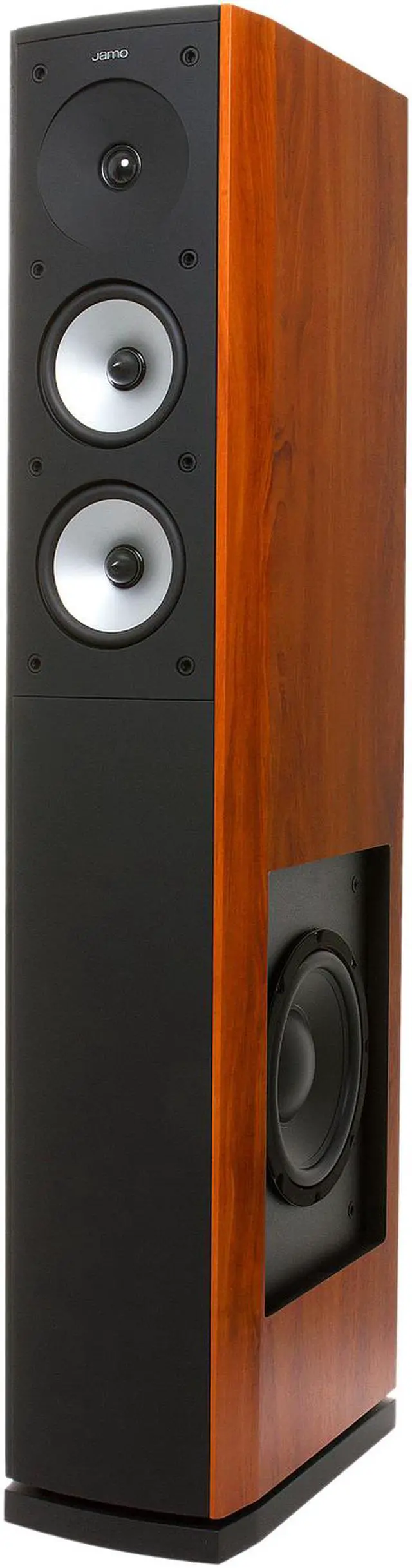

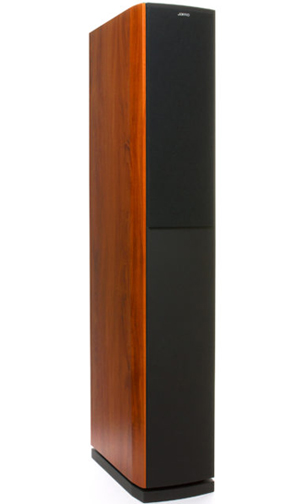

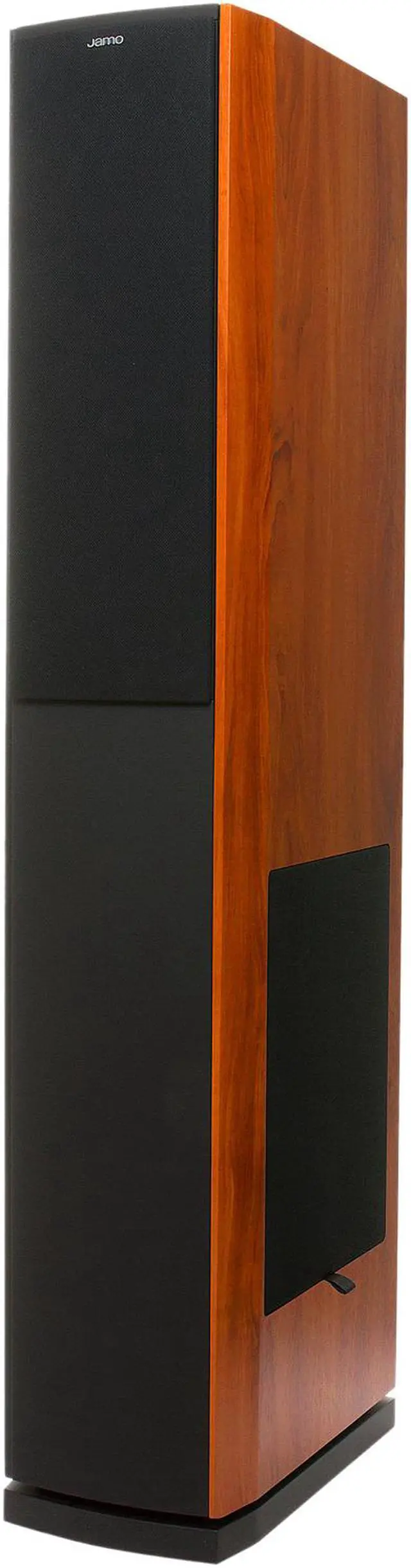

S 626 Floorstanding Speaker
TECHNOLOGY
- 1-inch (25 mm) soft dome tweeter/dual 5-inch (127 mm) aluminized midrange drivers/ 8-inch (203 mm) side-firing woofer.
- Bass-reflex design with flared, rear-firing port: Increases system efficiency and bass output.
- Waveguide: Provides more uniform dispersion in the critical frequency range of 2-10 kHz. Dynamics and clarity are enhanced while distortion is significantly reduced.
- Aluminum centre-plug: Eliminates cone breakup for faster "attack" and increased vocal clarity. Additional voice-coil cooling reduces power compression.
- Aluminized midrange drivers: Increases cone rigidity and vocal clarity.
- Side-firing woofer: Provides a slimmer cabinet design and bass optimization for varying room acoustics.
- Dual,5-way binding posts: Allows bi-wiring/bi-amplification with multiple connection options with wire up to 12 gauge (AWG).
DESIGN
The Jamo S 626 is an exceptional 3-way speaker featuring a side-mounted 8-inch woofer for a slim, cohesive design without an accompanying sacrifice in sound quality. The "mirror image" speaker pairs give you placement flexibility for the best possible acoustic interaction with your listening room. The S 626 is available in White Ash, Dark Apple and Black Ash finishes, complemented by soft-feel black baffles giving the speaker a premium appearance. The Jamo S 626 is fully equipped for optional bi-wiring and bi-amplification and includes optional speaker spikes.
SPECIFICATIONS
| Product dimensions (mm/in, HxWxD) | 1080 x 190 x 345 / 42.5 x 7.5 x 13.6 |
| Power Handling (Watts Long/Short Term) | 130 / 210 |
| Crossover Frequency | 150 / 2500 |
| Woofer (mm/in) | 203 / 8 |
| Weight (Kg/lb) | 23.5 / 51.8 |
| Tweeter (mm/in) | 25 / 1 |
| System Type | 3 Way Bass Reflex |
| Frequency Response (Hz, +/-3dB) | 42-20,000 |
| Impedance | 6 |
| Sensitivity (dB, 2.8V/1m) | 89 |
| Finish | Black Ash, Dark Apple, White Ash |
| Midrange (mm/in) | Dual 127 / 5 |
